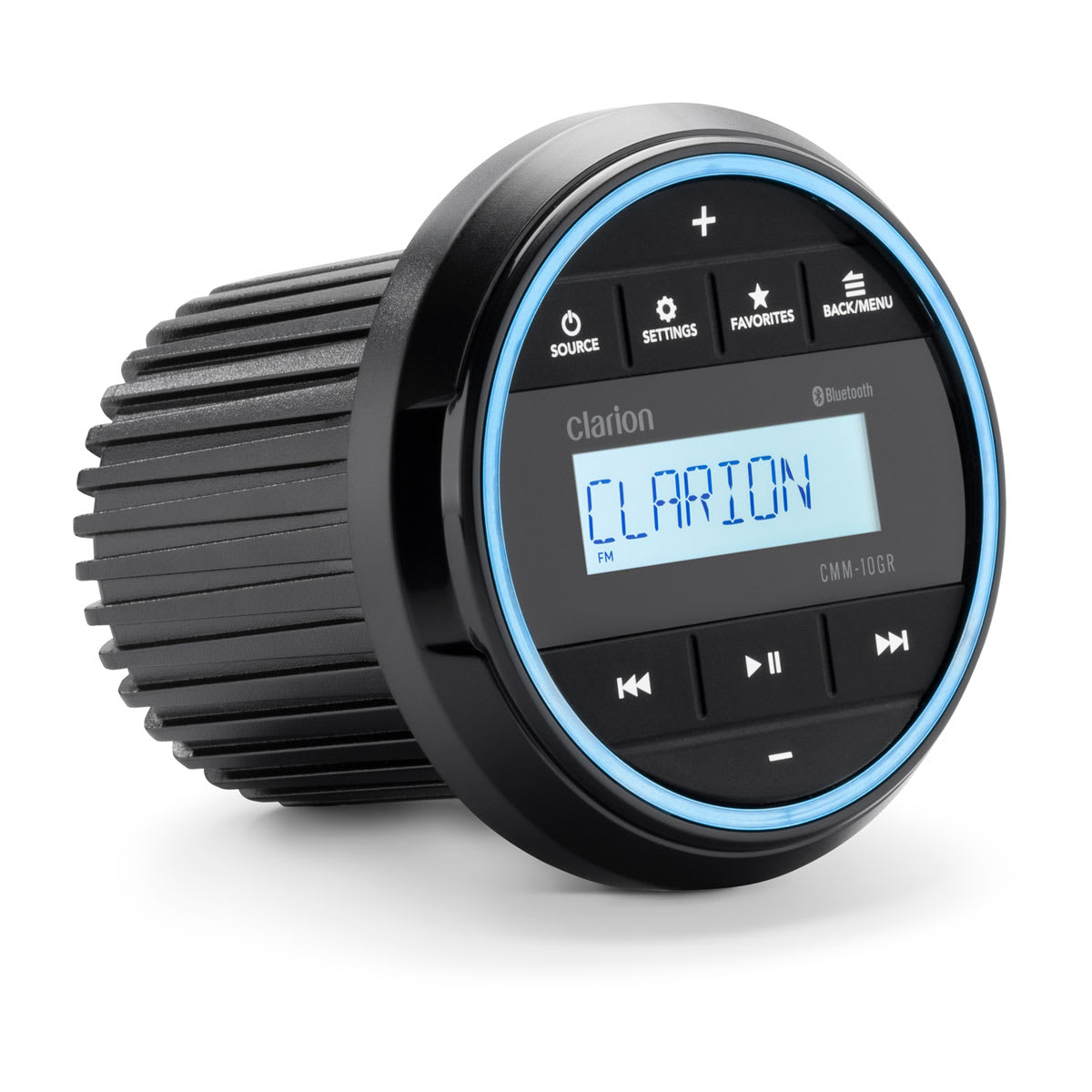

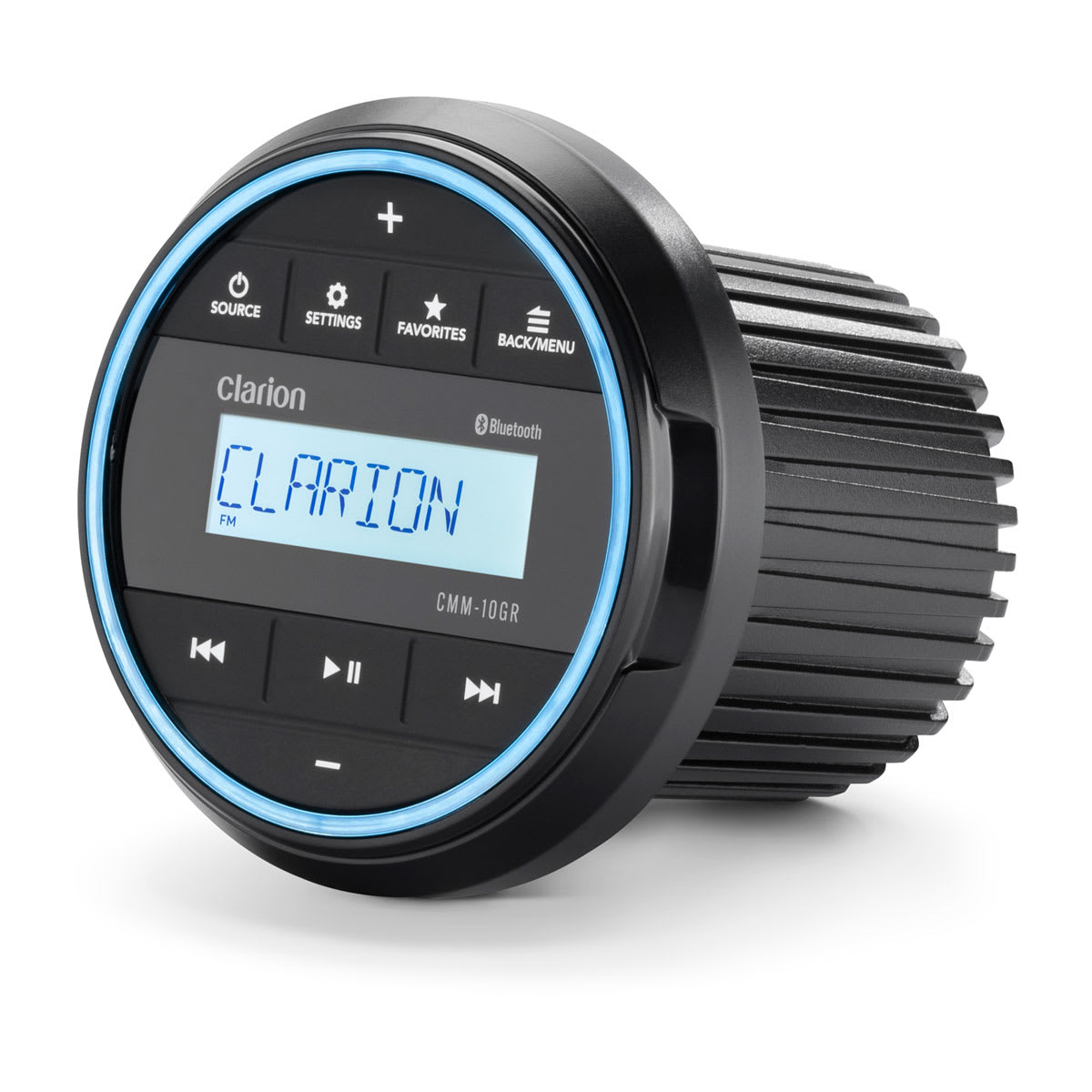

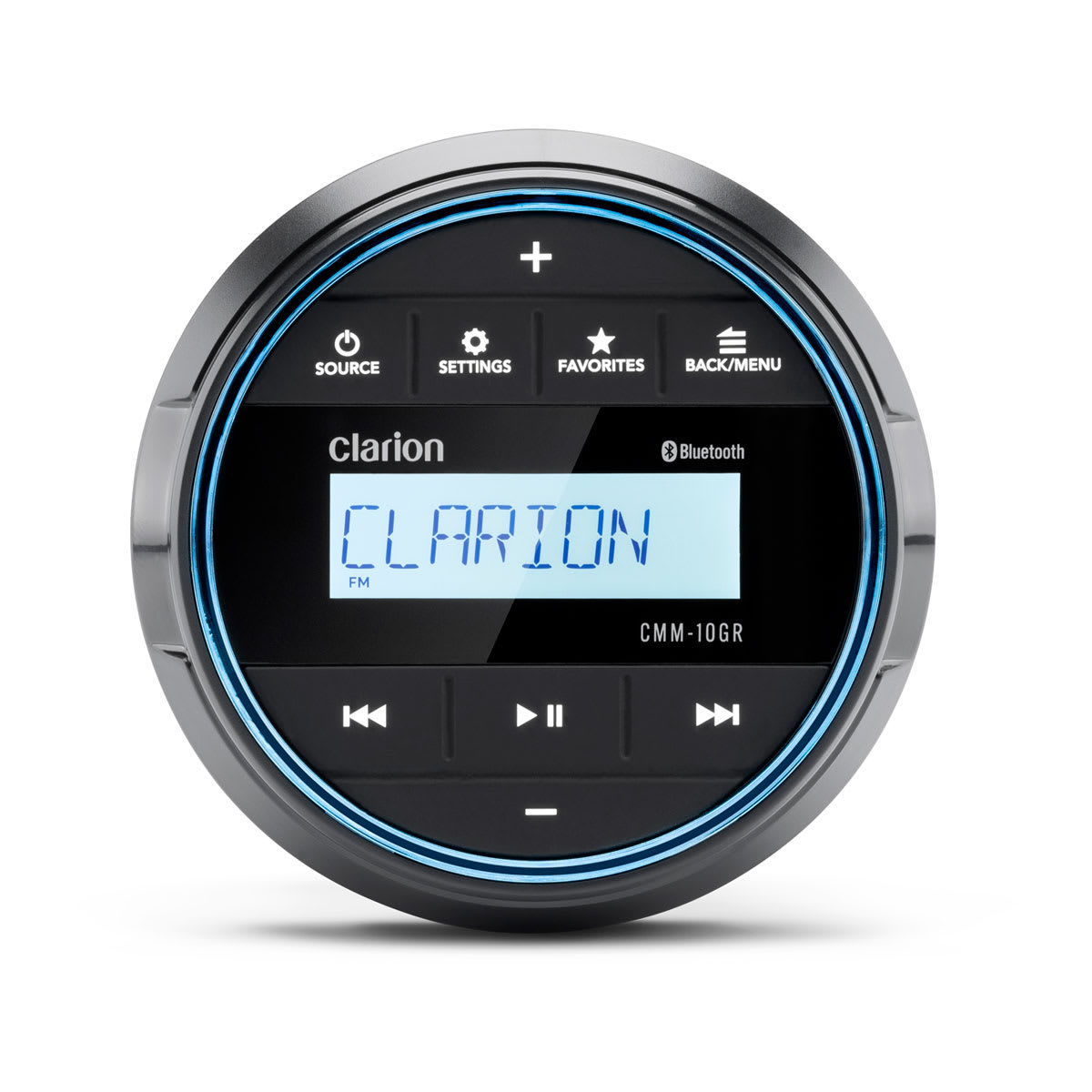

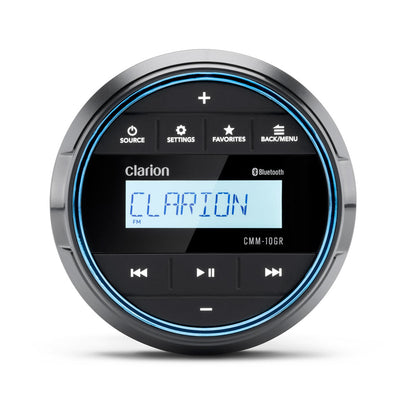

Clarion® Marine Compact Source Unit 3\" Gauge Hole with LCD Display (CMM-10GR)

Clarion® Marine Compact Source Unit 3\" Gauge Hole with LCD Display (CMM-10GR)

$53.99 USD
$179.99 USD $53.99 USD
Sale Sold out

General
Warranty 1 year
Physical dimensions (Height) CMM-10: 2.48" (63 mm)
CMM-10GR: 4.03" (102 mm)
Physical dimensions (Width) CMM-10: 4.33" (110 mm)
CMM-10GR: 4.03" (102 mm)
Physical dimensions (Depth) 3.15" (80 mm)
Control Surface Dust/Water Rating (when properly installed) IP66
Operating temperature range -4° F to +140° F (-20° C to +60° C)
Current draw (max) 15 A
Multi-language interface English

Audio
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) 20 W x 4

Electrical Features
Power Input 10-16 VDC

Stereo Features
Display size CMM-10: 2.09" (53 mm)
CMM-10GR: 2.09" (53mm)
Display type monochrome, segmented, TFT LCD backlit
Optically bonded display
Built-in amplifier Class AB (4 Ω)
Multi-Zone™ technology
Bluetooth® wireless technology
DAB+ ready see Additional

Sources
Supported sources

Digital AM/FM with RDS/NOAA Weather Radio (US only)/DAB+ (CMM-10i: Europe only)/BLUETOOTH®/USB audio/iPhone/iPod
Supported audio formats (USB) MP3, WMA, FLAC, WAV

Networking & Connections
USB 2.0 ports 1 USB storage device (1 A charging output)
AM/FM ports (Motorola antenna connector) 1
Speaker connections 4 (2 zones amplified)
RCA pre-out (left, right and subwoofer - requires external amplification) 2 zones (L+R) or Zone 2 as subwoofer
Line out (requires external amplification) 2 (L + R per zone)
Subwoofer out (requires external amplification) Occupies Zone 2
Wireless frequencies/protocols BLUETOOTH®
Bluetooth® wireless range Up to 35 ft (11 meters)

Additional
Additional DAB+ Ready: CMM-10i: yes
