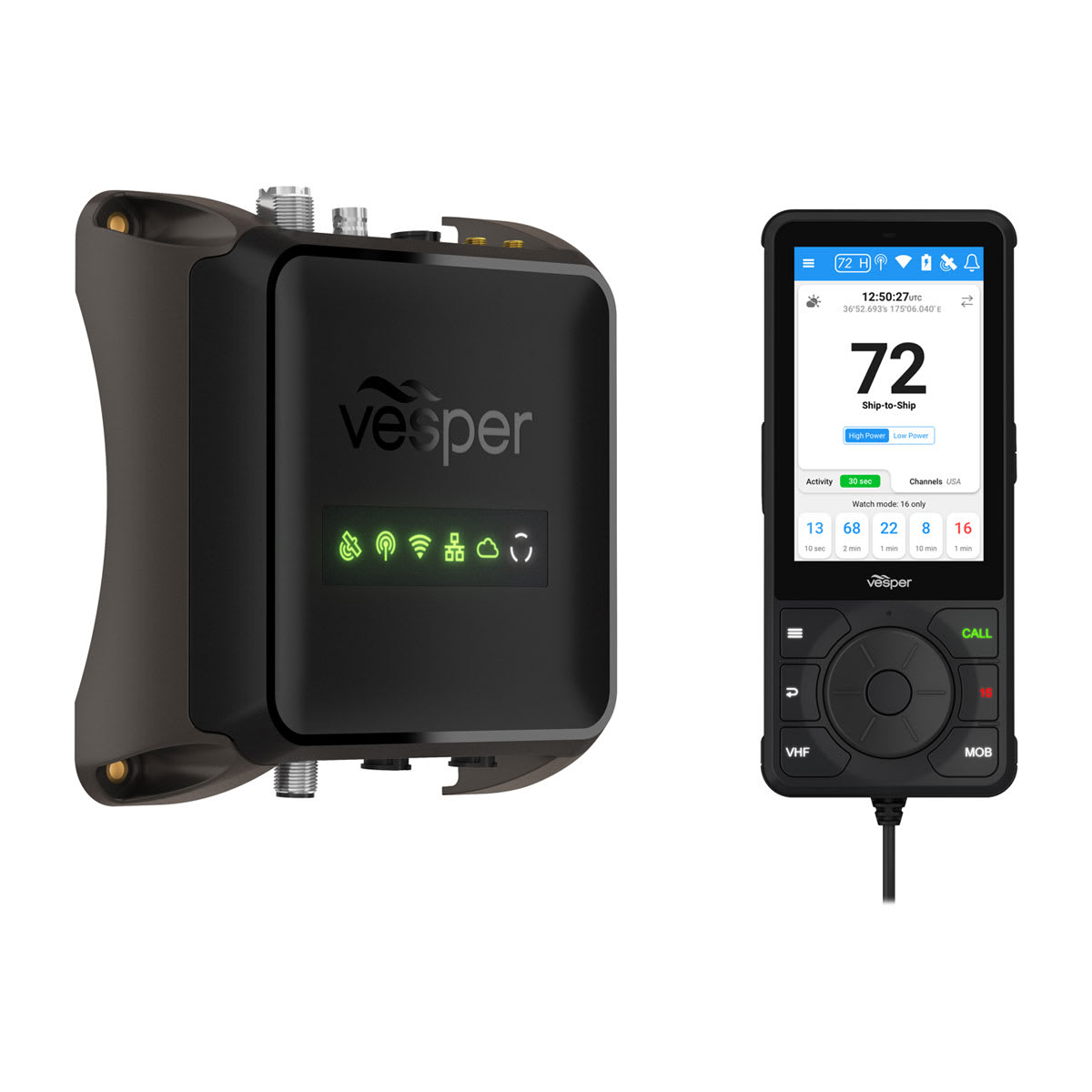

Cortex® V1 Hub VHF Radio with smartAIS® Transponder and Remote Vessel Monitoring

Name: Cortex® V1 Hub VHF Radio with smartAIS® Transponder and Remote Vessel Monitoring
Brand: My Store
SKU: 1778476564
Price: 109.99 USD
Availability: InStock

$109.99 USD

~~$366.00 USD~~ $109.99 USD

Sale Sold out

General
Unit size	M1: 168 x 168 x 58.7 mm (6.6" x 6.6" x 2.3" ) H1/H1P: 164.8 x 71.8 x 21.4 mm (6.5" x 2.8" x 0.8")
Weight	M1: 770 g (1.7 lbs) H1: 285 g (0.63 lb) H1P: 235 g (0.5 2 lb)
Operating voltage	9.6 - 32 VDC
Water rating	see Additional
Display Type	color IPS LCD, capacitive touch
Display Size	4" (102 mm)
Display resolution	640 x 800 pixels
Operating temperature	-20° C to 55° C (-4° to 131° F)
Inland waterways (ATIS)
Backlight	600 nits

VHF Features
Audio record and playback
Auto squelch
Dual/Tri watch
Presets watch
Loud hailer
AIS target display
AIS collision and MOB alarms
Integrated AIS transponder

VHF Radio
Region	All U.S., Canadian and International marine channels; NOAA weather channels
VHF frequency range Tx	156.025–162.025 MHz
VHF frequency range Rx	156.025–163.275 MHz
VHF transmit power (max)	25 W, 1 W (high, low)
Transmitter frequency tolerance	+/0.3 kHz
Adjacent channel power	70 dB
Spurious emissions	-80 dBc (at 25 W)/0.25uW
Sensitivity (12 dB SINAD)	-116 dBm (=9 dBu/0.35 uV)
Adjacent channel selectivity	80 dB
Spurious response	70 dB
VHF intermodulation	70 dB
Max antenna gain	6 dBi

DSC
Class	Class D
Sensitivity (1% BER)	-115 dBm
Adjacent channel selectivity	80 dB
Spurious response	70 dB
Intermodulation	70 dB

AIS Transponder Features
Anchor watch
Remote station support	5, H1/H1P

AIS
Class	SOTDMA Class B
Long range position reports (Msg 27)
Frequency range	156.025 – 162.025 MHz
AIS power output	5 W
AIS Sensitivity (20% PER)	-113 dBm
Adjacent channel selectivity	80 dB
Spurious response	70 dB
Intermodulation	67 dB

GNSS
Integrated GNSS receiver
Constellations	GPS, GLONASS, BeiDou, Galilleo
Differential support	SBAS, AIS Msg 17
Navigation rate	10 Hz

Sensors
NMEA 2000 Compatible
NMEA 0183 Compatible	see Additional
Heading
Barometer
Battery voltage
External sensor inputs	5

Audio
Max speaker output power	2 W, < 10% THD
Max external speaker output power	10 W, < 1% THD, 4 Ω
Max hailer loudspeaker output power	30 W, 4 Ω

Tactical Features
Stealth Mode

Electrical Features
Typical current draw at 12 Vdc	M1: 12V: 700 mA, 6 A max H1/H1P: 12V: 200 mA, 1 A max
Compass-safe distance	80 cm (31.5")

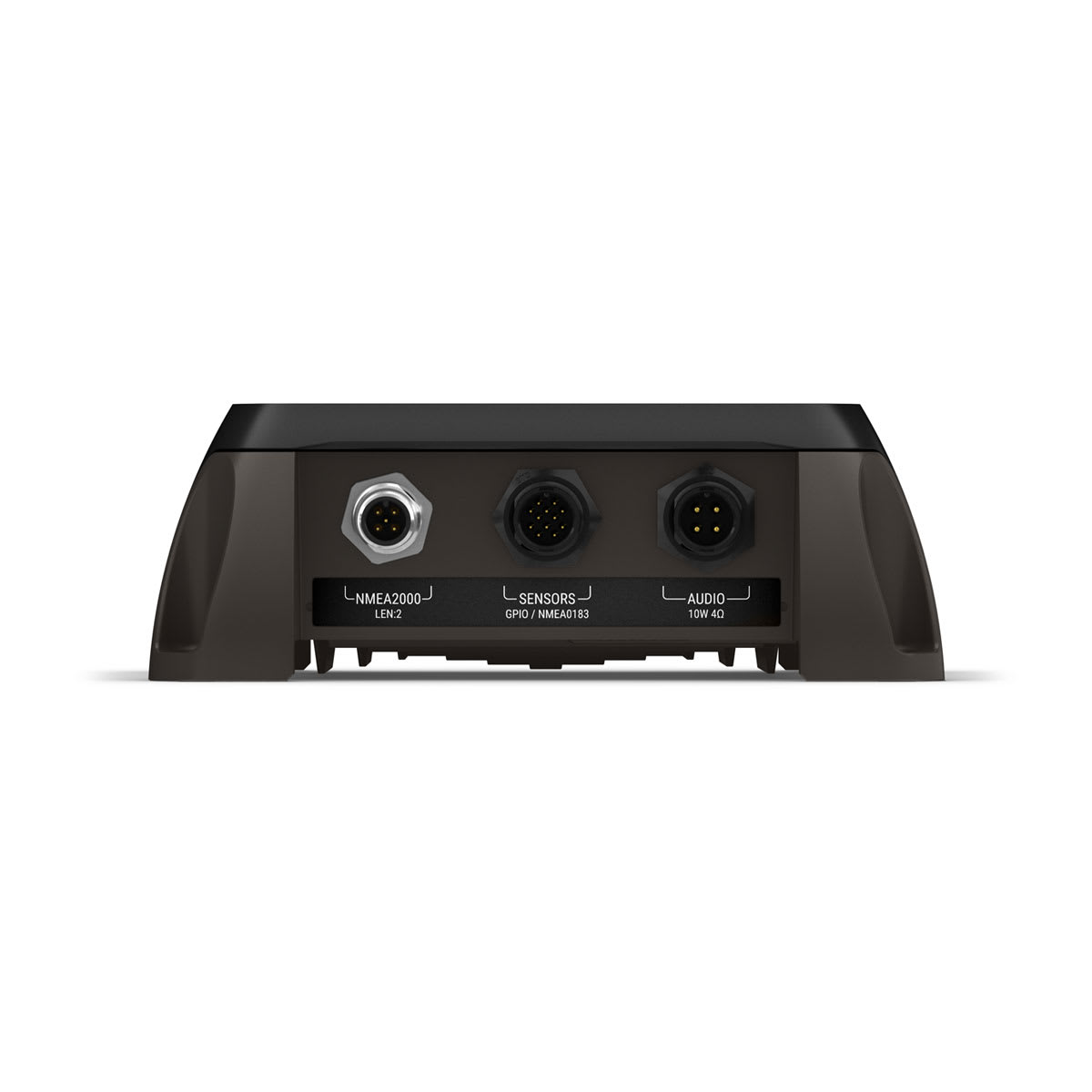

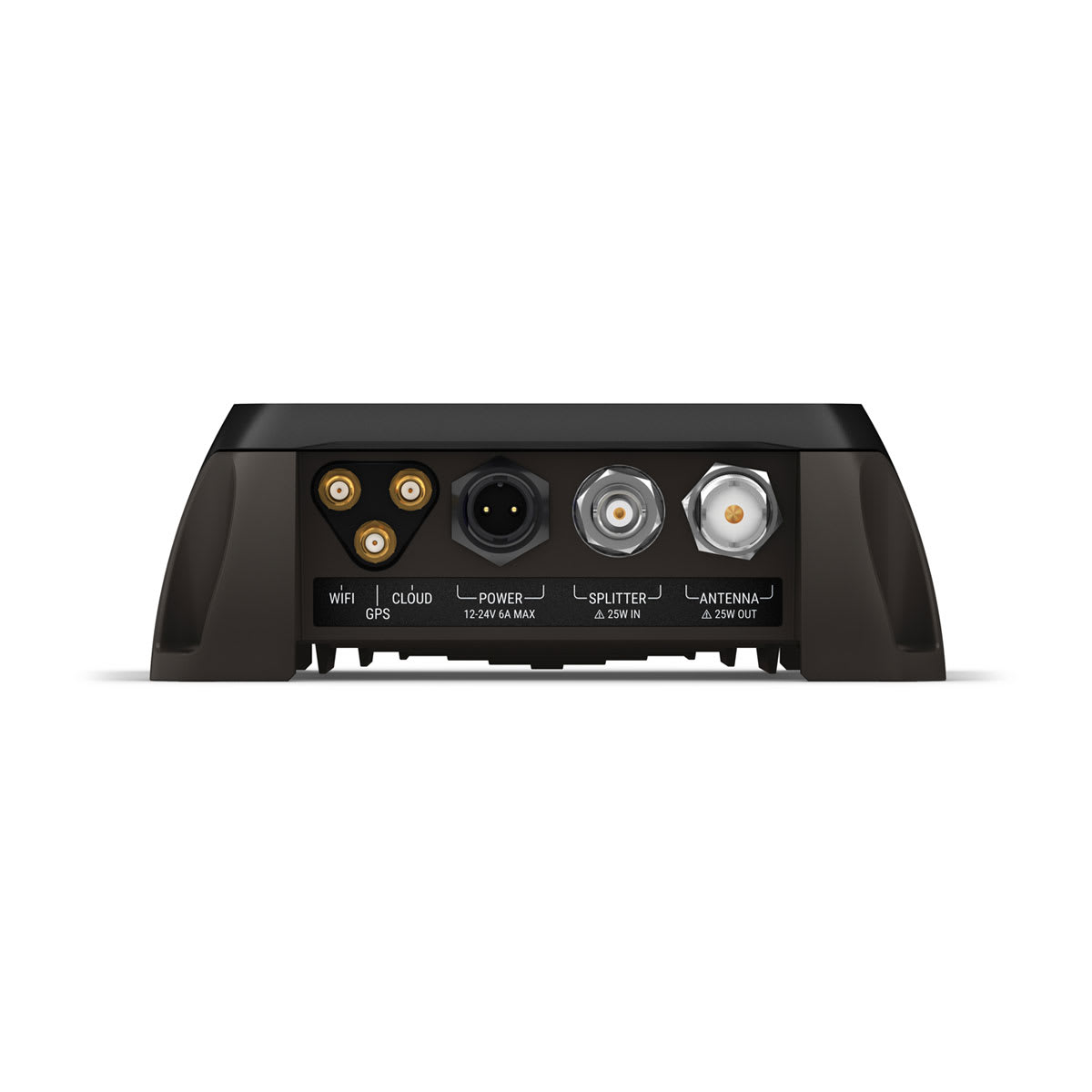

Networking & Connections
NMEA 2000® Gateway	Gateway translations to/from NMEA 0183
Control outputs	2
Wireless Connectivity	Access Point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional)
Cloud connectivity	LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port
Wireless security	WPA2 Personal
External GNSS antenna connector	SMA
Ant connector	SO-239 (50 Ω)

Additional
Additional	NMEA 0183: 1 isolated NMEA 0183 port, AIS & GPS sentences, gateway translations to/from NMEA 2000, 4800/38400 baud Water rating: M1, IPX7; H1/H1P, IPX8
