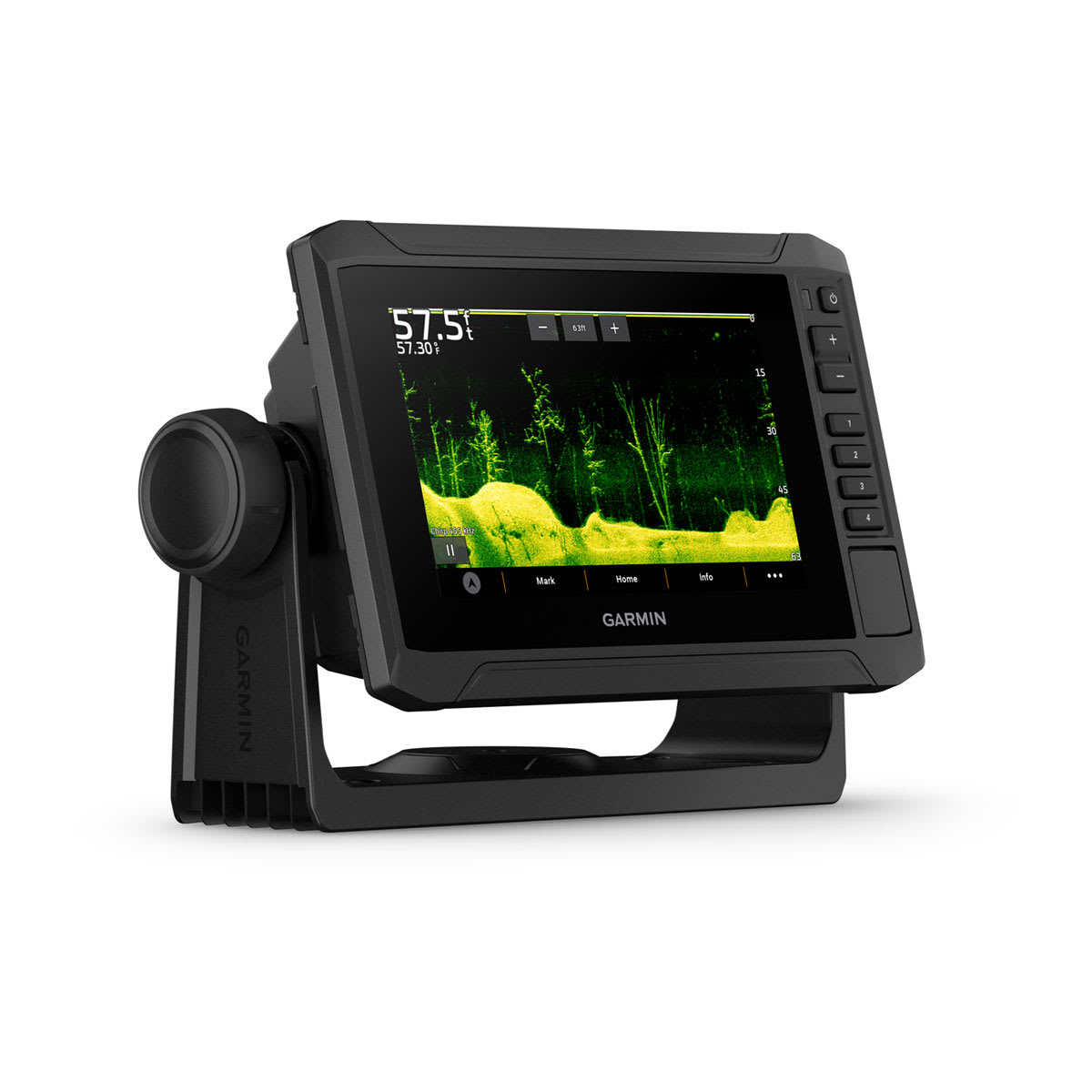

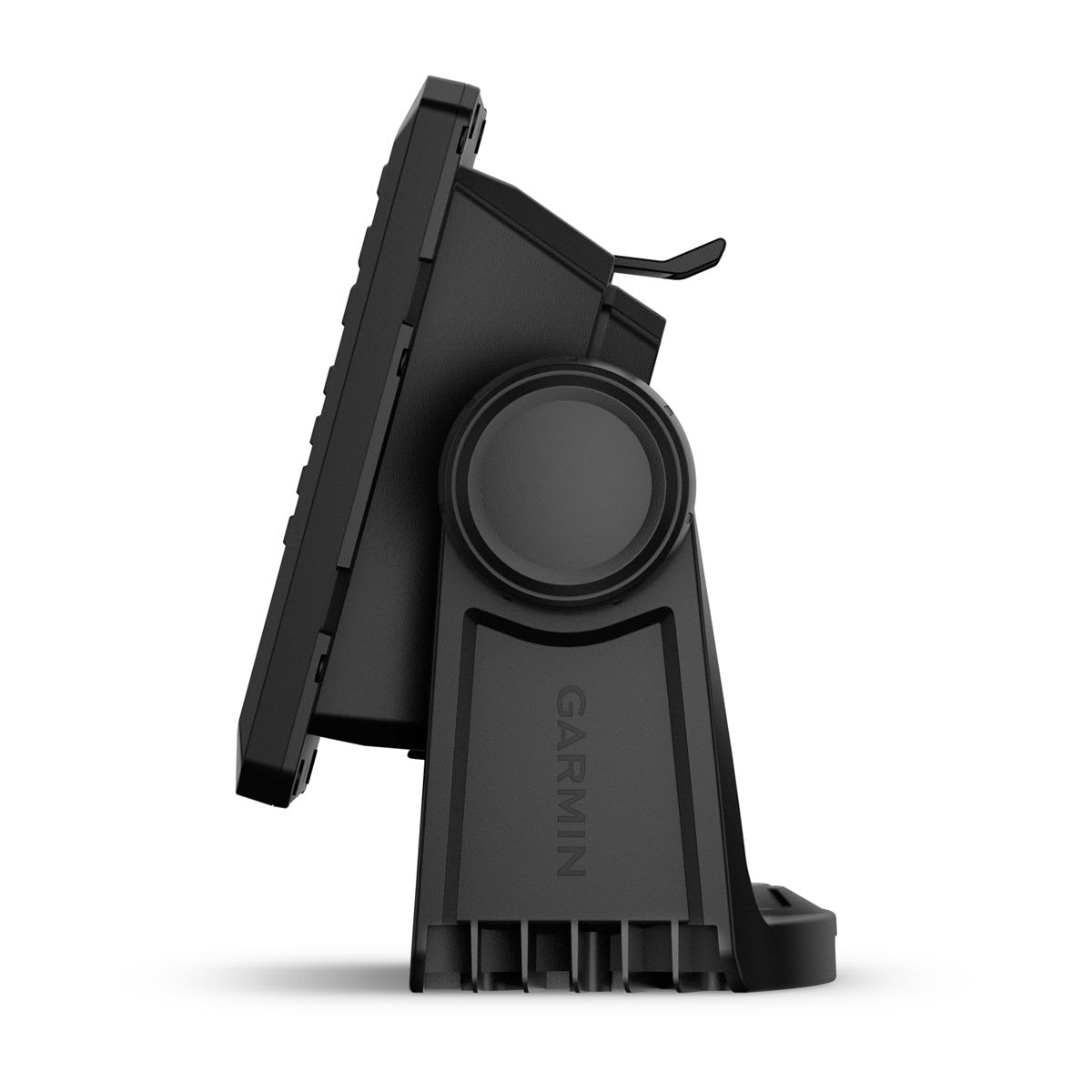

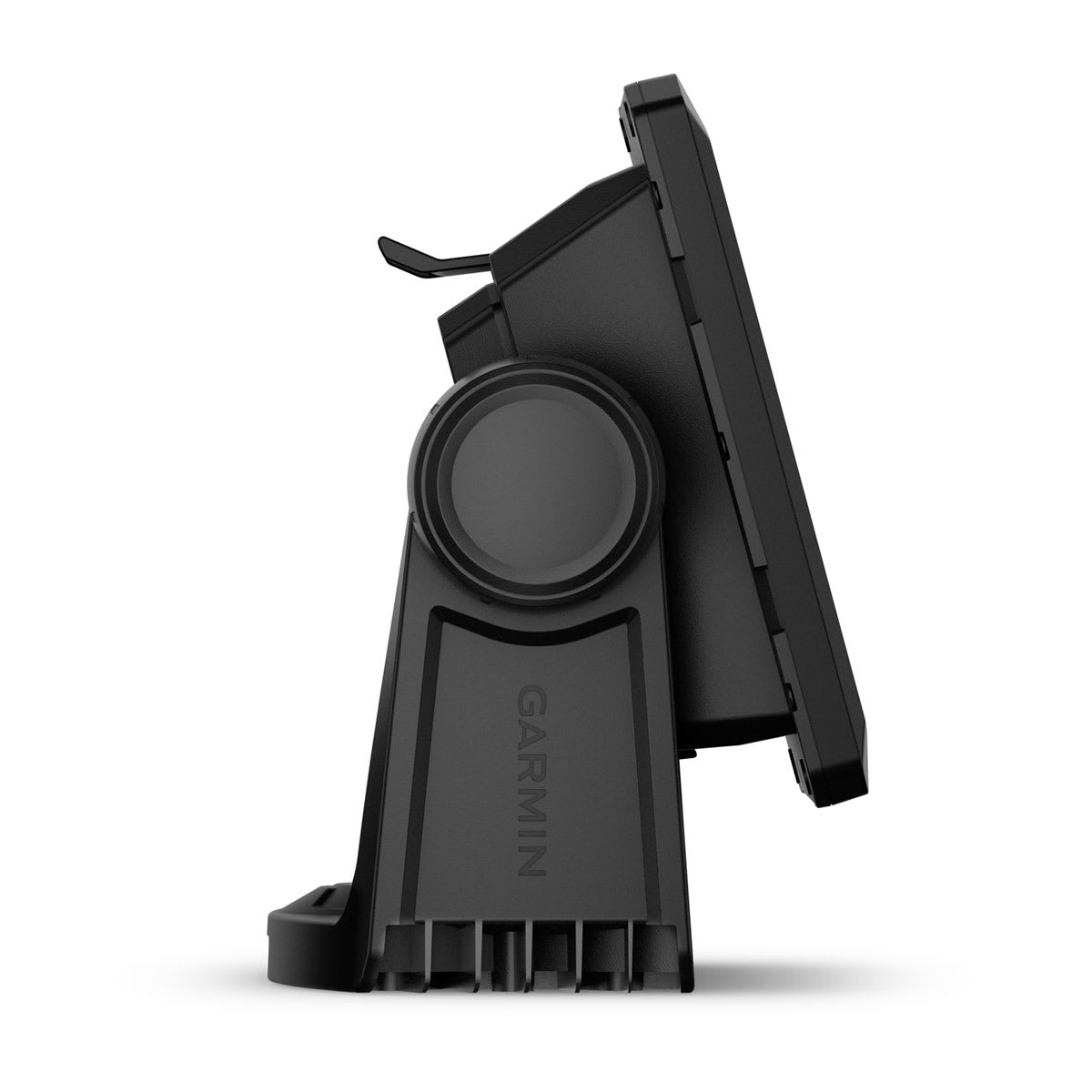

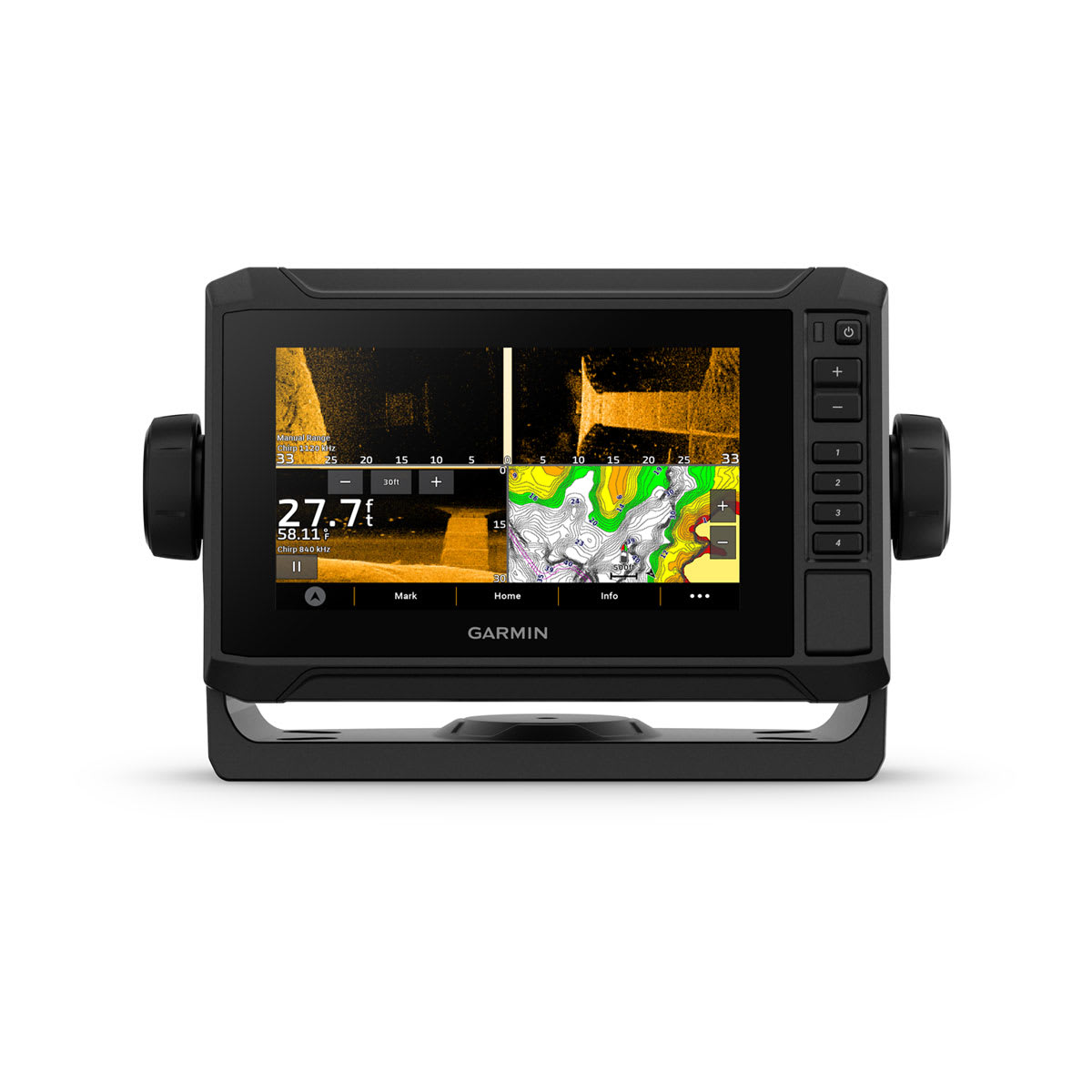

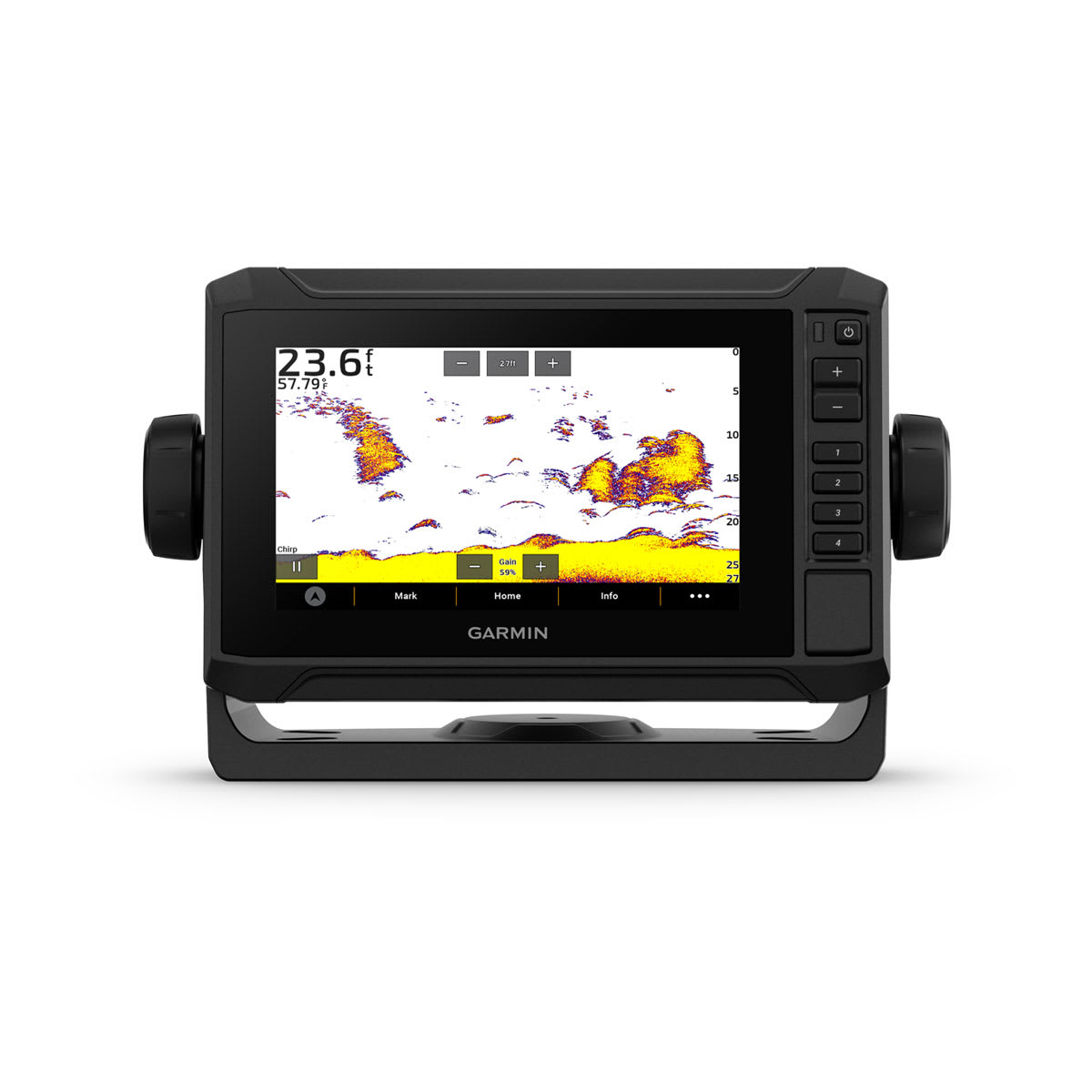

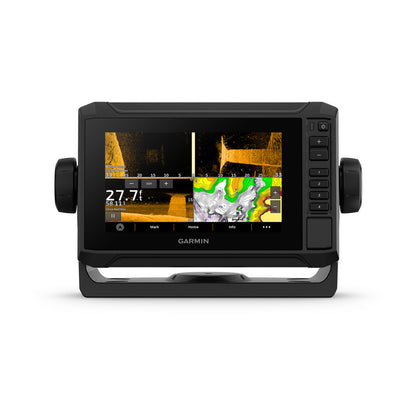

ECHOMAP™ UHD2 6" sv Chartplotters 63sv with GT54UHD-TM Transducer and Garmin Navionics+ U.S. Inland Mapping

Name: ECHOMAP™ UHD2 6" sv Chartplotters 63sv with GT54UHD-TM Transducer and Garmin Navionics+ U.S. Inland Mapping
Brand: My Store
SKU: 1778474143
Price: 110.99 USD
Availability: InStock

$110.99 USD

~~$368.00 USD~~ $110.99 USD

Sale Sold out

ECHOMAP™ UHD2 6" Chartplotter helps you get to know the waters, & catch more fish with crystal-clear ClearVu and SideVu Sonar, 6-inch touchscreen display, & Garmin Navionics+ preloaded maps.

General
Dimension	8.1" x 5.2" x 2.6" (20.6 x 13.1 x 6.7 cm)
Weight	1.8 lbs (0.8 kg)
Water rating	IPX7
Touchscreen
Display Type	WVGA, TN
Display Size	5.4" x 3.1", 6.2" (13.8 x 7.8, 15.7 cm)
Display resolution	800 x 480 pixels
Mounting Options	bail or flush
Input	Touchscreen with keyed assist

Maps & Memory
Accepts Data Cards	1 microSD™ card; 32 GB maximum size
Waypoints	5,000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100

Sensors
GPS
GLONASS
Galileo
BeiDou
Has built-in receiver
Receiver	10 Hz
NMEA 2000 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS

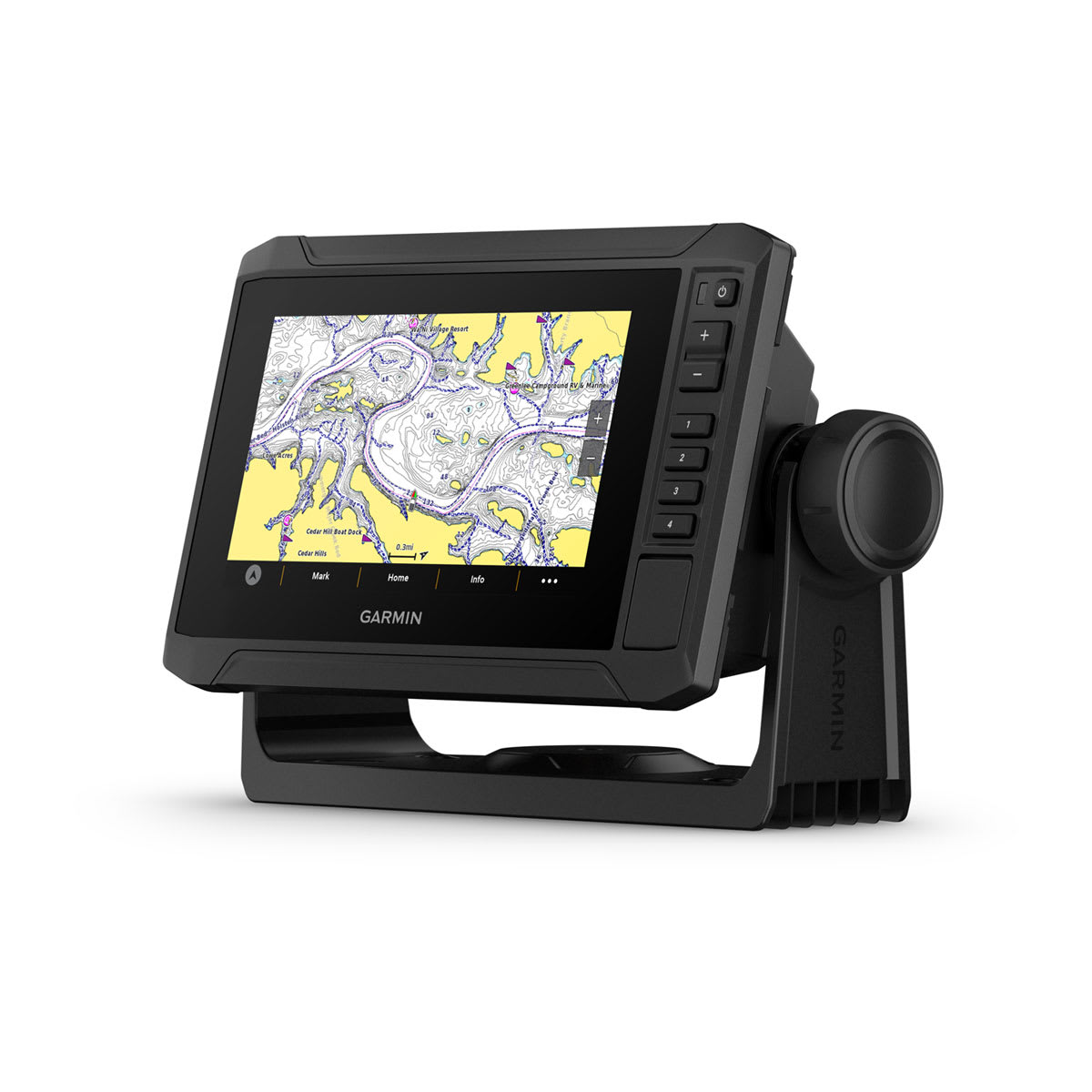

Built-in Maps
Built-in Auto Guidance+	yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal	yes (see Additional)
Garmin Navionics+ (Coastal)	yes (see Additional)
Garmin Navionics+ (Inland)	yes (see Additional)
Tide tables	yes (see Additional)

Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours

Chartplotter Features
AIS
DSC
Supports Fusion-Link™ compatible radios
ActiveCaptain® compatible
Sailing Features

Electrical Features
Power Input	9 to 18 Vdc
Typical current draw at 12 Vdc	1.53 A
Maximum current draw at 12 Vdc	3.2 A
Maximum power usage at 10 Vdc	18.4W

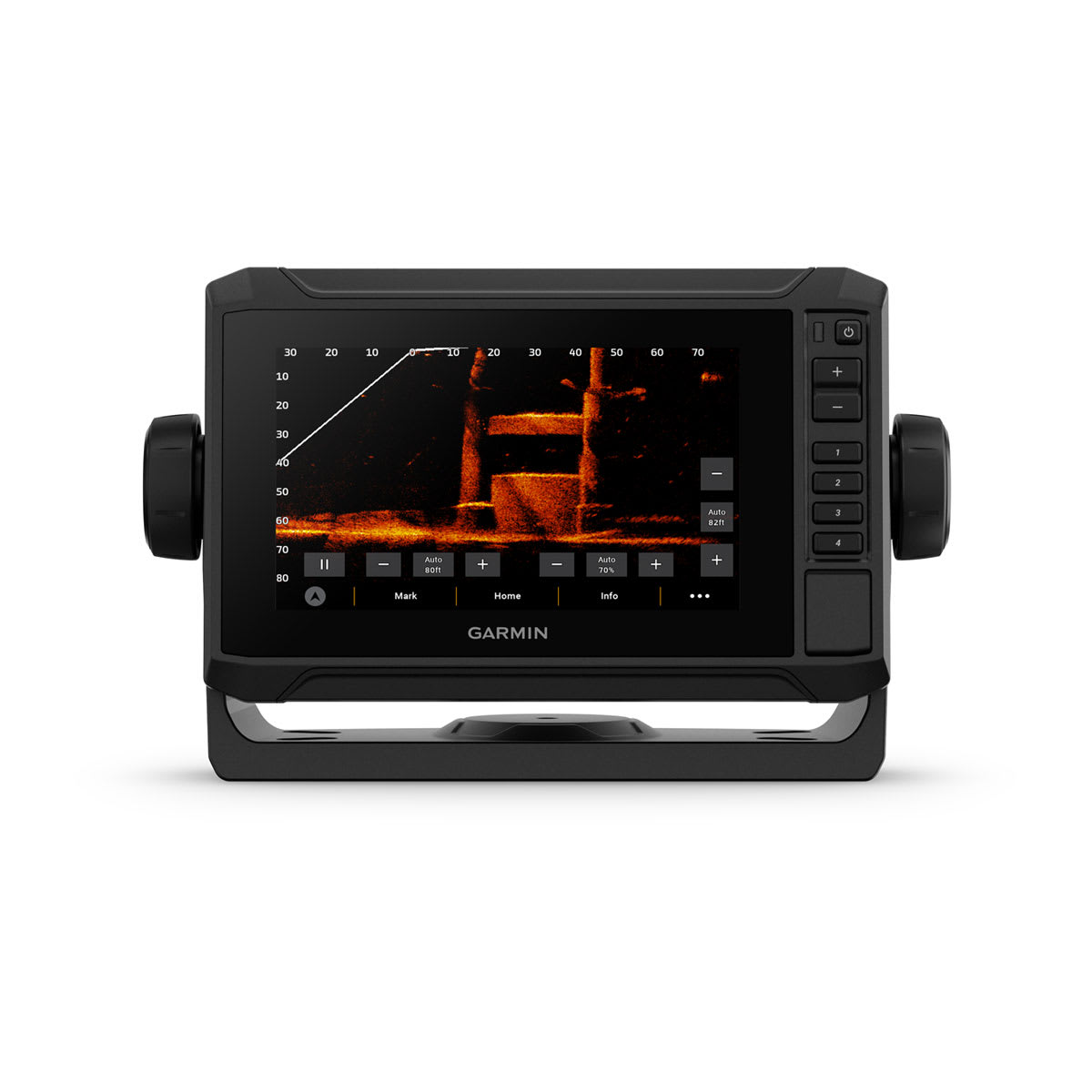

Sonar Features
Displays sonar
Power output	500 W
Traditional sonar (dual frequency/beam)	Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz

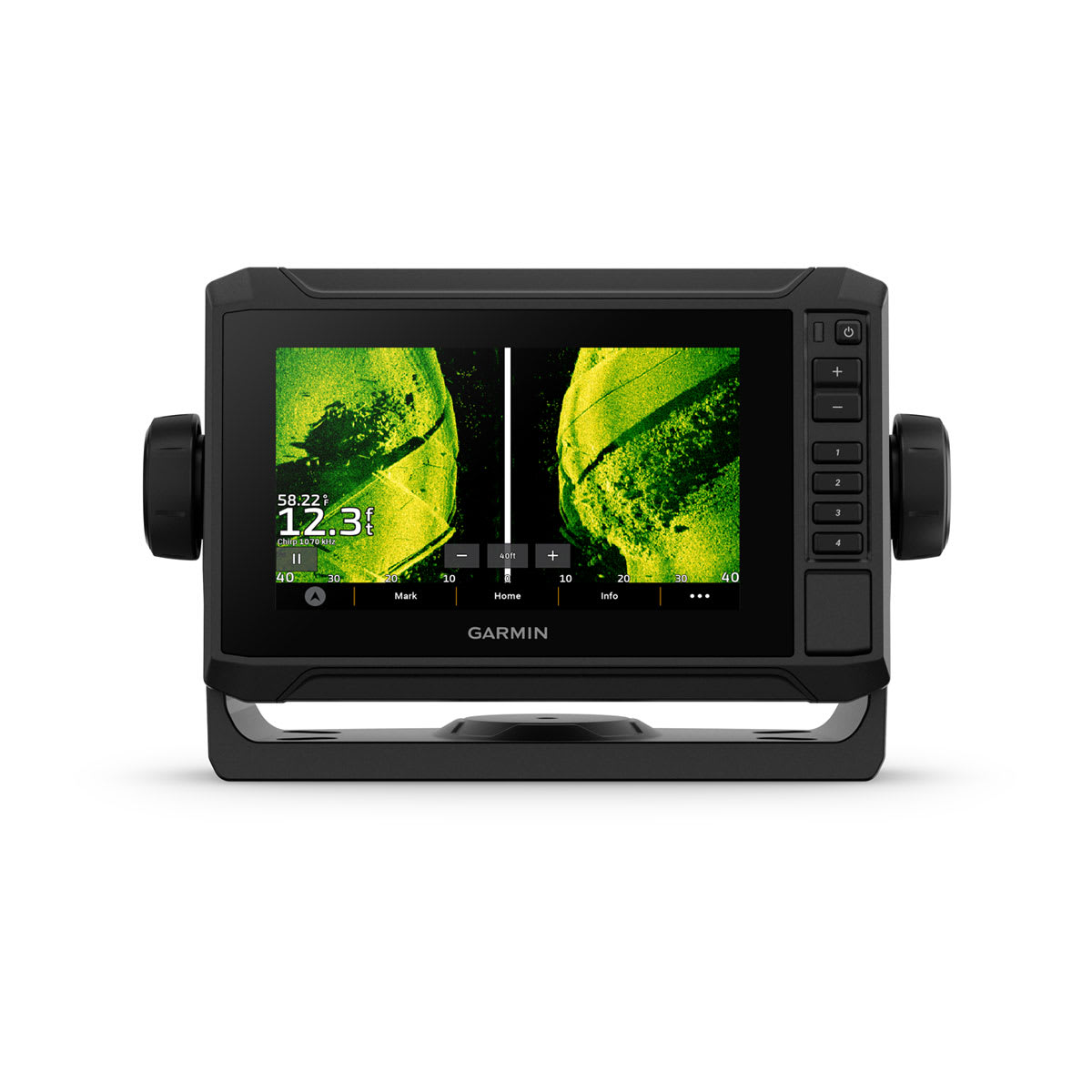

SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope

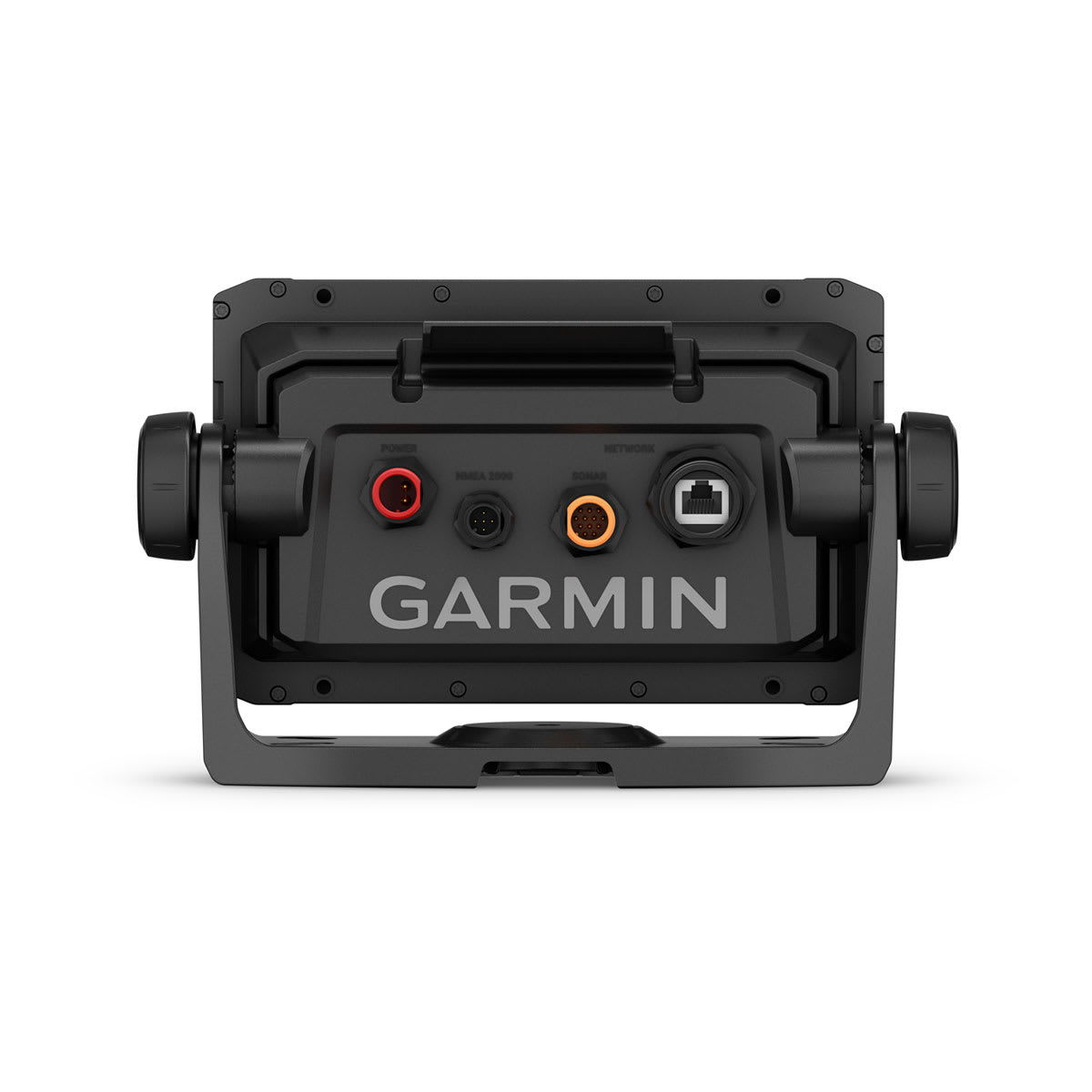

Networking & Connections
NMEA 2000® ports
Garmin Marine Network Ports	1
12-pin transducer ports	1
Bluetooth® pairing
ANT® (Connectivity)
Garmin Wi-Fi network (local connection)

Additional
Additional	Garmin Navionics+ (inland and coastal): 65sv Canada, Australia and New Zealand Garmin Navionics+ (coastal): 64sv U.S. coastal, 65sv UK/Ireland Garmin Navionics+ (inland): 63sv U.S. lakes Tide tables: 63sv, 64sv, 65sv
