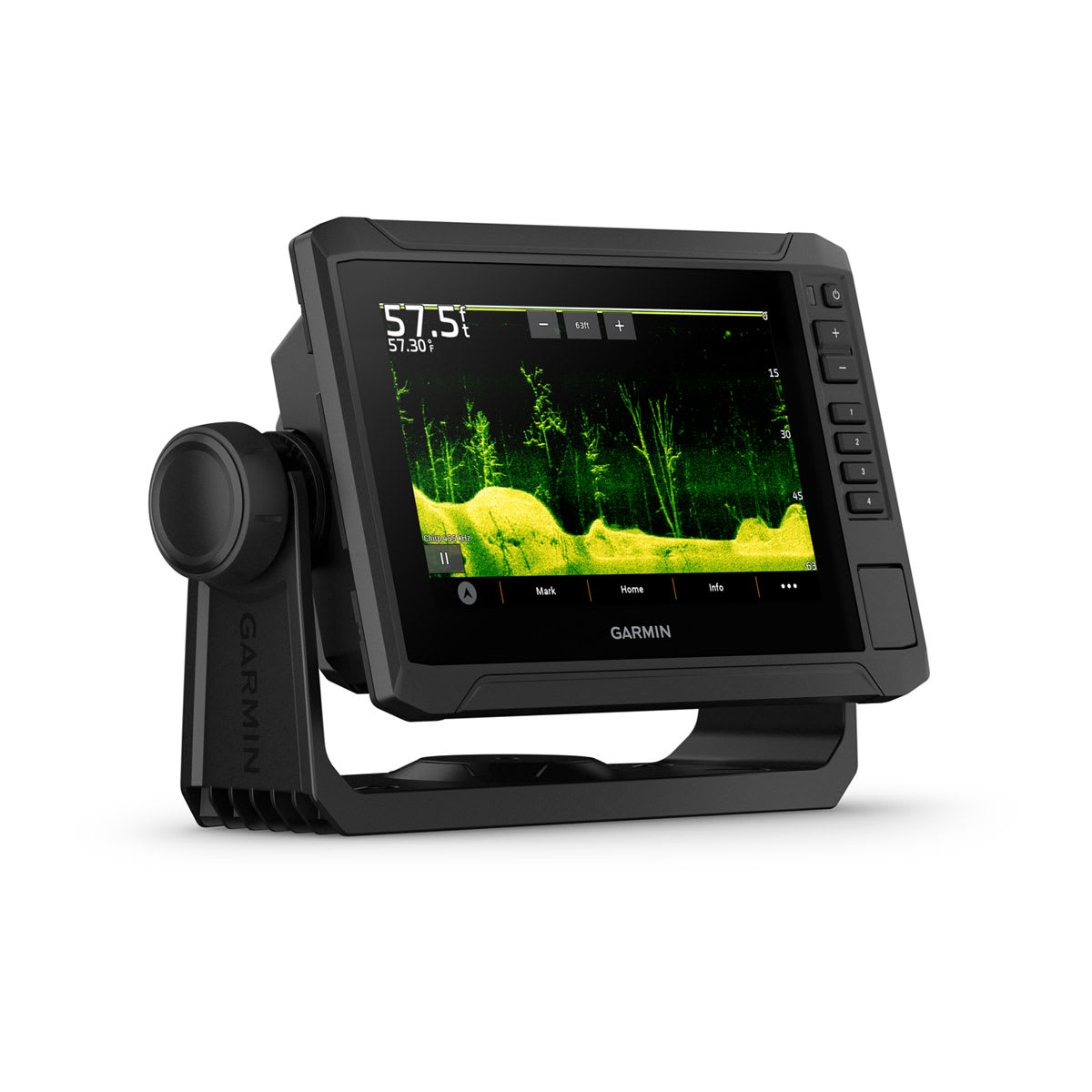

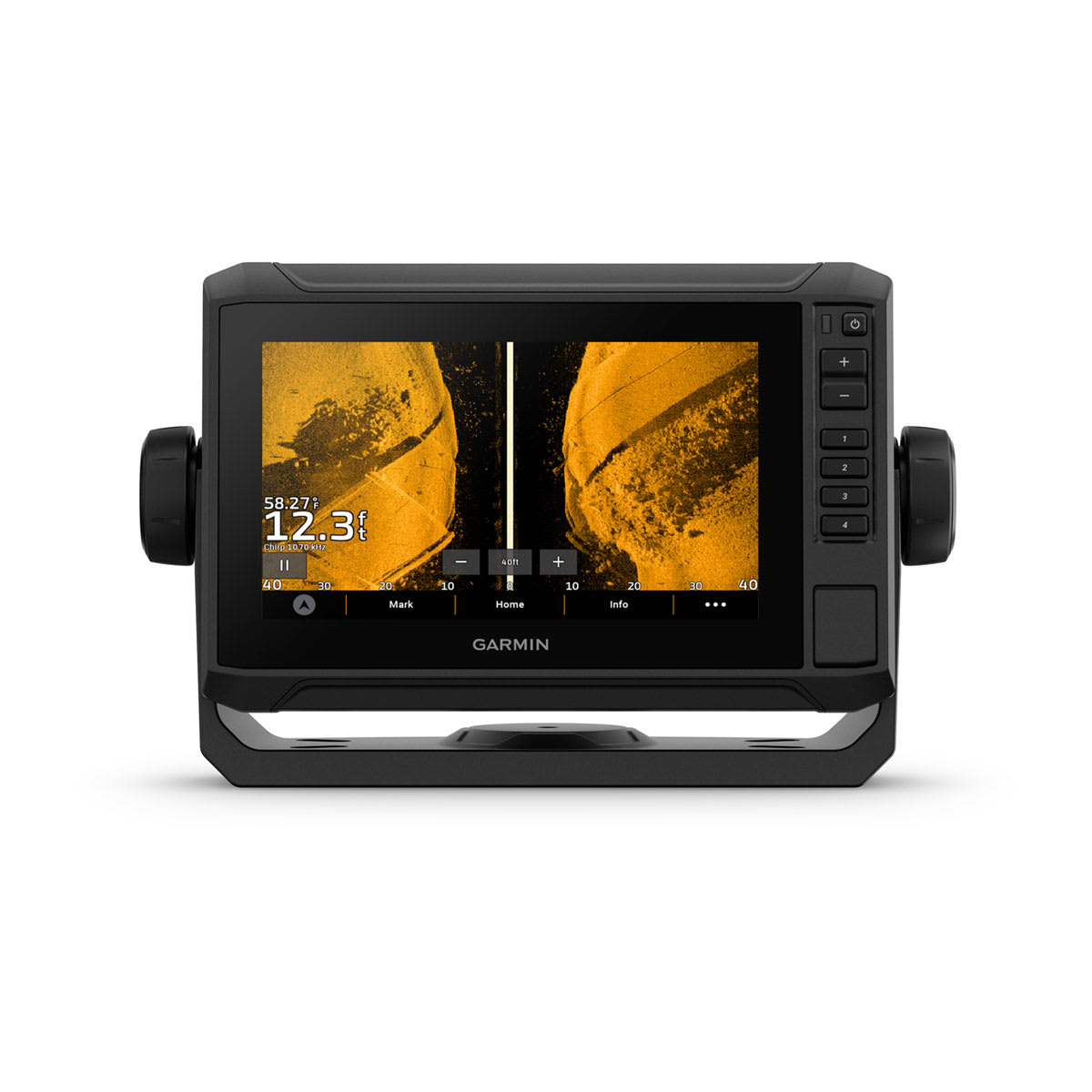

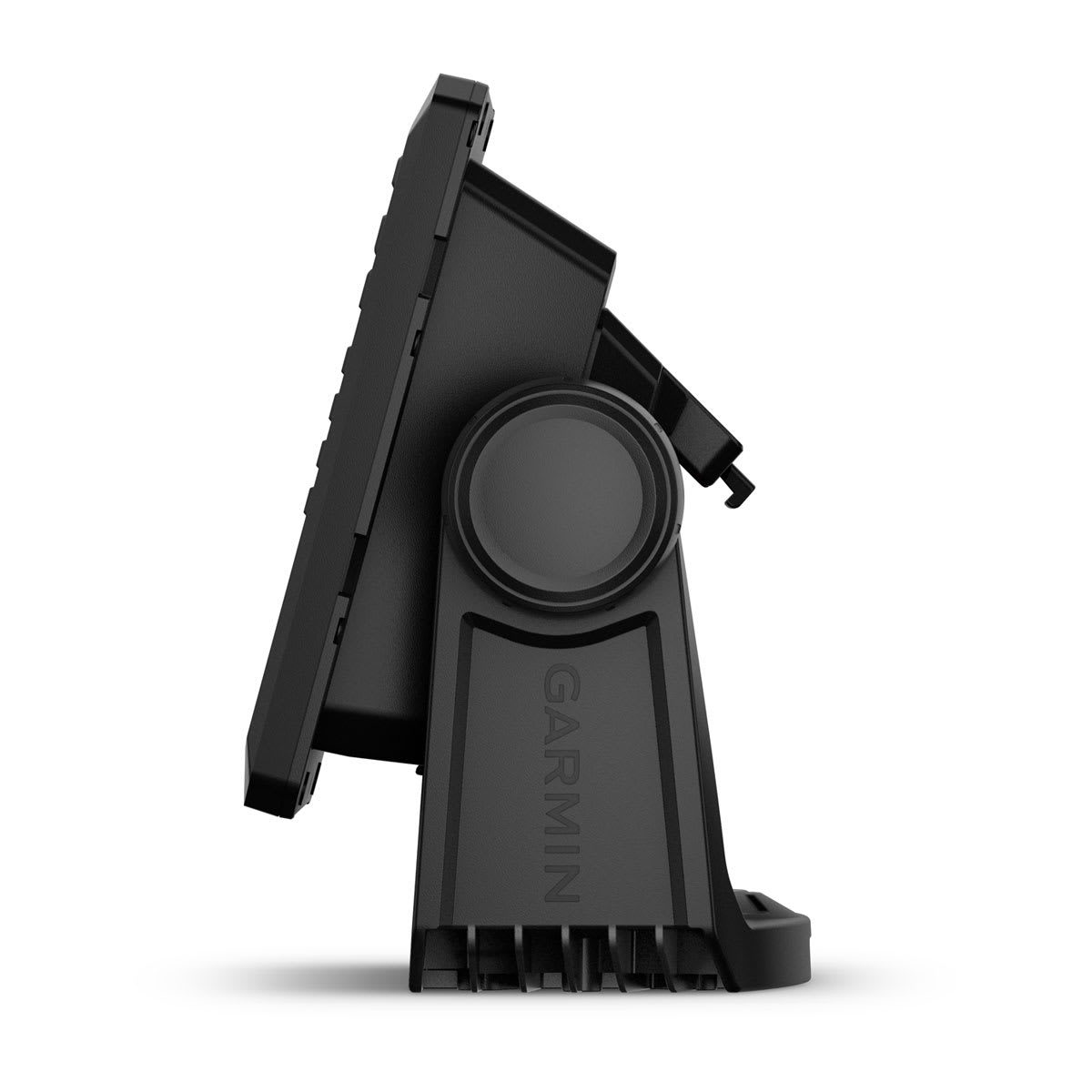

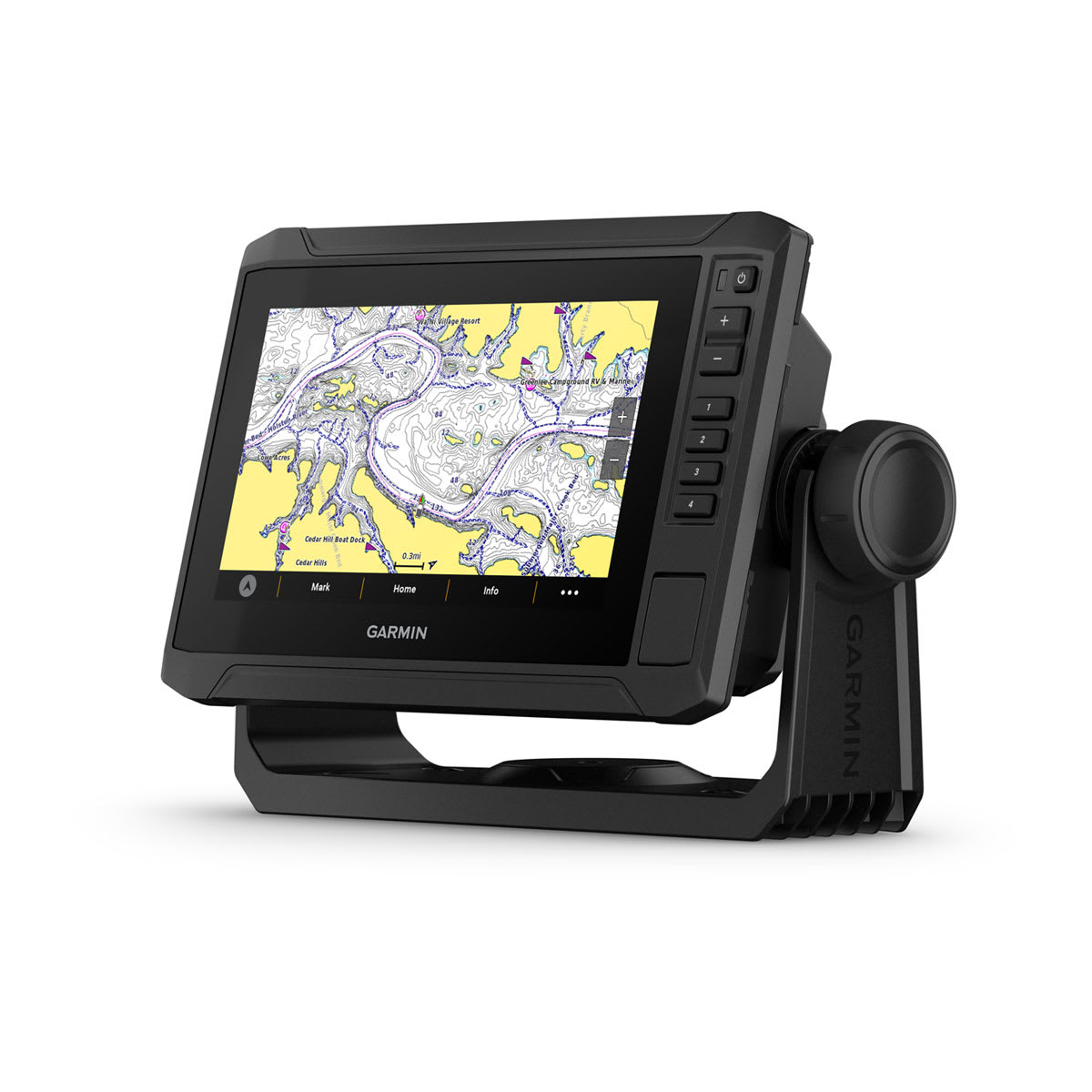

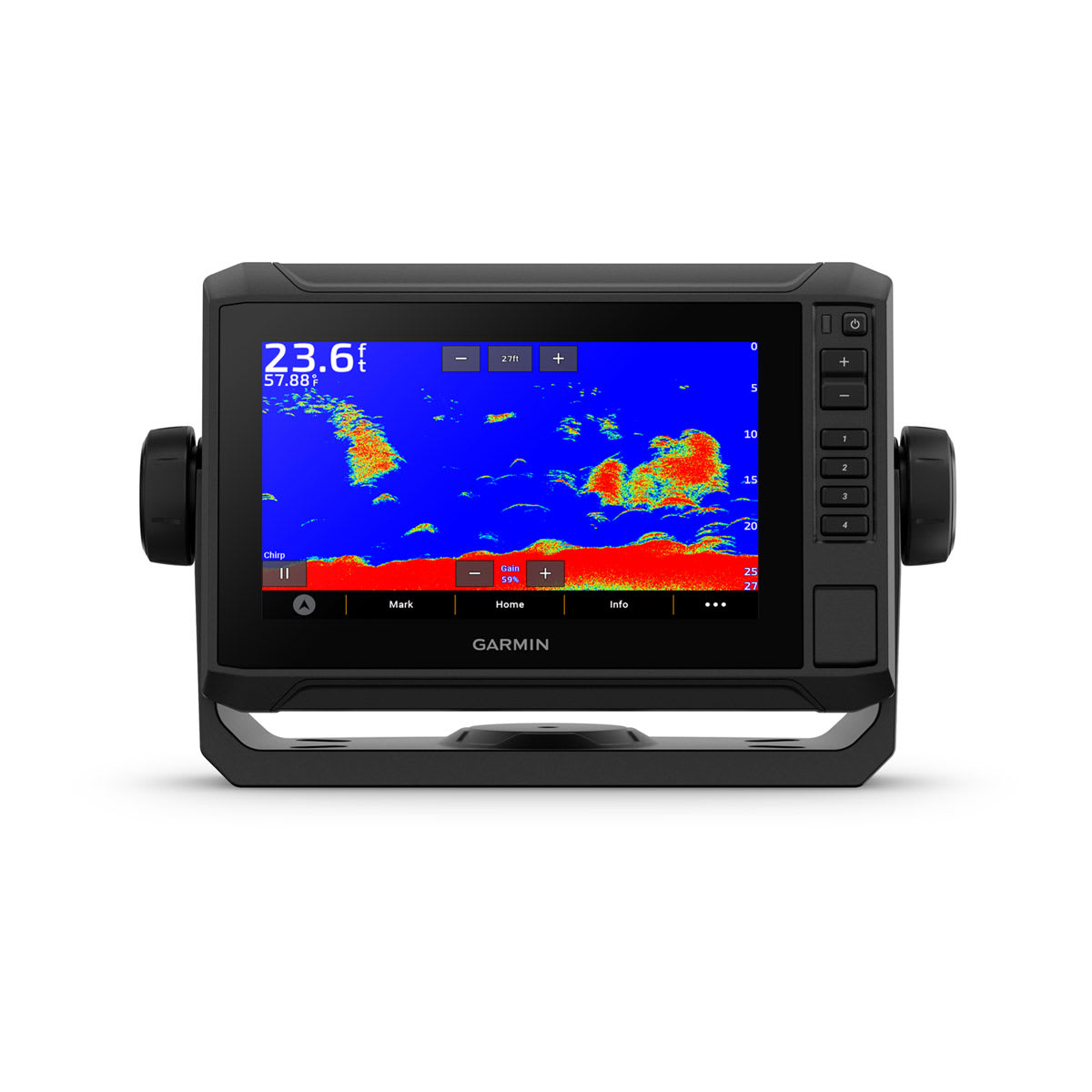

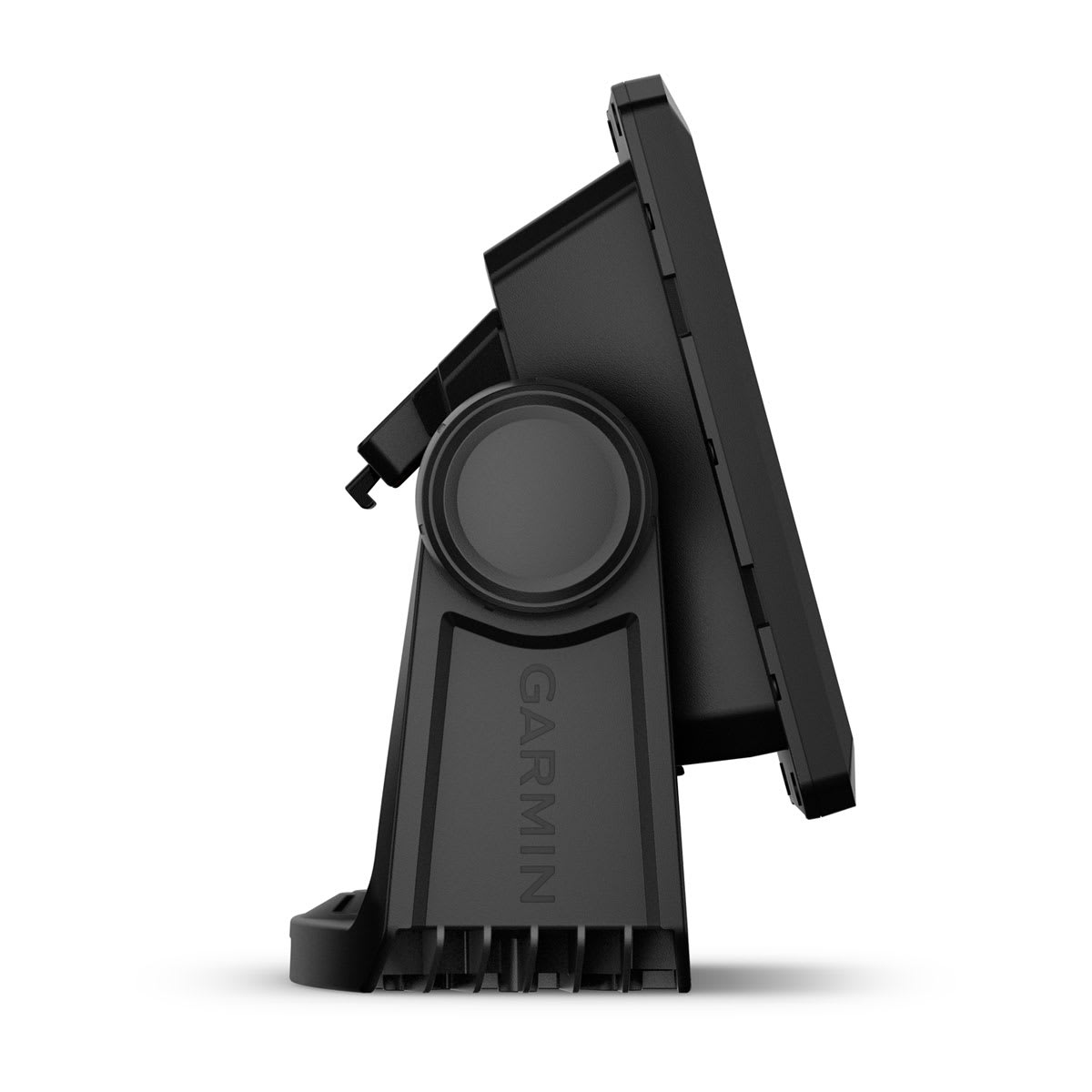

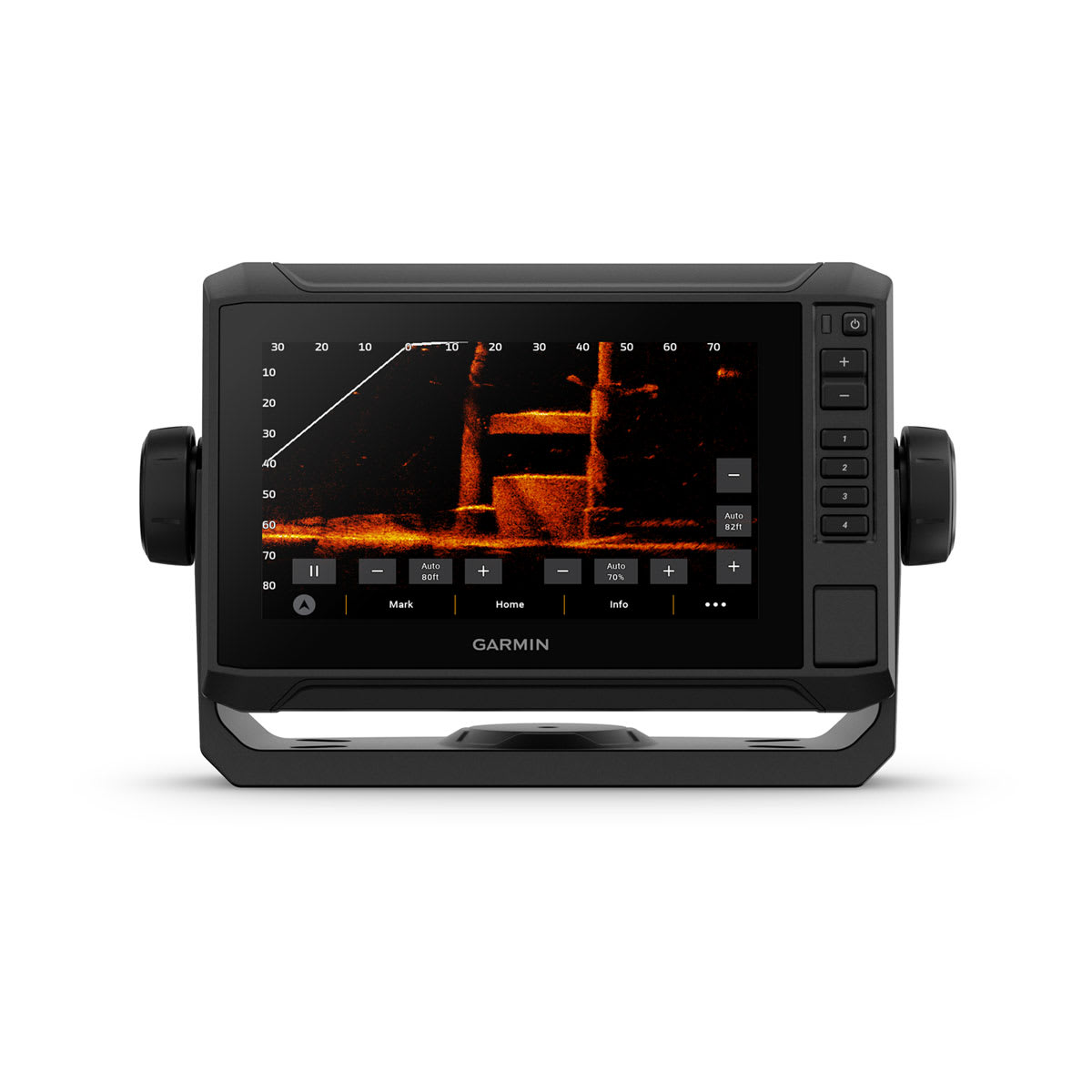

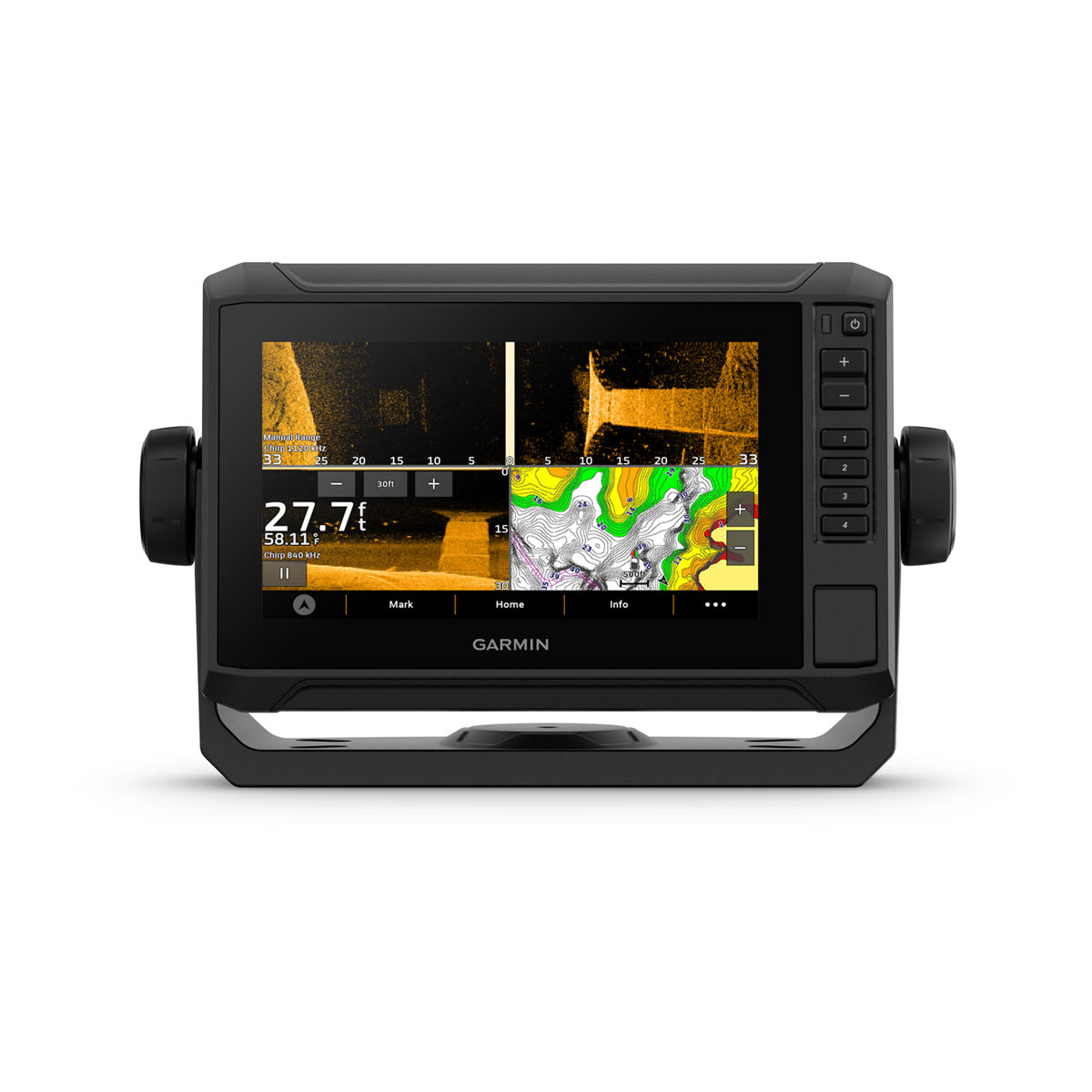

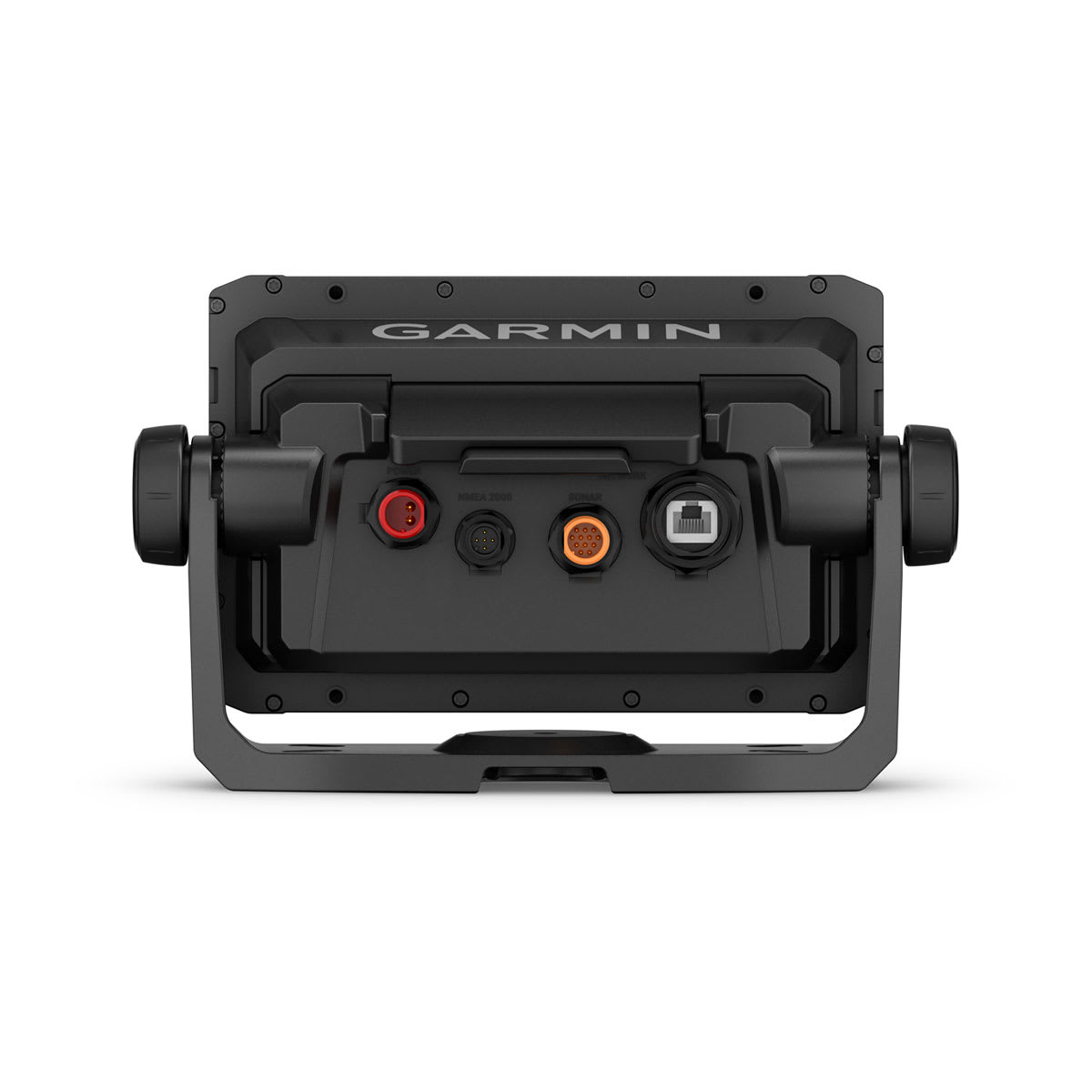

ECHOMAP™ UHD2 7" sv Chartplotters 73sv with GT54UHD-TM Transducer and Garmin Navionics+ U.S. Inland Mapping

Name: ECHOMAP™ UHD2 7" sv Chartplotters 73sv with GT54UHD-TM Transducer and Garmin Navionics+ U.S. Inland Mapping
Brand: My Store
SKU: 1778474282
Price: 107.99 USD
Availability: InStock

$107.99 USD

~~$357.00 USD~~ $107.99 USD

Sale Sold out

ECHOMAP™ UHD2 7" Chartplotter helps you catch more fish with crystal-clear ClearVu & SideVu Sonar, 9-inch touchscreen display, & Garmin Navionics+ preloaded maps.

General
Dimension	8.6" x 5.6" x 3.2" (21.8 x 14.2 x 8.1 cm)
Weight	2.2 lbs (1.0 kg)
Water rating	IPX7
Touchscreen
Display Type	WVGA, TN
Display Size	6.1" x 3.4", 7.0" (15.5 x 8.7 cm, 17.8 cm)
Display resolution	800 x 480 pixels
Mounting Options	Bail or flush
Input	Touchscreen with keyed assist

Maps & Memory
Accepts Data Cards	1 microSD™ card; 32 GB maximum size
Waypoints	5,000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100

Sensors
GPS
GLONASS
Galileo
BeiDou
Has built-in receiver
Receiver	10 Hz
NMEA 2000 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS

Built-in Maps
Built-in Auto Guidance+	yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal	yes (see Additional)
Garmin Navionics+ (Coastal)	yes (see Additional)
Garmin Navionics+ (Inland)	yes (see Additional)
Tide tables	yes (see Additional)

Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours

Chartplotter Features
AIS
DSC
Supports Fusion-Link™ compatible radios
ActiveCaptain® compatible
Sailing Features

Electrical Features
Power Input	9 to 18 Vdc
Typical current draw at 12 Vdc	1.52 A
Maximum current draw at 12 Vdc	3.2 A
Maximum power usage at 10 Vdc	18.3W

Sonar Features
Displays sonar
Power output	500 W
Traditional sonar (dual frequency/beam)	Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope

Networking & Connections
NMEA 2000® ports
Garmin Marine Network Ports	1
12-pin transducer ports	1
Bluetooth® pairing
ANT® (Connectivity)
Garmin Wi-Fi network (local connection)

Additional
Additional	Garmin Navionics+ (inland and coastal): 75sv Canada, Australia and New Zealand Garmin Navionics+ (coastal): 74sv U.S. coastal, 75sv UK/Ireland Garmin Navionics+ (inland): 73sv U.S. lakes Tide tables: 73sv, 74sv, 75sv
