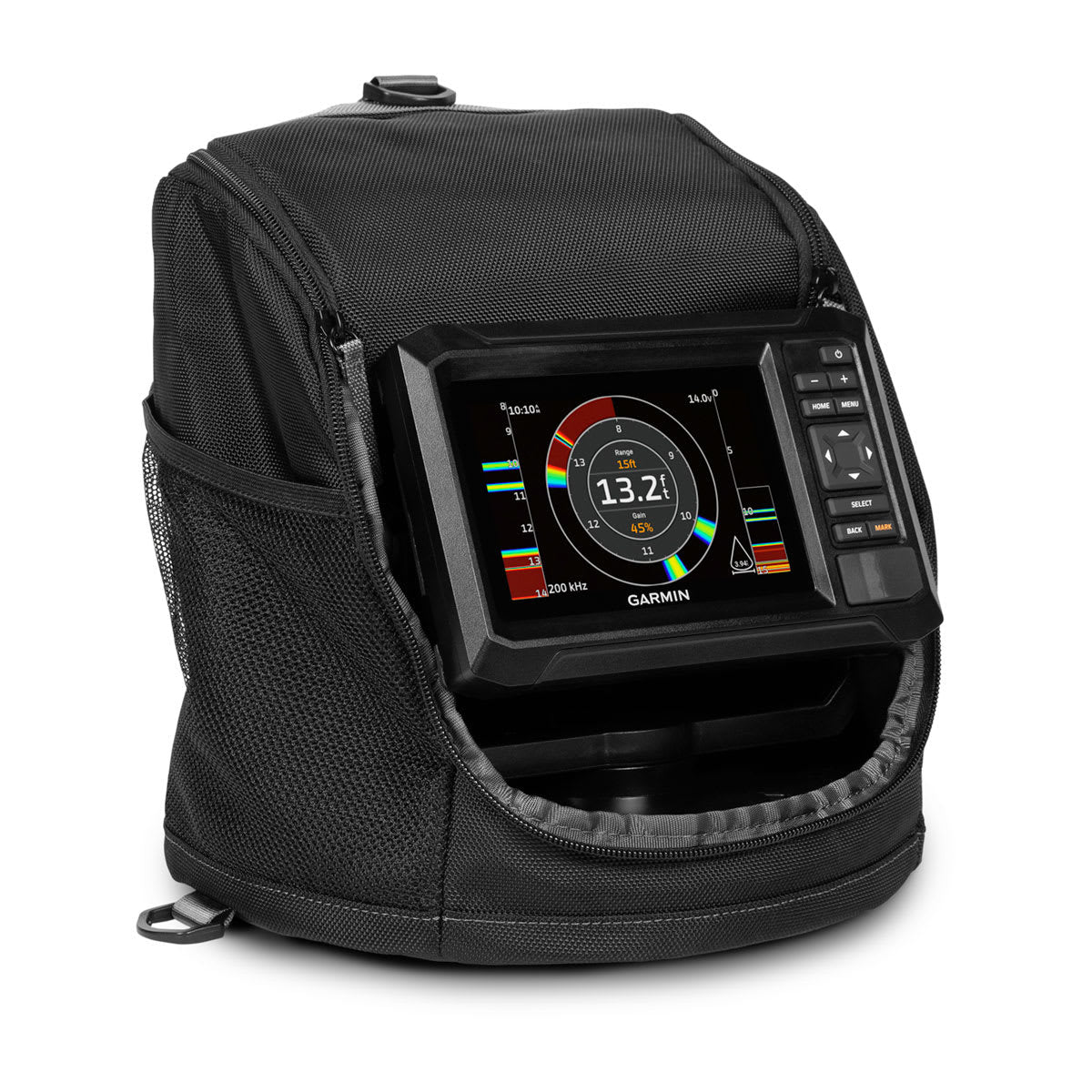

ECHOMAP™ UHD2 Keyed 5" Ice Fishing Bundle Includes ECHOMAP™ UHD2 53cv and Dual Beam-IF Transducer

Name: ECHOMAP™ UHD2 Keyed 5" Ice Fishing Bundle Includes ECHOMAP™ UHD2 53cv and Dual Beam-IF Transducer
Brand: My Store
SKU: 1778475927
Price: 108.99 USD
Availability: InStock

$108.99 USD

~~$362.00 USD~~ $108.99 USD

Sale Sold out

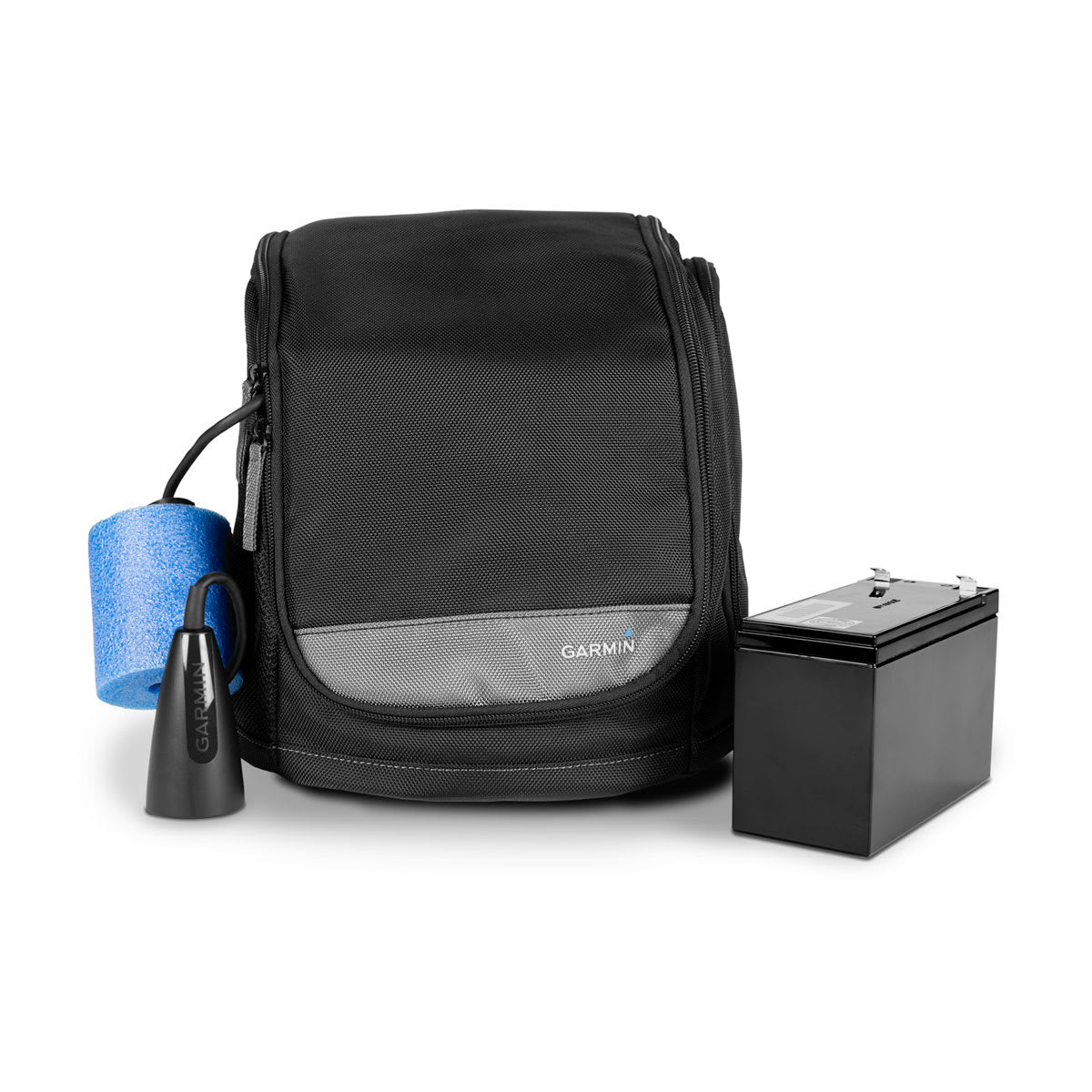

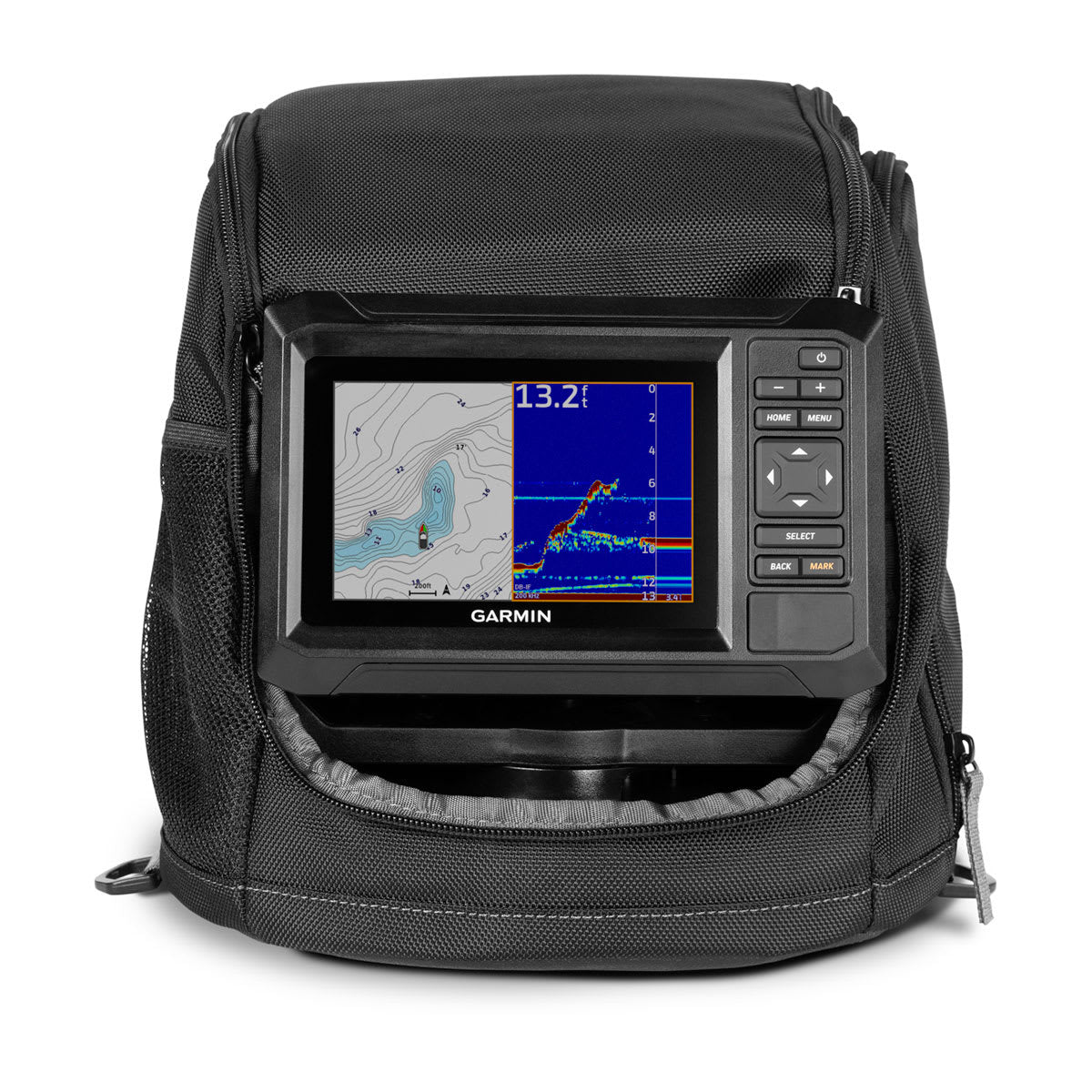

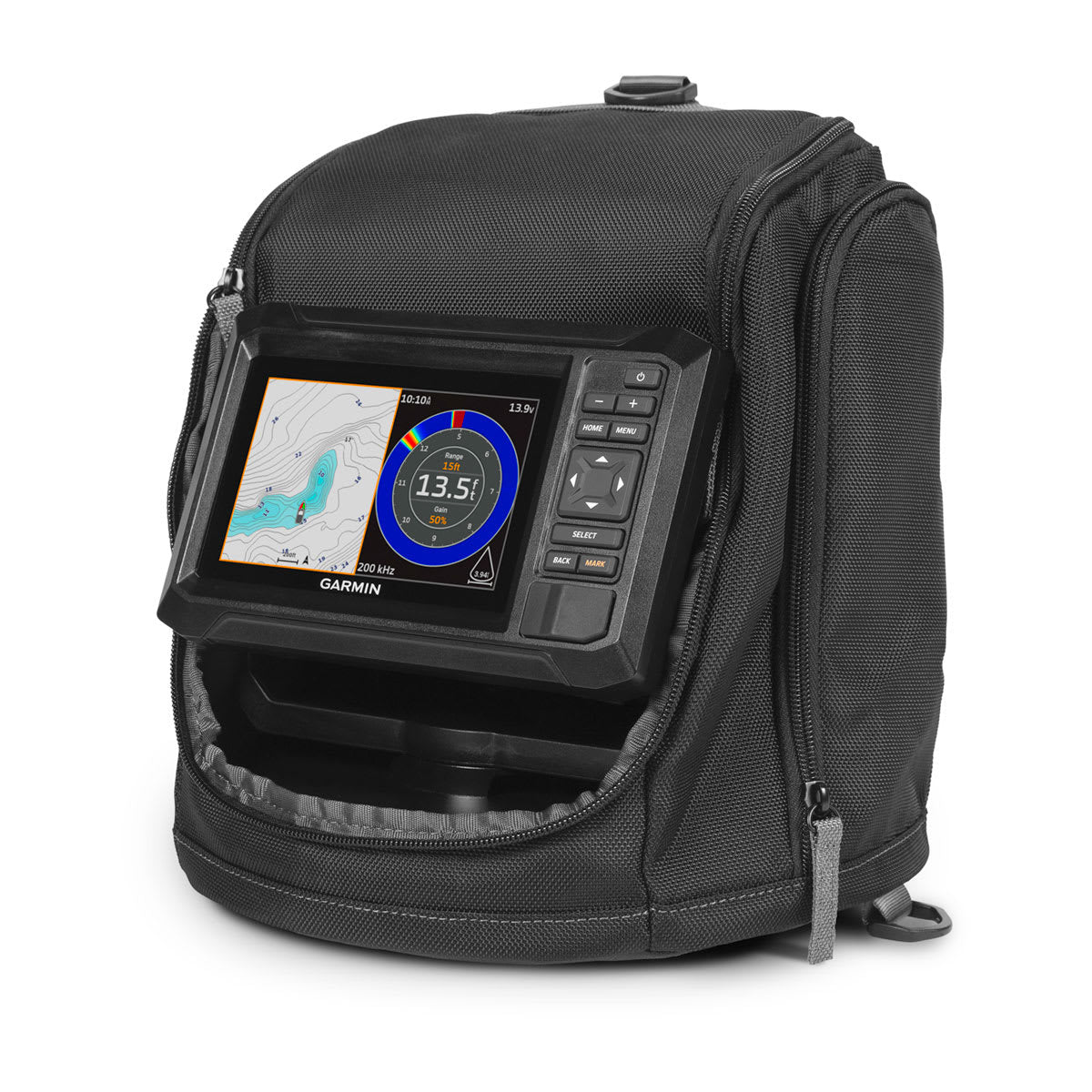

Ice Fishing Bundle features a ECHOMAP™ 53cv chartplotter, dual beam-IF transducer, Garmin Navionics+ maps, and a 5” sunlight-readable display.

General
Dimension	7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
Weight	9.5 lbs (4.3 kg)
Water rating	IPX7
Display Type	WVGA, IPS
Display Size	4.3" x 2.6" (10.9 x 6.6 cm)
Display resolution	800 x 480 pixels
Input	Keyed

Maps & Memory
Accepts Data Cards	1 microSD^™ card; 32 GB maximum size
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100

Ice Fishing Details
Battery type, size	SLA, 7Ah
Bag size	S
Included transducer	DB-IF
Transducer holding feature	Foam float

Sensors
GPS
GLONASS
Galileo
Has built-in receiver
Receiver	5 Hz
NMEA 2000 Compatible
Supports WAAS

Built-in Maps
Built-in Auto Guidance+	yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal	yes (see Additional)
Garmin Navionics+ (Inland)	yes (see Additional)

Optional Map Support
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours

Chartplotter Features
ActiveCaptain® compatible	yes

Electrical Features
Power Input	9 to 18 Vdc

Sonar Features
Displays sonar
Power output	500 W
Traditional sonar (dual frequency/beam)	Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
