ECHOMAP™ Ultra 2 10" Chartplotters 102sv without Transducer

Name: ECHOMAP™ Ultra 2 10" Chartplotters 102sv without Transducer
Brand: My Store
SKU: 1778473478
Price: 105.99 USD
Availability: InStock

$105.99 USD

~~$352.00 USD~~ $105.99 USD

Sale Sold out

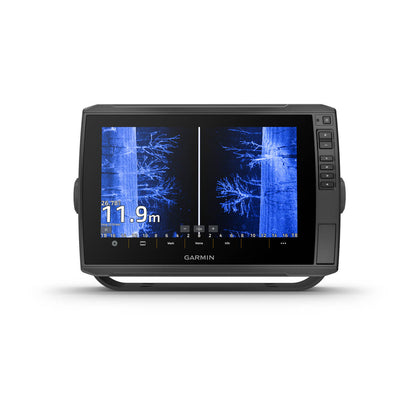

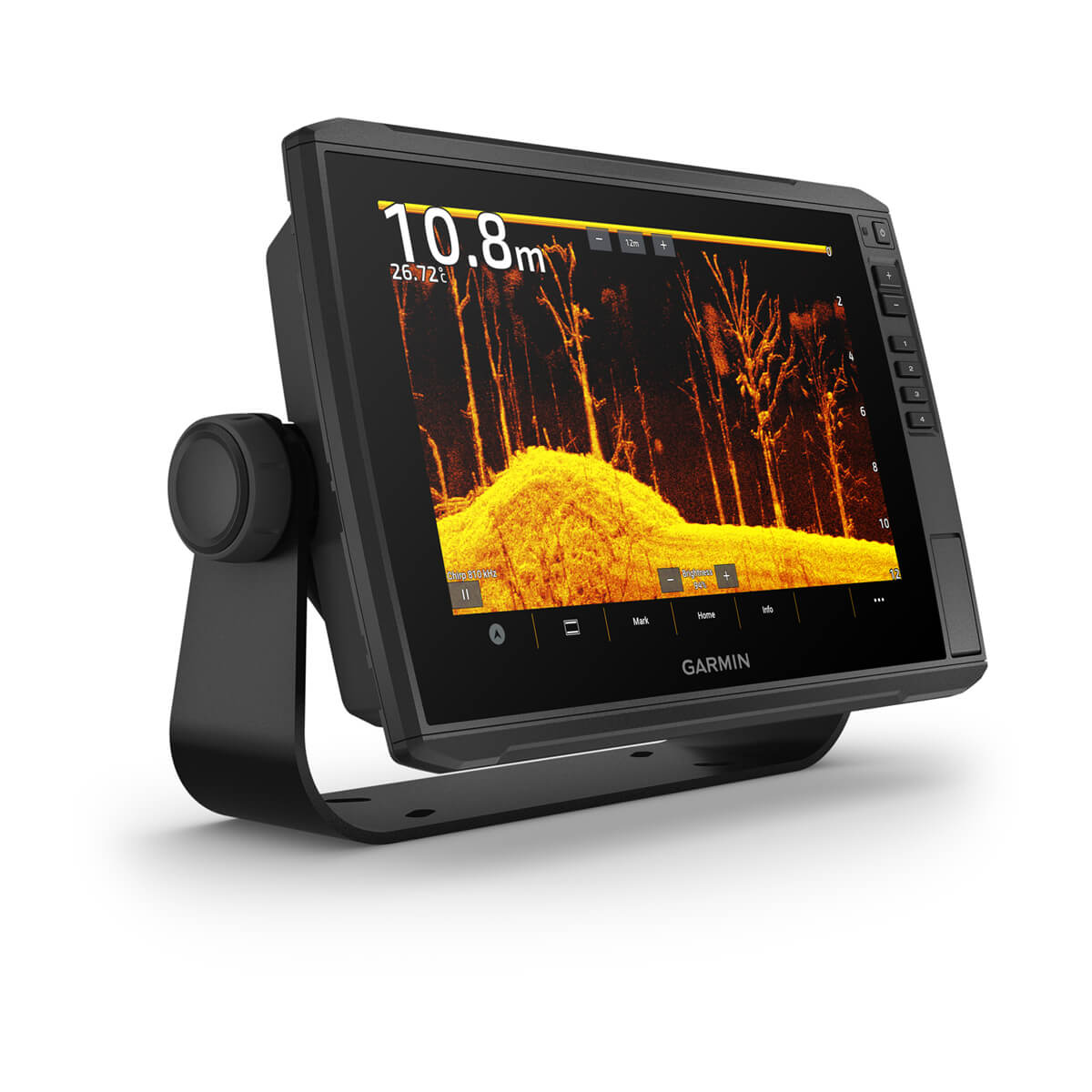

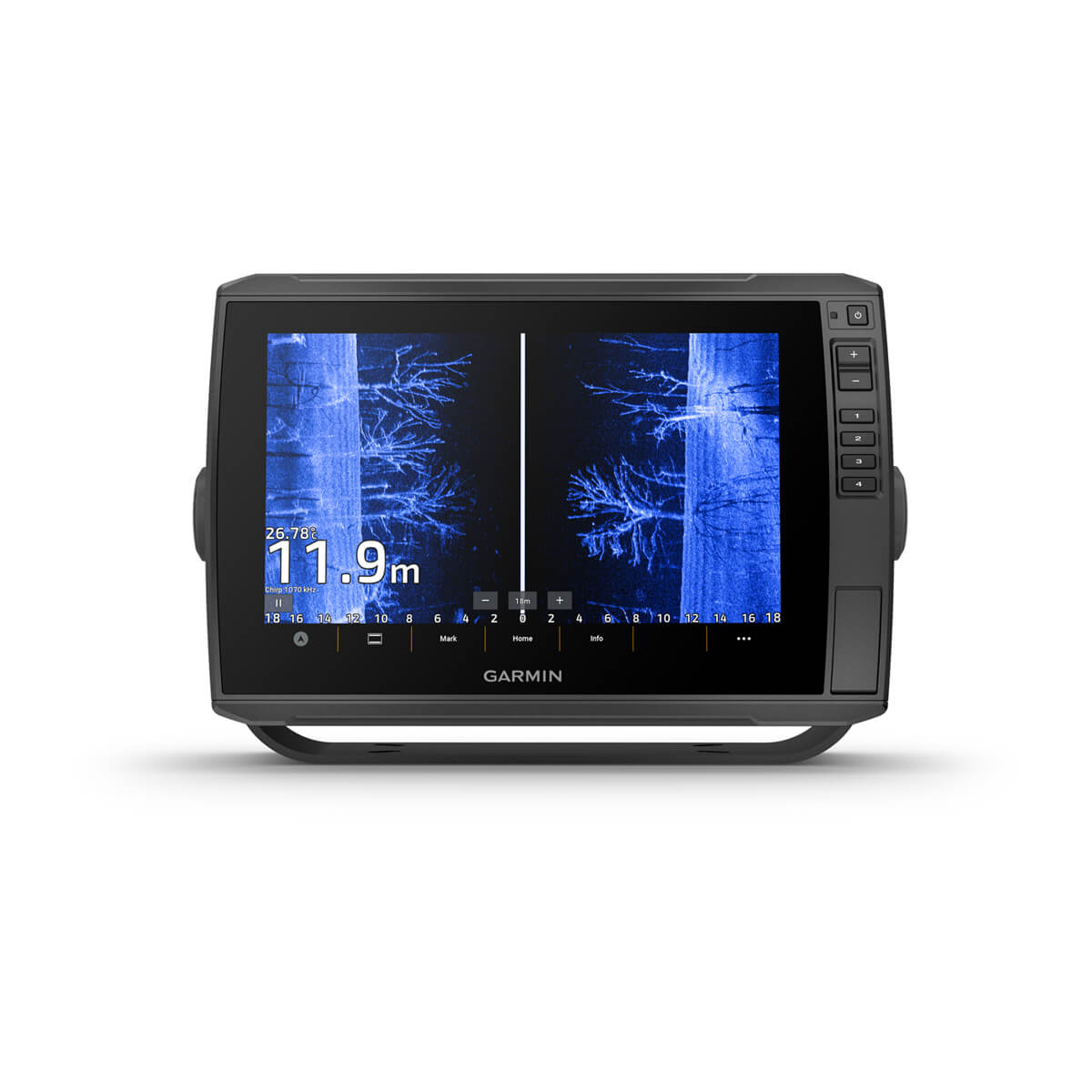

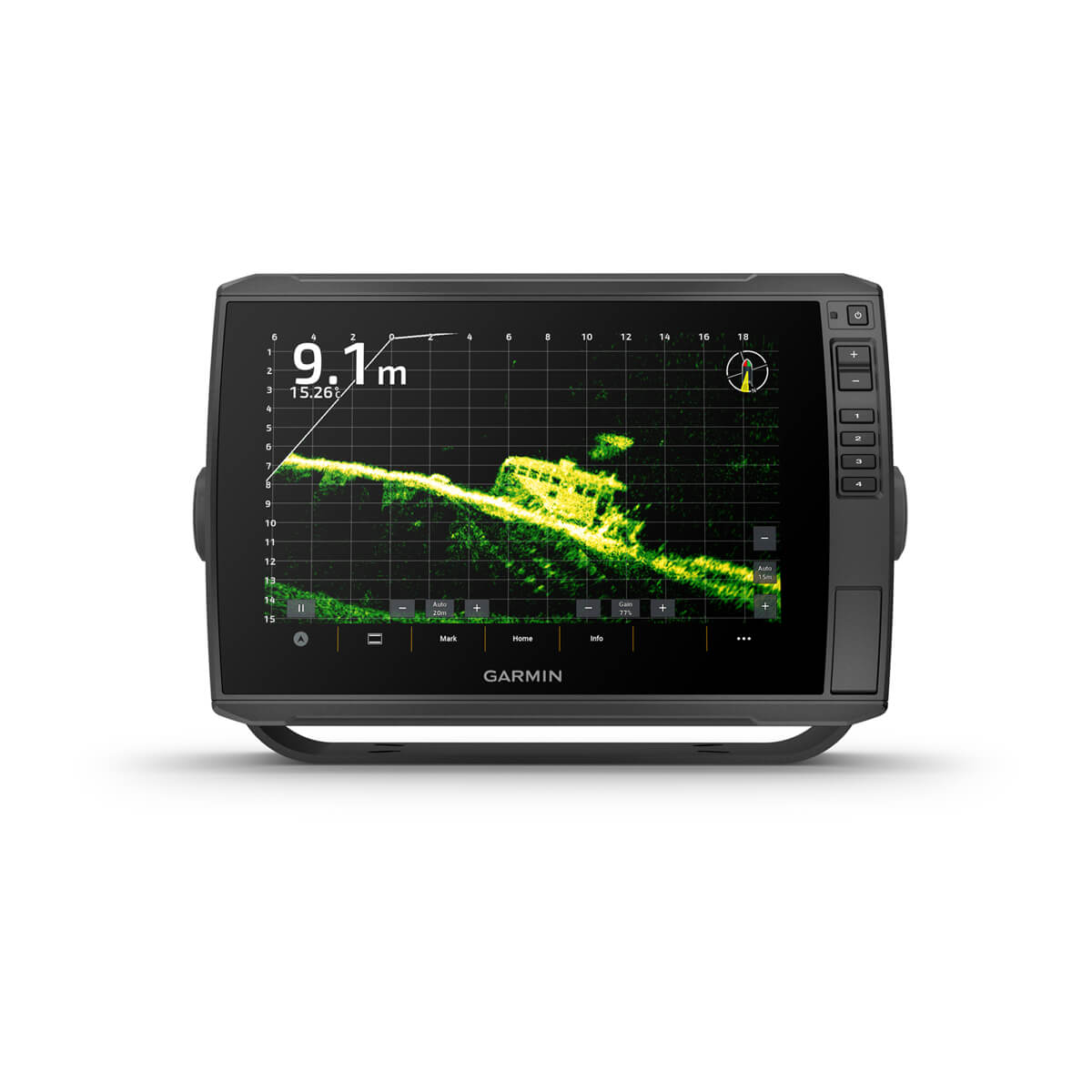

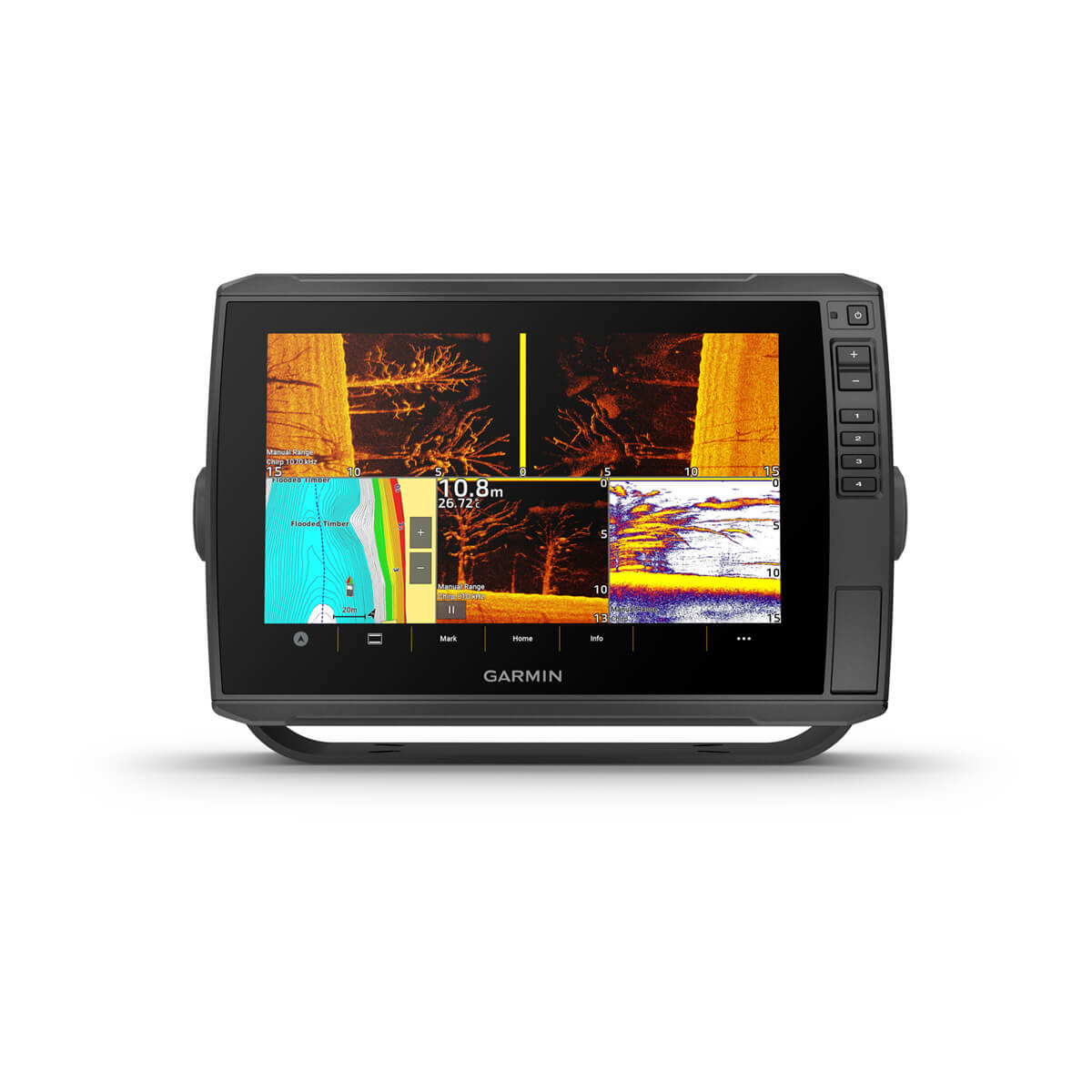

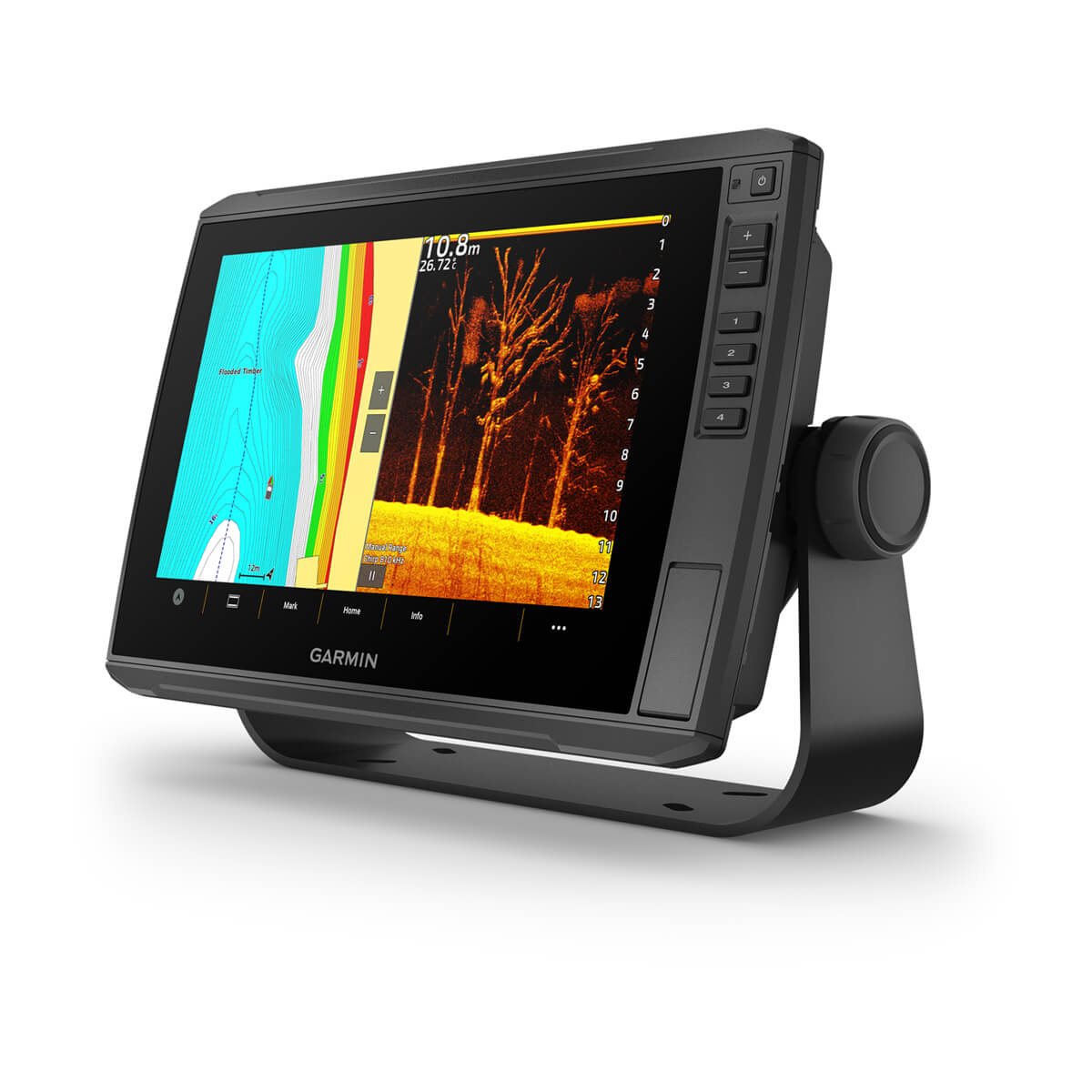

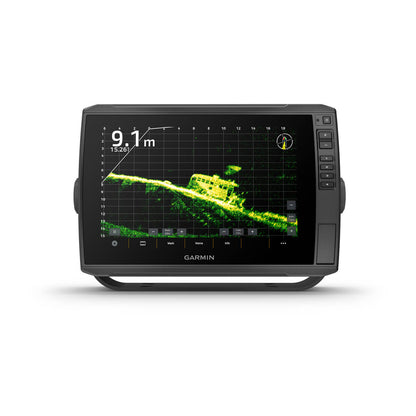

ECHOMAP Ultra 2 10" is a chartplotter with a 10” sunlight-readable touchscreen with LiveScope sonar support, scanning sonar, wireless networking, & preloaded maps.

General
Dimension	11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
Weight	4.0 lbs (1.8 kg)
Water rating	IPX7
Touchscreen
Display Type	WXGA, IPS
Display Size	8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
Display resolution	1280 x 800 pixels

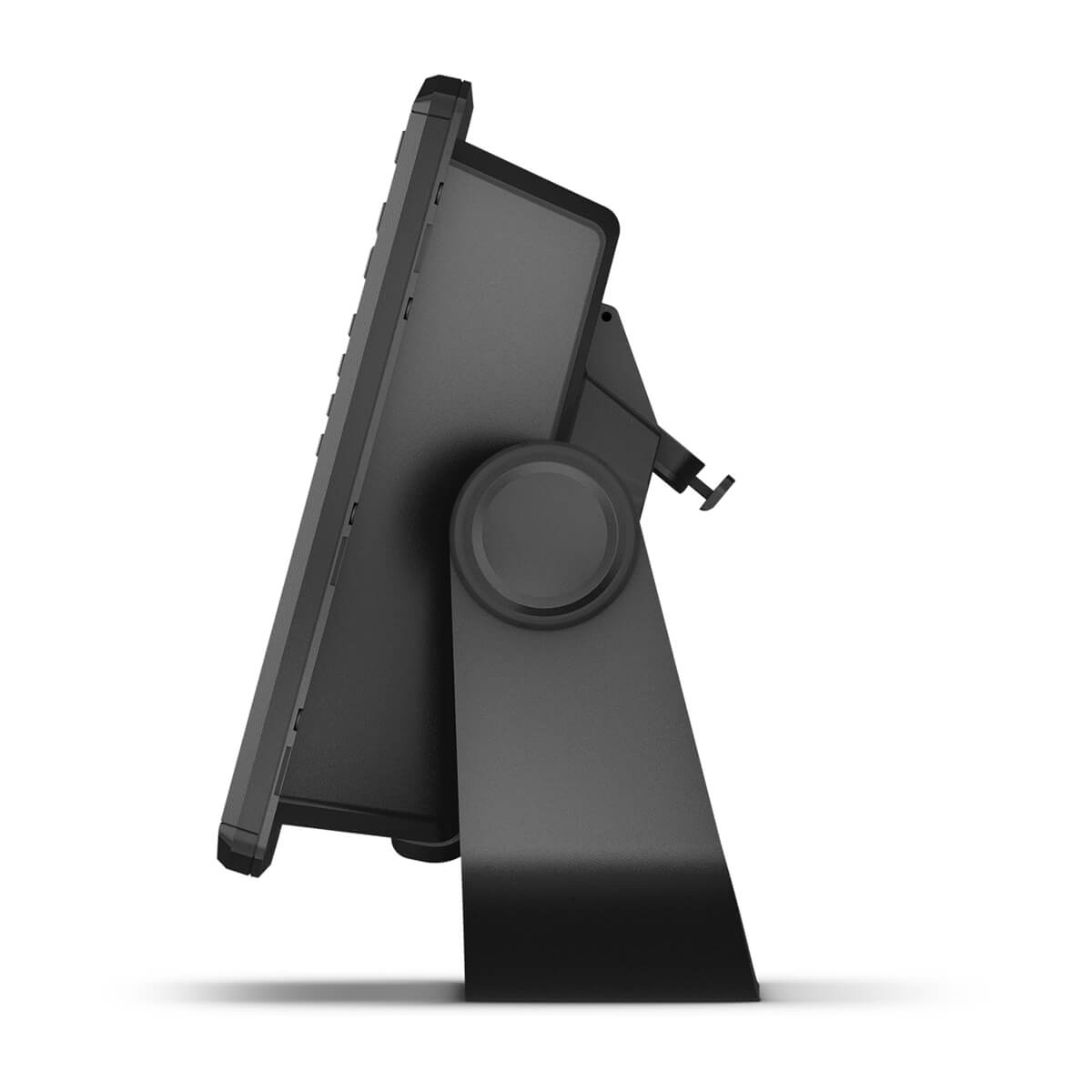

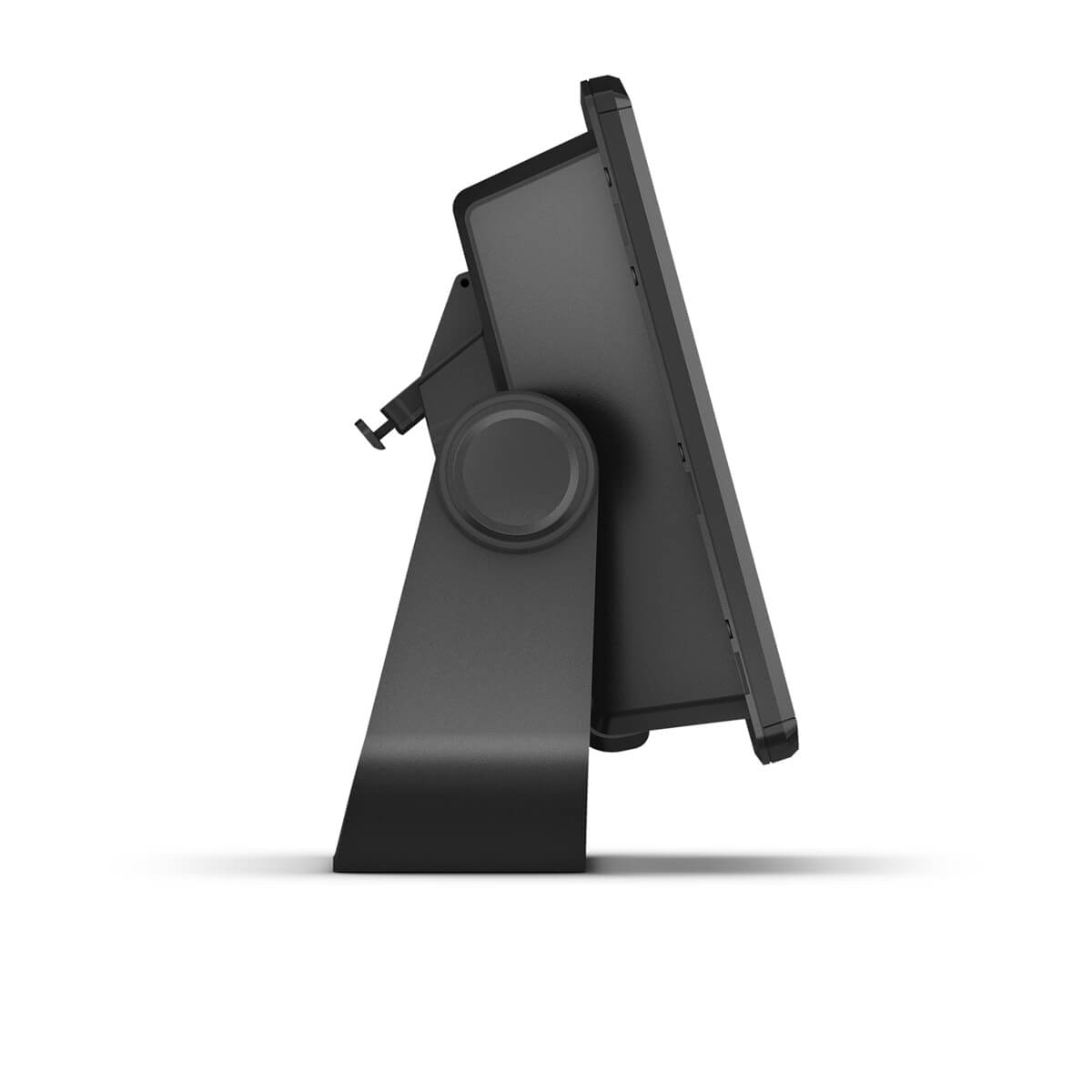

Mounting Options	Bail or flush
Input	Touchscreen with keyed assist

Maps & Memory
Accepts Data Cards	2 microSD cards
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100

Sensors
GPS
GLONASS
Galileo
BeiDou
Has built-in receiver
Receiver	10 Hz
NMEA 2000 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS

Built-in Maps
Built-in Auto Guidance+
Garmin Navionics+ Inland & Coastal	yes (see Additional)
Tide tables	yes (see Additional)

Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours

Chartplotter Features
AIS
DSC
Supports Fusion-Link™ compatible radios
ActiveCaptain® compatible	yes
Sailing Features

Electrical Features
Power Input	9 to 18 Vdc
Typical current draw at 12 Vdc	2.3 A
Maximum current draw at 12 Vdc	5.0 A
Maximum power usage at 10 Vdc	34 W

Sonar Features
Displays sonar
Power output	600 W
Traditional sonar (dual frequency/beam)	built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope

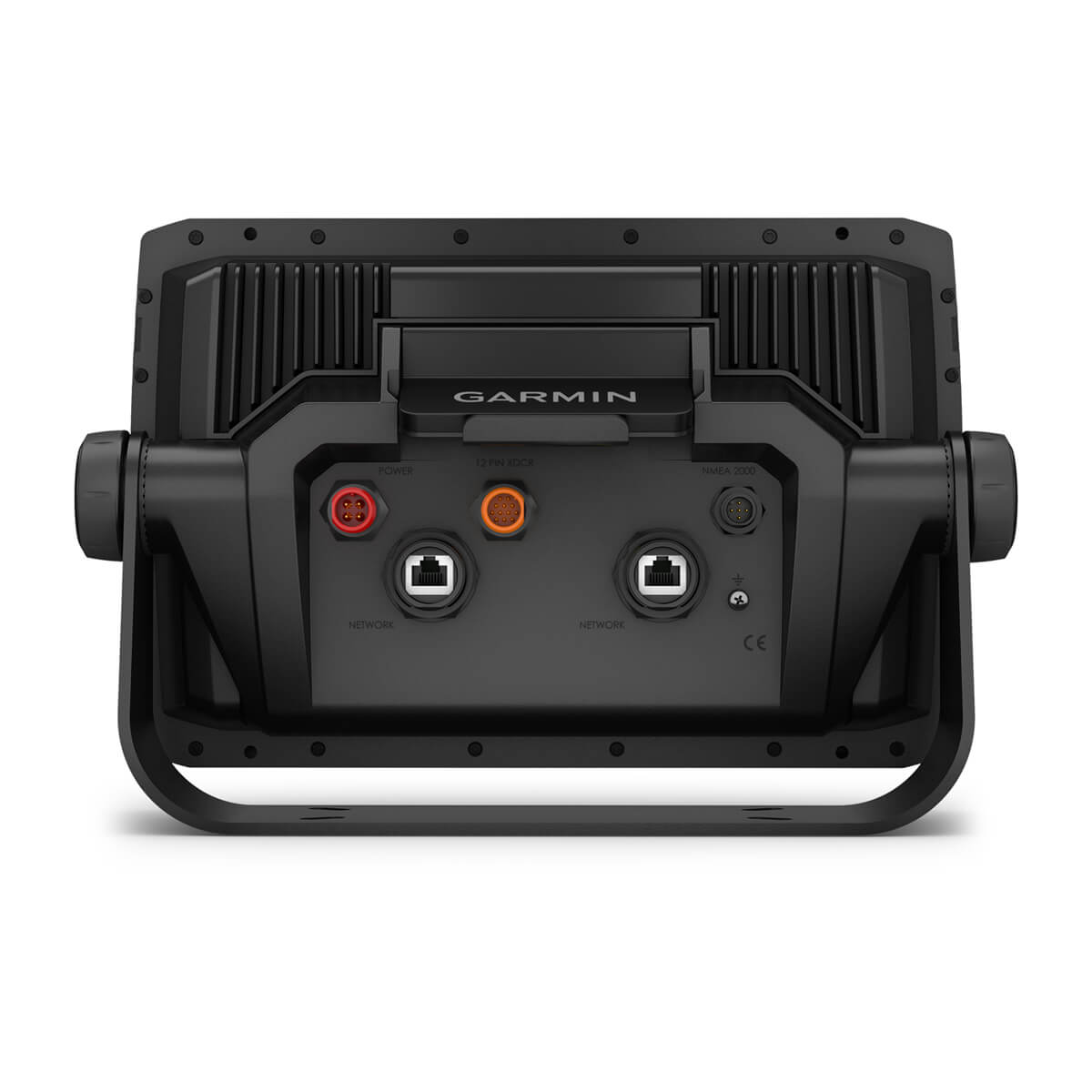

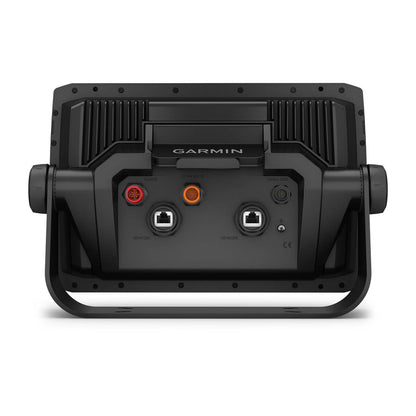

Networking & Connections
NMEA 2000® ports	1
Garmin Marine Network Ports	2 (large connector)
12-pin transducer ports	12-pin scanning sonar
ANT® (Connectivity)
Garmin Wi-Fi network (local connection)

Additional
Additional	Garmin Navionics+ (Inland and Coastal): 106sv, 105sv Australia and New Zealand Tide tables: 106sv, 105sv Australia and New Zealand
