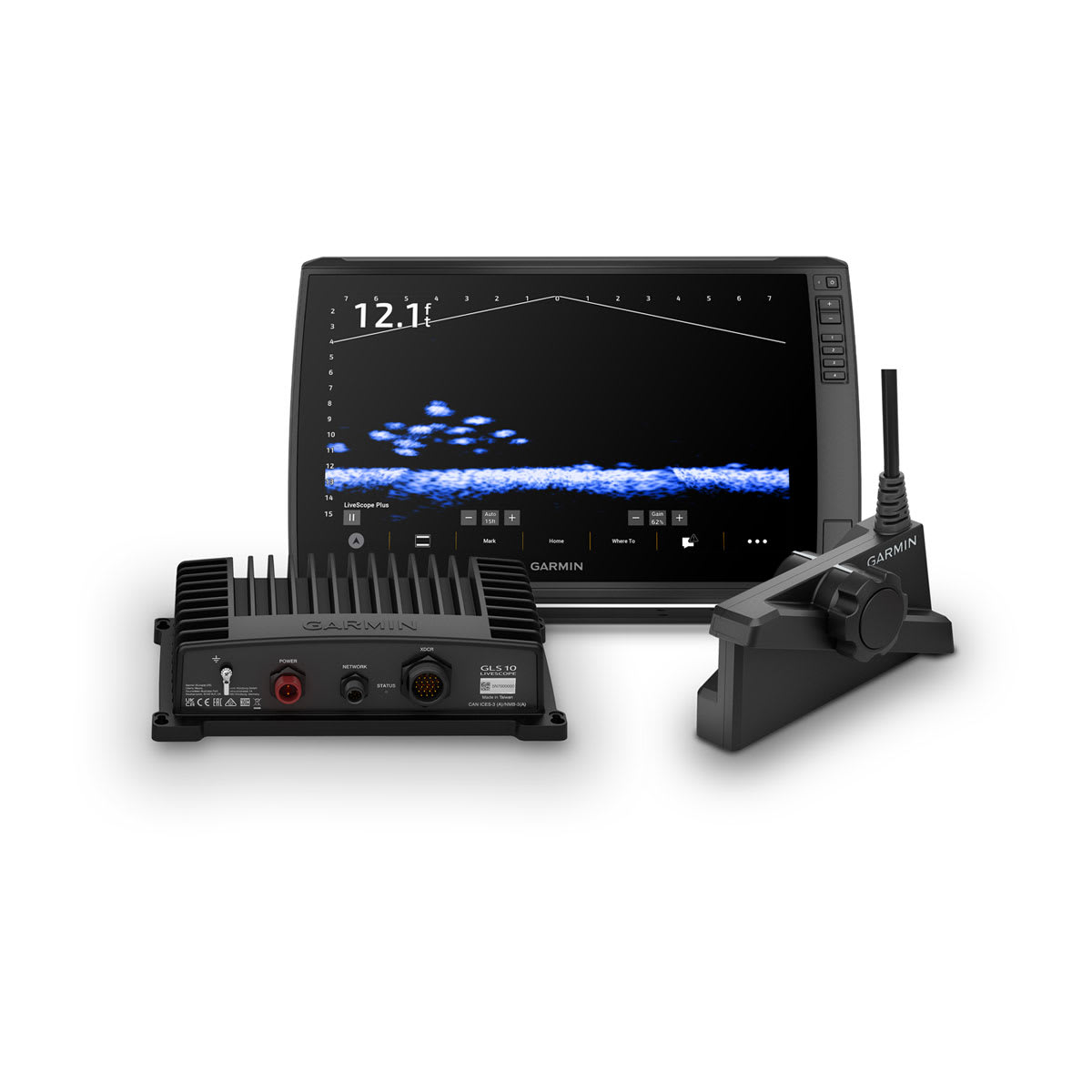

ECHOMAP™ Ultra 2 Ice House System Includes ECHOMAP™ Ultra 2 166sv Chartplotter and LiveScope™ Plus System

ECHOMAP™ Ultra 2 Ice House System Includes ECHOMAP™ Ultra 2 166sv Chartplotter and LiveScope™ Plus System

$120.99 USD
$407.00 USD $120.99 USD
Sale Sold out

General
Dimension 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
Weight

9.5 lbs (4.31 kg)
Water rating

IPX7
Touchscreen
Display Type FHD, IPS
Display Size 13.6" x 7.7"; 15.6" diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal)
Display resolution 1920 x 1080 pixels
Input Touchscreen with keyed assist

Maps & Memory
Accepts Data Cards

2 microSD™ cards
Waypoints

5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100

Ice Fishing Details
Bag size none
Included transducer LiveScope™ Plus System with LVS34-IF
Transducer holding feature Pole mount

Sensors
GPS
GLONASS
Galileo
Has built-in receiver
Receiver

10 Hz
NMEA 2000 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS

Built-in Maps
Built-in Auto Guidance+
Garmin Navionics+ Inland & Coastal

Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics Vision+™
Garmin Quickdraw Contours

Chartplotter Features
ActiveCaptain® compatible

yes
Supports voice commands

Electrical Features
Power Input 9 to 18 Vdc

Sonar Features
Displays sonar
Power output 600 W
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü Built-in 260/455/800/1000/1200 kHz
SideVü Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope

Networking & Connections
NMEA 2000® ports 1
Video output ports

1 HDMI
Garmin Marine Network Ports

2
12-pin transducer ports 12-pin scanning sonar
Bluetooth® pairing
ANT® (Connectivity)
Garmin Wi-Fi network (local connection)
View full details
