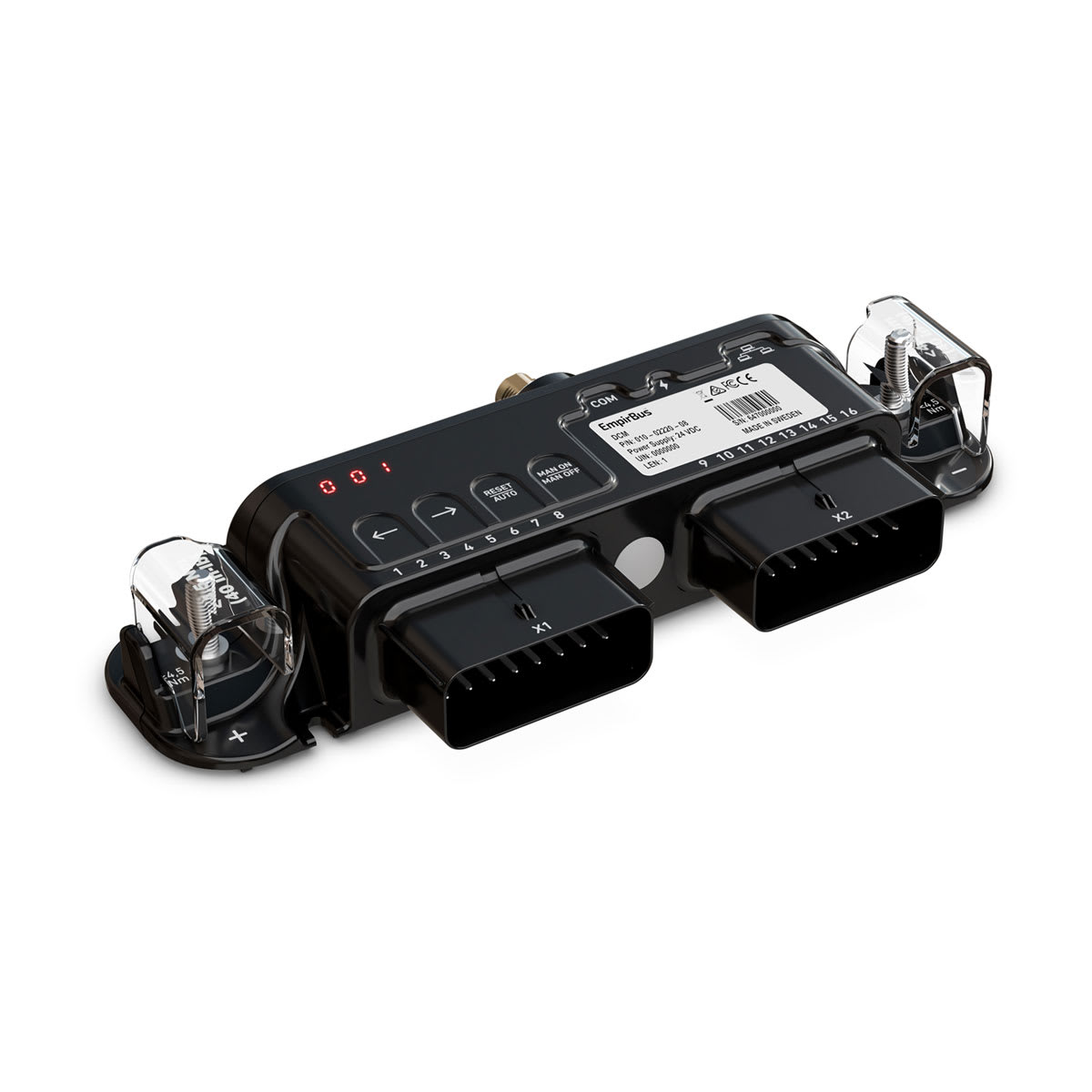

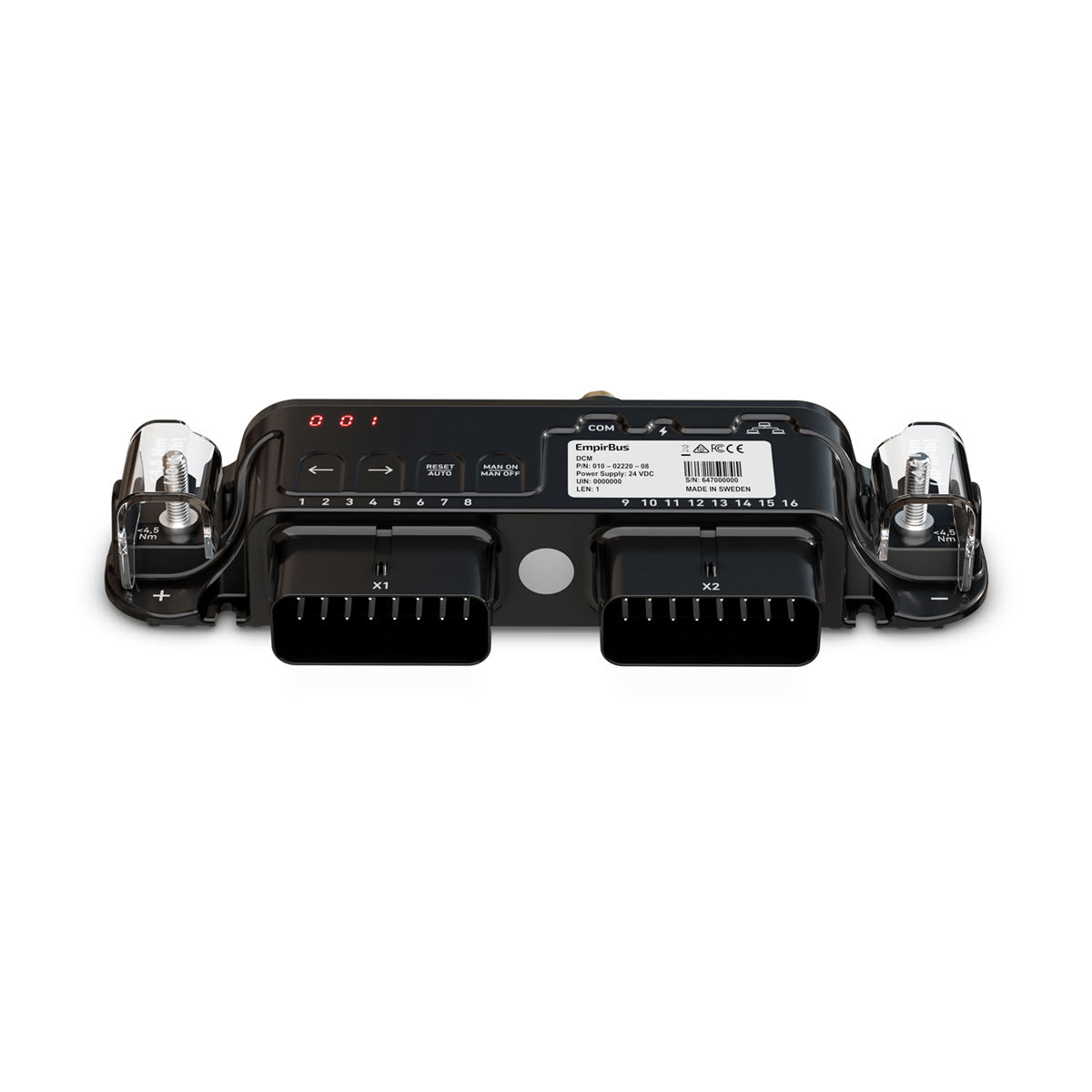

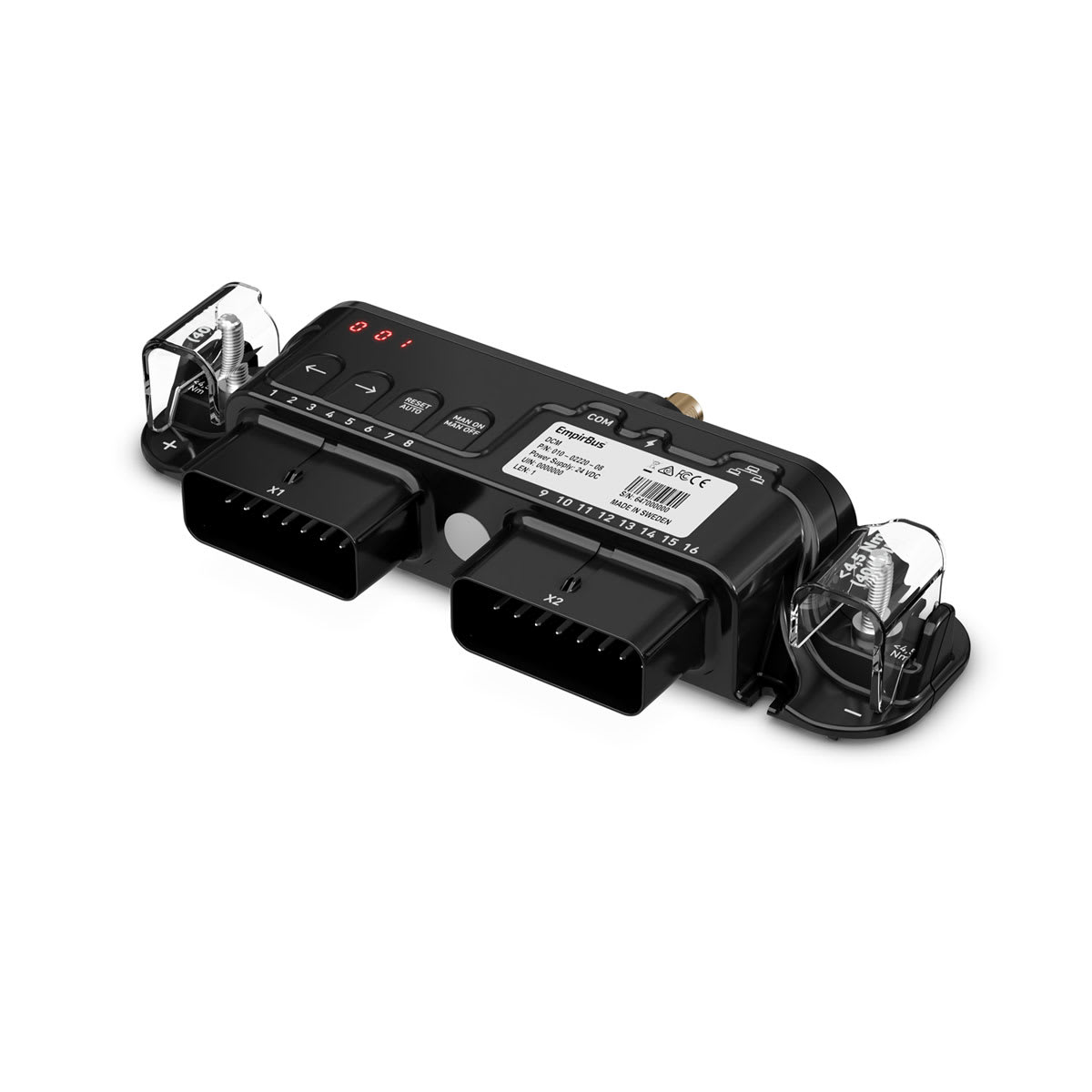

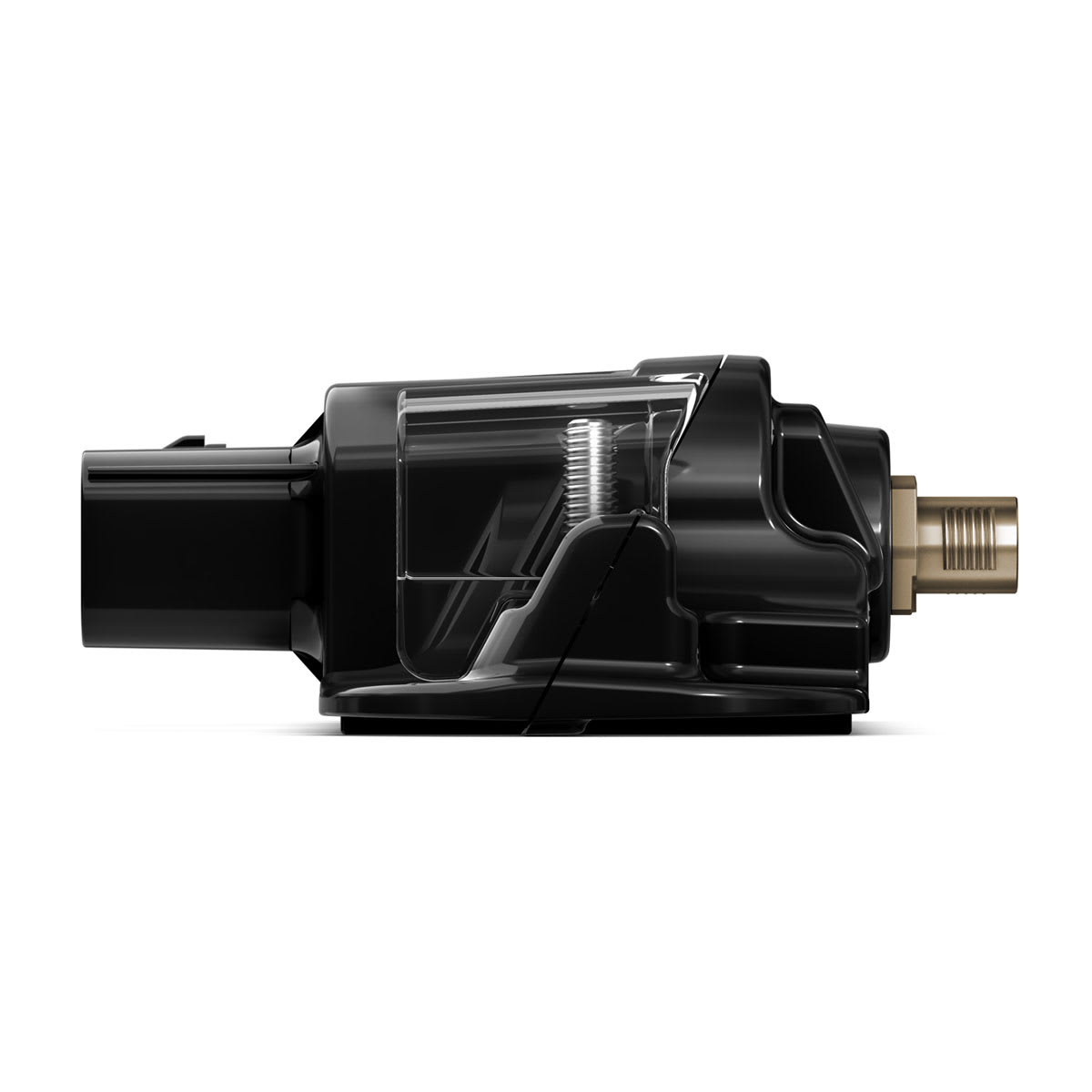

EmpirBus™ NXT DCM EmpirBus™ NXT DCM

Name: EmpirBus™ NXT DCM EmpirBus™ NXT DCM
Brand: My Store
SKU: 1778472700
Price: 109.99 USD
Availability: InStock

$109.99 USD

~~$366.00 USD~~ $109.99 USD

Sale Sold out

General
Dimensions	9.1" x 4.2" x 1.5" (230 x 106 x 38 mm)
Weight	0.4 kg
Ambient temperature	-20° C to +55° C
Enclosure	Ingress Protection, IP65
Regulation comp	ABYC, RoHS, CE, RCM
Output
High side	4 channels, 18 A (optional)
High side	12 channels, 10 A (optional)
Low side	16 channels, 0.5 A (optional)
Digital Input
12 V power peak/average	170 mA/1 mA
24 V power peak/average	340 mA/2 mA
Weak signal low side/high side	4 mA
Current drive	50 mA
Analog Input
Volt	0–16/0–32 V, +/-1%
Current	4–20 mA, +/-1%
Resistance	0–1500 ohm, +/-5%
Power Supply
Max current	100 A
Min power consumption	40 mA/1.5 mA (power save mode)
Supply voltage 12 V model	9-16 Vdc
Supply voltage 24 V model	9-32 Vdc
Communication
	CAN-bus NMEA 2000
Connector
NMEA 2000	micro 5-pin M12 Male
Channels	Molex MX150L 16 circuits
Power supply	M6 bolt
Antenna	SMA Female
