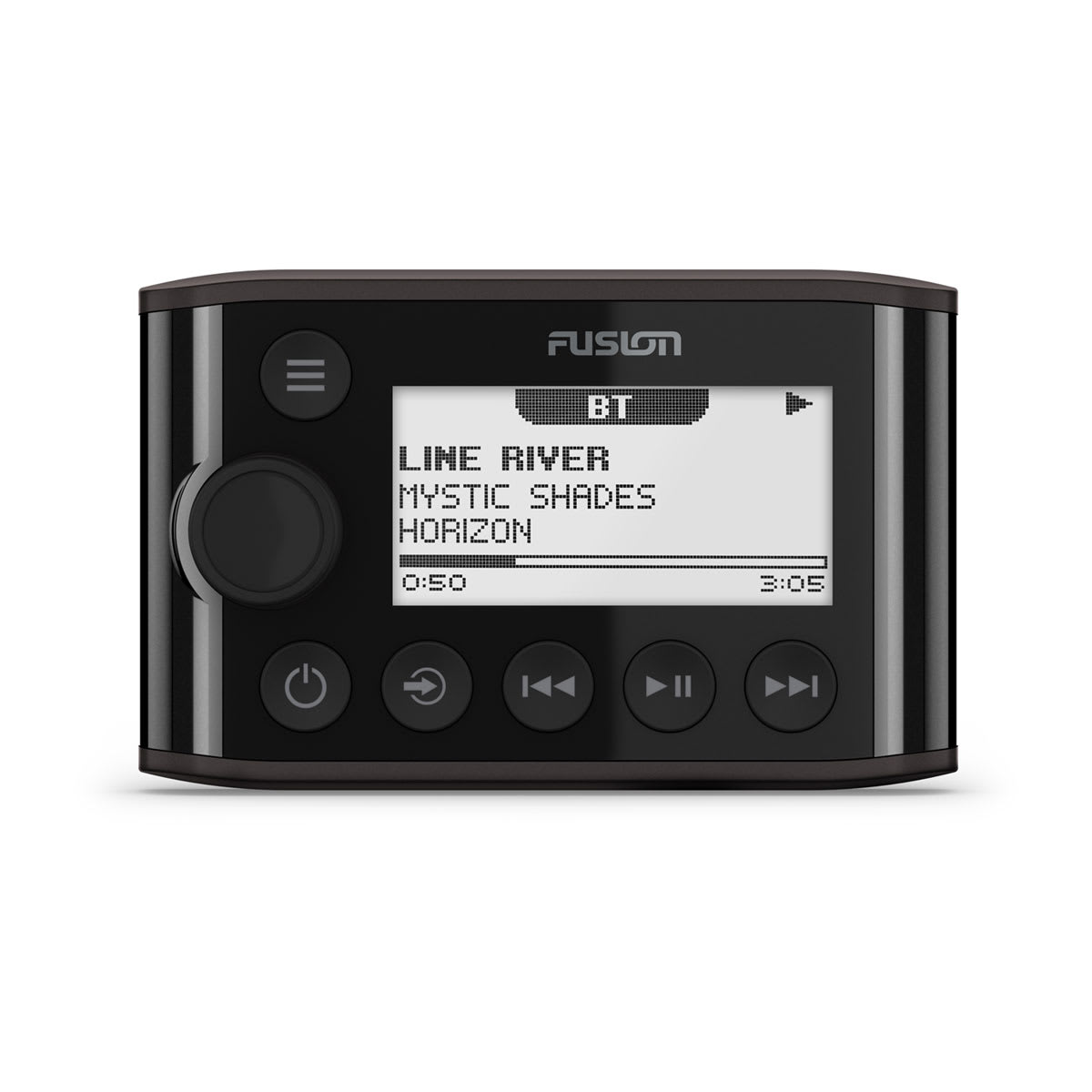

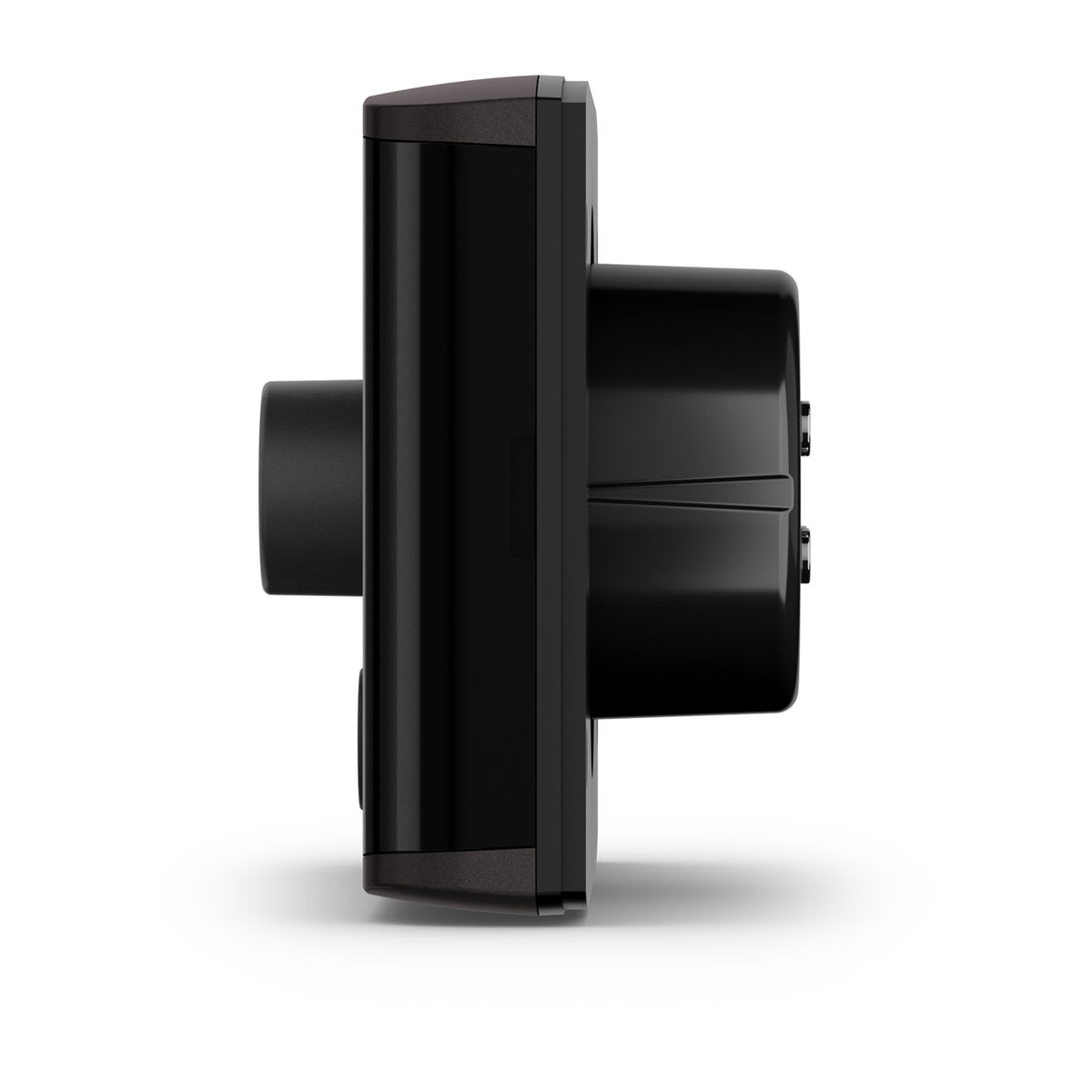

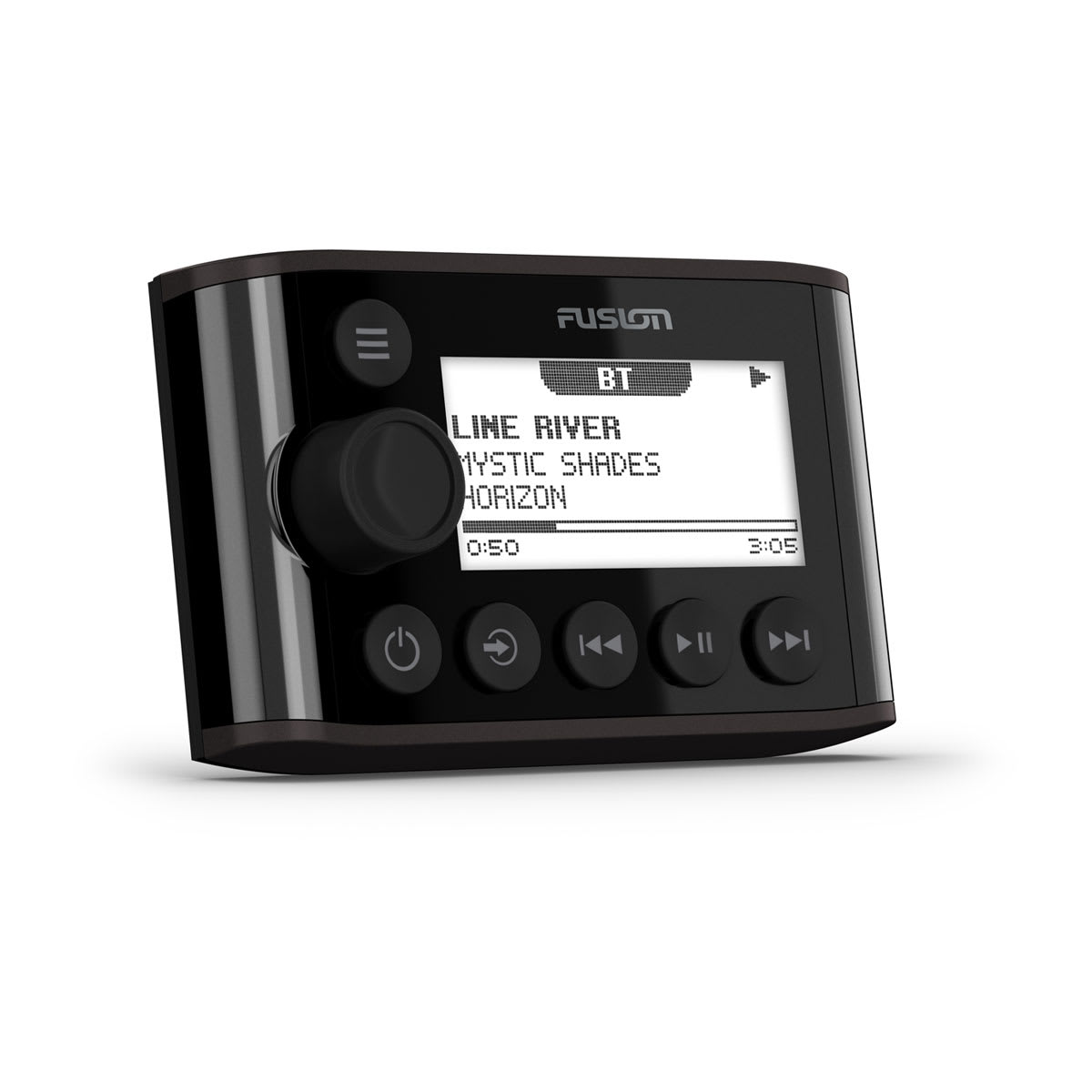

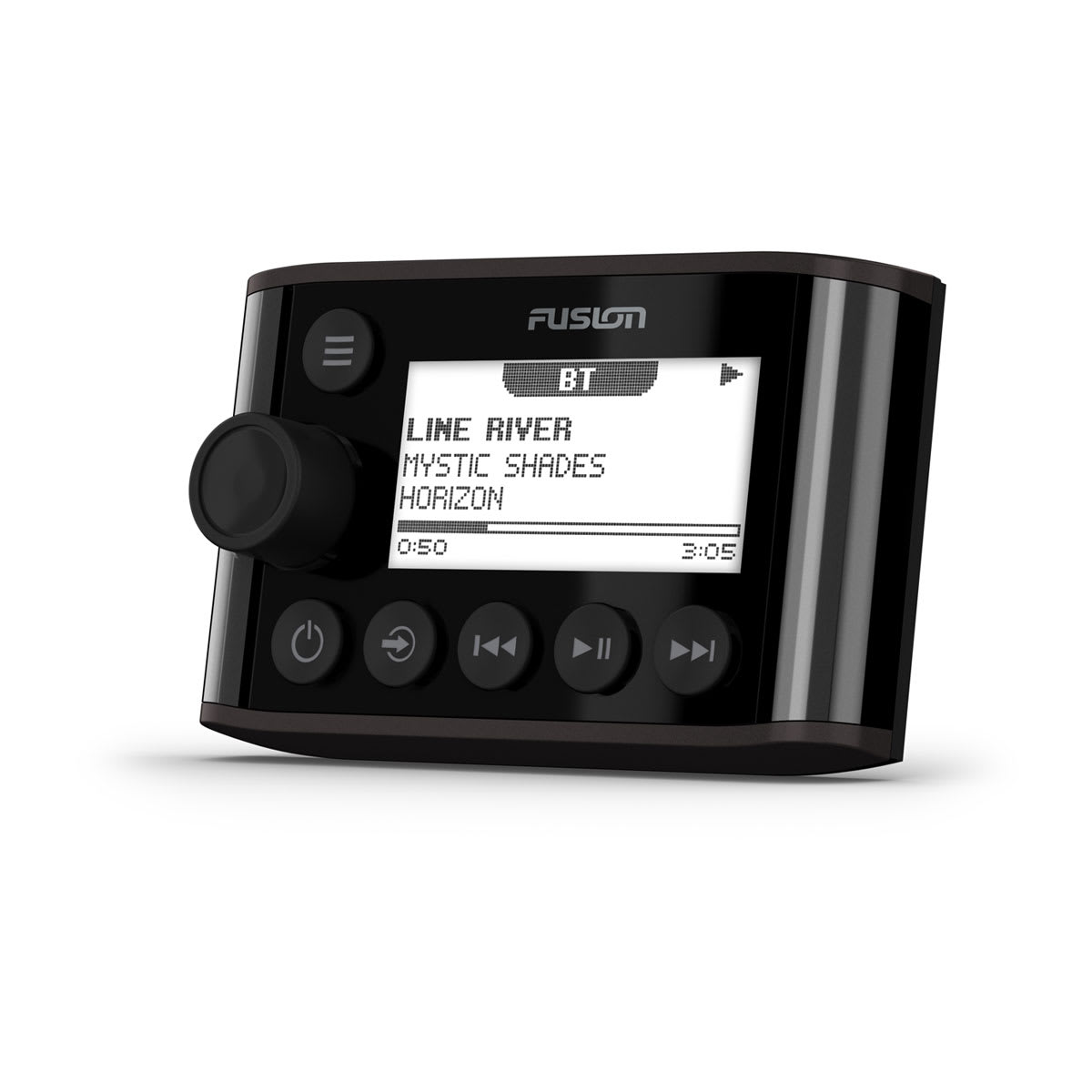

Fusion® MS-NRX300, Black Marine Wired Remote with Connectivity to the NMEA 2000® Network Black Marine Wired Remote with Connectivity to the NMEA 2000® Network
An easy to install wired remote that connects to the NMEA 2000® Network and allows you to enjoy localized audio control from any audio zone on board your boat.
General
Physical dimensions (HxWxD)
2.76" x 4.33" x 1.97" (70 x 110 x 50 mm)
Water rating
IPX7
Power input
10.8-16 VDC
Operating temperature range
32° to 122° F (0° to 50° C)
Current (max.)
110 mA at 12 VDC
Remote Features
Display
2.6" optically bonded monochrome LCD
Supported NMEA 2000 PGN data
127250 - Heading sensor reference (true, magnetic) 128259 - Water speed reference (paddle wheel, pitot tube, doppler log, correlation log, electromagnetic log) 128267 - Water depth (offset add or subtract) 129025 - Position (latitude and longitude) 129026 - Course Over Ground (COG) and Speed Over Ground (SOG) [COG reference true, magnetic] 129029 - Global Navigation Satellite System (GNSS) position data 129284 - Navigation data (ETA) 130306 - Wind data reference (apparent wind relative to the vessel centerline) 130310 - Water temperature and air pressure 130311 - Water temperature and air pressure 130312 - Temperature and temperature source (sea temperature)
