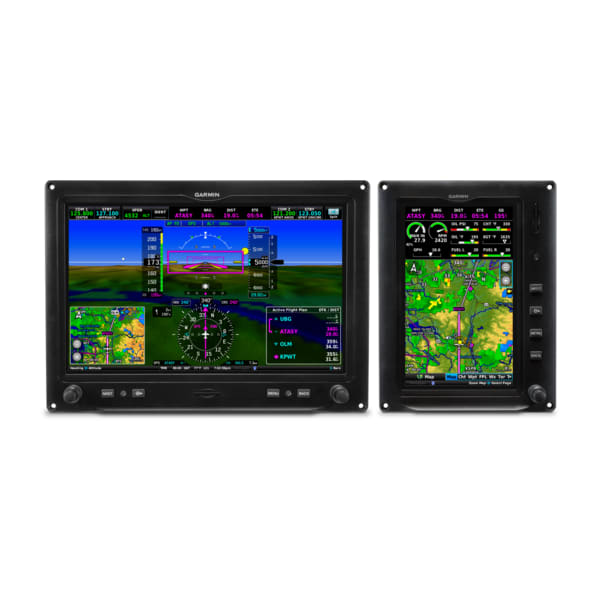

G3X Touch™ for Certificated Aircraft 10.6\" Landscape and 7\" Portrait Displays with 4 Cylinder EIS

10.6” Display (GDU 460)

• Display size: 10.6” (269.2 mm) diagonal
• Display resolution: 1280 pixels (W) x 768 pixels (H)
• Unit height: 7.82” (198.6 mm)
• Unit width: 10.85” (275.5 mm)
• Unit depth: 3.57” (90.7 mm); depth includes recommended backshell
• Weight: 4.6 lbs (2.09 kg); weight does not include nut plate and connector
• Input voltage range: 10-32 VDC, 28W max, not typical
• Operating Temperature Range: -20°C to +60°C

7” Portrait Display (GDU 470)

• Display size: 7” (177.8 mm) diagonal
• Display resolution: 480 pixels (W) x 800 pixels (H)
• Unit height: 7.82” (198.6 mm)
• Unit width: 6.01” (152.6 mm)
• Unit depth: 3.68” (93.4 mm); depth includes recommended backshell
• Weight: 2.66 lbs (1.21 kg); weight does not include nut plate and connector
• Input voltage range: 10-32 VDC, 20W max, not typical
• Operating temperature range: -20°C to +60°C
