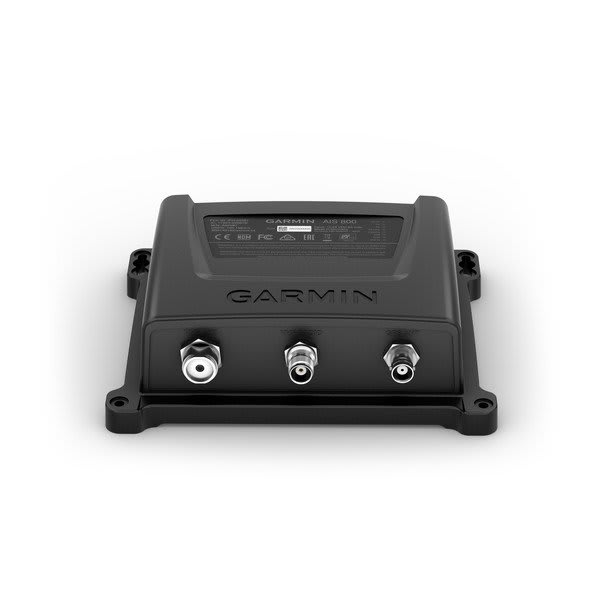

• Garmin AIS™ 800 Blackbox Transceiver AIS 800 Blackbox Transceiver
1 1

Garmin AIS™ 800 Blackbox Transceiver AIS 800 Blackbox Transceiver

Garmin AIS™ 800 Blackbox Transceiver AIS 800 Blackbox Transceiver

$114.99 USD
$380.00 USD $114.99 USD
Sale Sold out
The Garmin AIS™ 800 Blackbox Transceiver allows you to receive AIS target data as well as transmit your own vessel information to other AIS receivers in your area.

General
Unit size 175 x 142 x 55 mm (6.9" x 5.6" x 2.1")
Weight

0.9 lb (414 g)
Operating voltage 9.6 - 31.2 VDC
Water rating IPX7
Operating temperature -15°C to 55°C (5°F to 131°F )
Splitter connector TNC

VHF Radio
Spurious response 70 dB
Max antenna gain 6 dBi

AIS Transponder Features
AUX VHF splitter

AIS
Class SOTDMA Class B; CSTDMA Class B (optional)
Long range position reports (Msg 27)
Frequency range 156.025 – 162.025 MHz
AIS Sensitivity (20% PER) -110 dBm
Adjacent channel selectivity 70 dB
Intermodulation 65 dB
Splitter insertion loss RX 0 dB, TX -0.9 dB

GNSS
Integrated GNSS receiver
Integrated GNSS antenna
Constellations GPS, GLONASS, Galilleo
Differential support SBAS, AIS Msg 17
Navigation rate 1 Hz

Sensors
NMEA 2000 Compatible
NMEA 0183 Compatible

Tactical Features
Stealth Mode

Electrical Features
Typical current draw at 12 Vdc 400 mA
Compass-safe distance 40 cm (15.8")

Sonar Features
Power output 5 W

Networking & Connections
NMEA 0183 detail 1 NMEA 0183 port, AIS & GPS sentences, 4800/38400 baud
External GNSS antenna connector BNC
Ant connector SO-239 (50 Ω)
