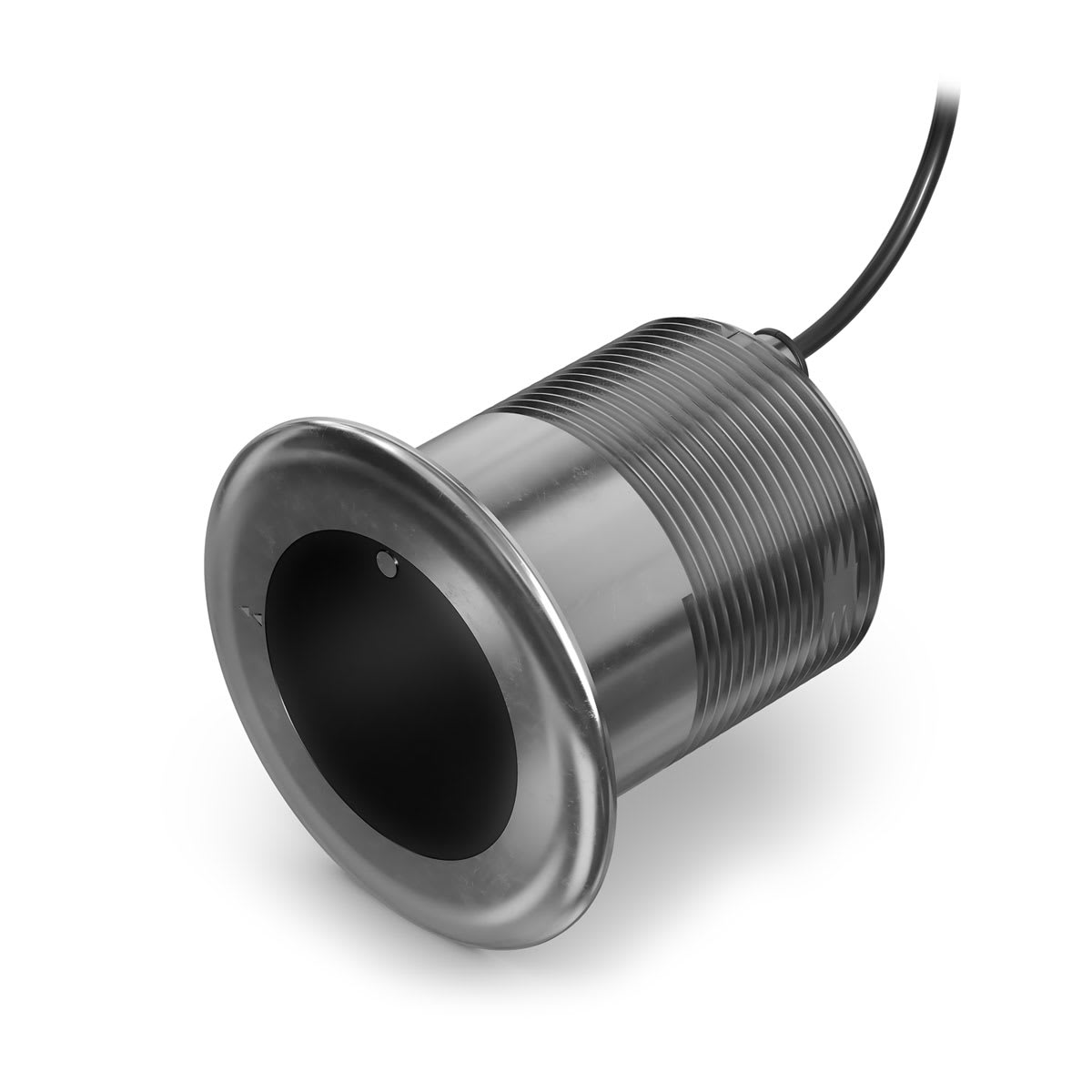

Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW midband CHIRP (80–165 kHz) transducer clearly defines fish arches, structure and bottom depth returns on your display.
General
Transducer frequency
medium band CHIRP (80-165 kHz)
Transducer power
1 kW
Transducer beamwidth
9°-18°
Transducer maximum depth
1800 ft saltwater; 2400 ft freshwater
RapidReturn™ sonar compatible
Transducer cable length
50 ft
Transducer depth/speed/temperature
depth, temperature
Transducer number of pins
8-pin
Transducer supported deadrise/transom angles
0° supports hull deadrise angles from 0° to 7° 12° supports hull deadrise angles from 8° to 15° 20° supports hull deadrise angles from 16° to 24°
