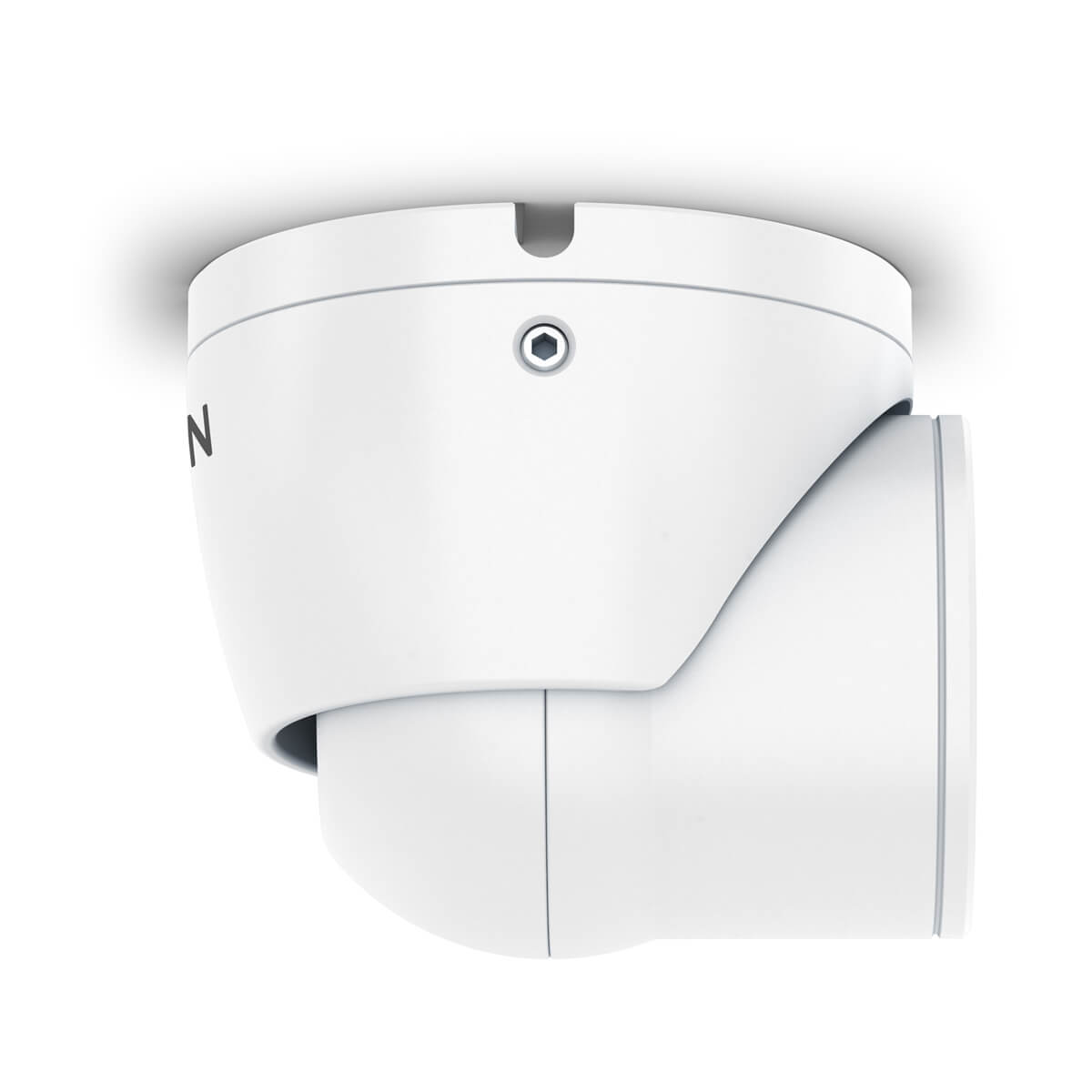

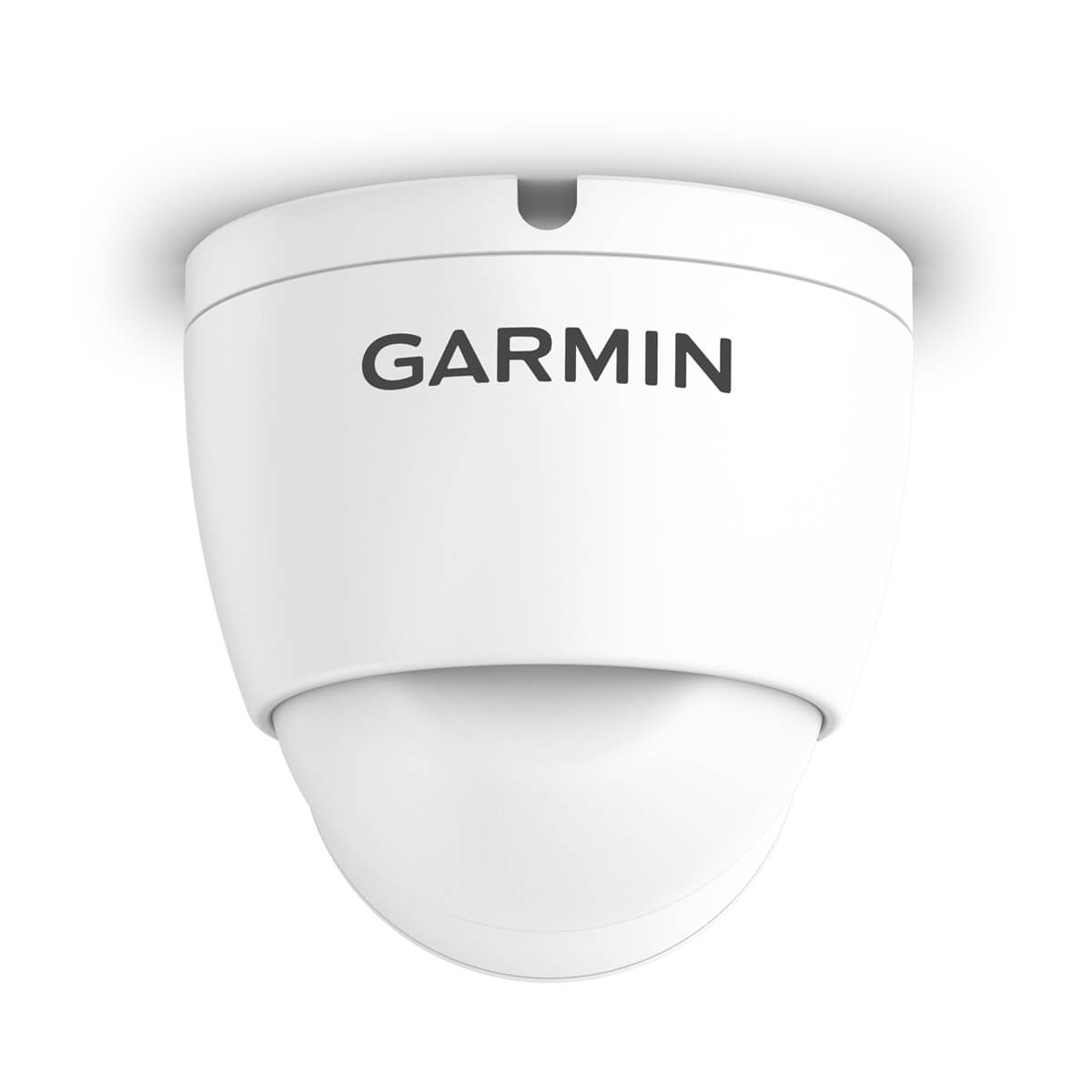

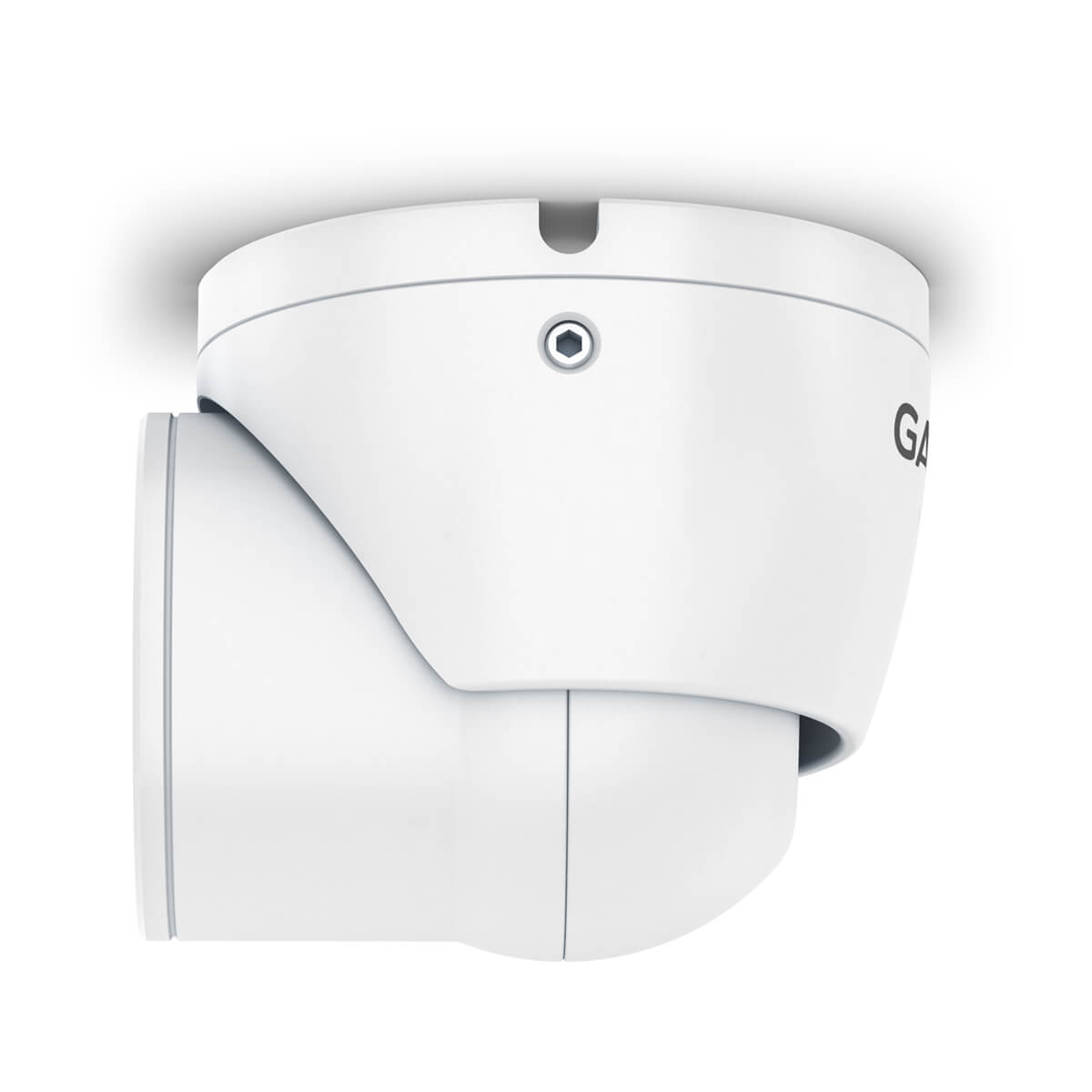

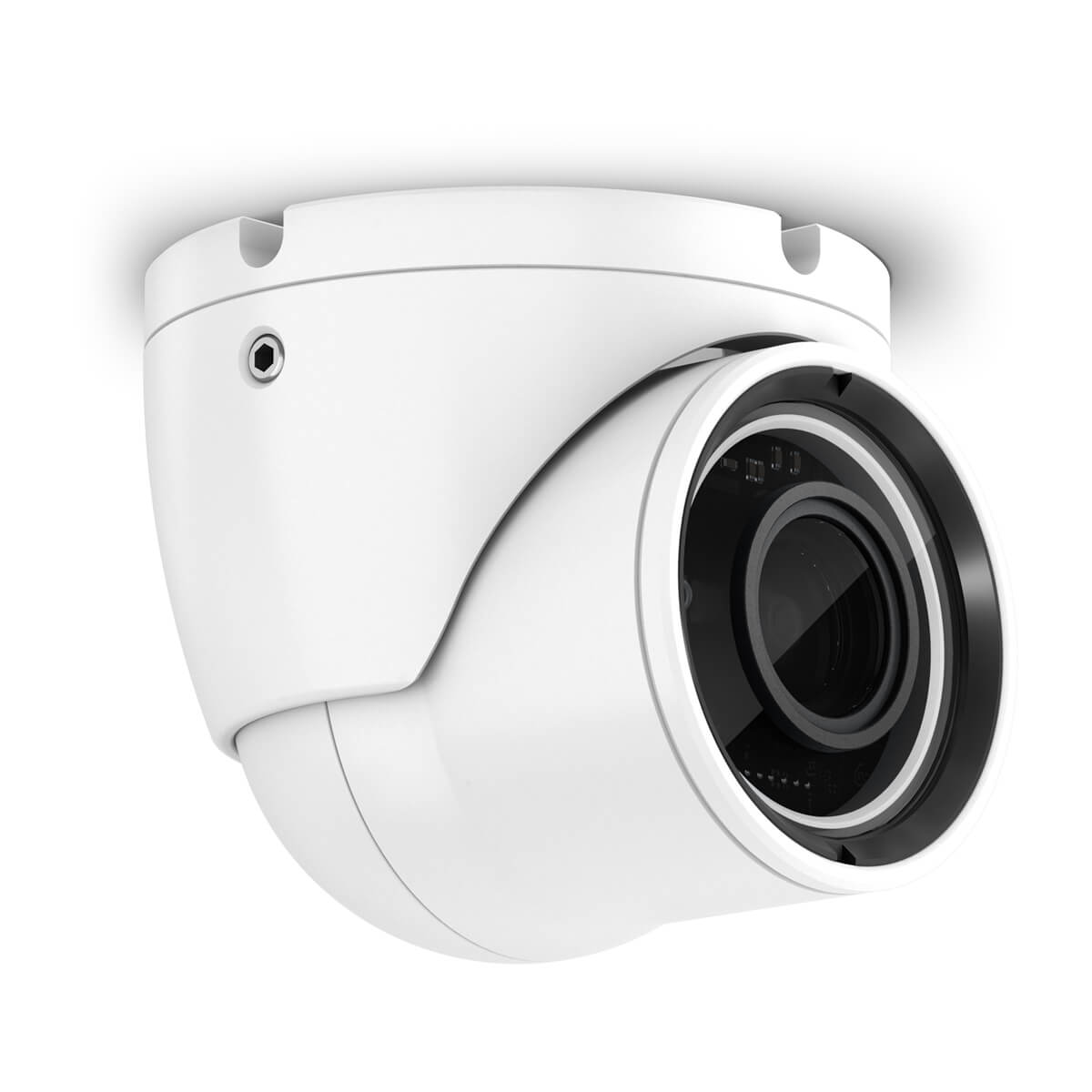

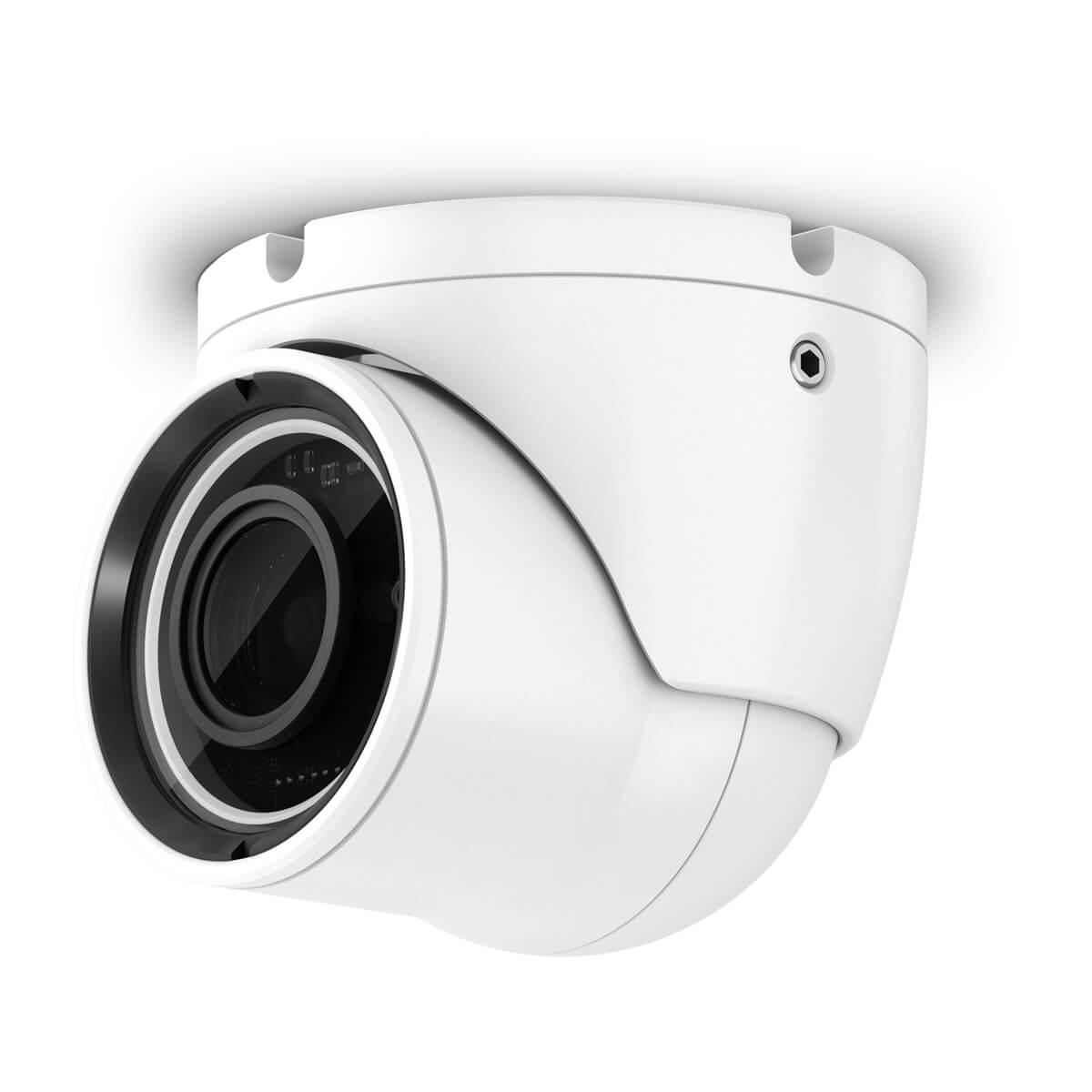

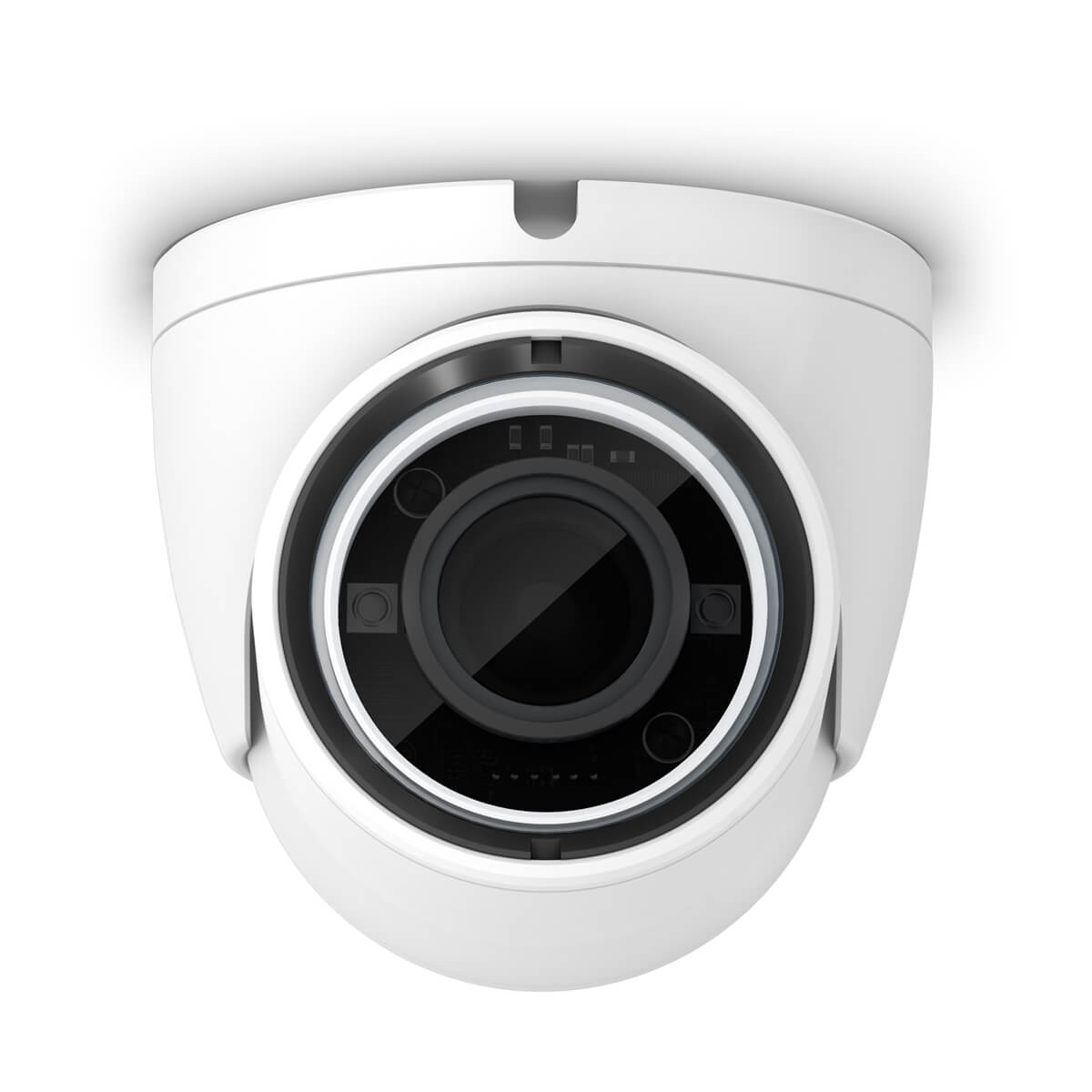

See more of what’s happening on or around your boat with the GC 14 marine camera. This analog camera delivers excellent quality images, even in low light.
Resolution: PAL: 976(H) x 582(V)
Scanning system: PAL: 625 lines 2:1 interlaced
Sync system: Internal
Low light vision range: Up to 15 m
Viewing angle (D×H×V(°)): 95.0° x 69.0° x 52.0°
Video output: 1.0Vp-p composite 75 Ω composite
S/N ratio: More than 52dB (AGC off)
Operating temperature: From -10℃ to +50℃
Power consumption: 12VDC; 80mA (IR off); 170mA (IR on)
