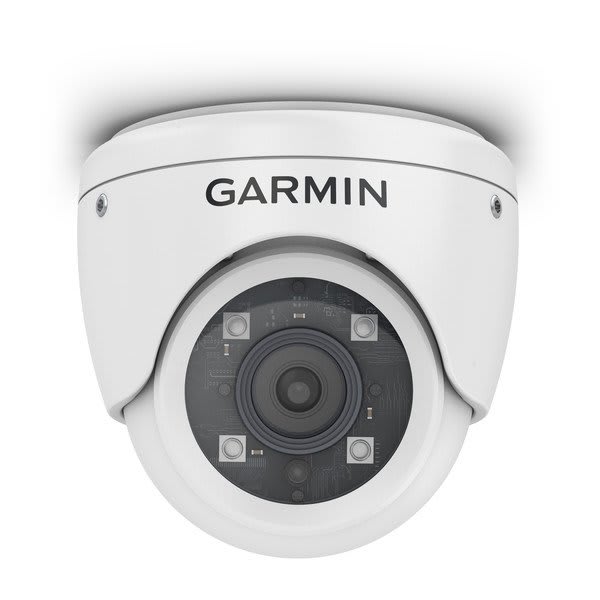

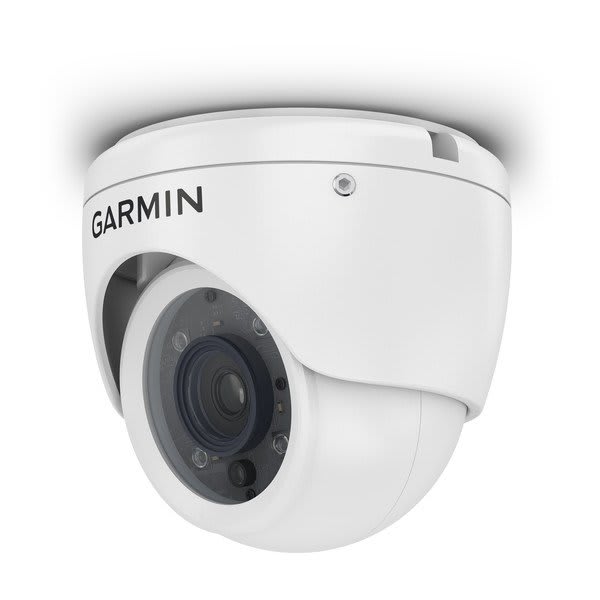

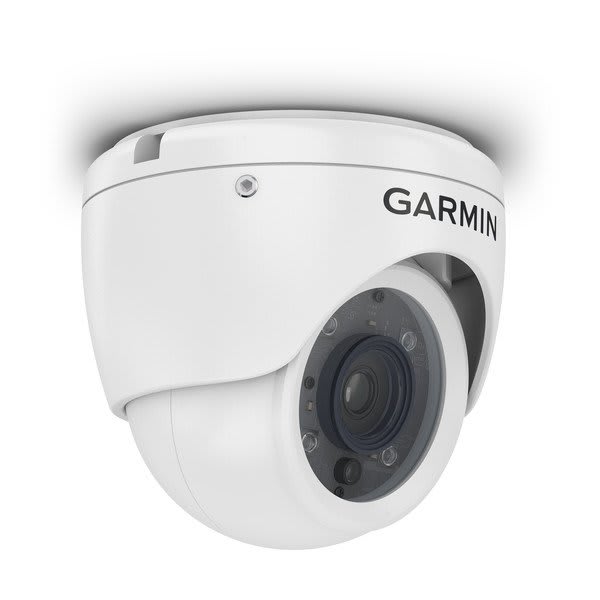

GC™ 200 Marine IP Camera GC™ 200 Marine IP Camera

• Unit dimensions (WxHxD): 3.4" x 3.4" x 3.1" (8.7 x 8.7 x 7.9 cm)
• Power: Hardwired (10 VDC to 16 VDC or over Garmin marine network through the Garmin Power and Audio Module (010-12527-00) sold separate)
• Camera connection: Garmin Marine Network
• Images: Standard and reversed; rotated, 180
• Night vision: Built-In IR LEDs
• Night vision distance: Up to 30 meters
• Viewing angle: 99 degrees horizontal/74 degrees vertical
• Image sensor: 2.0 megapixel ½.8” SONY STARVIS CMOS
• Scanning system: progressive scan
• White balance: auto
• Shutter speed:  auto
• Resolution: Up to 1920 x 1080 pixels*
• Video output: H.264 over GMN
• Operating temperature: -20C to 60C
• Water rating: IPX7
• Power consumption: Max 5 W with IR LEDs On
• Operating current @ 12 VDC: 210mA (IR Off)/370mA (IR ON)

*All current Garmin chartplotters can support up to 1280 x 720 pixels
