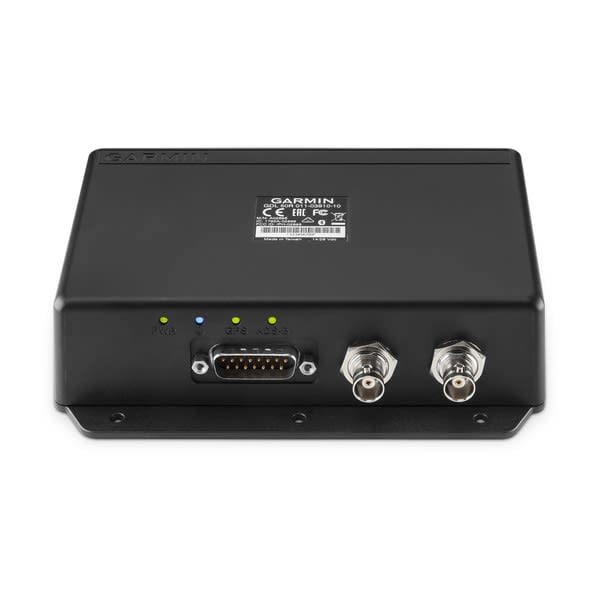

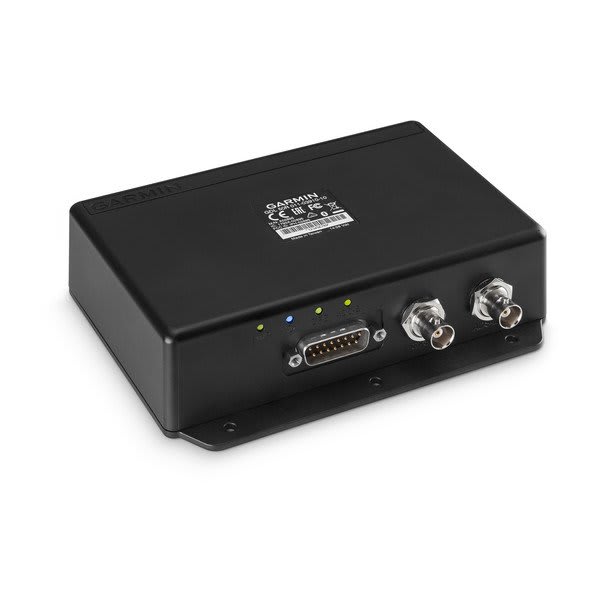

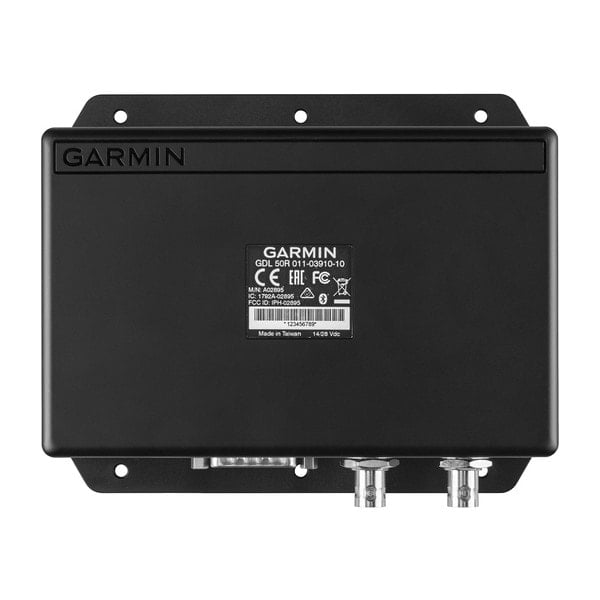

GDL® 50R Remote-mount ADS-B Receiver

Physical

• Unit dimensions, WxHxD: 6.1" x 1.6" x 5.0" (15.49 x 4.06 x 12.7 cm)
• Weight: 0.78 lbs (0.35 kg)

Performance

• Operating temperature: -20°C to +60°C (-4°F to 140°F)
• Operating altitude: To 55,000 ft
• Nominal operating velocity range: 0 – 800 kts (411 m/s)
• Power input: 10 to 32 VDC, 3.5 W max.

Connections

• 15-pin standard D-sub power and data connector
• ADS-B BNC antenna port
• GPS BNC antenna port
• Wireless Connext™ (Bluetooth®)

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
