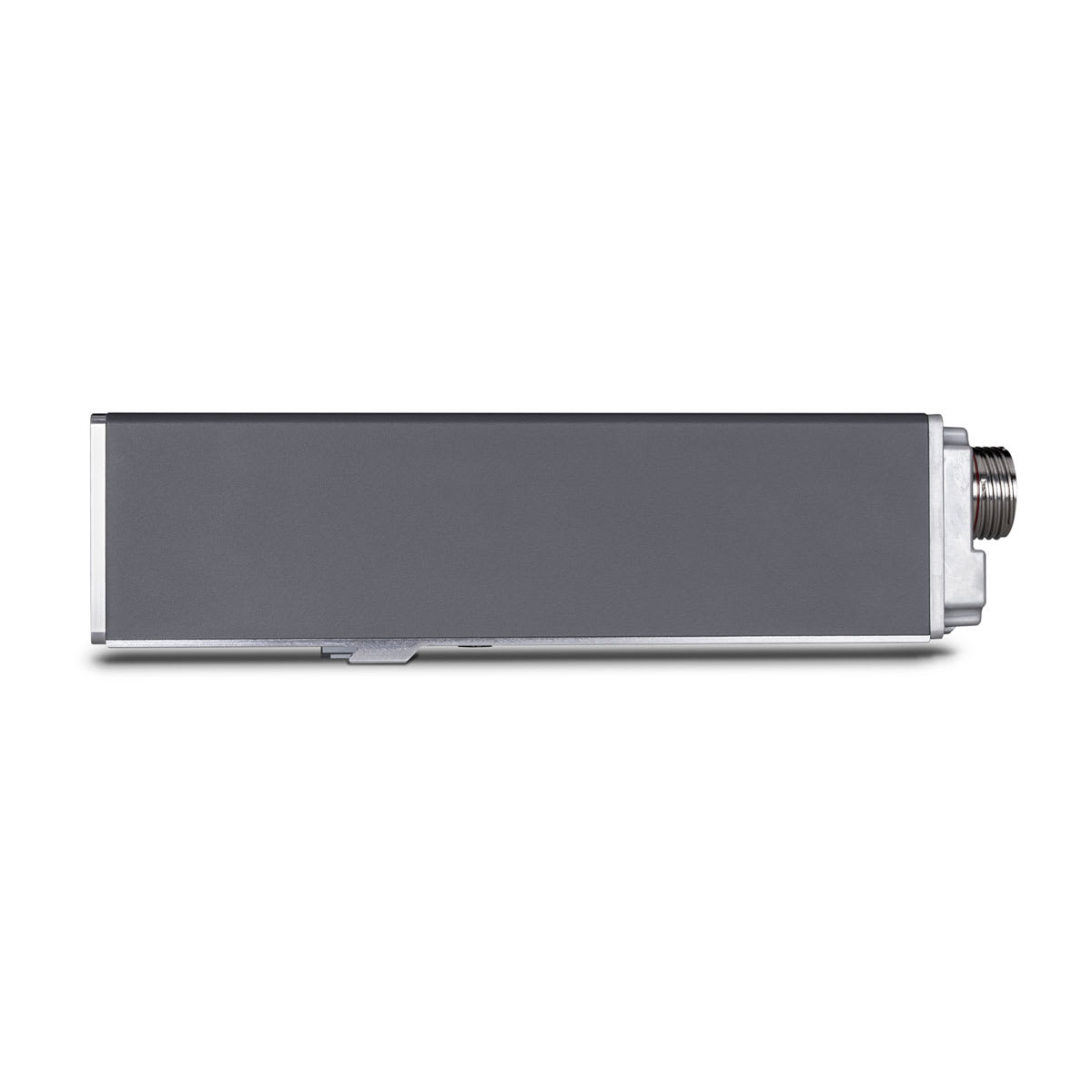

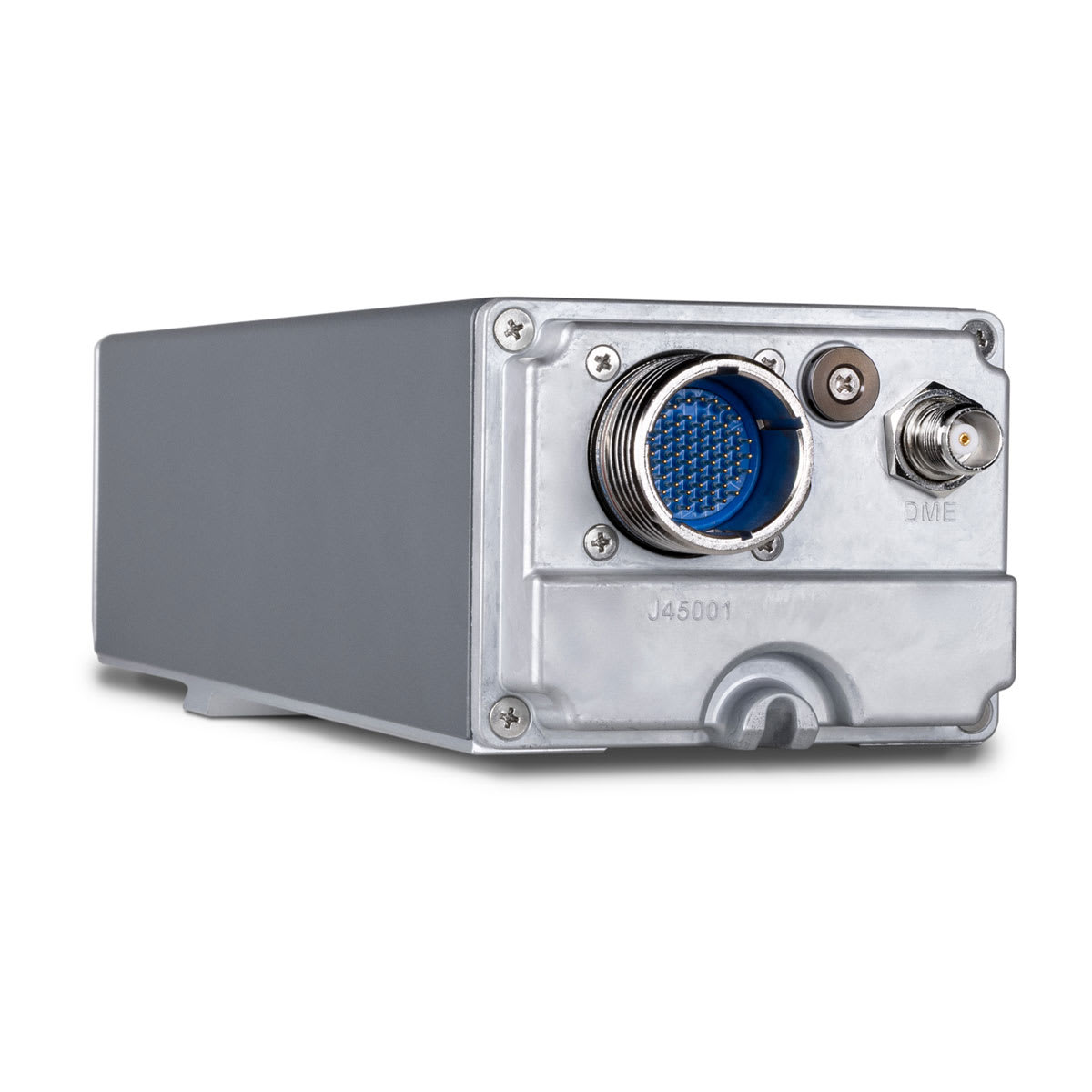

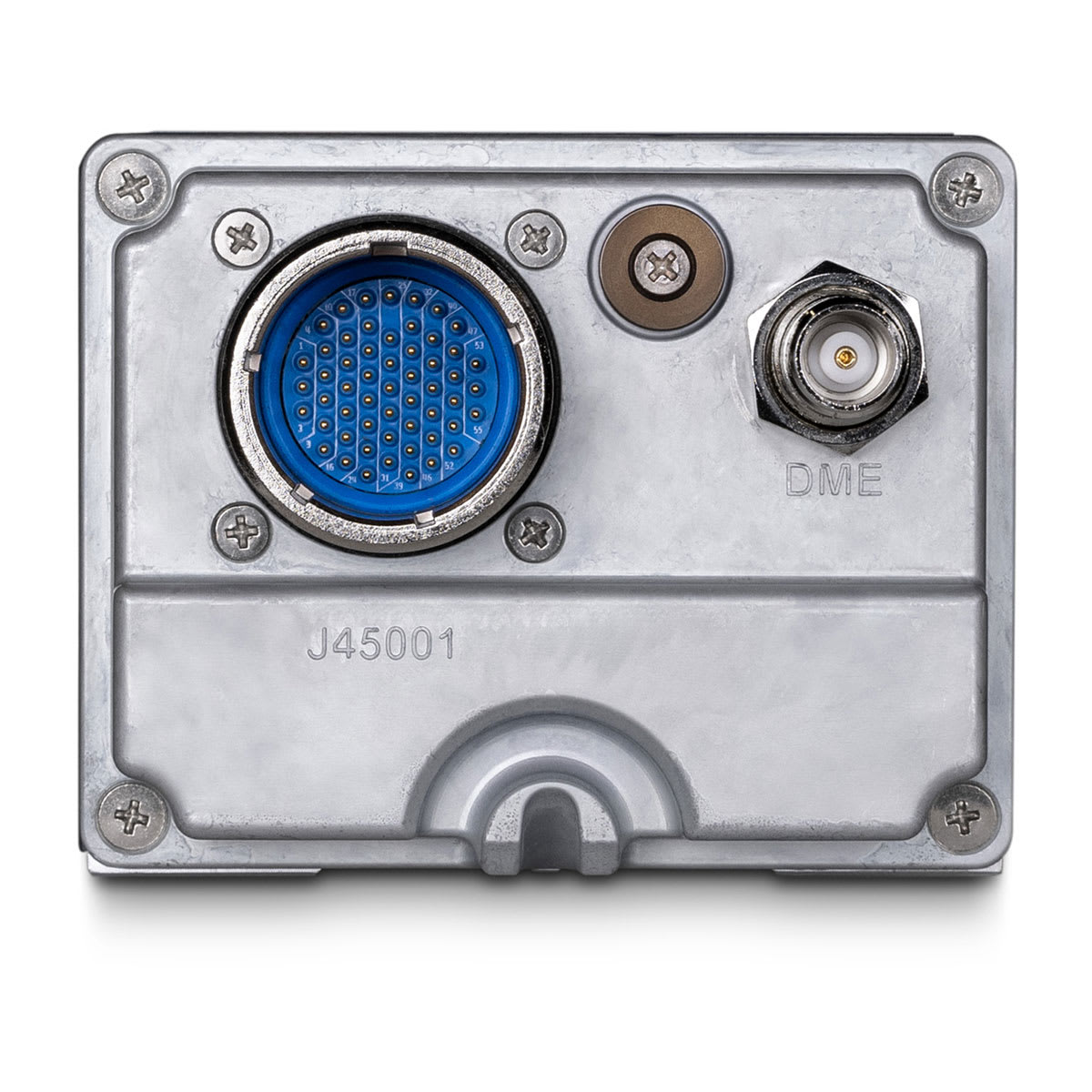

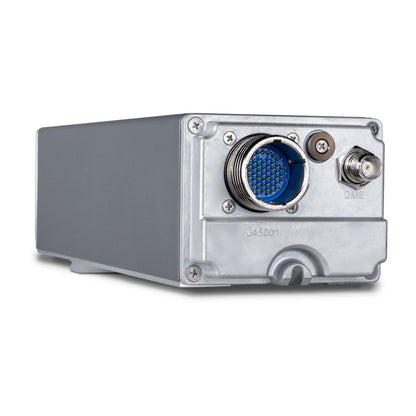

GDM 4500 Digital Remote-mount DME Radio

Name: GDM 4500 Digital Remote-mount DME Radio
Brand: My Store
SKU: 1778472764
Price: 111.99 USD
Availability: InStock

$111.99 USD

~~$373.00 USD~~ $111.99 USD

Sale Sold out

General
Operational temperature range	-45° C to +70° C
Maximum operating altitude	55,000 ft
Physical
Installed height (including rack)	3.11" (79.0 mm)
Installed width	3.46" (87.9 mm)
Installed depth to connector backshell	13.32" (338.8 mm)
Installed depth to straight connector backshell	12.84" (326.1 mm)
Weight (unit only)	3.63 lbs (1.65 kg)
Weight (with install rack, connector kit, and configuration module)	4.21 lbs (1.91 kg)
Power Specifications
14 V Typical/Tx	0.6 A
14 V Maximum/Tx	0.8 A
28 V Typical/Tx	0.3 A
28 V Maximum/Tx	0.4 A
Performance
Minimum sensitivity level	-90 dBm
Maximum range (line of sight)	300 nautical miles
DME channels	5 (with compatible avionics)
Nominal Transmit Power	250 watts
Interfaces
	ARINC 429, RS-232, HSDB, King Serial, Audio Out
Certifications
	TSO-C66c DME/N
	ETSO-2C66b DME/N Class 1
