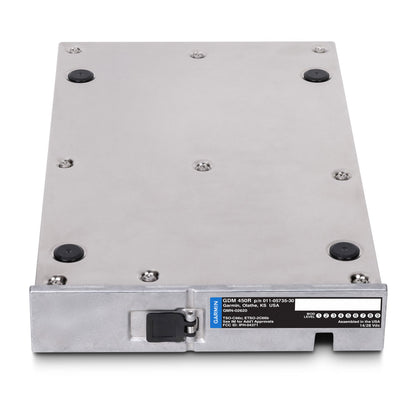

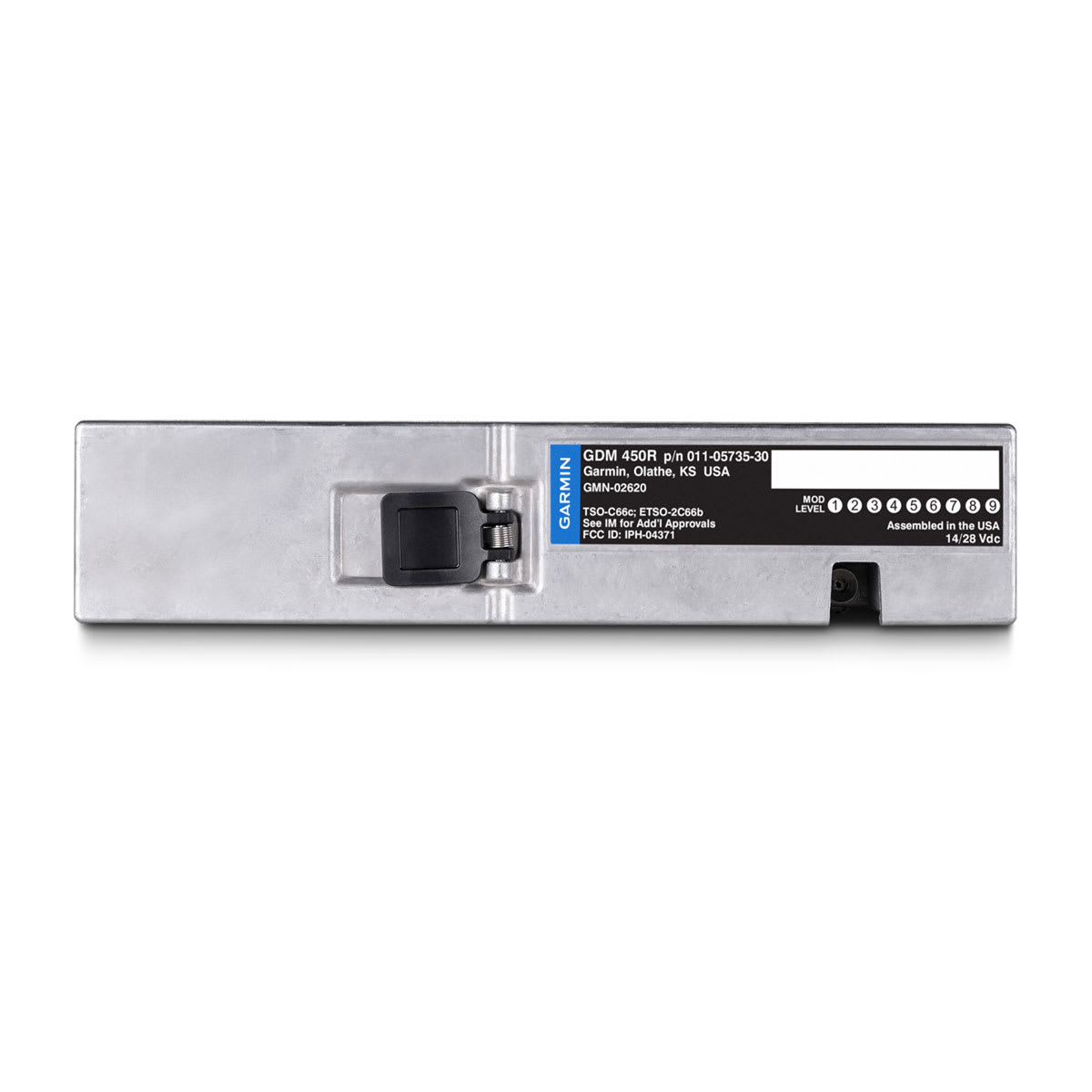

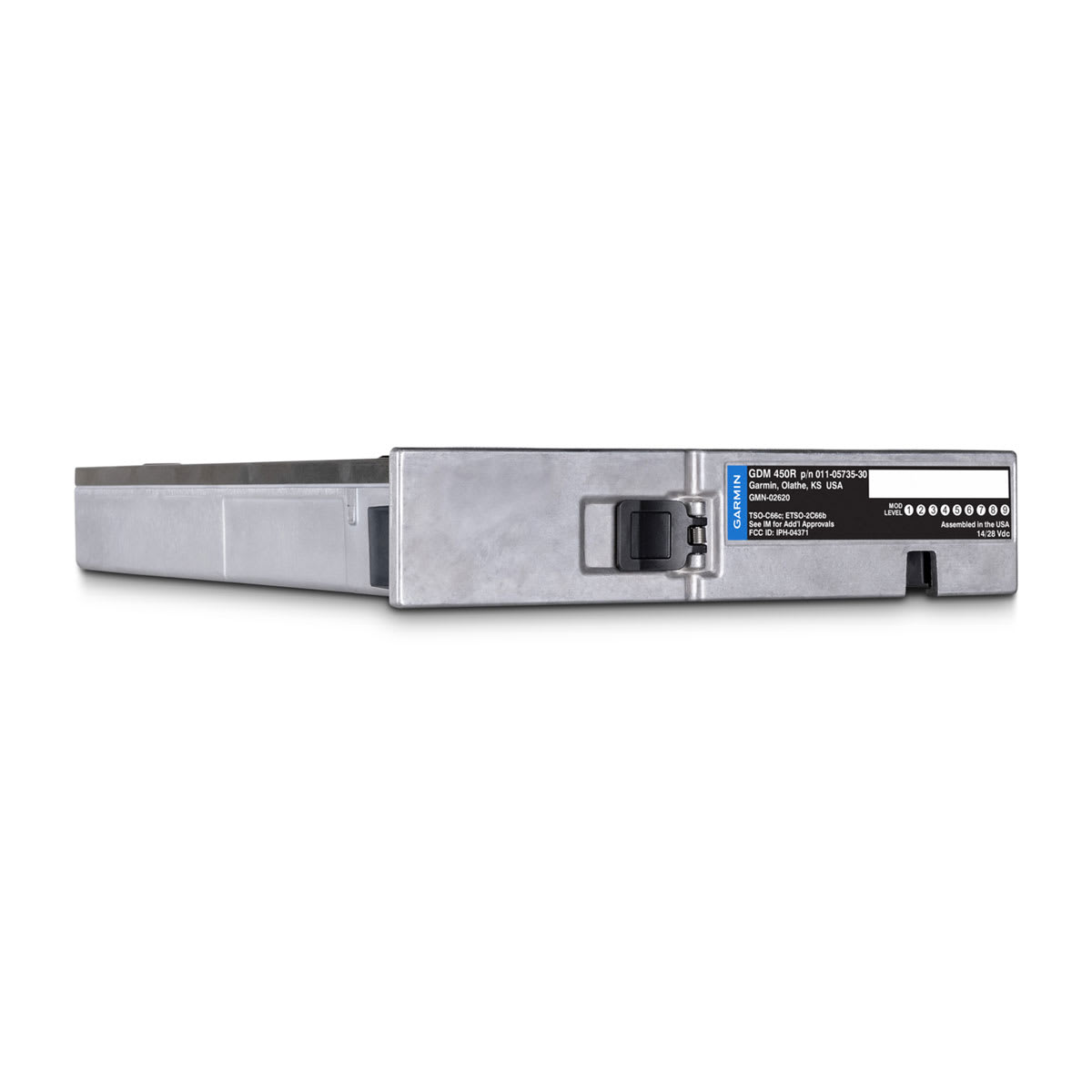

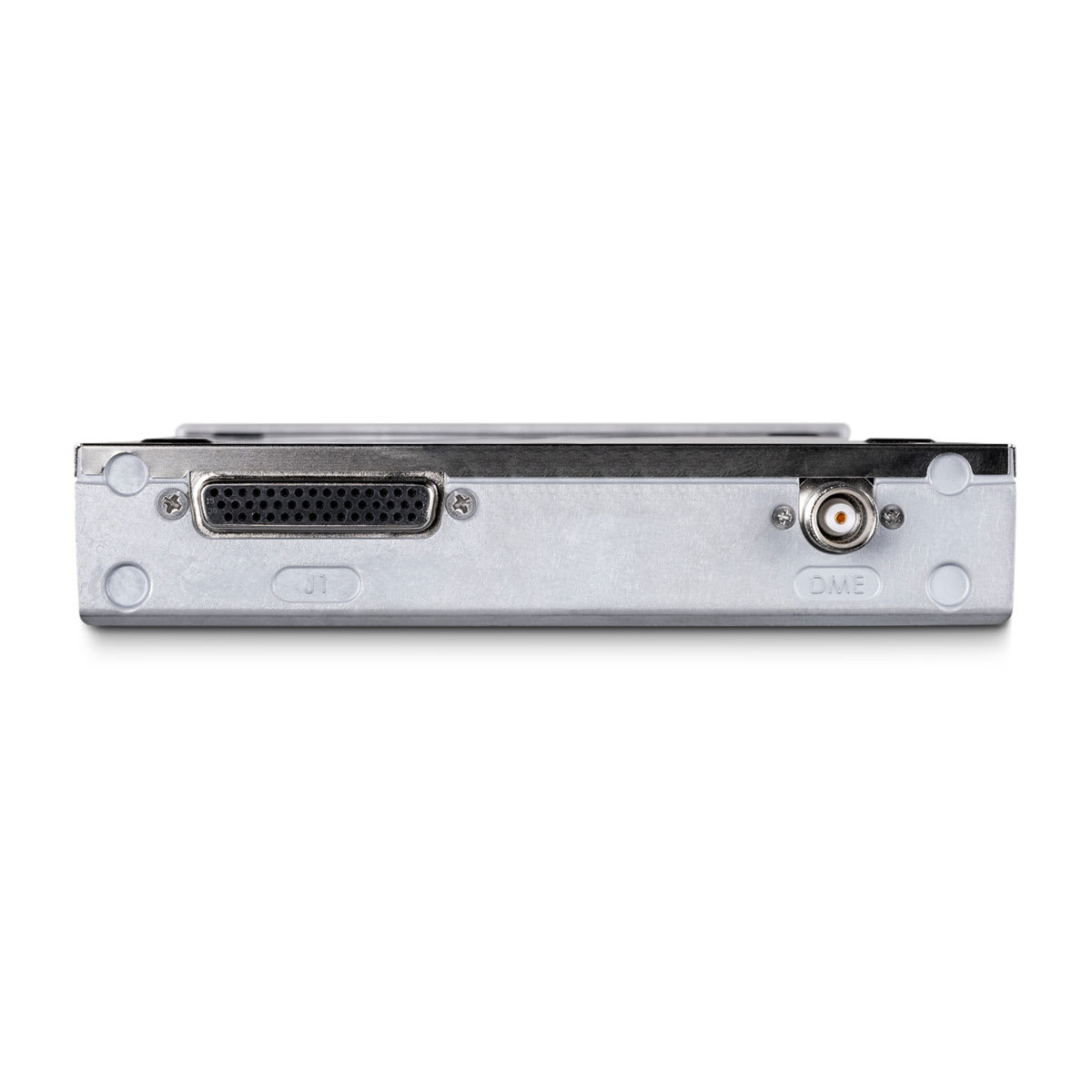

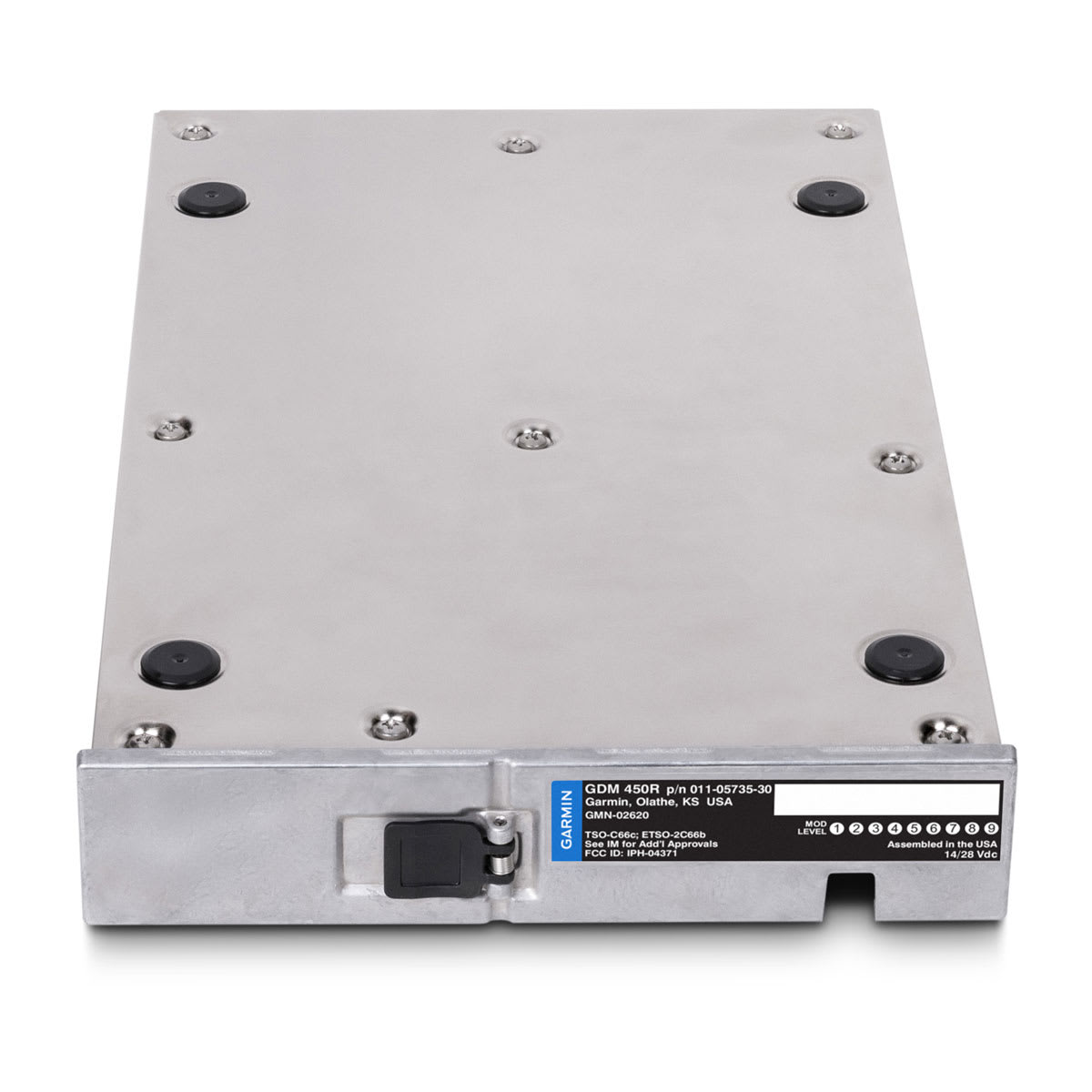

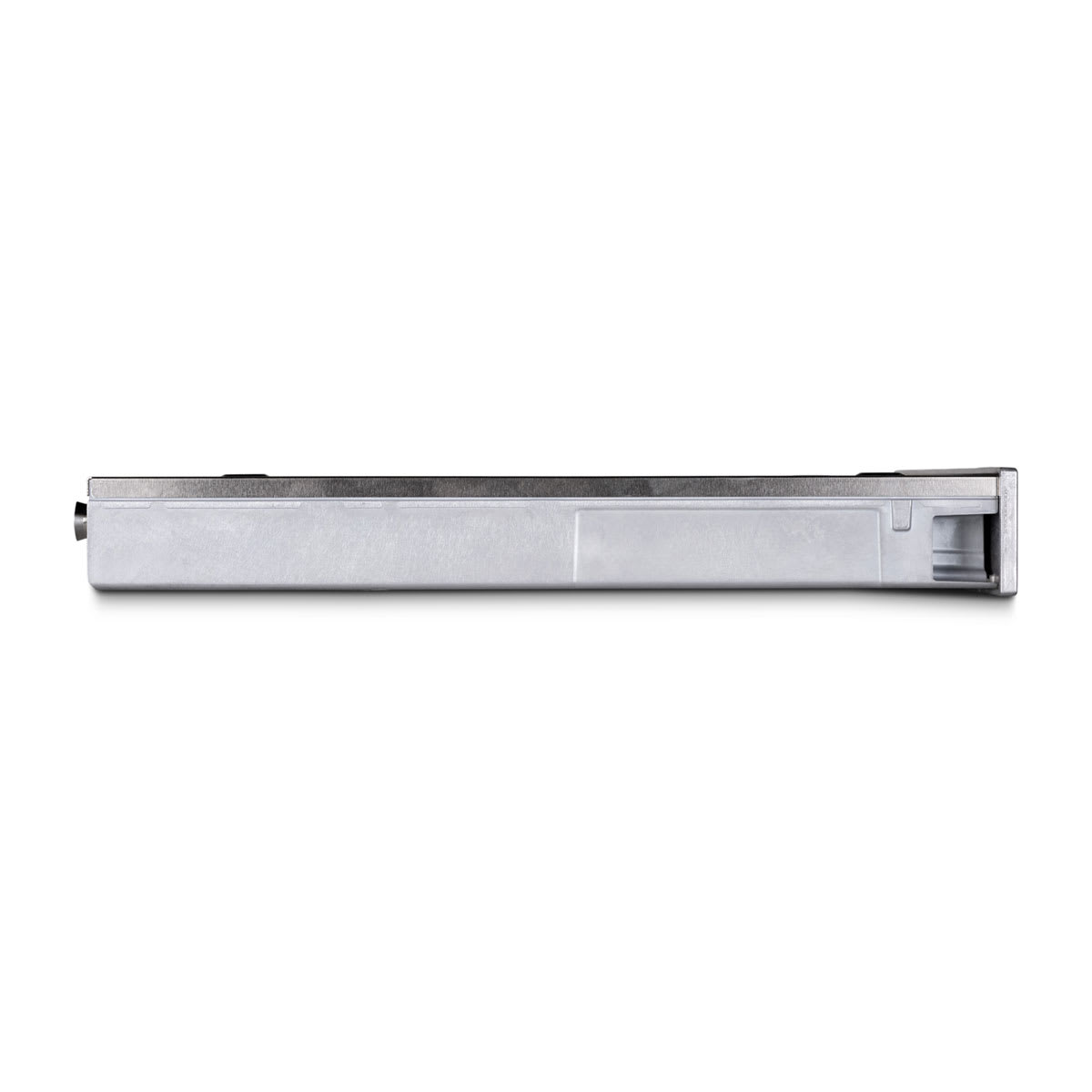

GDM 450R Digital Remote-mount DME Radio

Name: GDM 450R Digital Remote-mount DME Radio
Brand: My Store
SKU: 1778476895
Price: 106.99 USD
Availability: InStock

$106.99 USD

~~$356.00 USD~~ $106.99 USD

Sale Sold out

General
Operational temperature range	-45° C to +70° C
Maximum operating altitude	55,000 ft
Physical
Installed height (including rack)	1.35" (34.3 mm)
Installed width (including rack)	6.30" (160.0 mm)
Installed depth to connector backshell	11.62" (295.1 mm)
Weight (unit only)	2.42 lbs (1.1 kg)
Weight (with install rack, connector kit, and configuration module)	3.05 lbs (1.4 kg)
Power Specifications
14 V Typical/Tx	0.6 A
14 V Maximum/Tx	0.8 A
28 V Typical/Tx	0.3 A
28 V Maximum/Tx	0.4 A
Performance
Minimum sensitivity level	-90 dBm
Maximum range (line of sight)	300 nautical miles
DME channels	5 (with compatible avionics)
Nominal Transmit Power	250 watts
Interfaces
	RS-232, HSDB, King Serial, Audio Out
Certifications
	TSO-C66c DME/N
	ETSO-2C66b DME/N Class 1
