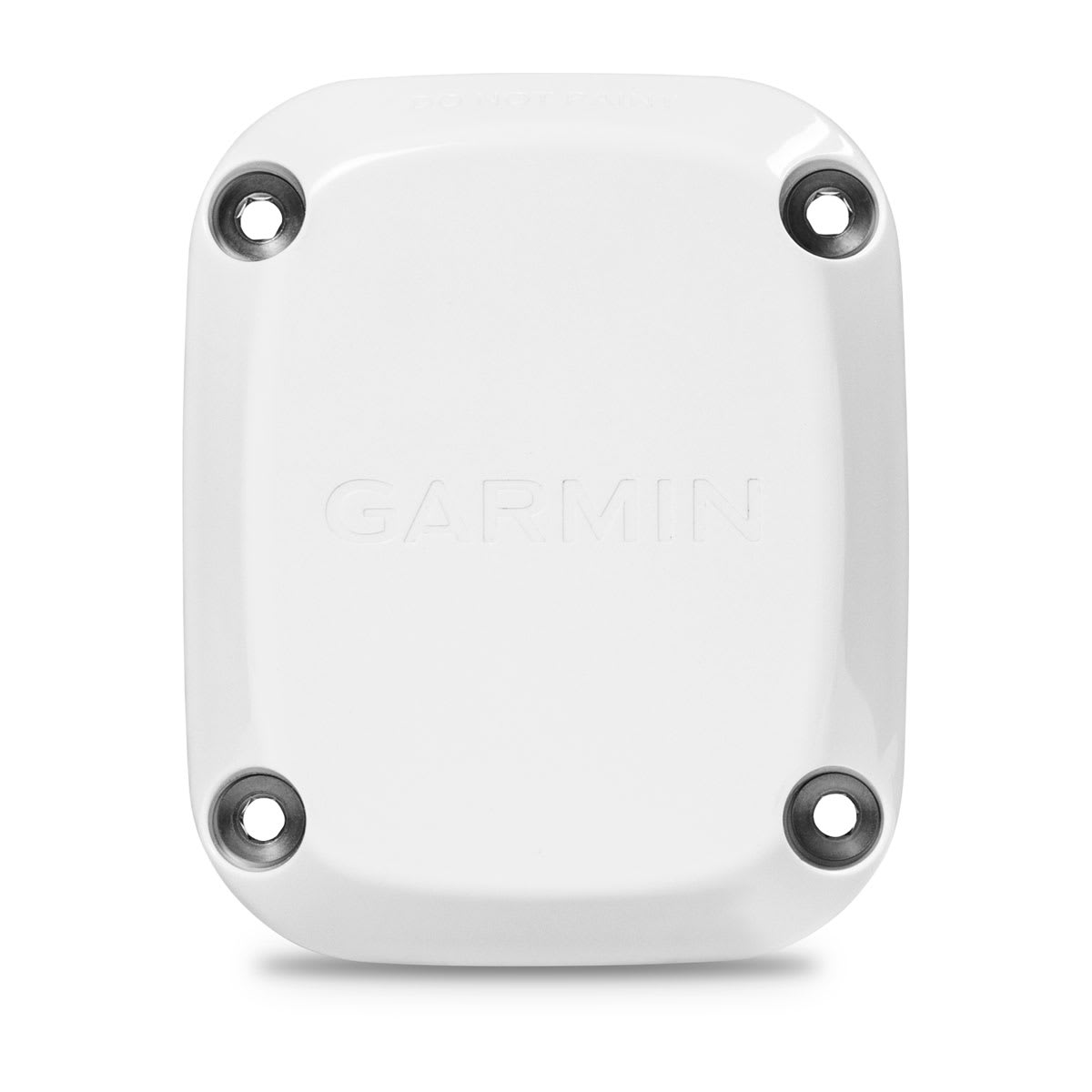

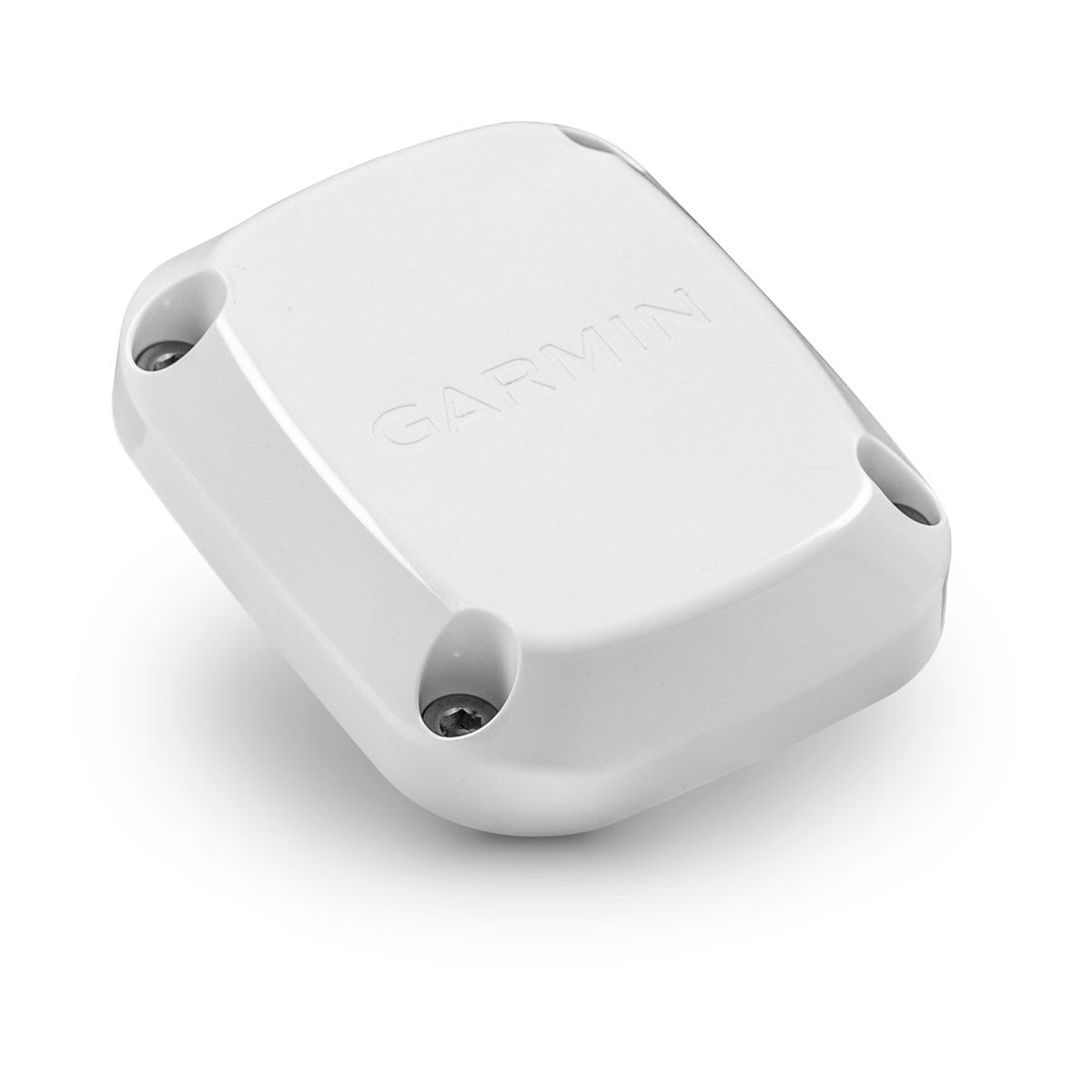

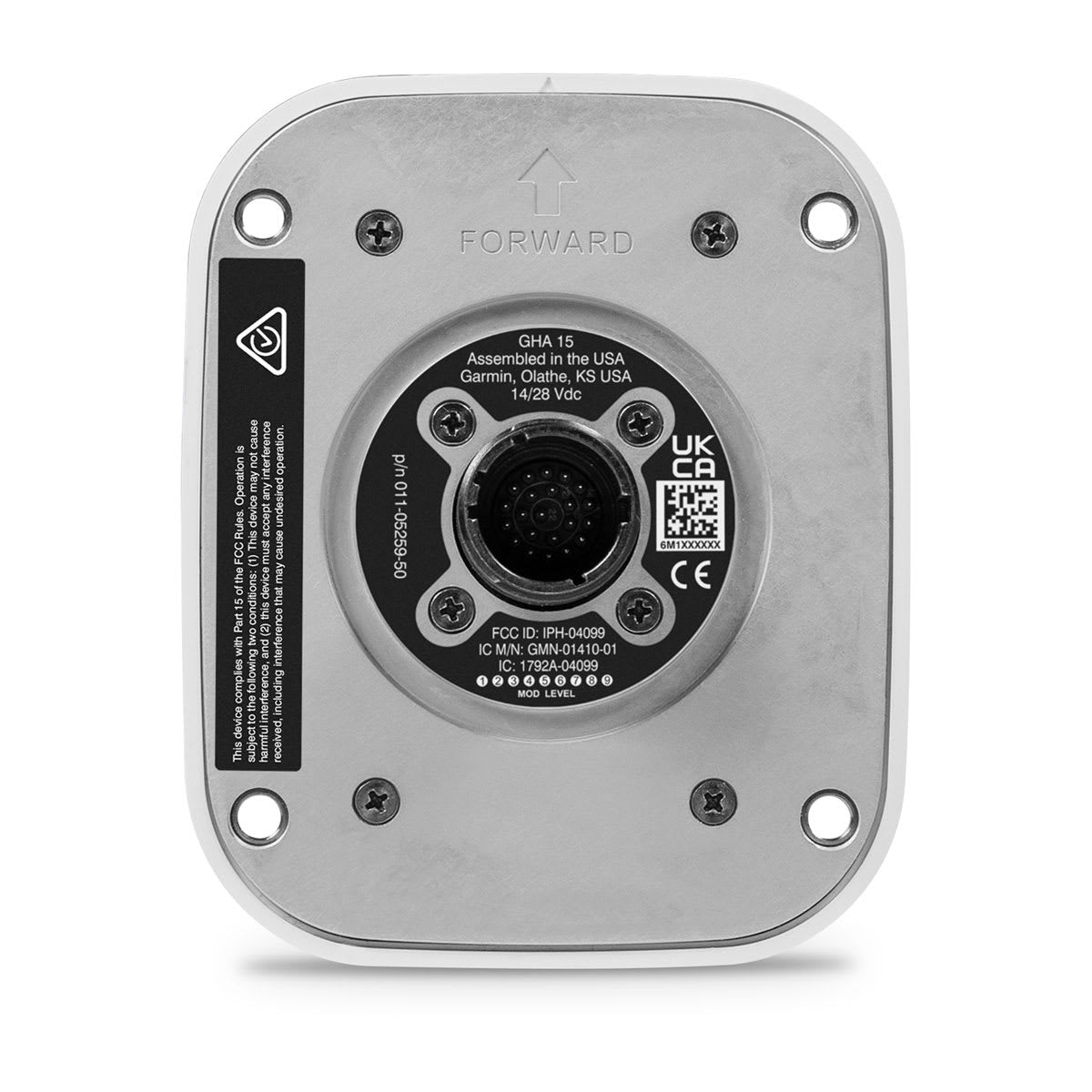

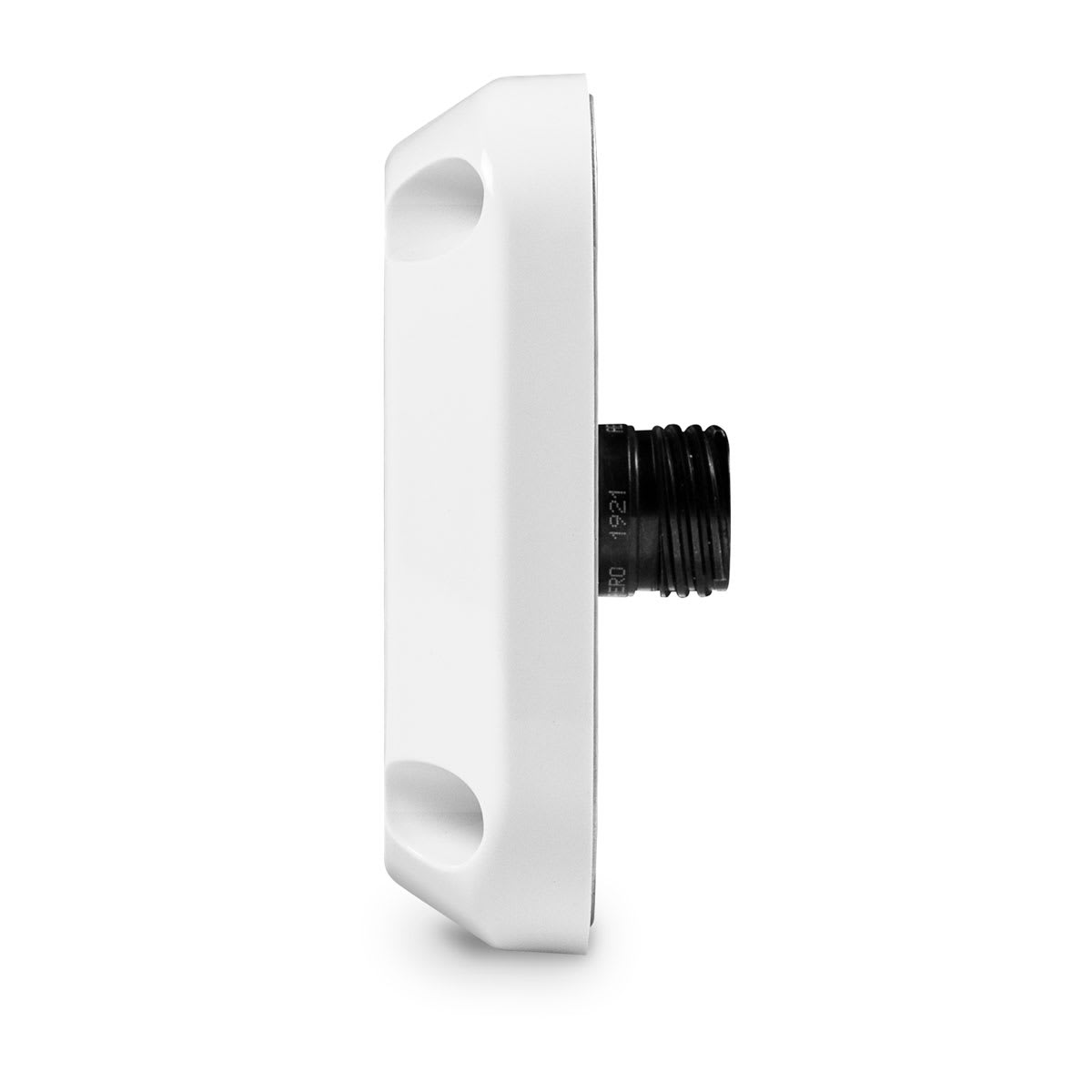

GHA™ 15 GHA 15 (For Certificated Aircraft)

Physical Specifications

• Height: 4.35" (110.5 mm)
• Width: 3.55" (90.2 mm)
• Depth (from surface of fuselage): 1.02" (25.9 mm)
• Depth (with connector): 2.47" (62.7 mm)
• Weight: 0.5 lb (0.23 kg) max
• Connector kit weight: 0.15 lbs (0.06 kg) max

General Specifications

• Operational Temperature Range: -45C to +70C
• Altitude Range: 25,000 ft maximum

Performance Specifications

• Altitude Accuracy: +/- 1.5 ft (3-100 ft AGL), +/- 2% (>100 - 500 ft AGL)
• Altitude Range: 0 - 500 ft AGL
• Horizontal Velocity: 0 - 100 knots maximum
• Vertical Velocity: 20 ft/sec maximum (up to 100 ft AGL), 25 ft/sec maximum (above 100ft AGL)
• Pitch Angle: +/- 20° maximum
• Roll Angle: +/- 20° maximum

Power Requirements

• Supply Voltage: 14/28VDC
• Power Consumption: 5W maximum
