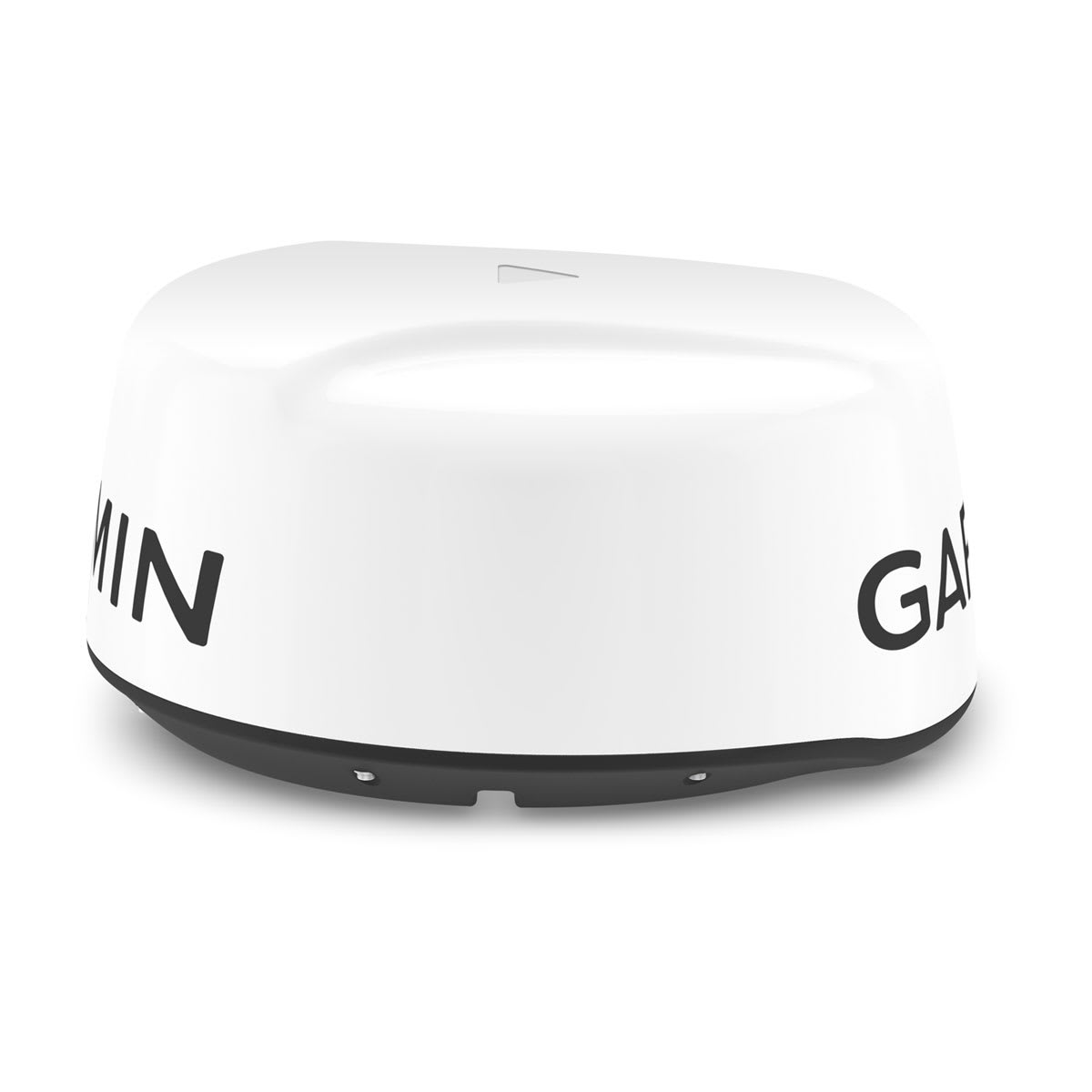

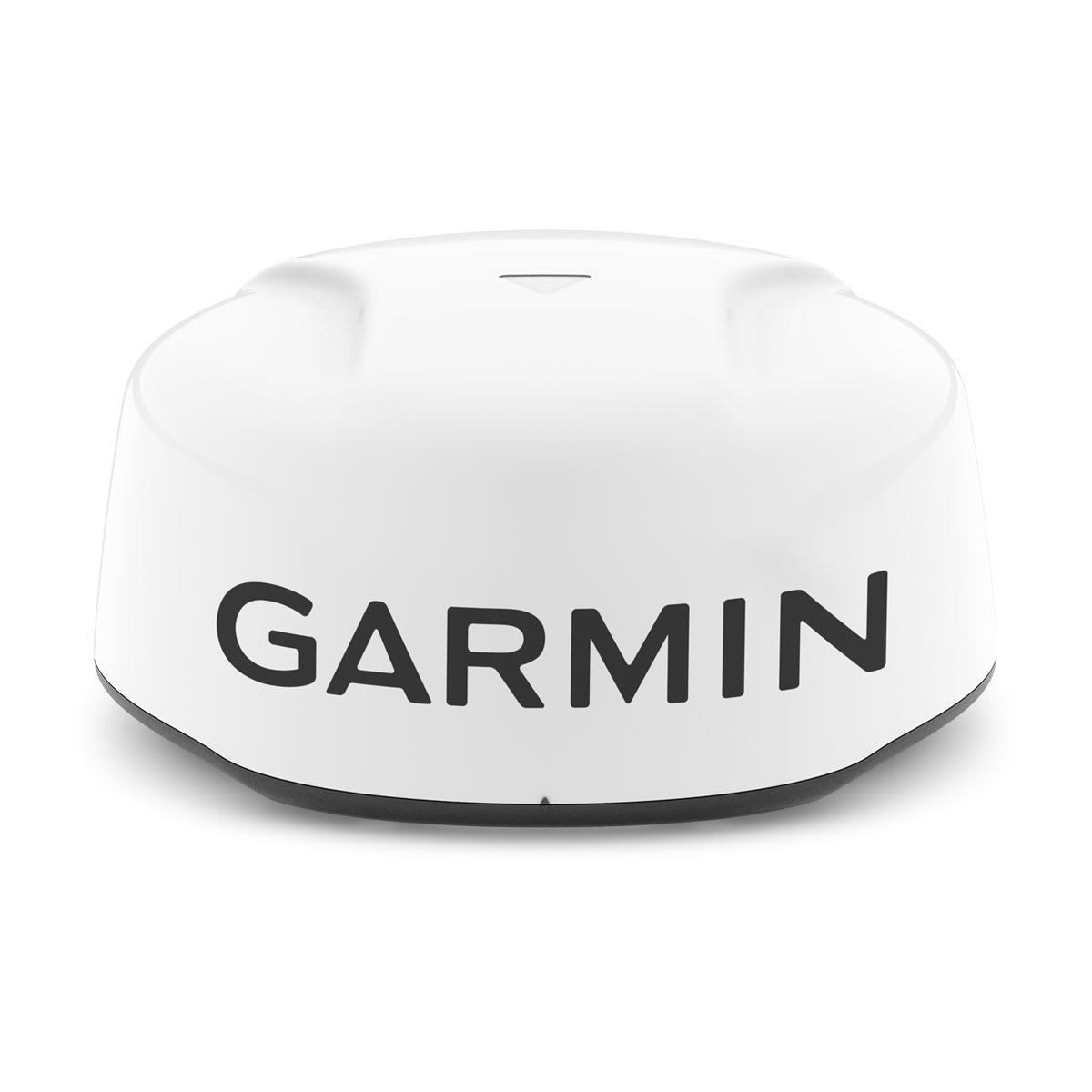

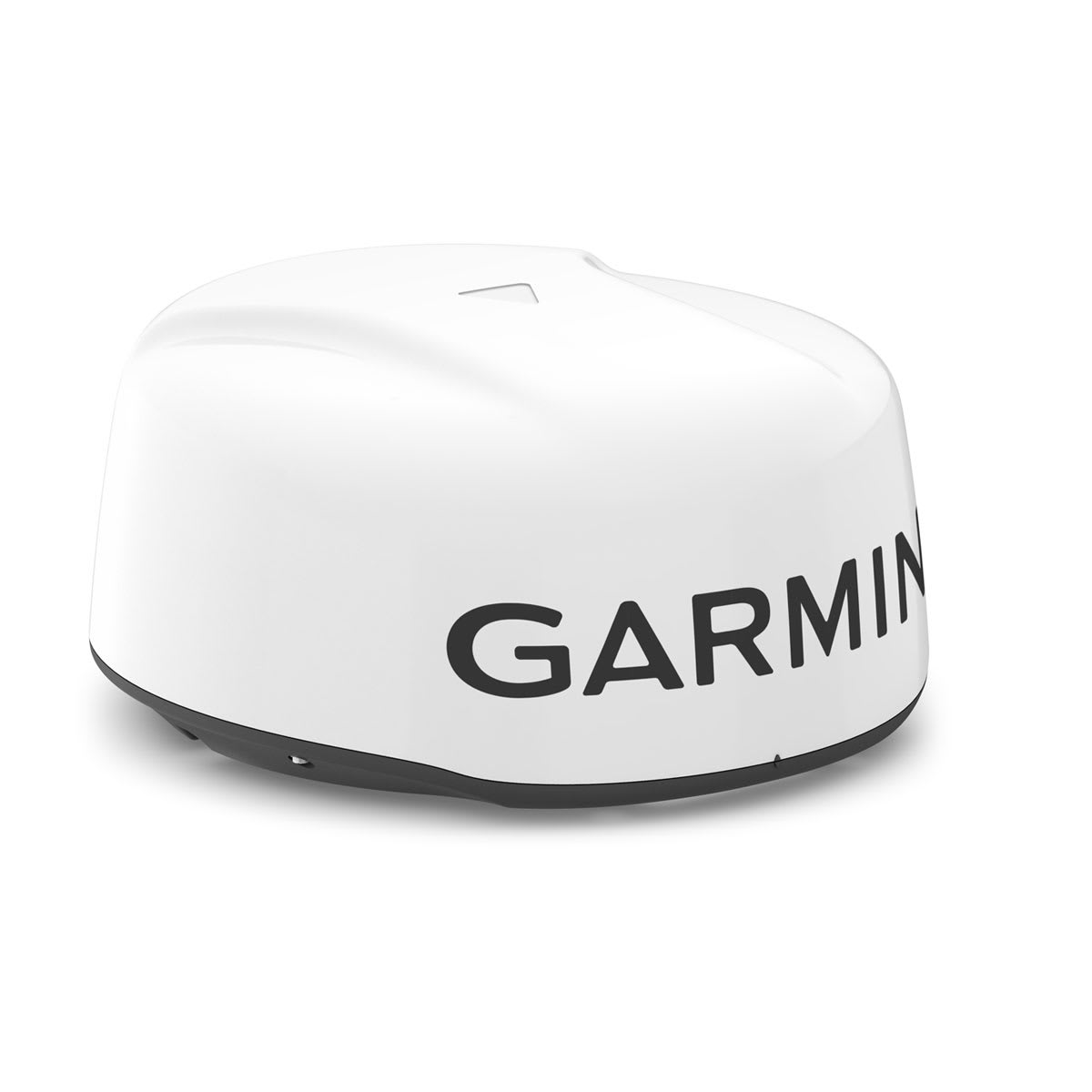

GMR 18 HD3 is an 18” magnetron dome radar with 4 KW of power and scanning features that work to maximize your confidence and situational awareness on the water.
General
Antenna Length
17" (43 cm)
Rotation speed (RPM)
24 rpm
Dimension
20" diameter, 9.8" high (508 mm diameter, 248 mm high)
Weight
7.0 kg
Water rating
IPX7
Beam width
5.2° horizontal, 25° vertical
Maximum range
36 nm
Minimum range
20 meters
Radar type
Radome
Electrical Features
Power Input
11-32 V DC
Power Consumption (standby)
15 W
Typical power consumption, transmitting (normal mode)
