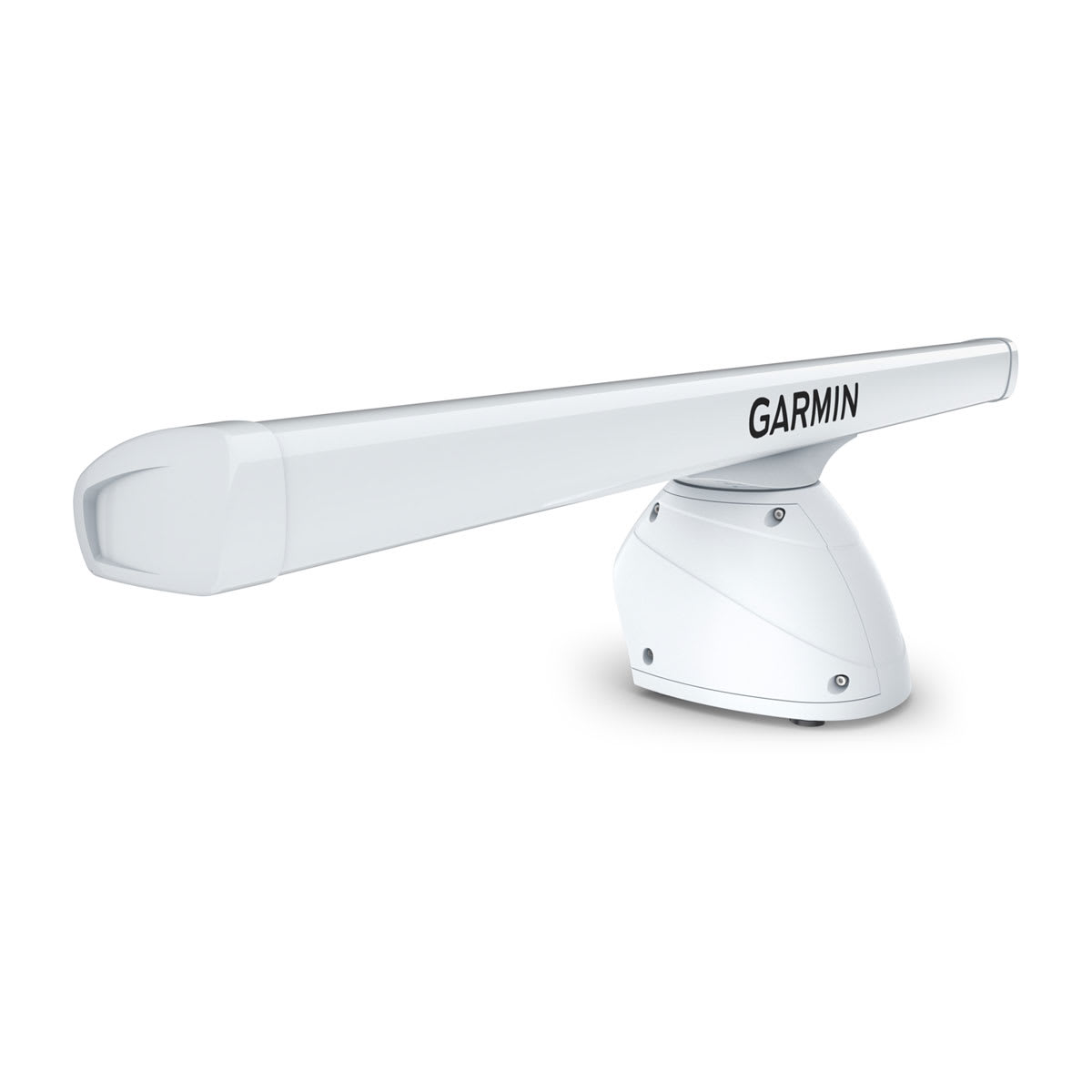

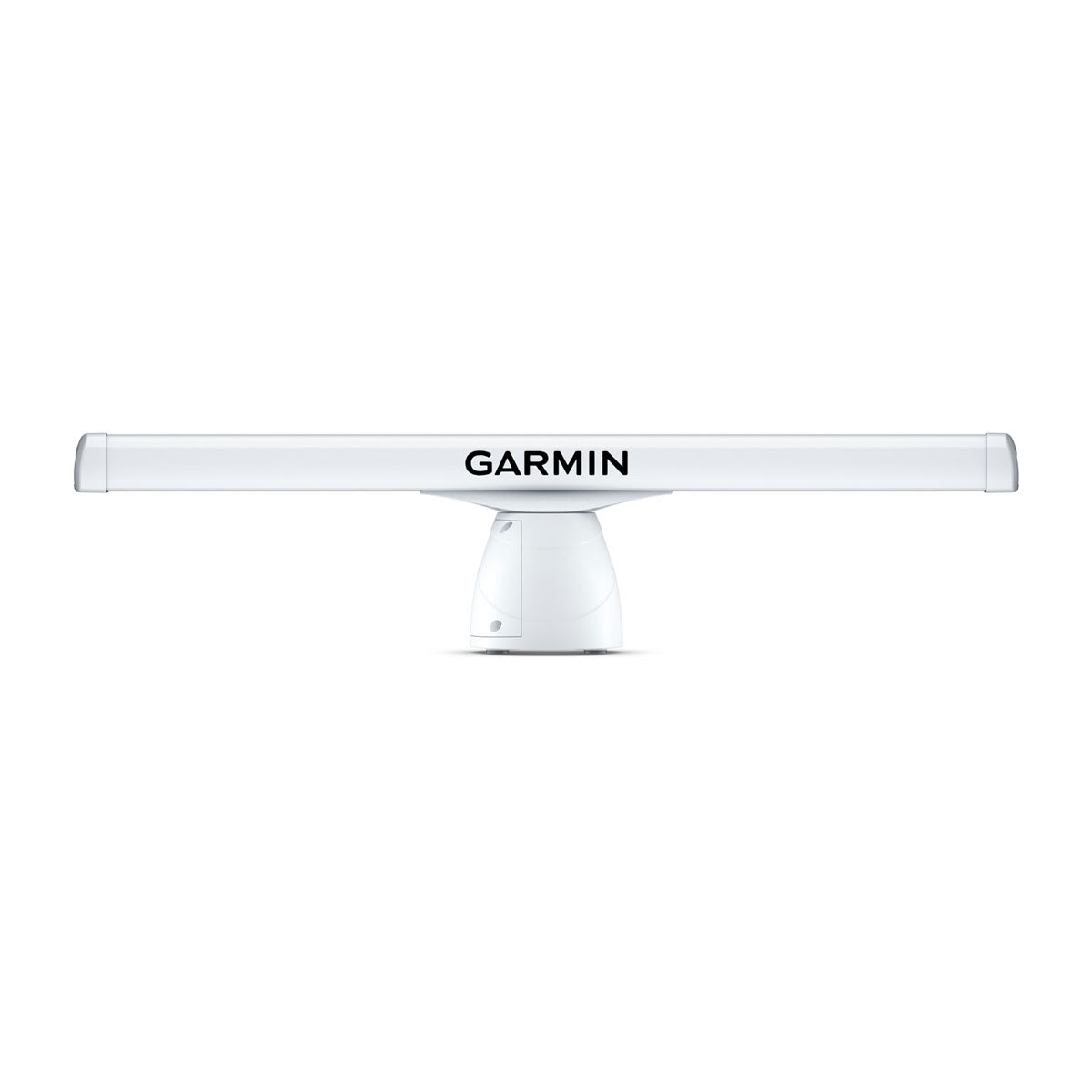

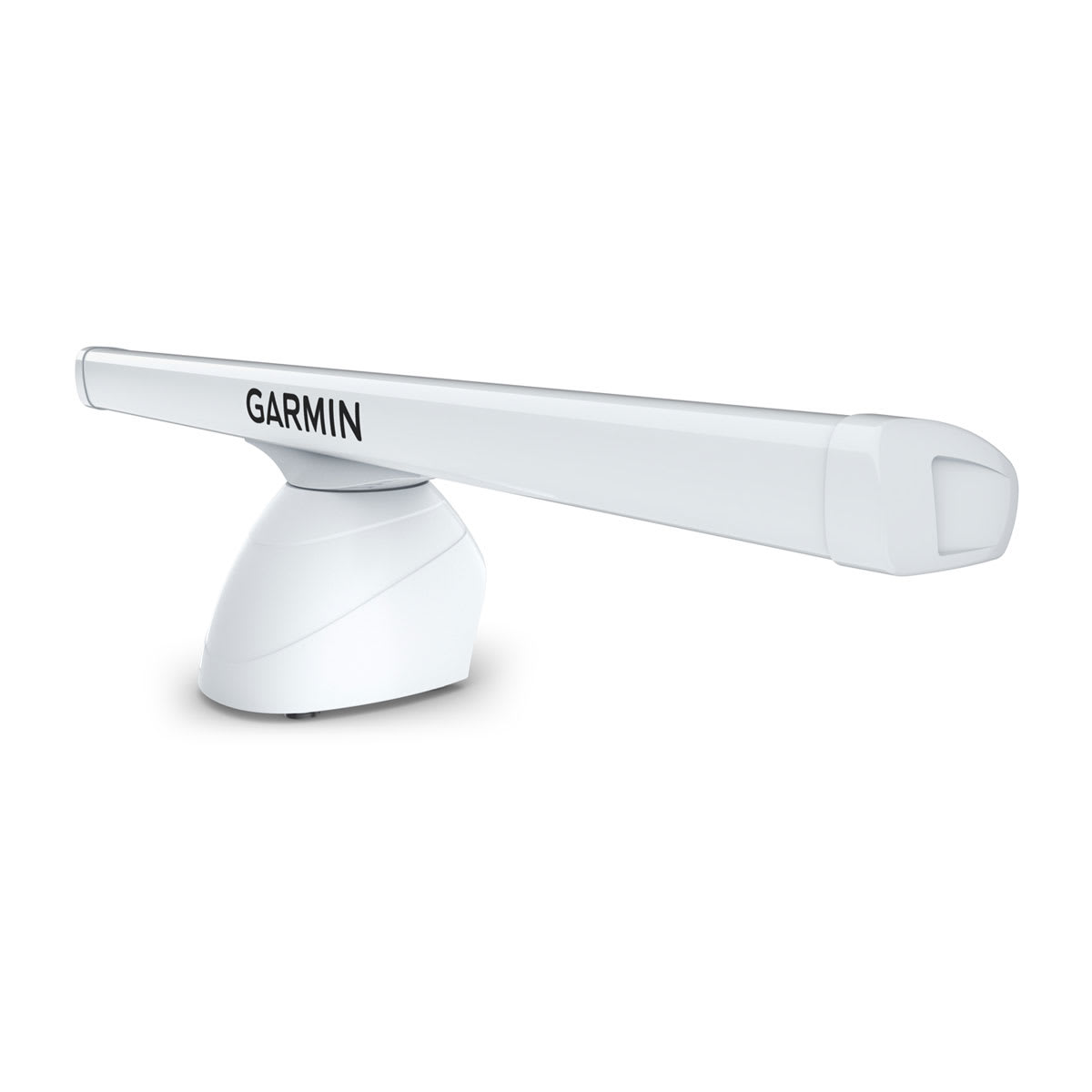

GMR 434/436 xHD3 are robust 4’ and 6’ open-array magnetron radars with 4 KW of power and superior object/traffic detection for cruising and fishing offshore.
General
Antenna Length
4' array: 48" (122 cm) 6' array: 72" (183 cm)
Rotation speed (RPM)
24 and 48 rpm
Dimension
4' array: 1325 x 122 x 170 mm (52.2" x 4.8" x 6.7") 6' array: 1938 x 122 x 170 mm (76.5" x 4.8" x 6.7") Pedestal: 520 x 328 x 314 mm (20.5" x 12.9" x 12.4")
Weight
4' array and pedestal: 27.6 kg 6' array and pedestal: 29.6 kg
Water rating
IPX6
Max Wind Load
80kt (100kt with optional voltage converter upgrade)
