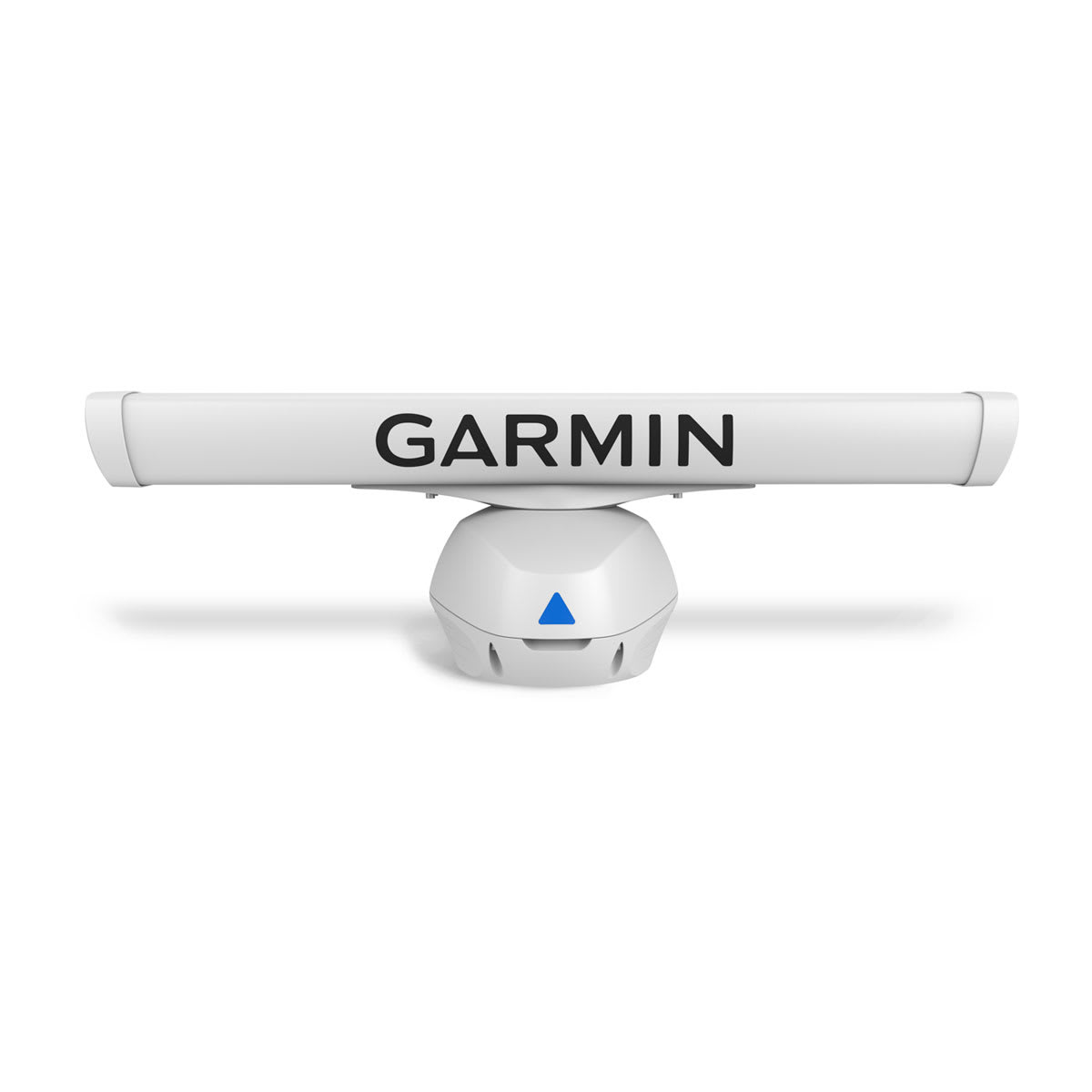

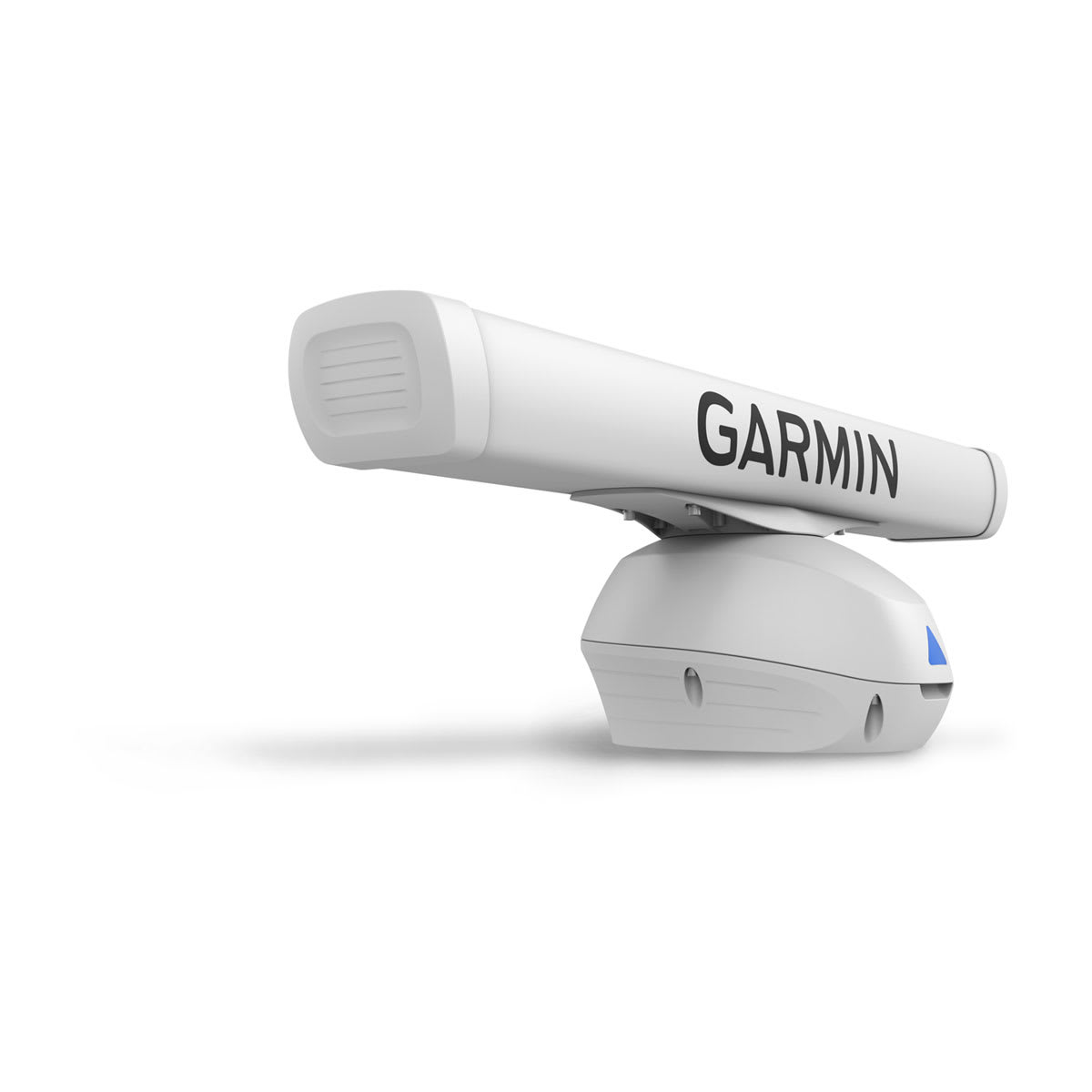

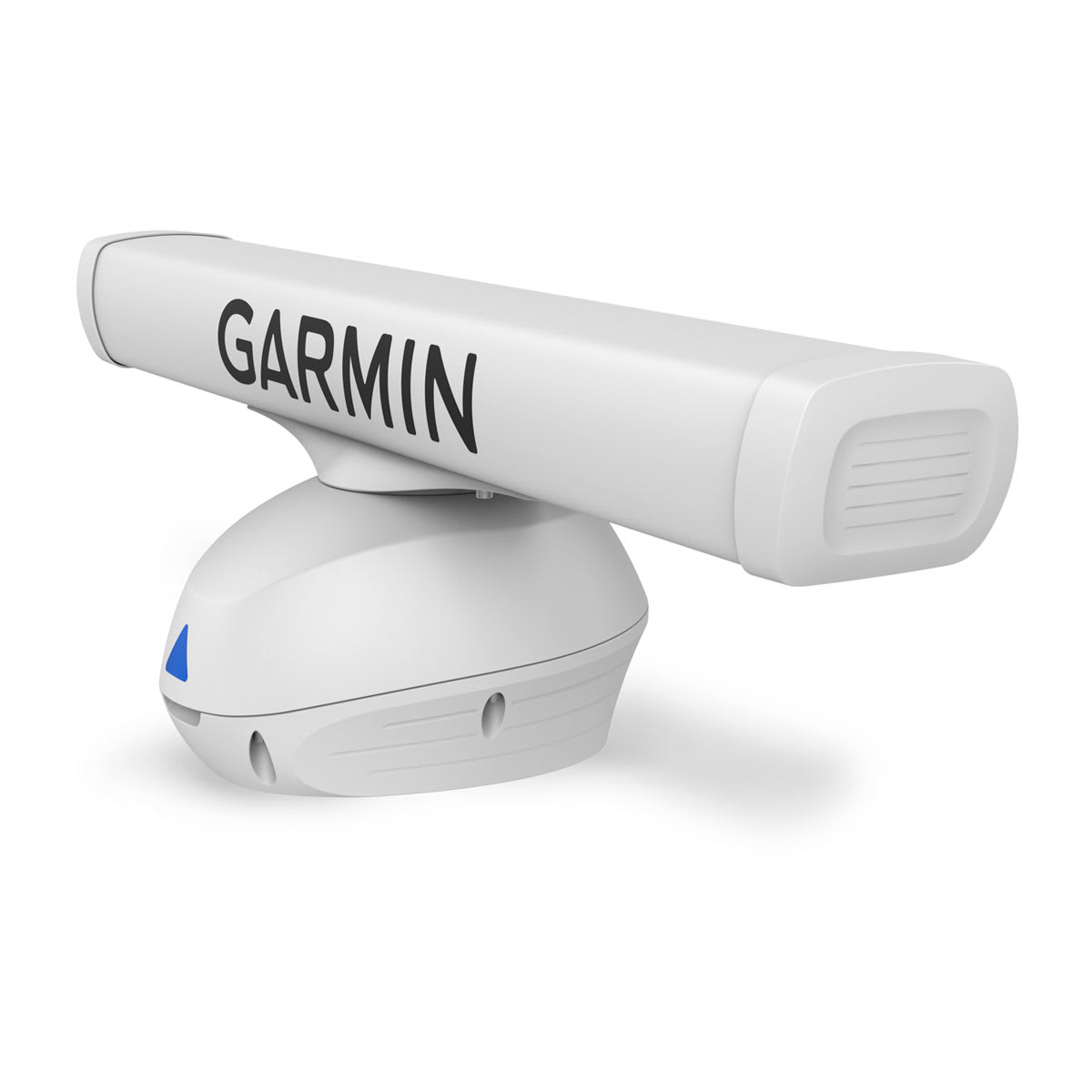

GMR Fantom™ 254 Open Array and Pedestal, White

GMR Fantom™ 254 Open Array and Pedestal, White

$120.99 USD
$406.00 USD $120.99 USD
Sale Sold out

General
Antenna Length 48" (121.92 cm)
Rotation speed (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
Dimension Pedestal: 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm)Full assembly: 15.9" height x 51.8" diameter (40.3 cm x 131.4 cm)
Weight

Array: 11.4 lb (5.2 kg)
Pedestal: 34.7 lb (15.7 kg)
Water rating IPX6
Max Wind Load 80kt
Beam width 1.8° horizontal, 23° vertical
Maximum range 96 nm
Minimum range 6 meters
Radar type Open-Array

Electrical Features
Power Input 10-32 V
Transmit power 250 W

Radar Features
Dual range
Overlay
Dual radar support
Auto Bird Gain
Auto Gain Dynamic
MARPA target tracking yes (requires heading sensor, sold separately)
Echo Trails
MotionScope
Programmable antenna parking
Target size
Scan averaging
