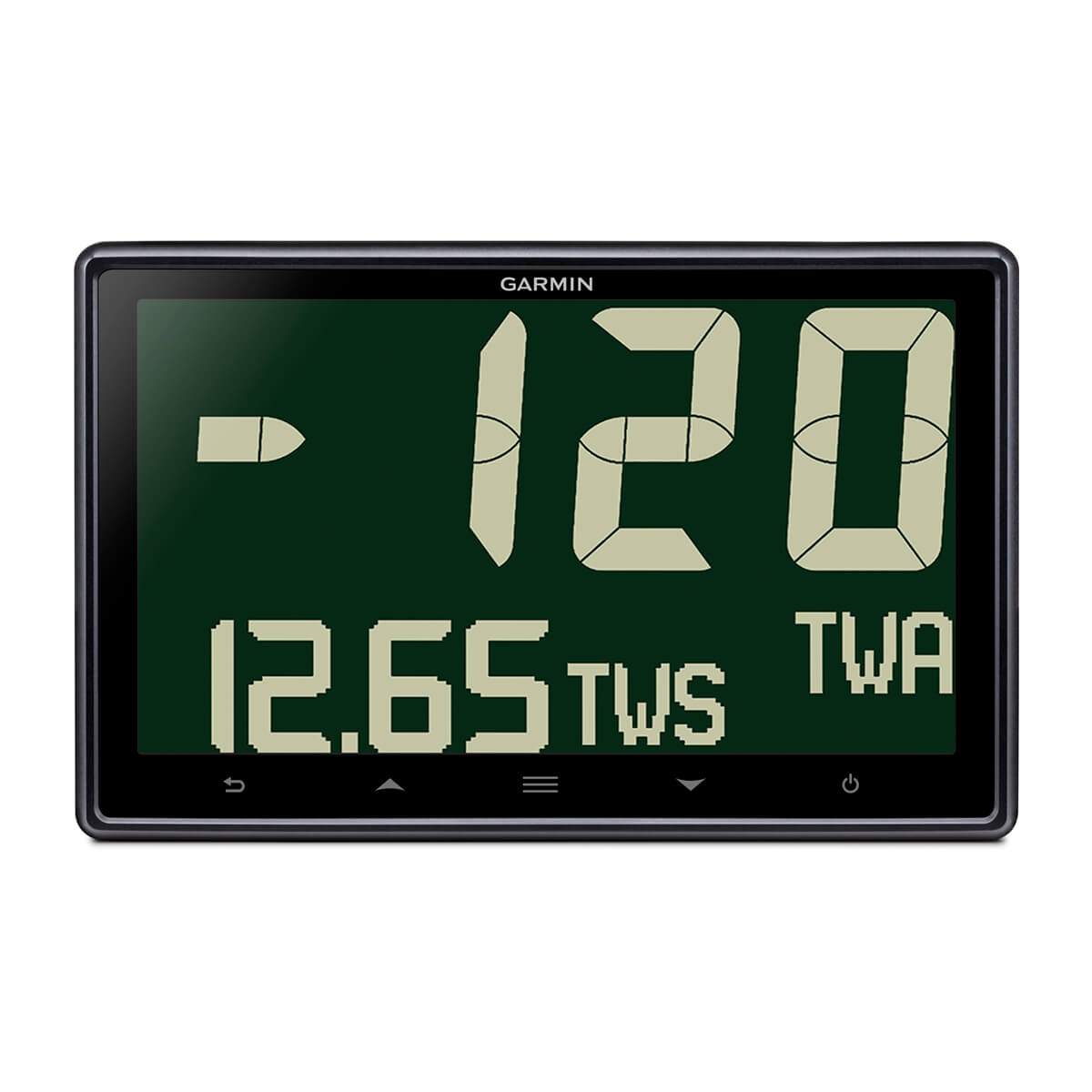

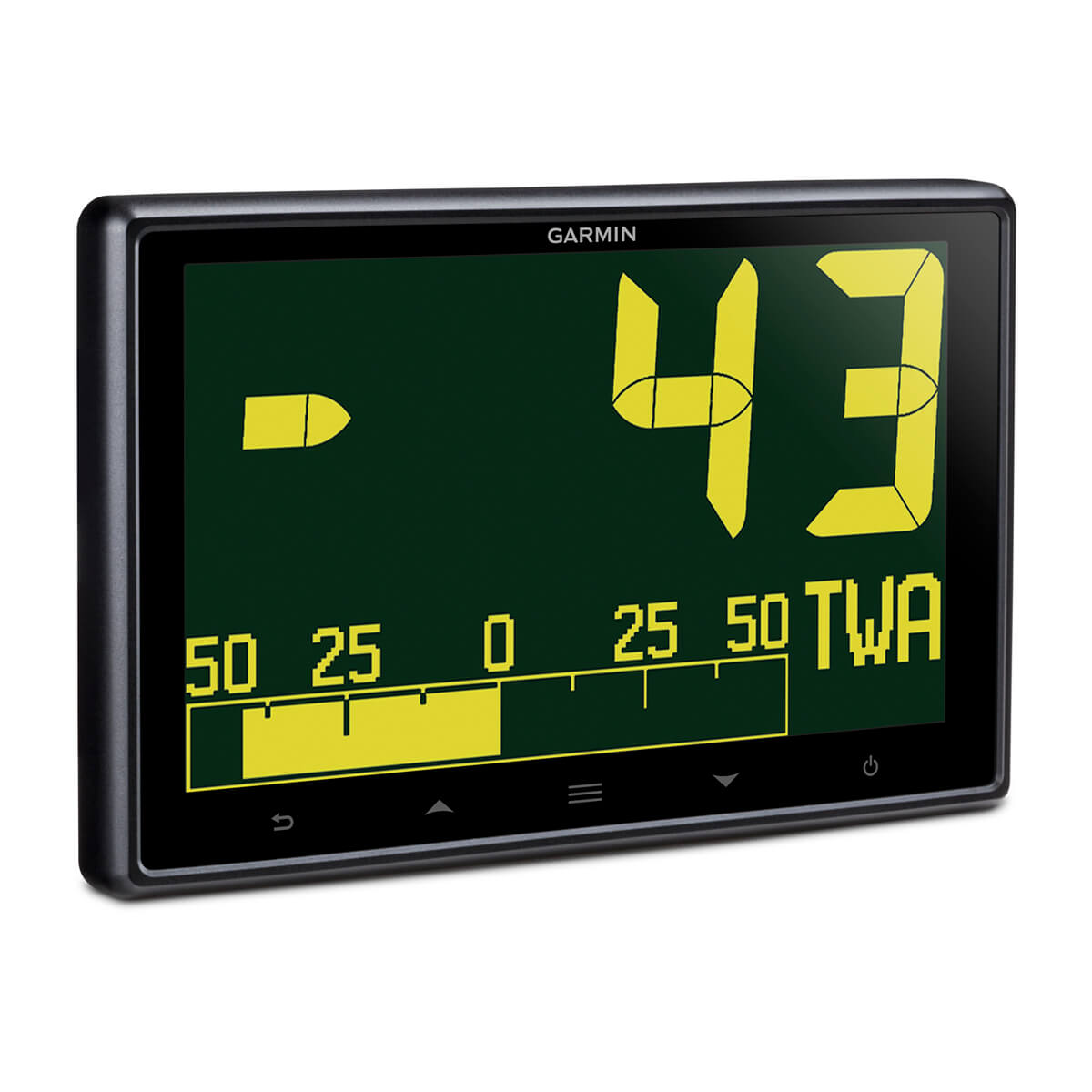

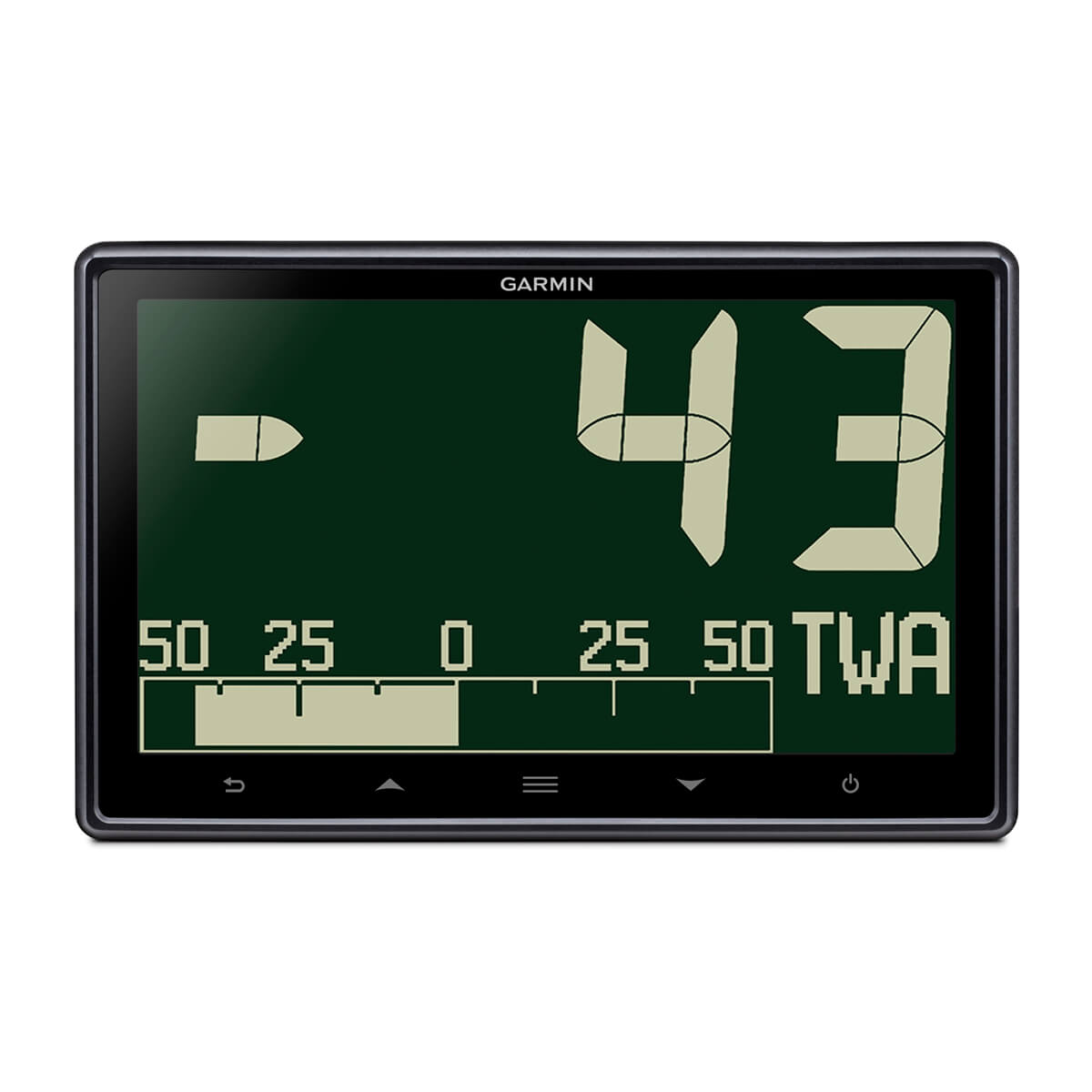

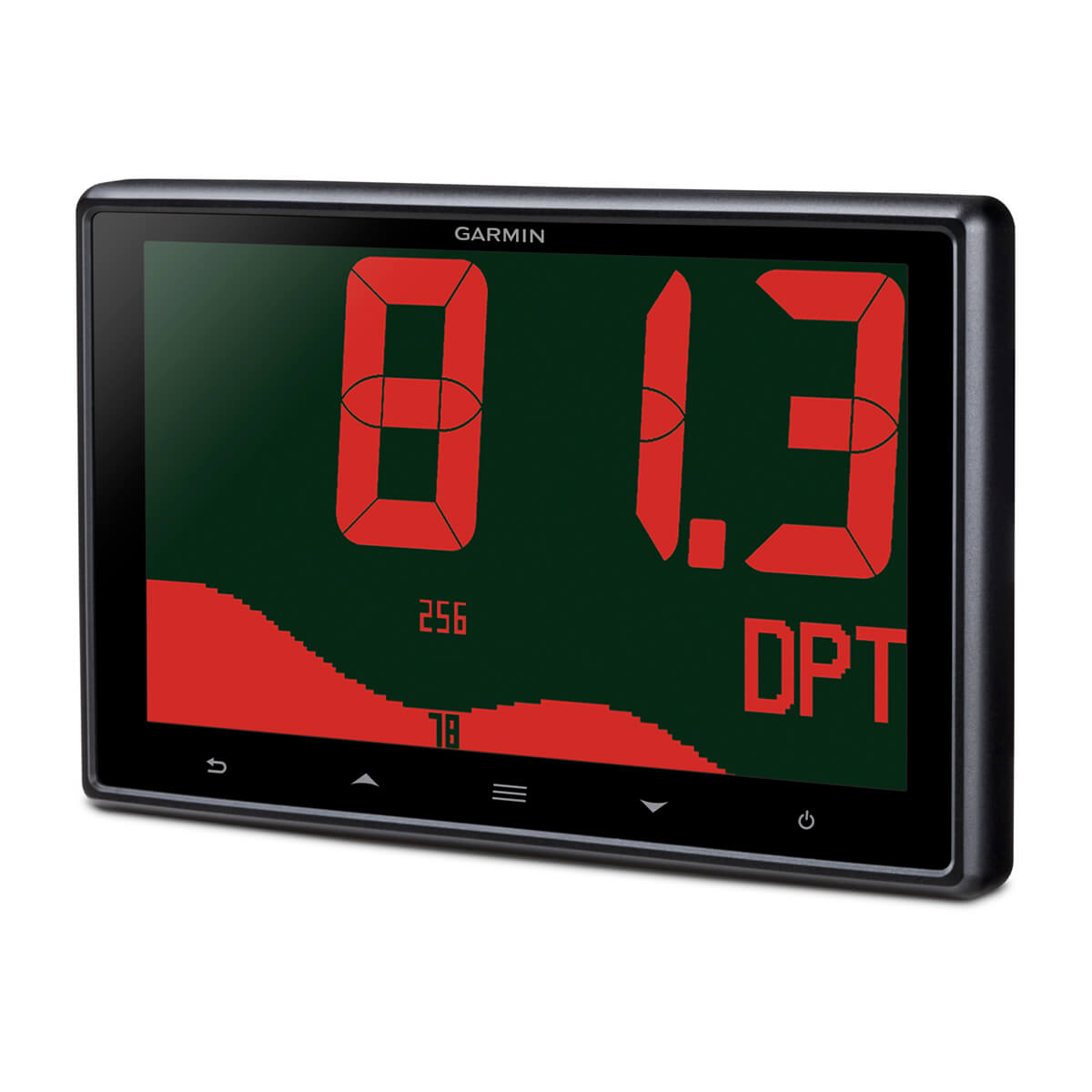

The GNX™ 120 7-inch Large Format Marine Instrument designed for serious sailors displays more than 50 marine & boat parameters for wind, sea & vessel conditions.
General
Dimension
181 x 115 x 17 mm (7.12'' x 4.53'' x .67'')
Weight
380 g (13.4 oz)
Water rating
IPX7
Display Type
Inverted LCD, monochrome
Display Size
150 x 83 mm (6'' x 3.27'')
Mounting Options
Flush
Glass bonded display
Temperature range
From 5° to 158°F (from -15° to 70°C)
Electrical Features
Power Consumption
0.36 W (day); 0.4 W (night)
Instrument Features
Auto-on
User profiles
Note for NMEA 0183 compatibility: Yes (when data is bridged over NMEA 2000 from another device, no direct NMEA 0183 connection)
