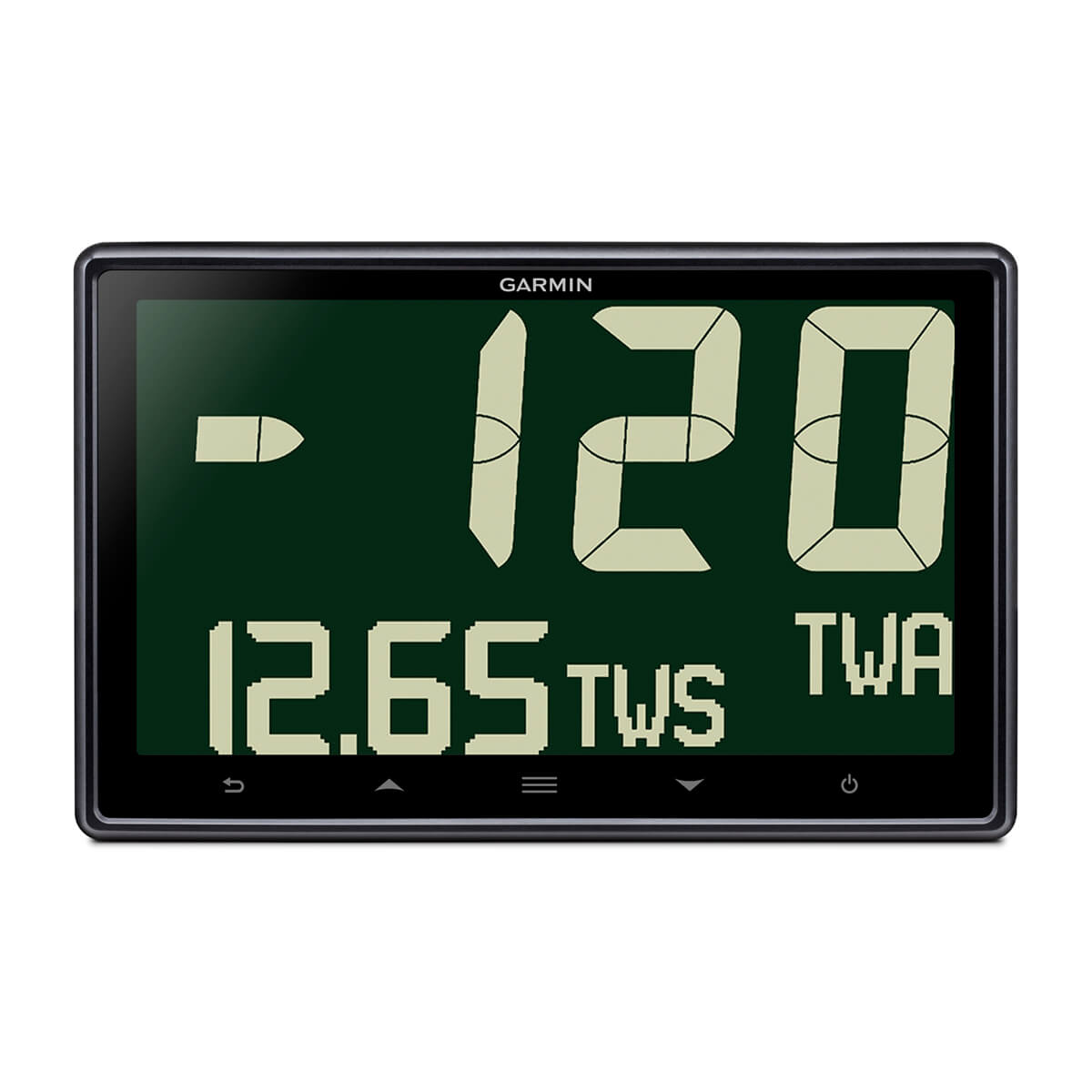

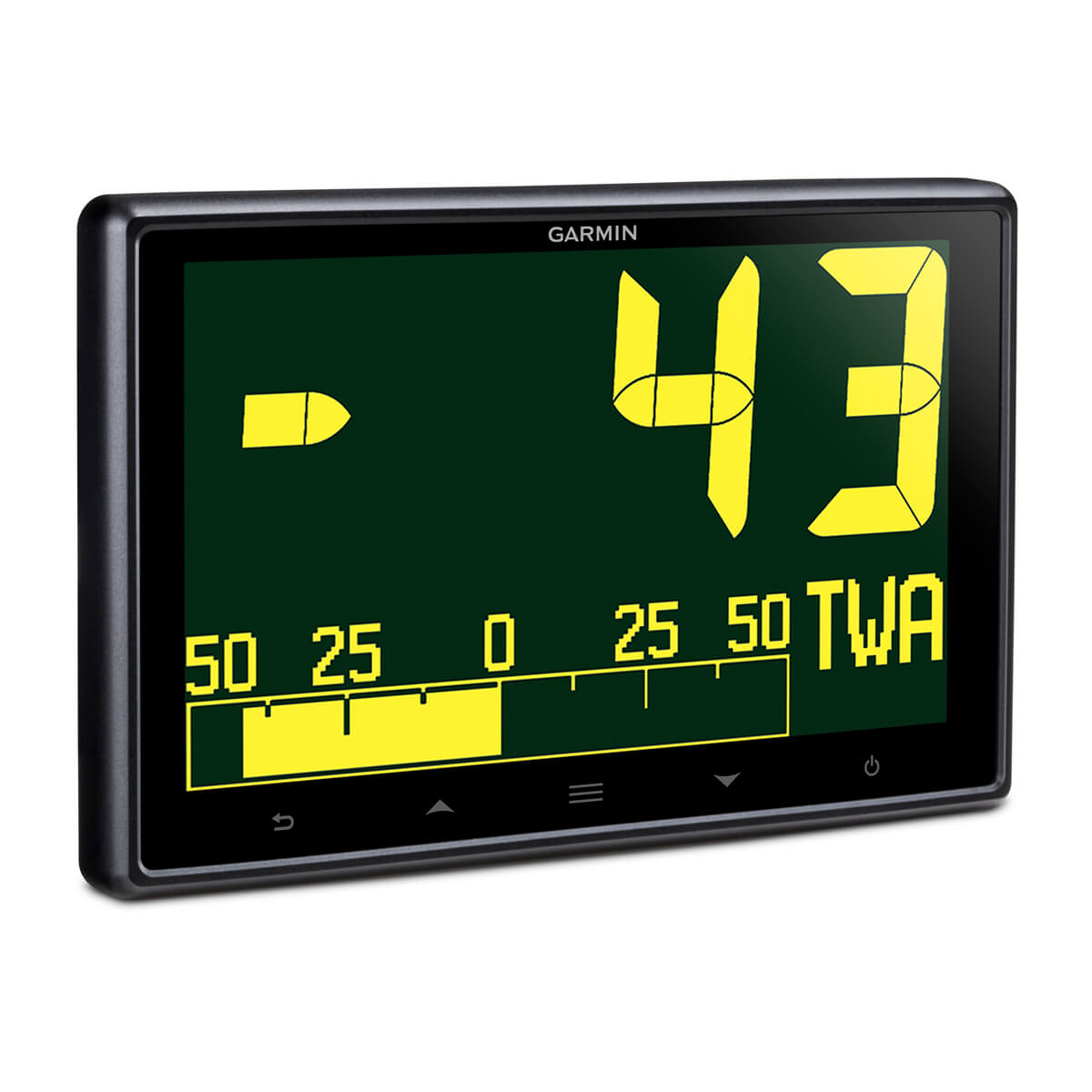

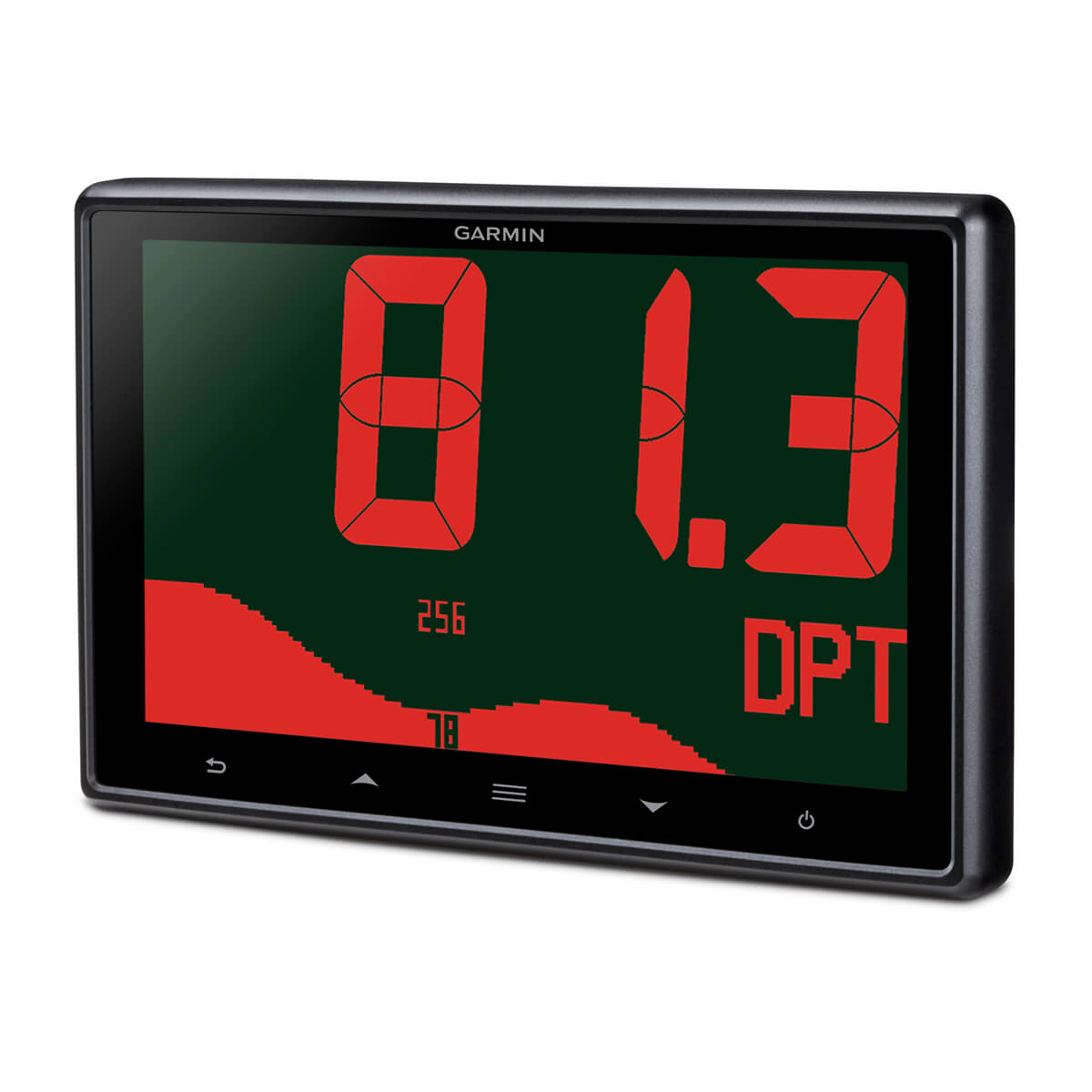

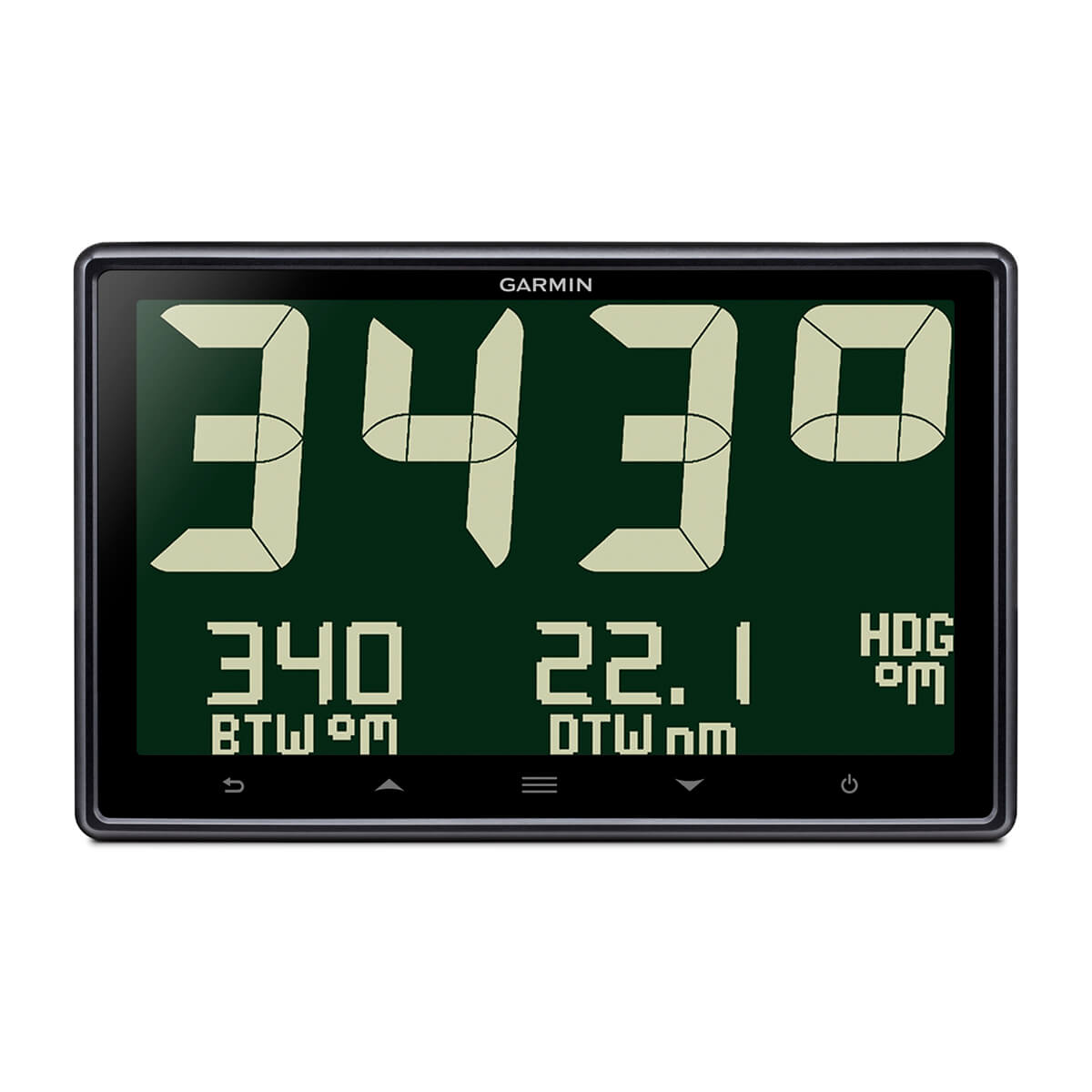

The GNX™ 130 10-inch Large Format Marine Instrument designed for serious sailors displays more than 50 marine & boat parameters for wind, sea & vessel conditions.
General
Dimension
249 x 153 x 19 mm (9.8'' x 6.02'' x .75'')
Weight
820 g (28.9 oz)
Water rating
IPX7
Display Type
Inverted LCD, monochrome
Display Size
207 x 116 mm (8.15'' x 4.57'')
Mounting Options
Flush
Glass bonded display
Temperature range
From 5° to 158°F (from -15° to 70°C)
Electrical Features
Power Consumption
0.36 W (day); 0.4 W (night)
Instrument Features
Auto-on
User profiles
Note for NMEA 0183 compatibility: Yes (when data is bridged over NMEA 2000 from another device, no direct NMEA 0183 connection)
