GPSMAP® 1222xsv GPSMAP® 1222xsv - Without Transducer

GPSMAP® 1222xsv GPSMAP® 1222xsv - Without Transducer

$117.99 USD
$391.00 USD $117.99 USD
Sale Sold out

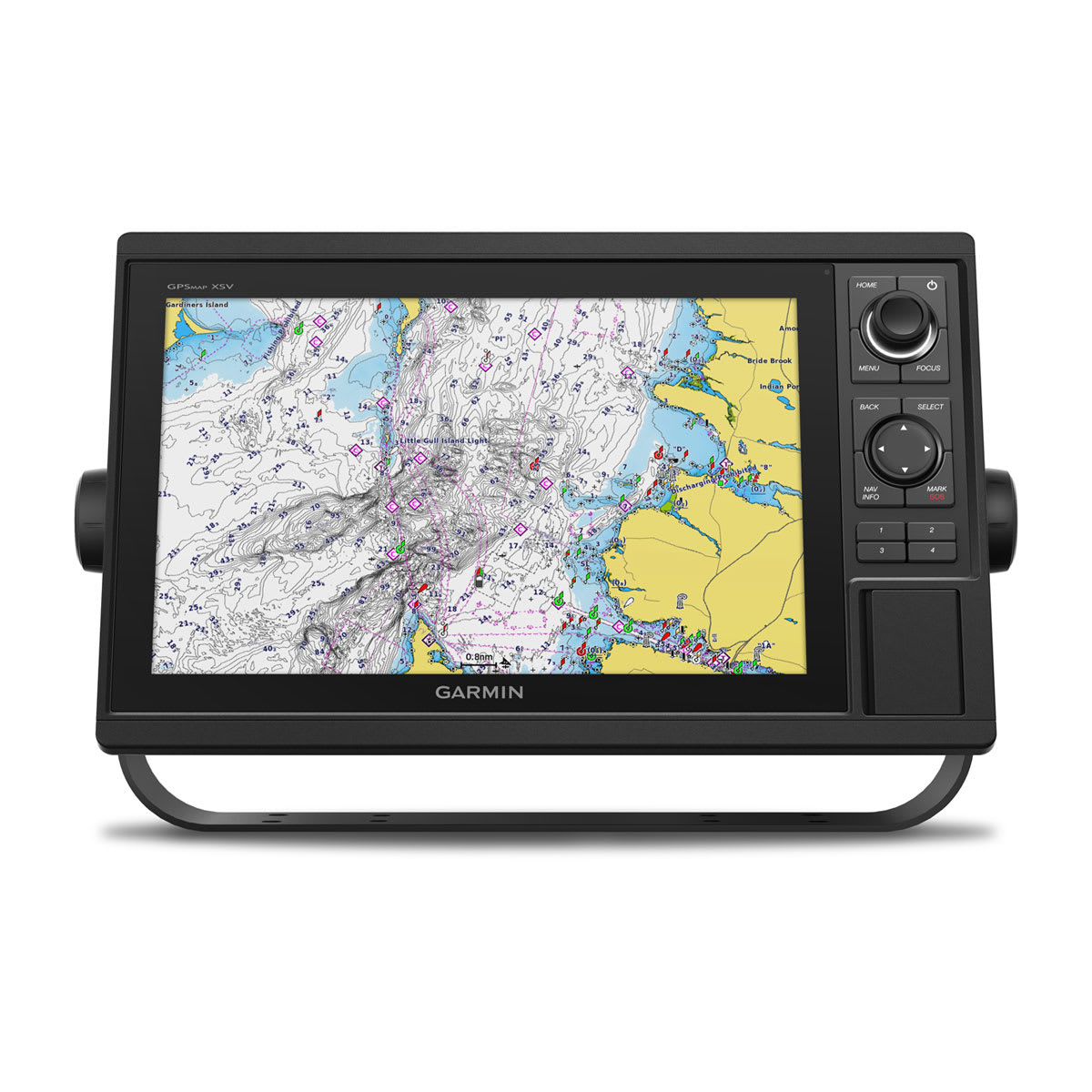

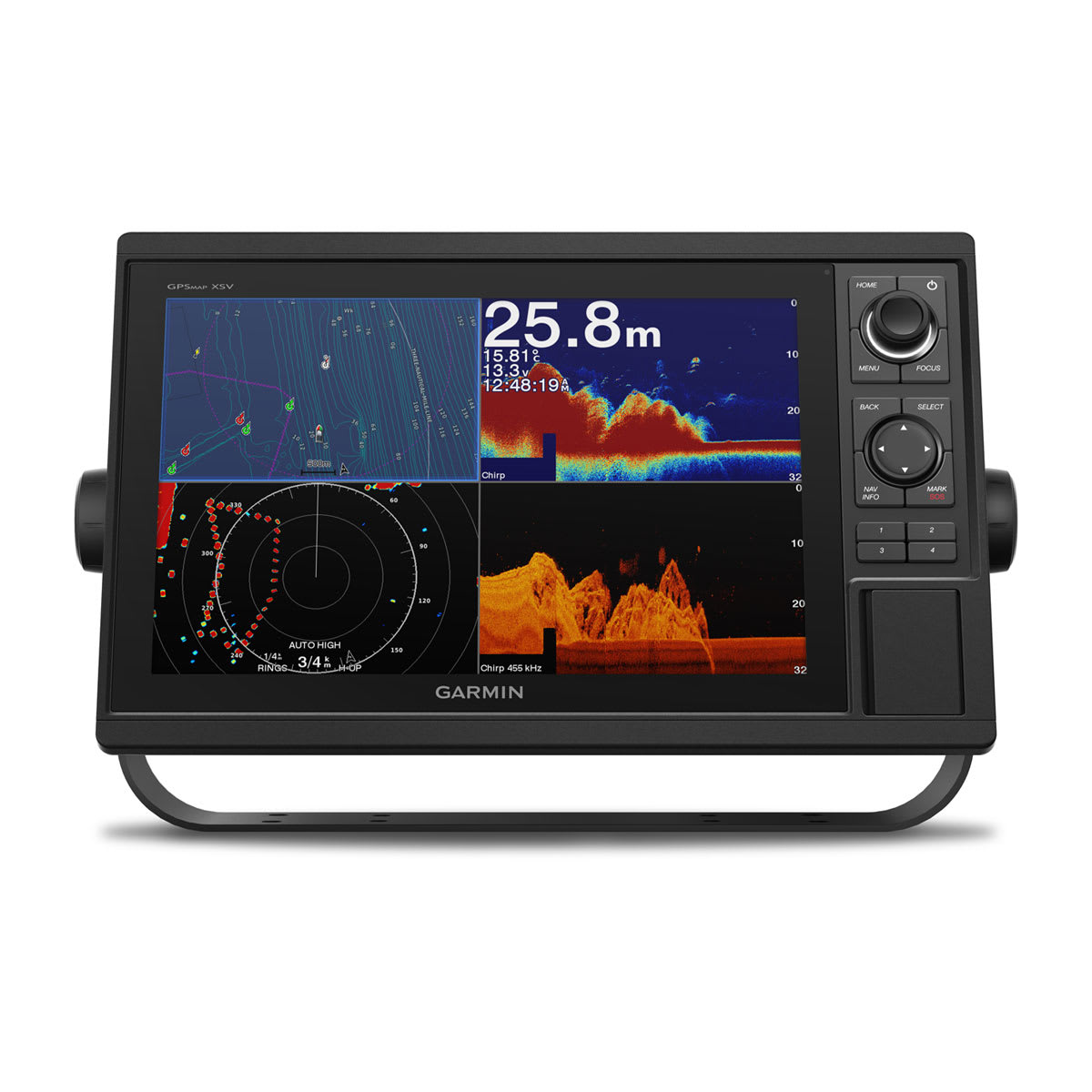

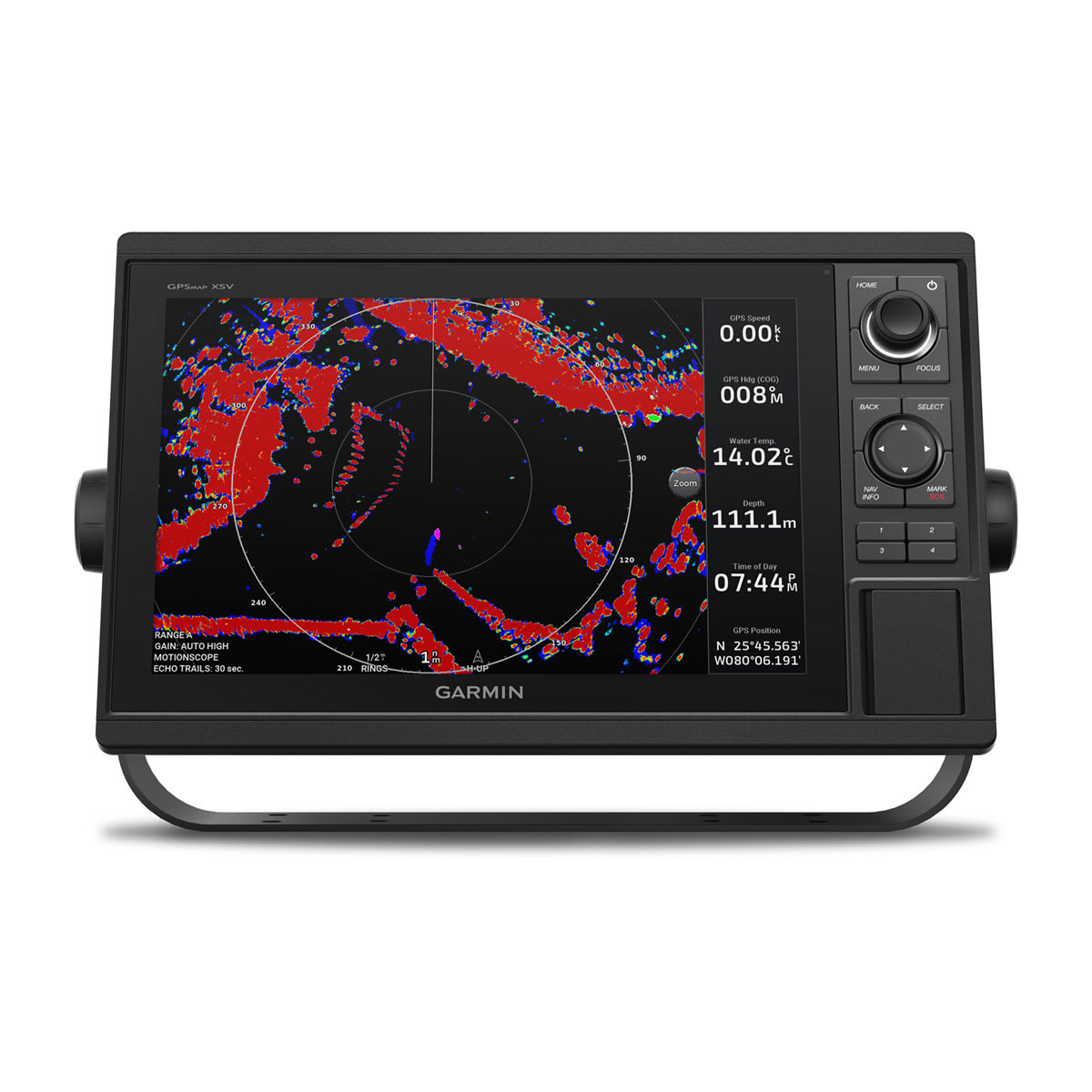

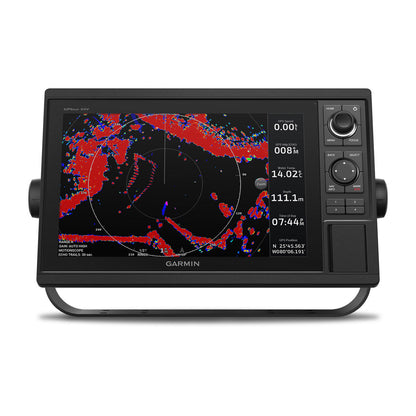

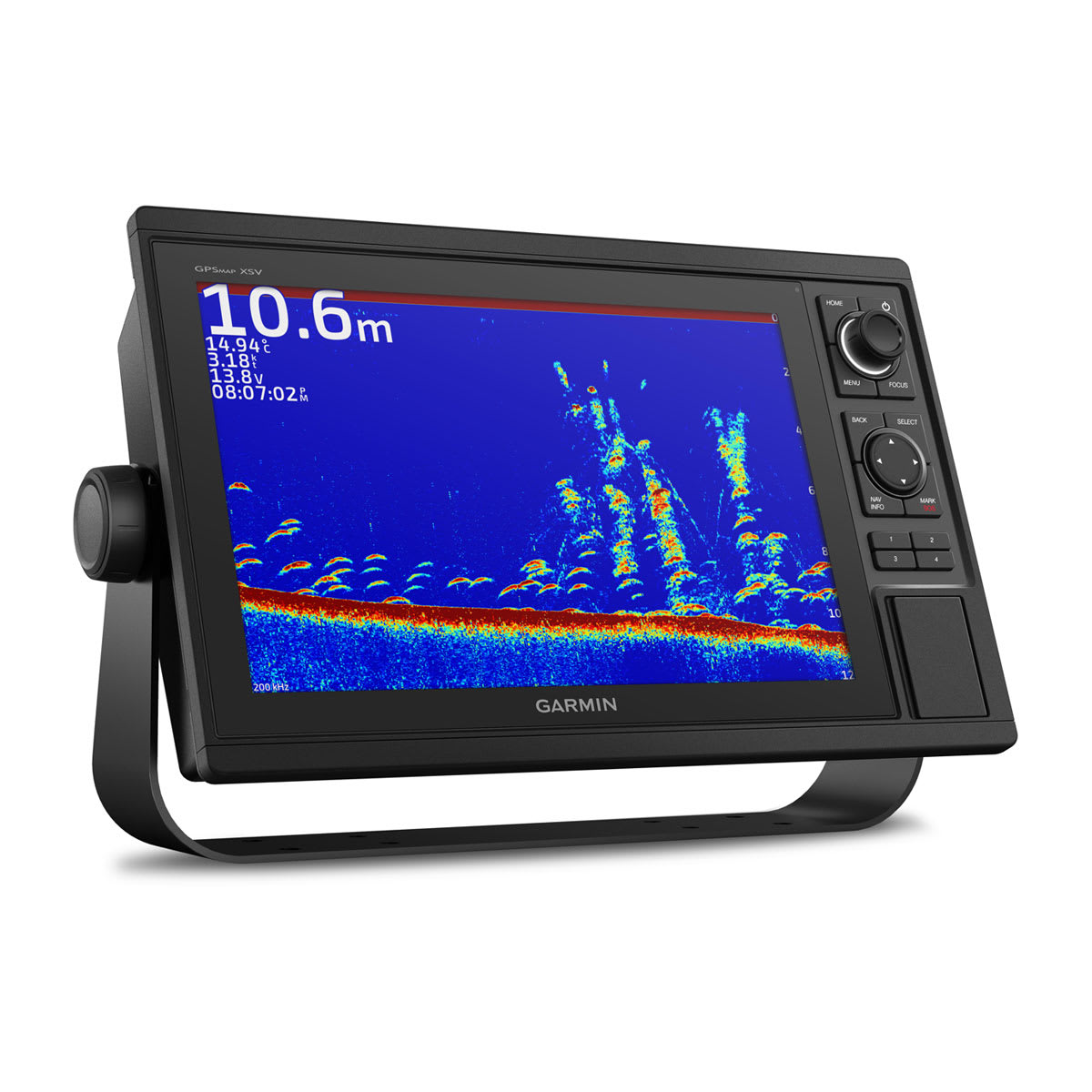

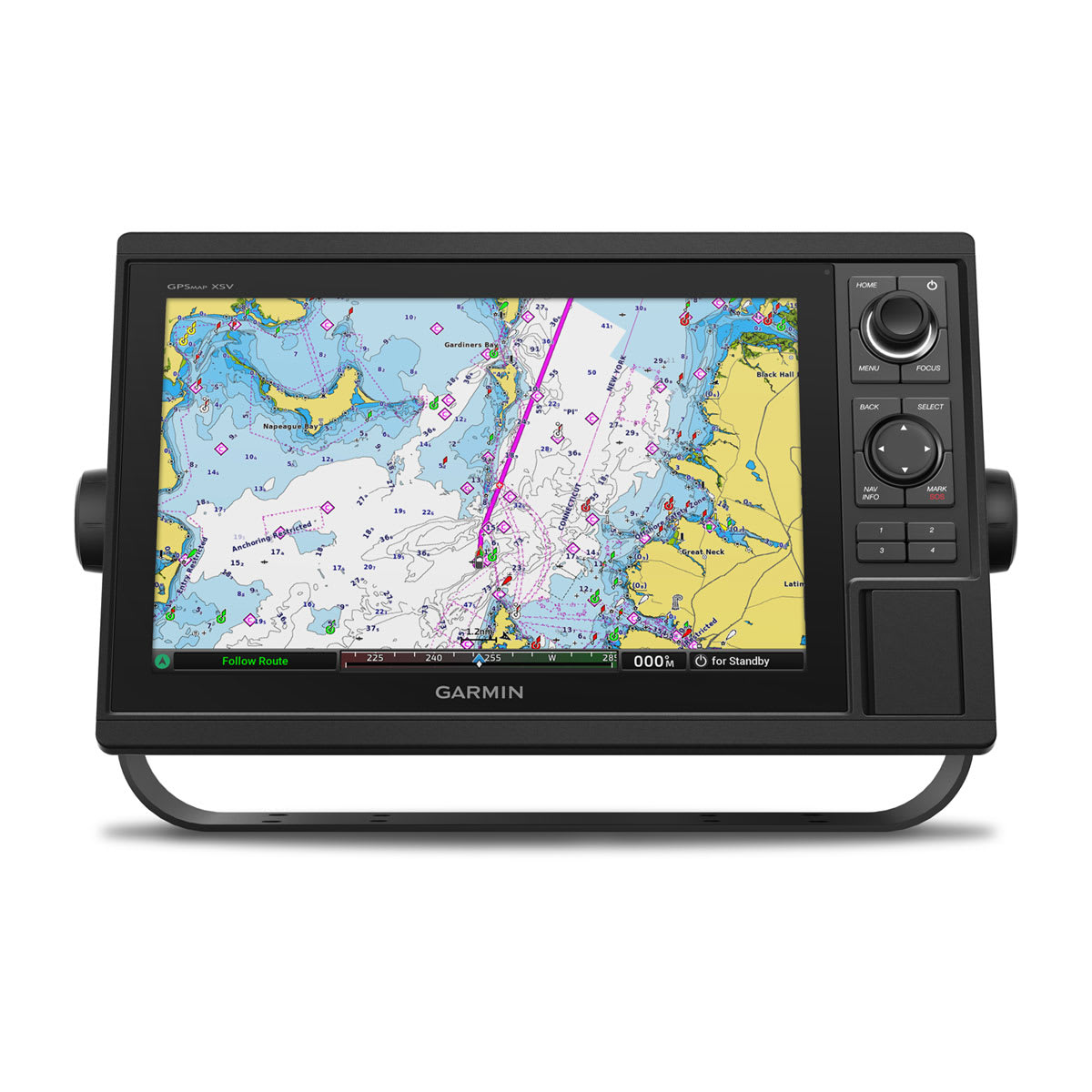

GPSMAP® 1222xsv is chartplotter w/ a 12” touchscreen with built-in single channel CHIRP sonar, CHIRP ClearVü, CHIRP SideVü scanning sonar & Panoptix™ support.

General
Dimension 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm)
Weight

5.2 lbs. (2.34 kg)
Water rating

IPX7
Display Type WSVGA, TN
Display Size 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
Display resolution 1280 x 800 pixels

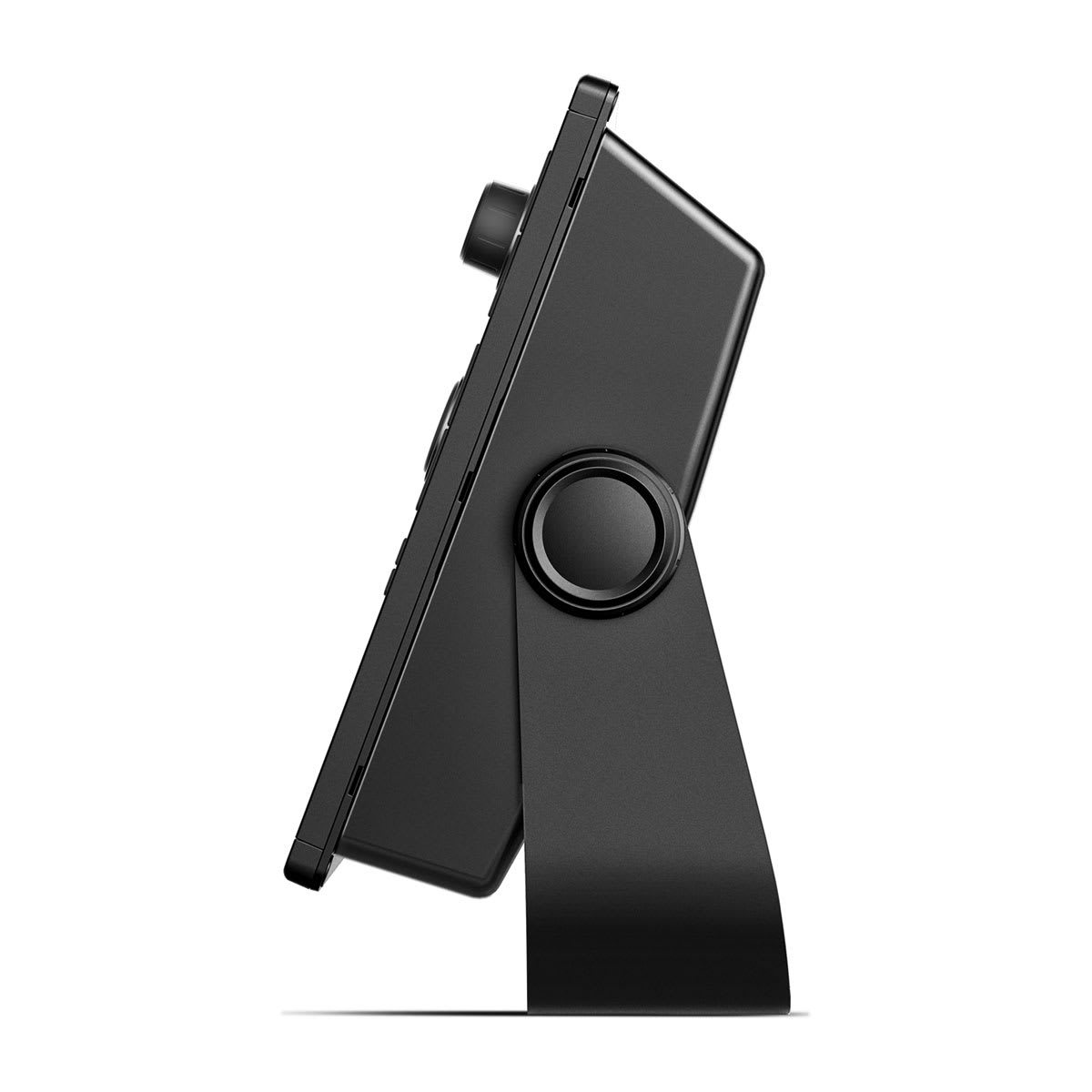

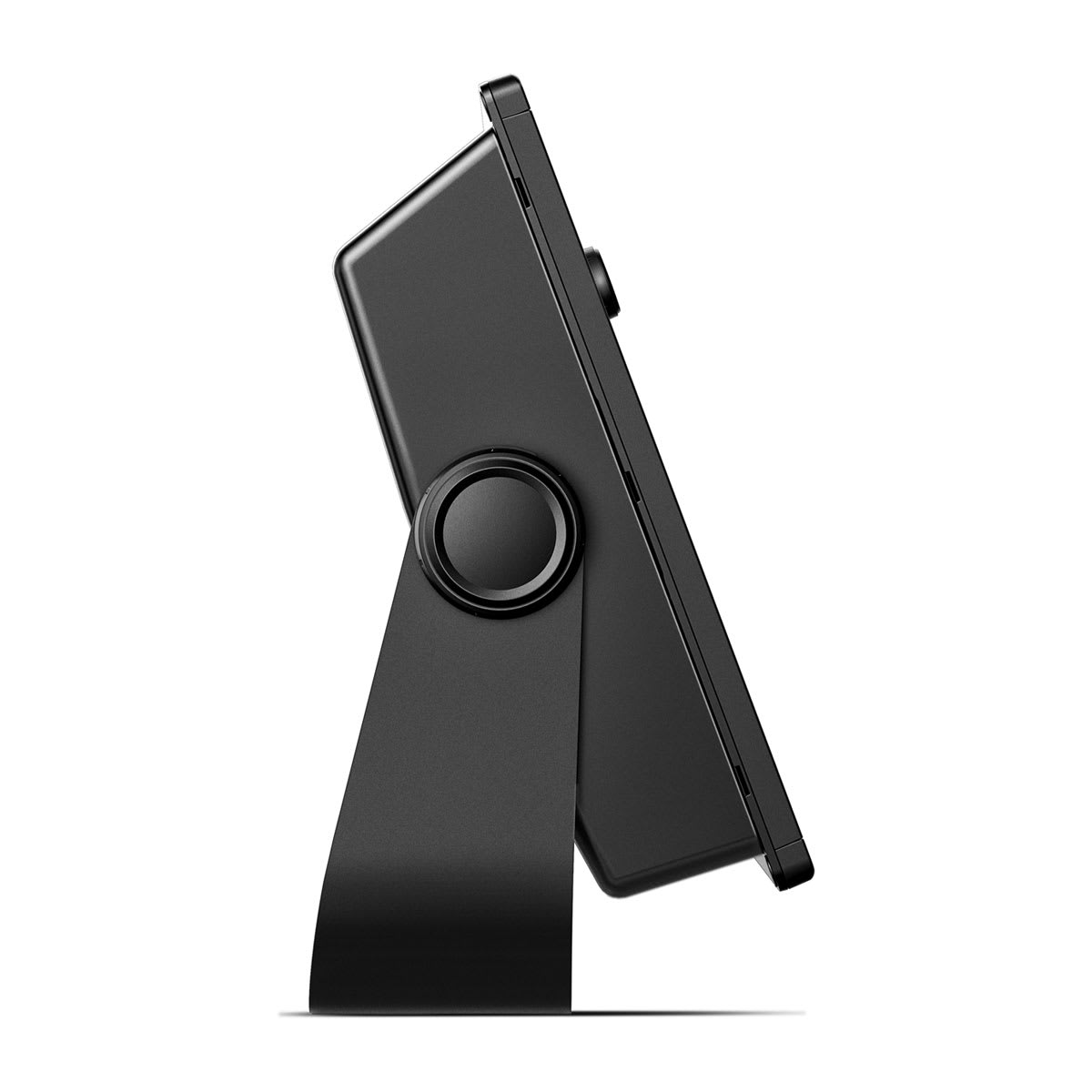

Mounting Options Bail or flush
Input Keyed

Maps & Memory
Accepts Data Cards 2 SD™ cards
Waypoints

5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100

Sensors
GPS
GLONASS
Has built-in receiver
Receiver

10 Hz
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS

Built-in Maps
Tide tables

Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Raster chart support

Chartplotter Features
Smart Mode Compatible
AIS
DSC
Supports Fusion-Link™ compatible radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain® compatible

yes
GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing Features

Electrical Features
Power Input 10 to 32 Vdc
Typical current draw at 12 Vdc 2.2 A
Maximum current draw at 12 Vdc 2.9 A
Maximum power usage at 10 Vdc 34.8W

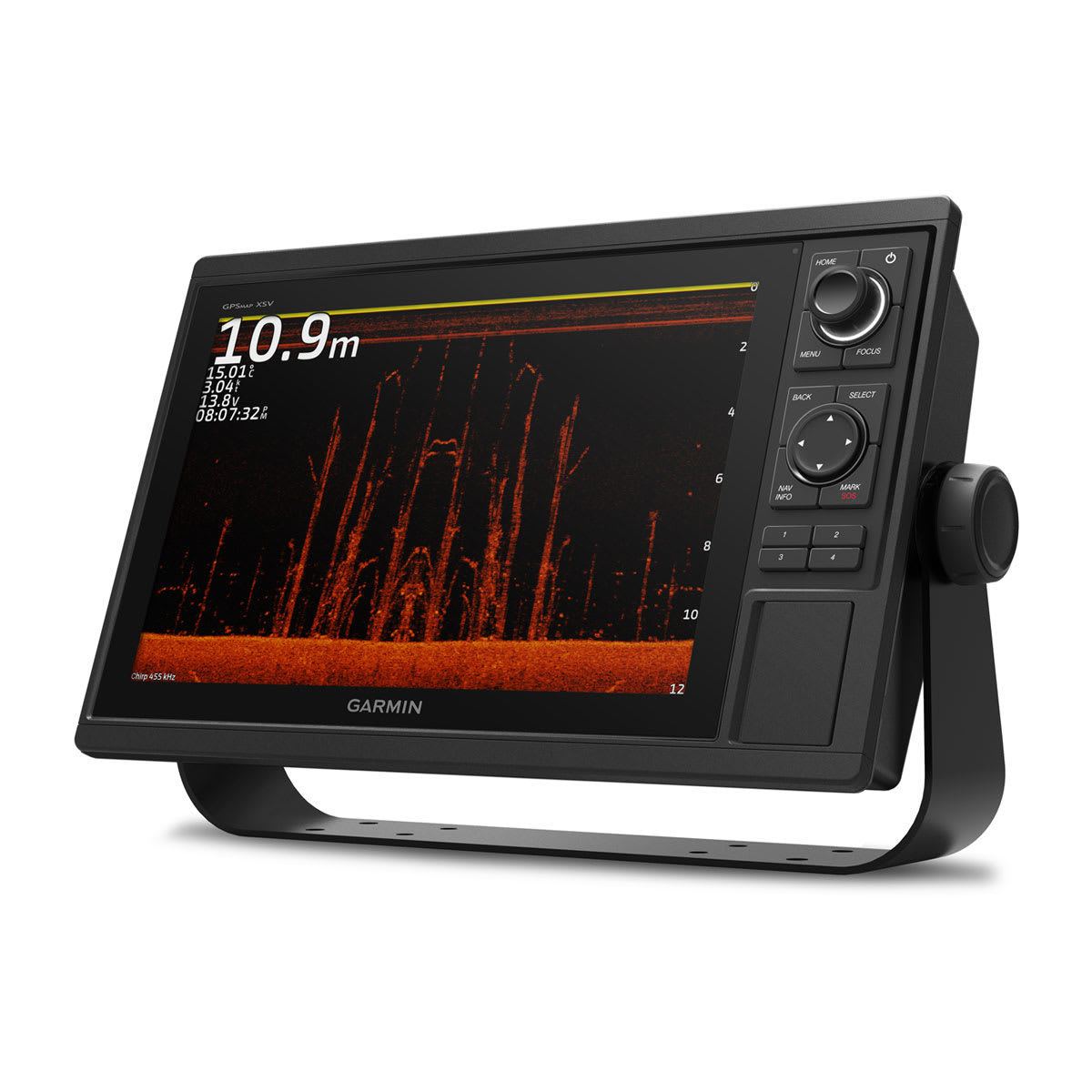

Sonar Features
Displays sonar
Power output 1 kW
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü yes with CHIRP (built-in)

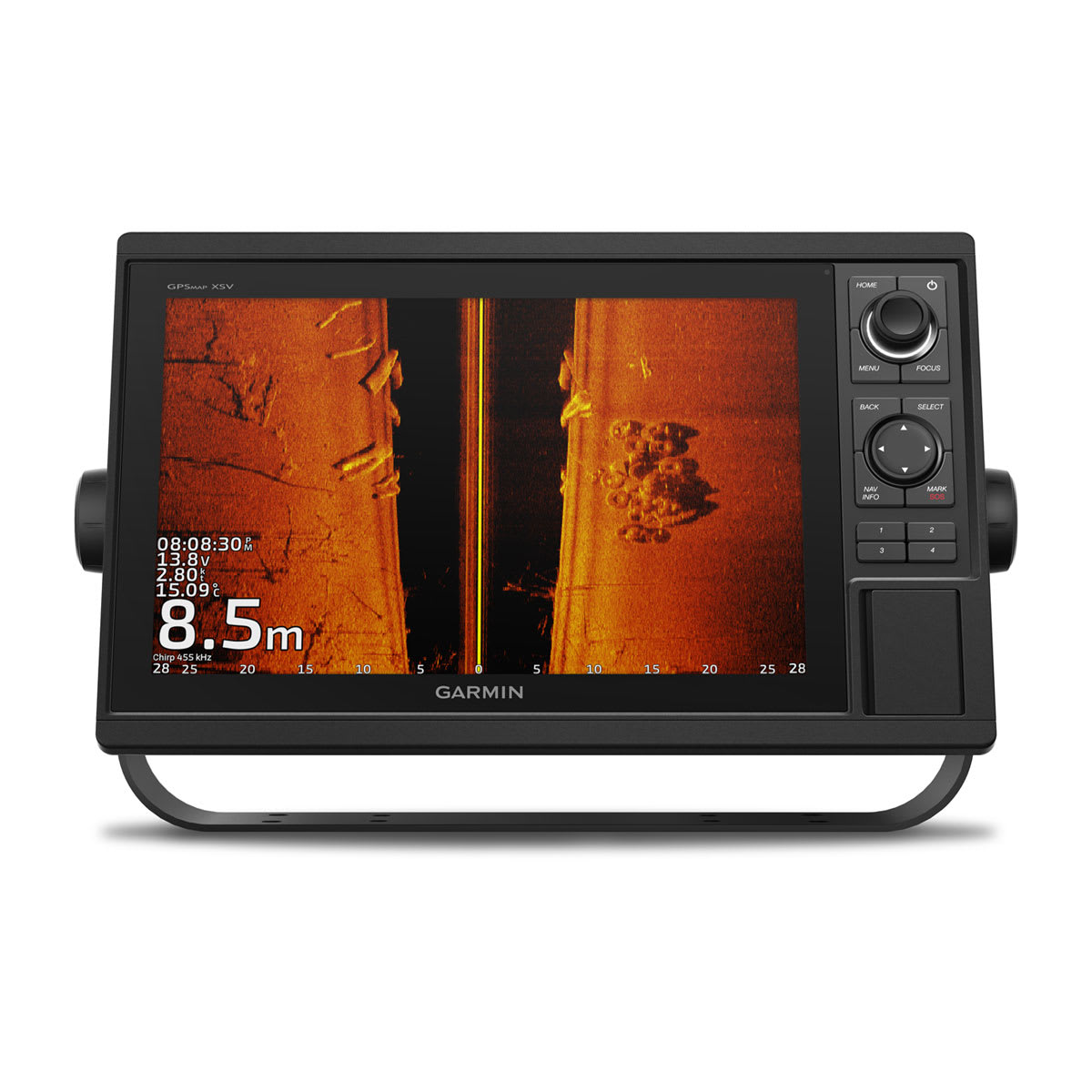

SideVü yes with CHIRP (built-in)
Panoptix™ sonar
LiveScope

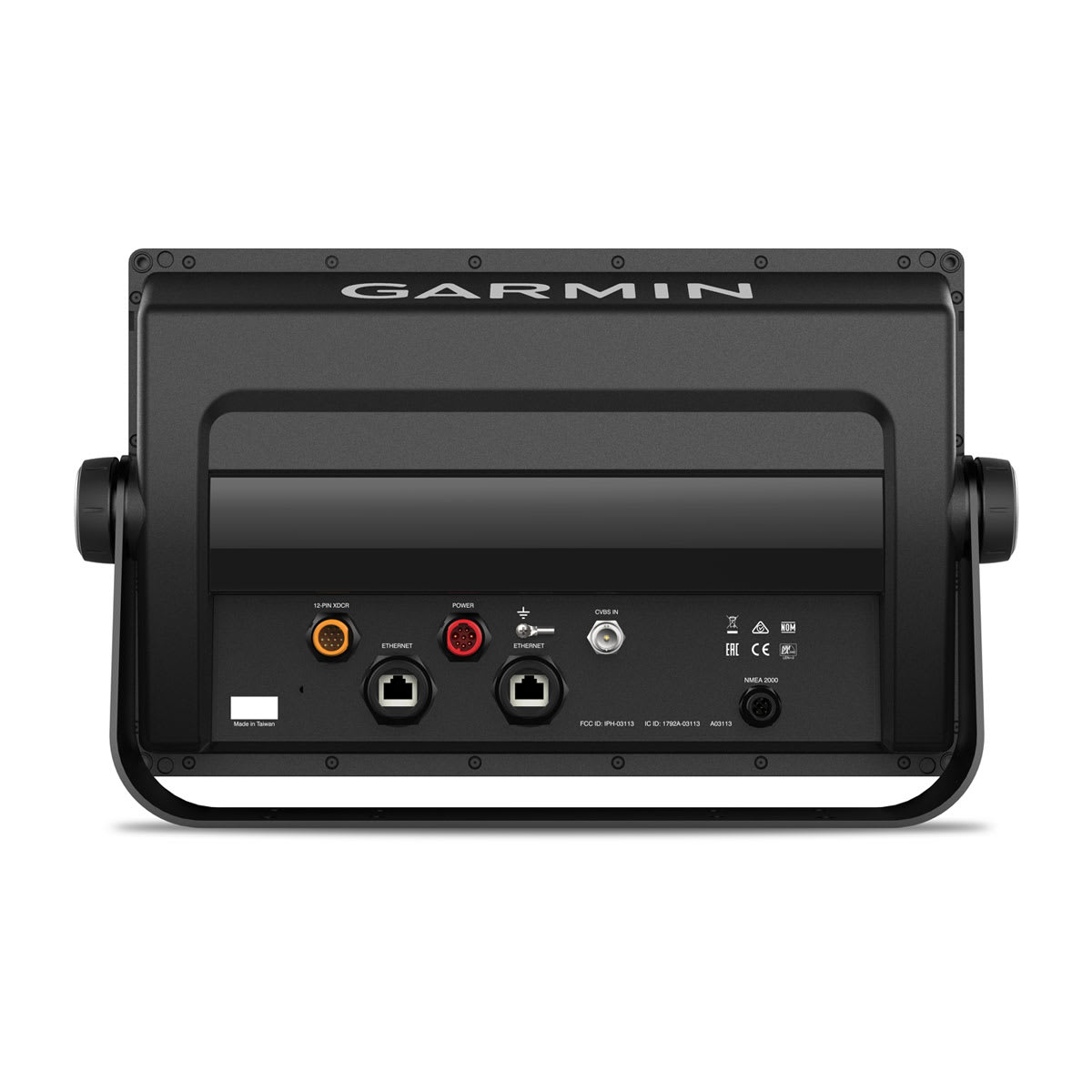

Networking & Connections
NMEA 2000® ports 1
NMEA 0183 Input (Rx) Ports

1
NMEA 0183 output (Tx) ports 1
Video input ports

1 (BNC composite)
Garmin Marine Network Ports

2
12-pin transducer ports 1
Bluetooth® pairing
ANT® (Connectivity)
Garmin Wi-Fi network (local connection)
