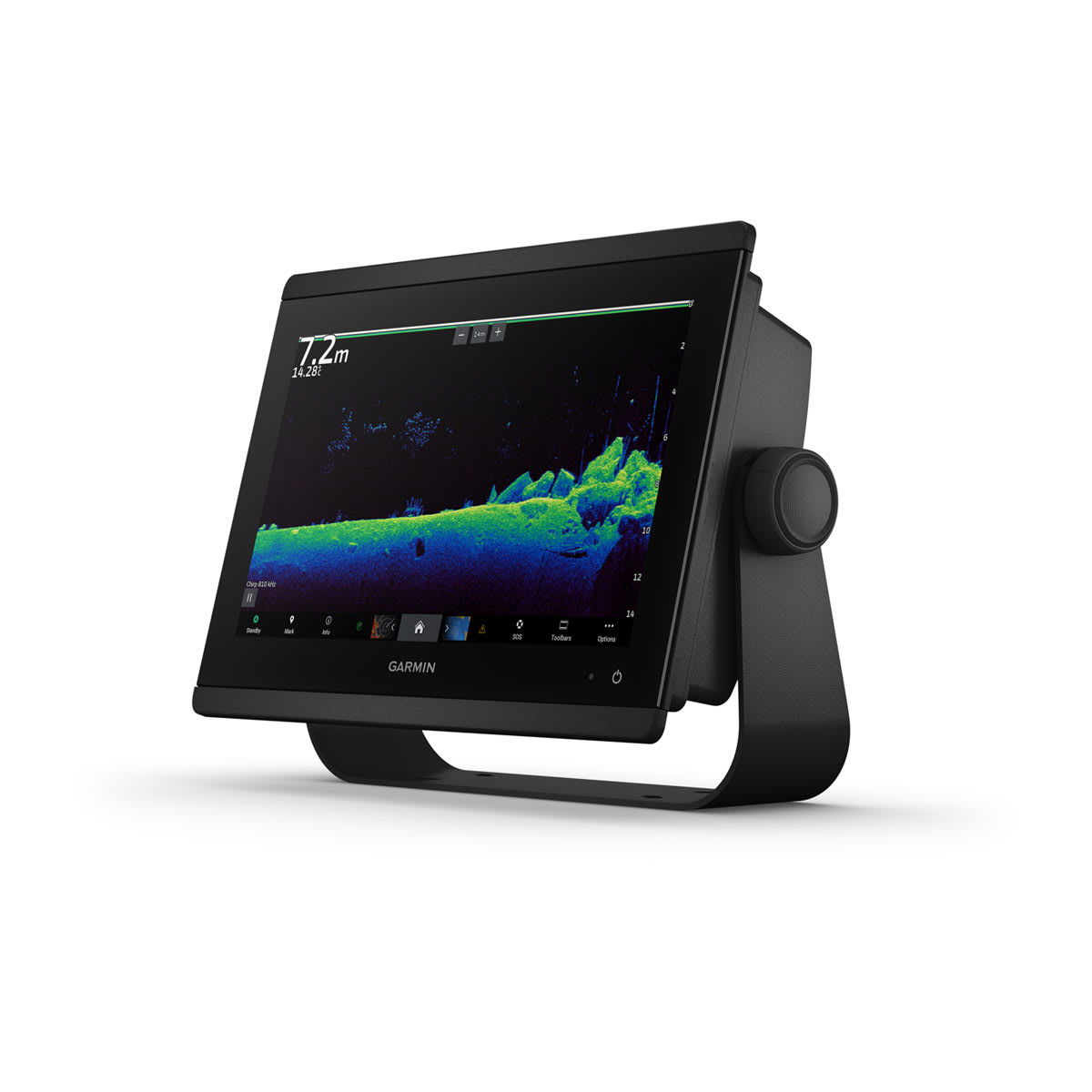

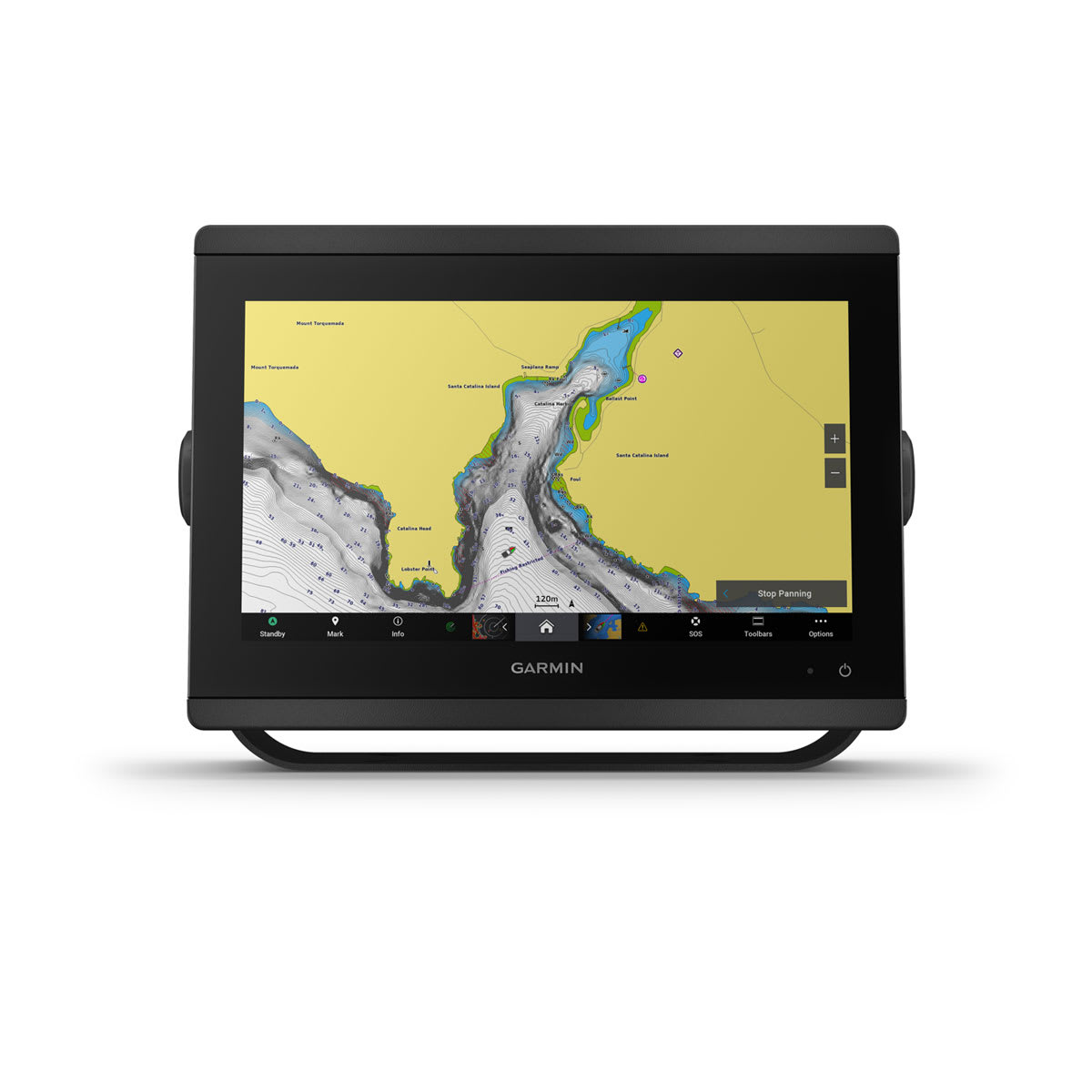

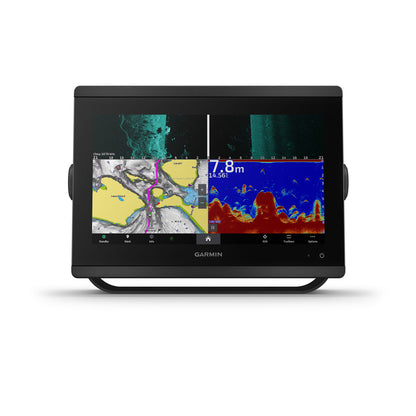

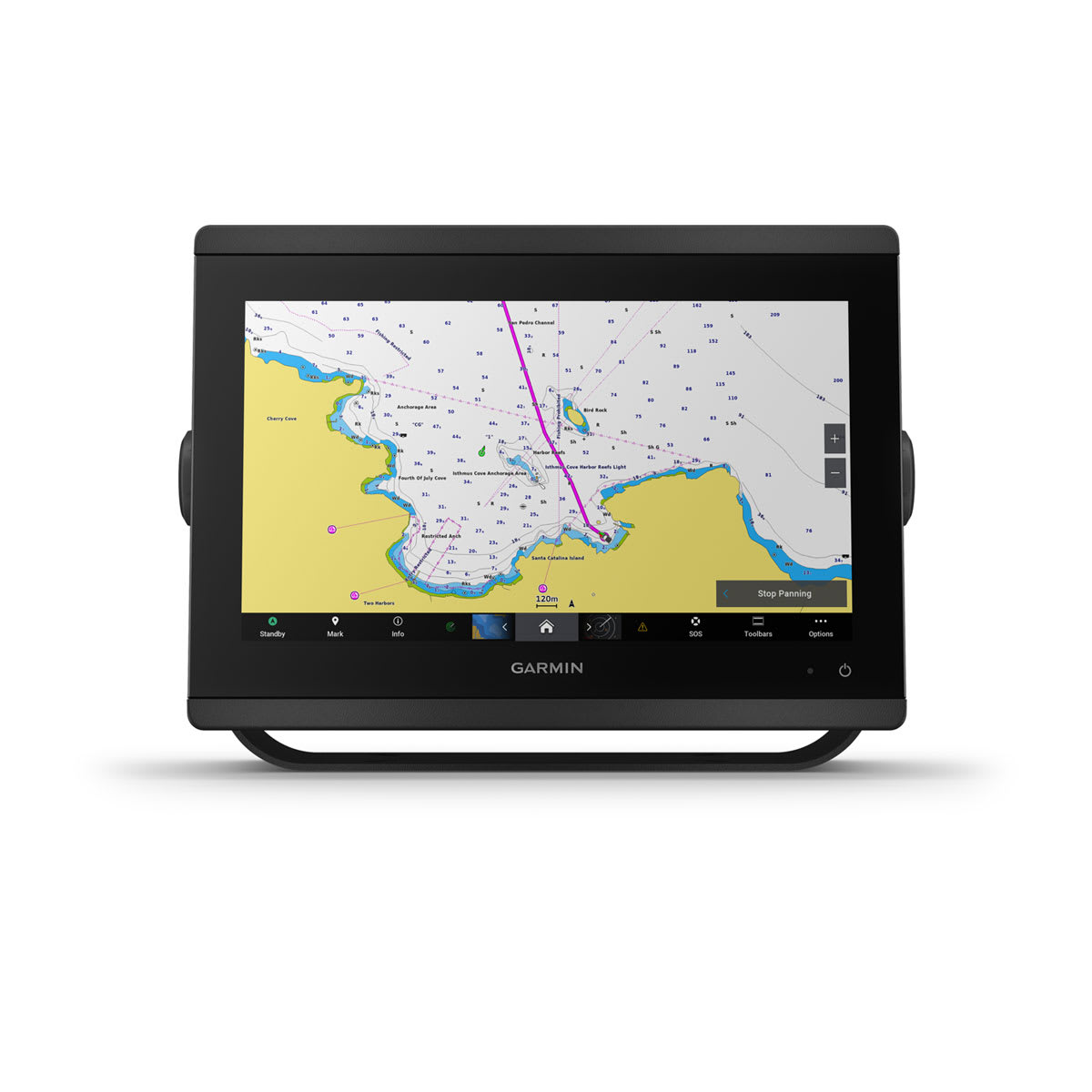

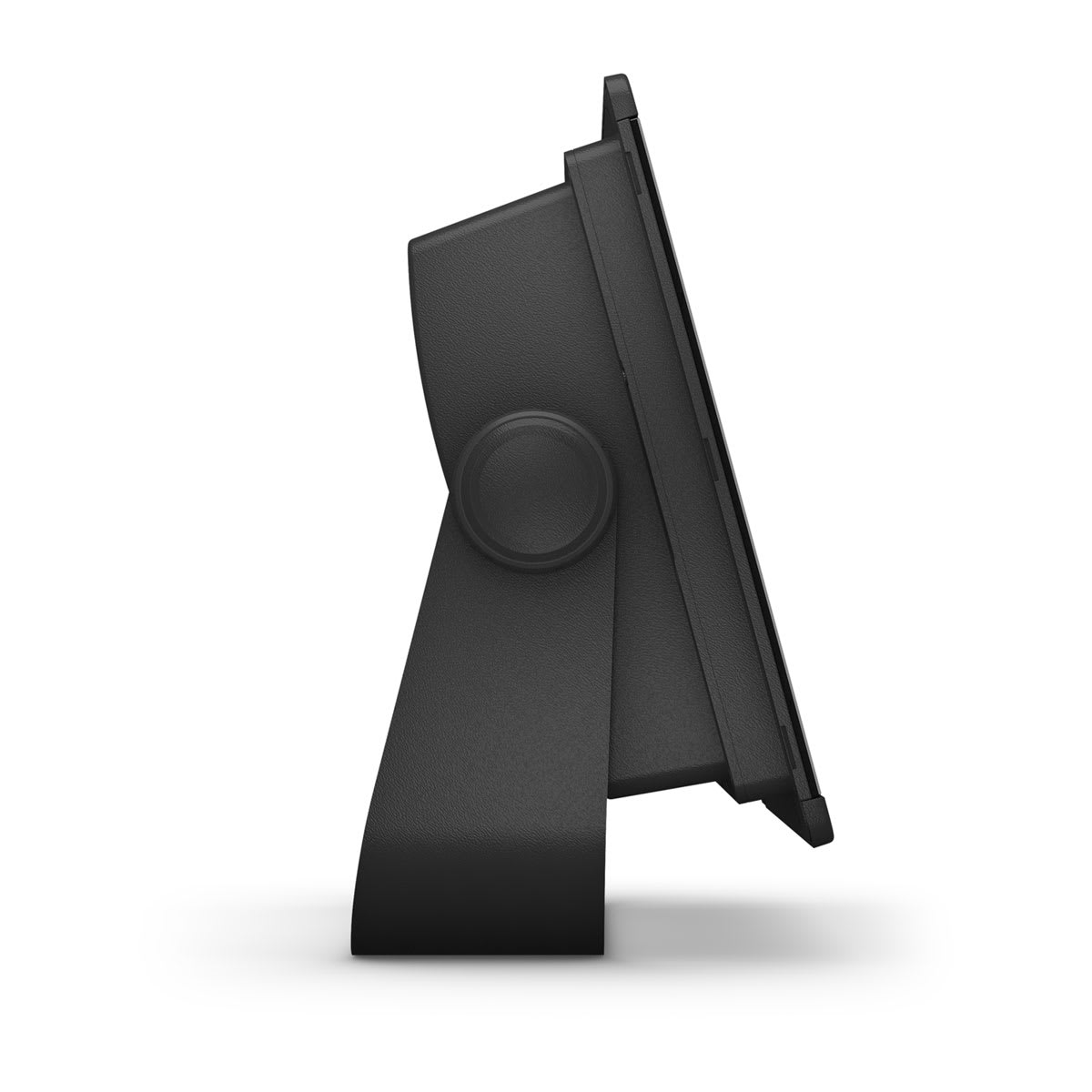

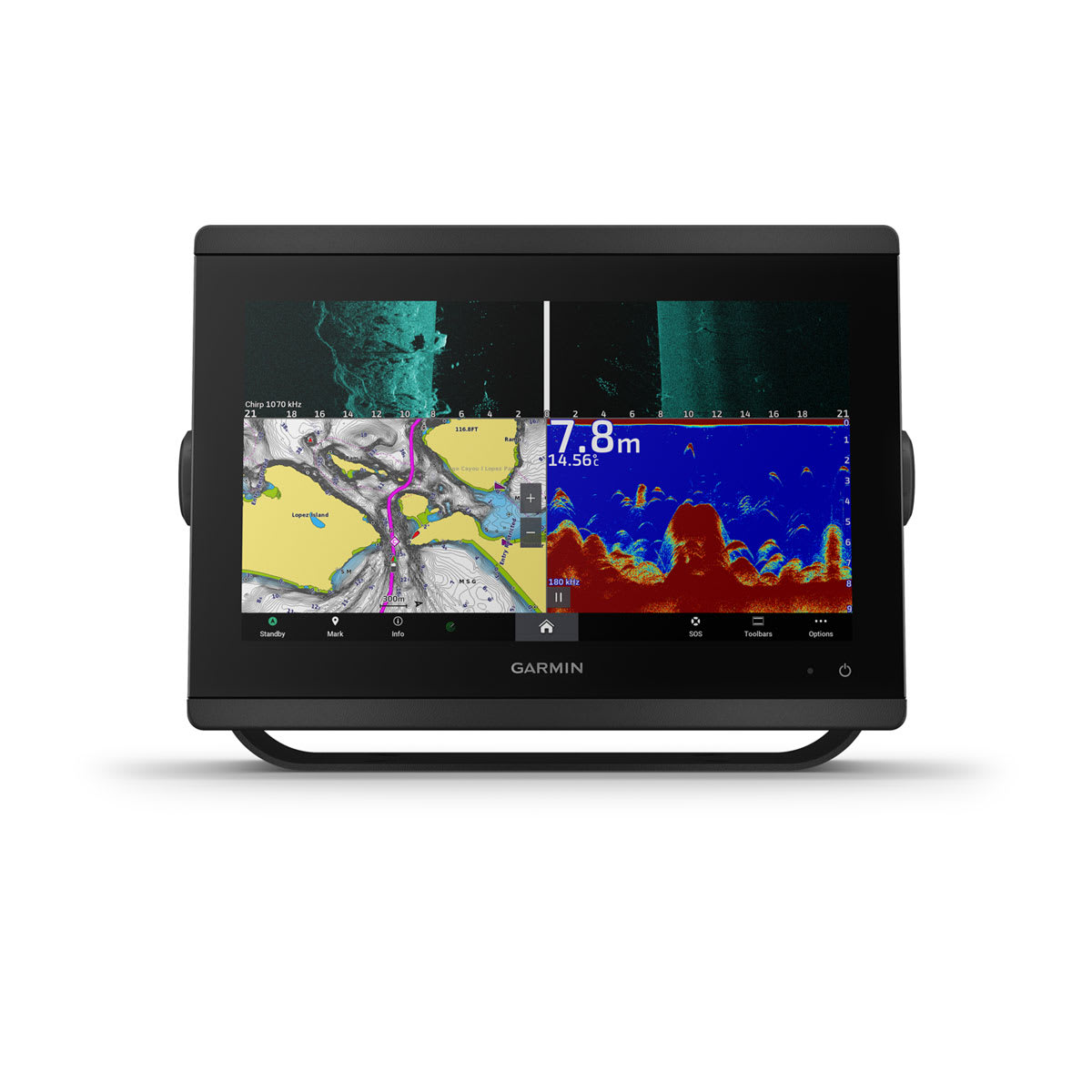

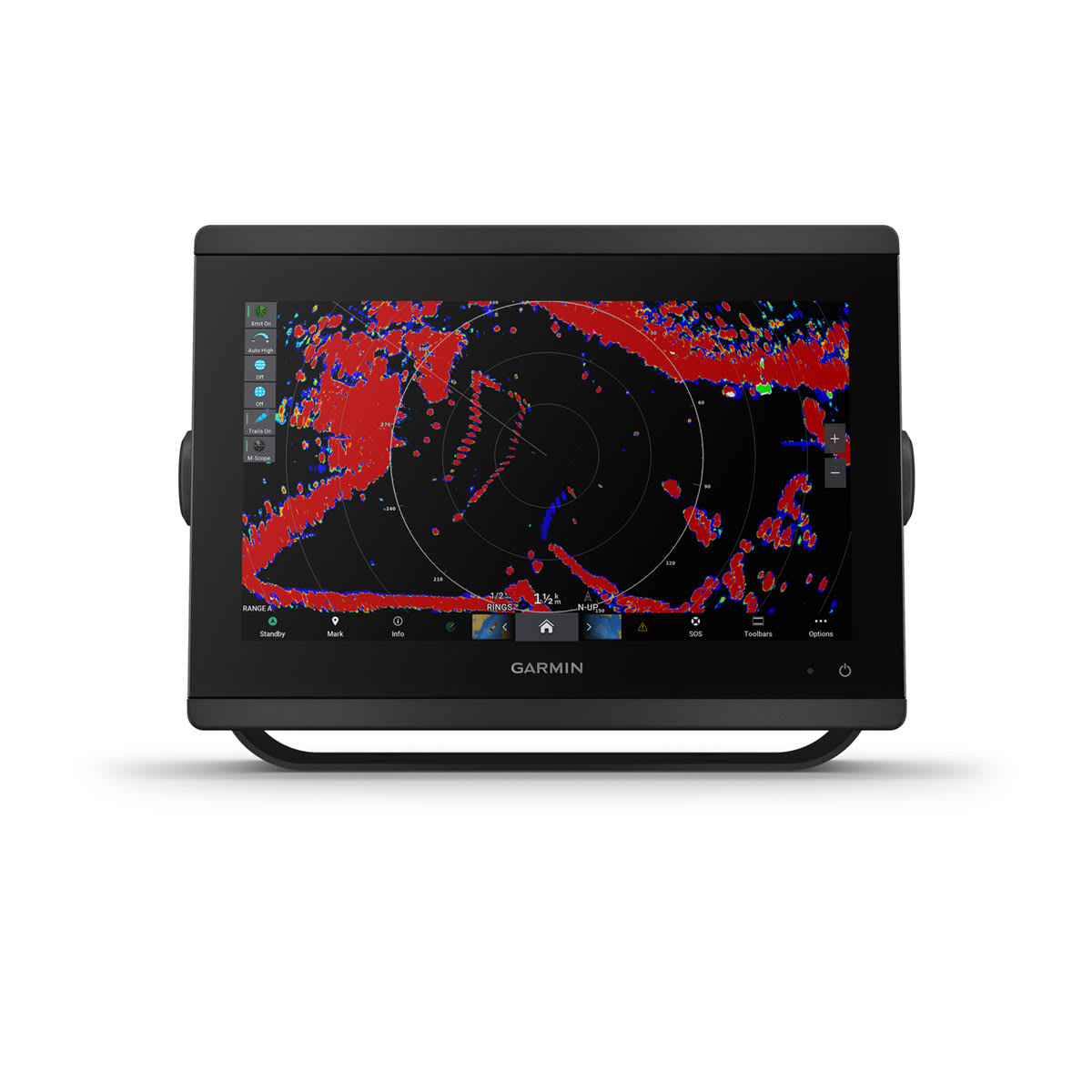

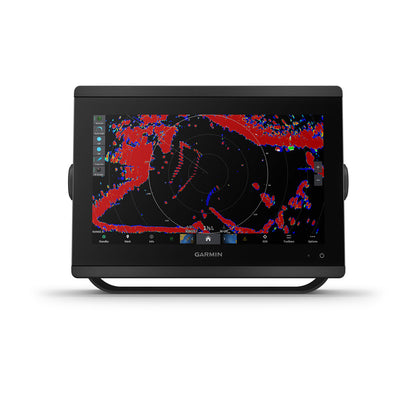

GPSMAP® 8412xsv With Worldwide Basemap and Sonar
GPSMAP® 8412xsv With Worldwide Basemap and Sonar
Regular price
$105.99 USD
Regular price
$350.00 USD
Sale price
$105.99 USD
Quantity
Couldn't load pickup availability
General | |
| Dimension | 11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm) |
|---|---|
| Weight |
6.2 lbs (2.8 kg) |
| Water rating |
IPX7 |
| Touchscreen | |
| Display Type | FHD, IPS |
| Display Size | 10.1" x 5.7"; 11.6" diagonal, 25.7 cm x 14.5 cm; 29.5 cm diagonal |
| Display resolution | 1920 x 1080 pixels |

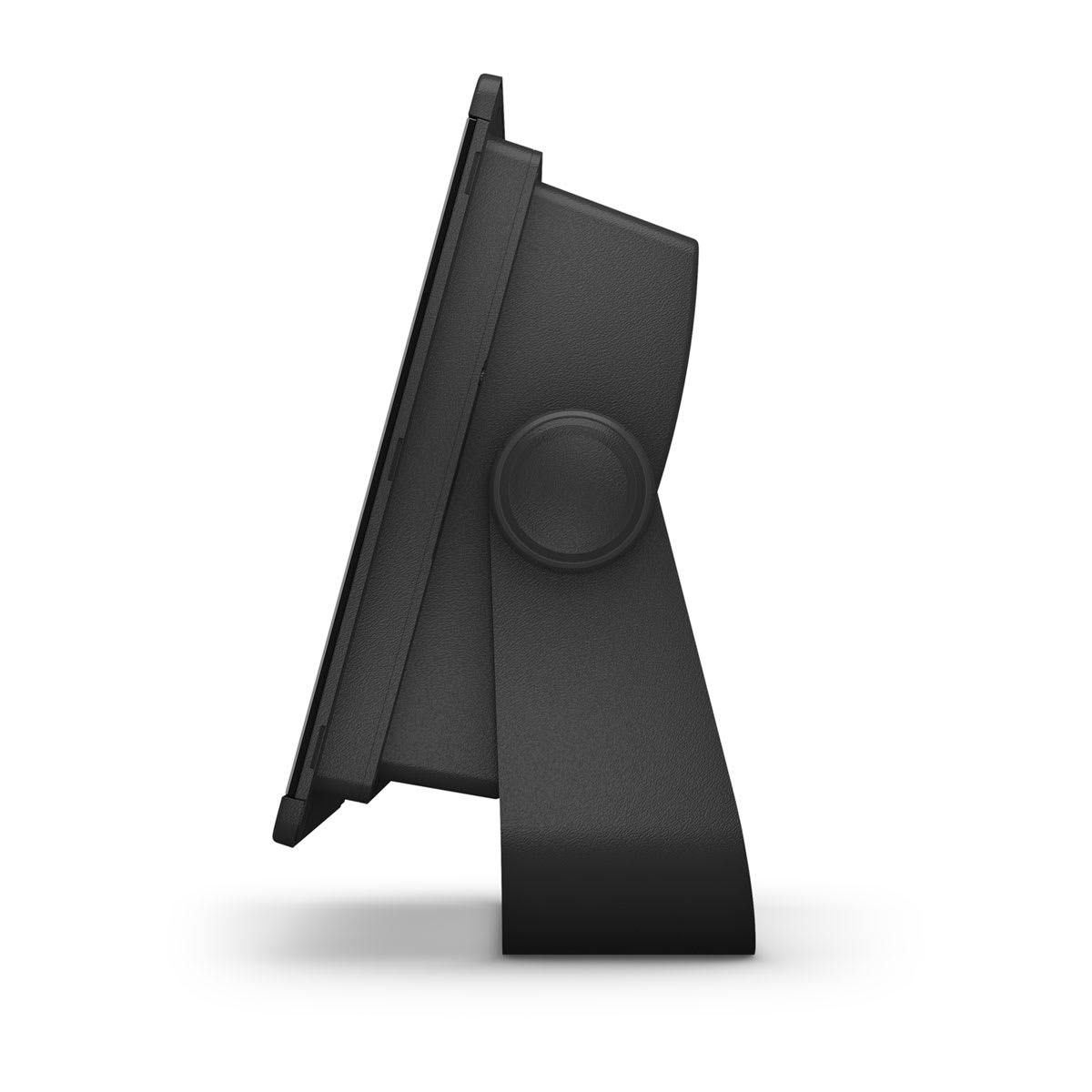

| Mounting Options | Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Polarized lens viewability | |
Maps & Memory | |
| Accepts Data Cards |
2 microSD cards |
|---|---|
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors | |
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| Has built-in receiver | |
| Receiver |
10 Hz |
| NMEA 2000 Compatible | |
| NMEA 0183 Compatible | |
| Supports WAAS | |
Built-in Maps | |
| Built-in Auto Guidance | |
|---|---|
| Tide tables | |
Optional Map Support | |
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
| Raster chart support | |
Chartplotter Features | |
| Smart Mode Compatible | |
|---|---|
| AIS | |
| DSC | |
| Supports Fusion-Link™ compatible radios | |
| GSD Black Box Sonar Support | |
| GCV Black Box Sonar Support | |
| ActiveCaptain® compatible | yes |
| GRID (Garmin Remote Input Device) compatible | |
| Wireless Remote Compatible | |
| Sailing Features | |
| Spoken audio alerts | |
| OneHelm support | |
Electrical Features | |
| Power Input | 10-32 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 1.3 A |
| Maximum current draw at 12 Vdc | 6.0 A |
| Maximum power usage at 10 Vdc | 45W |
Sonar Features | |
| Displays sonar | |
|---|---|
| Power output | 1 kW |

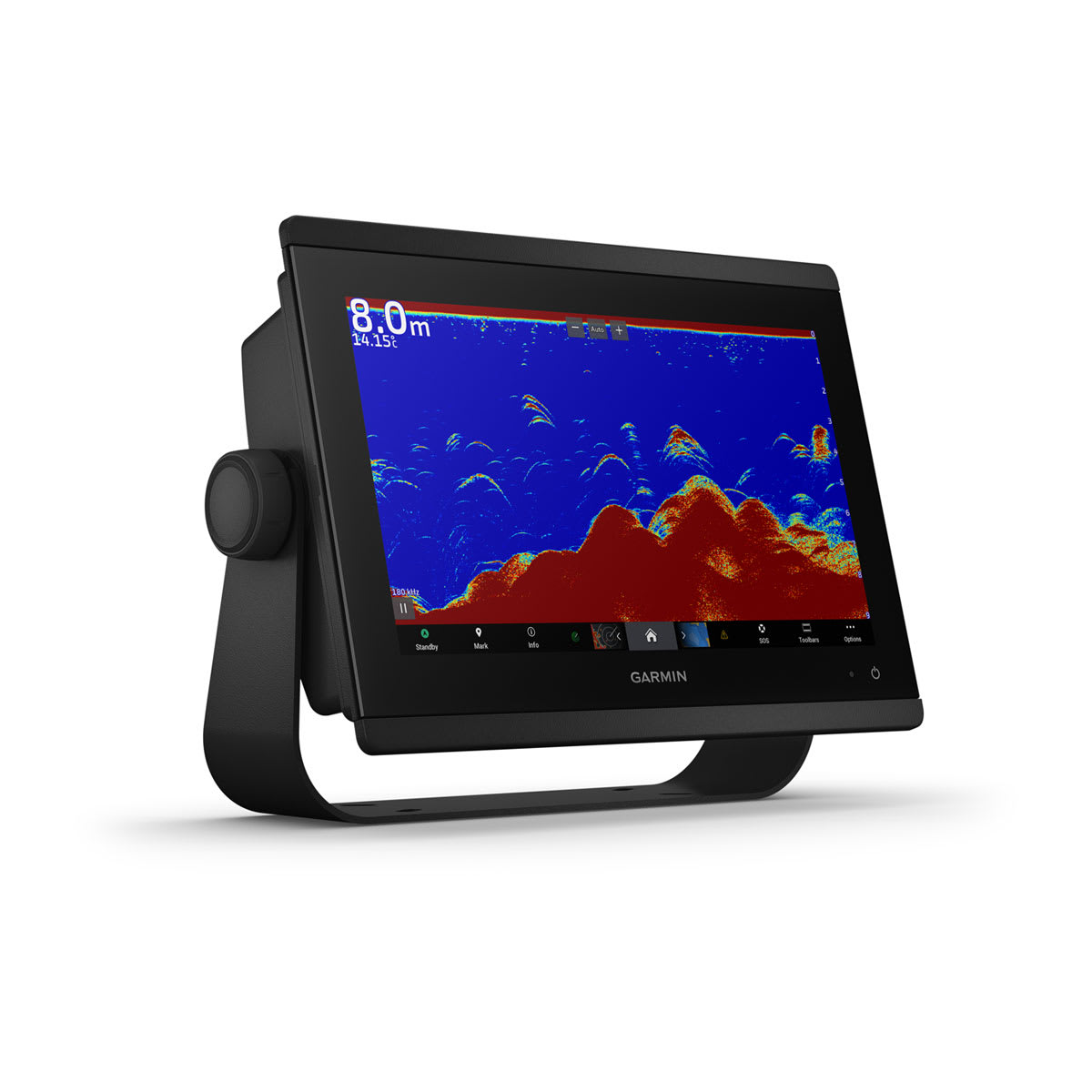

| Traditional sonar (dual frequency/beam) | built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |

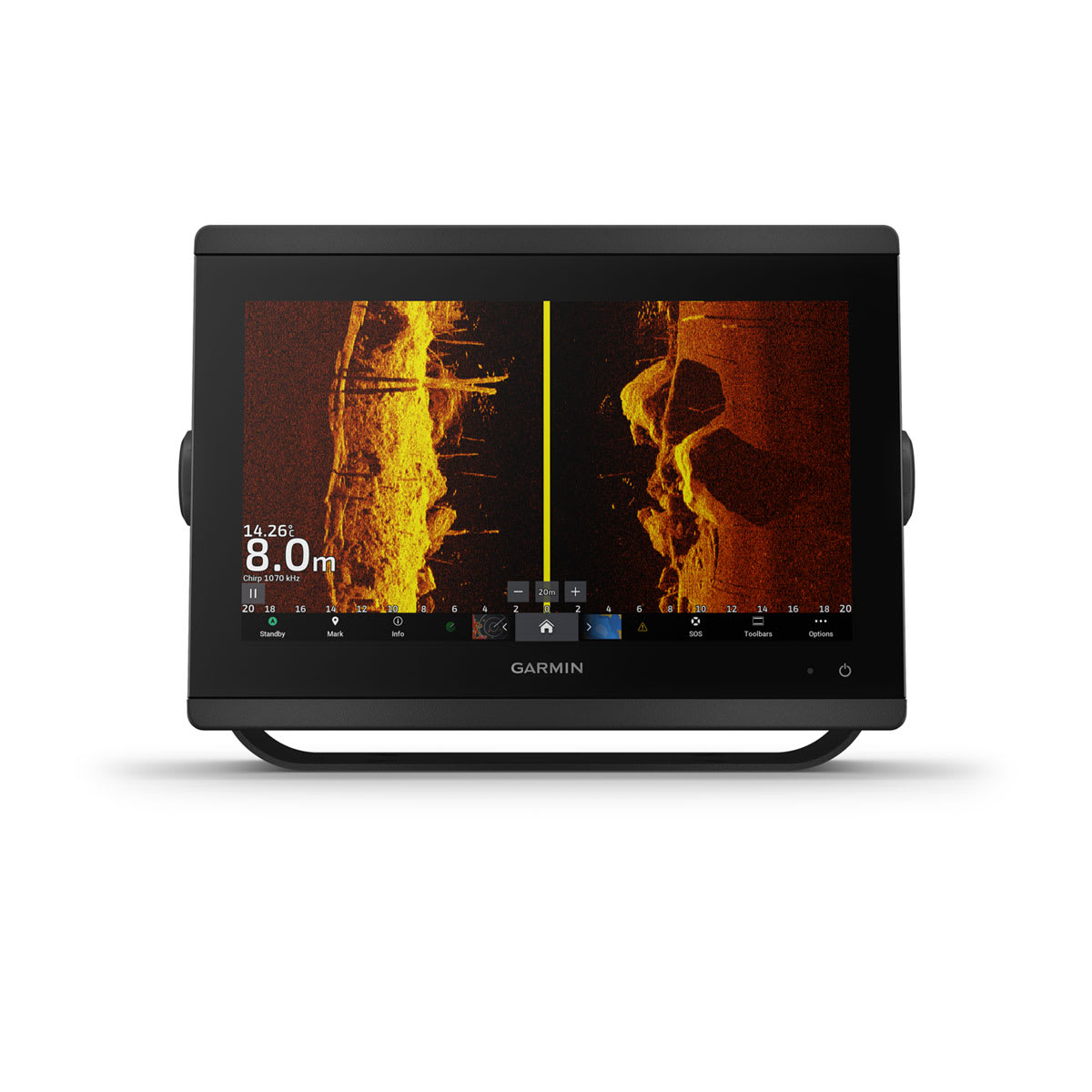

| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | |
| LiveScope | |

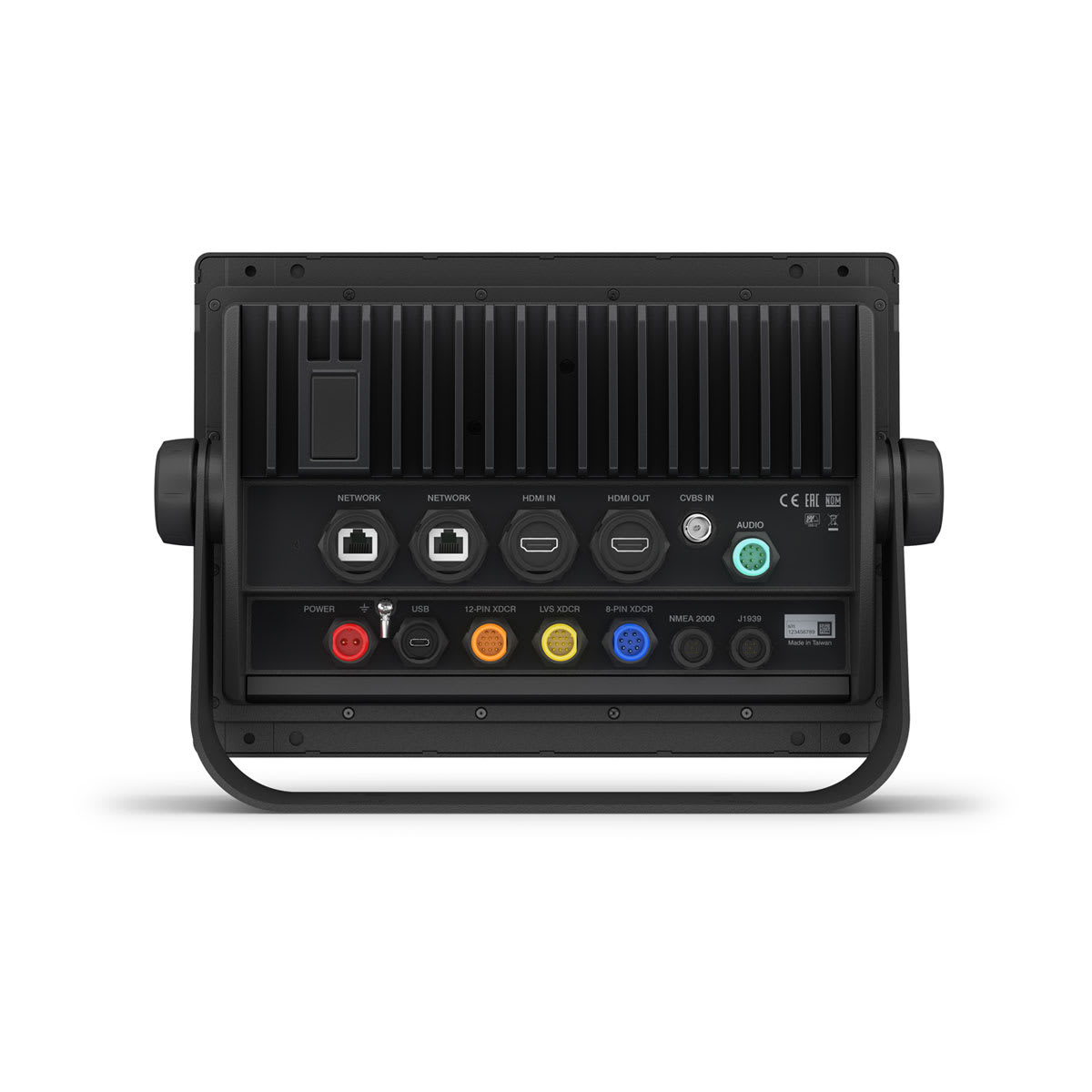

Networking & Connections | |
| NMEA 2000® ports | 1 |
|---|---|
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports |
1 (BNC composite); 1 HDMI (HDCP compliant) |
| Video output ports |
1 HDMI |
| J1939 ports | 1 |
| Garmin Marine Network Ports |
2 |
| 8-pin transducer ports | |
| 12-pin transducer ports | |
| USB ports | |
| Bluetooth® pairing | |
| ANT® (Connectivity) | |
| Garmin Wi-Fi network (local connection) | |
