Regular price
$28.99 USD
Regular price
$94.99 USD
Sale price
$28.99 USD
Couldn't load pickup availability

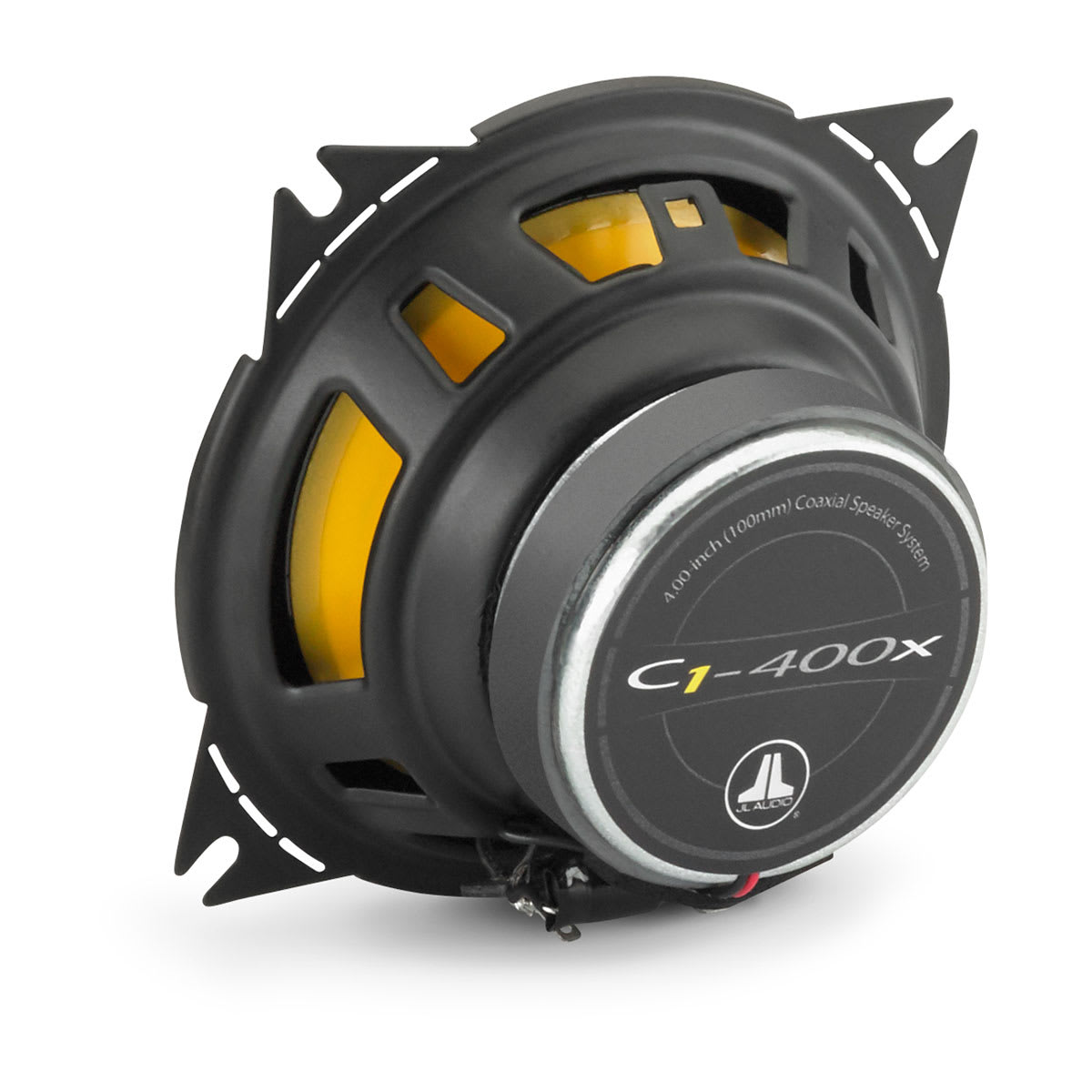

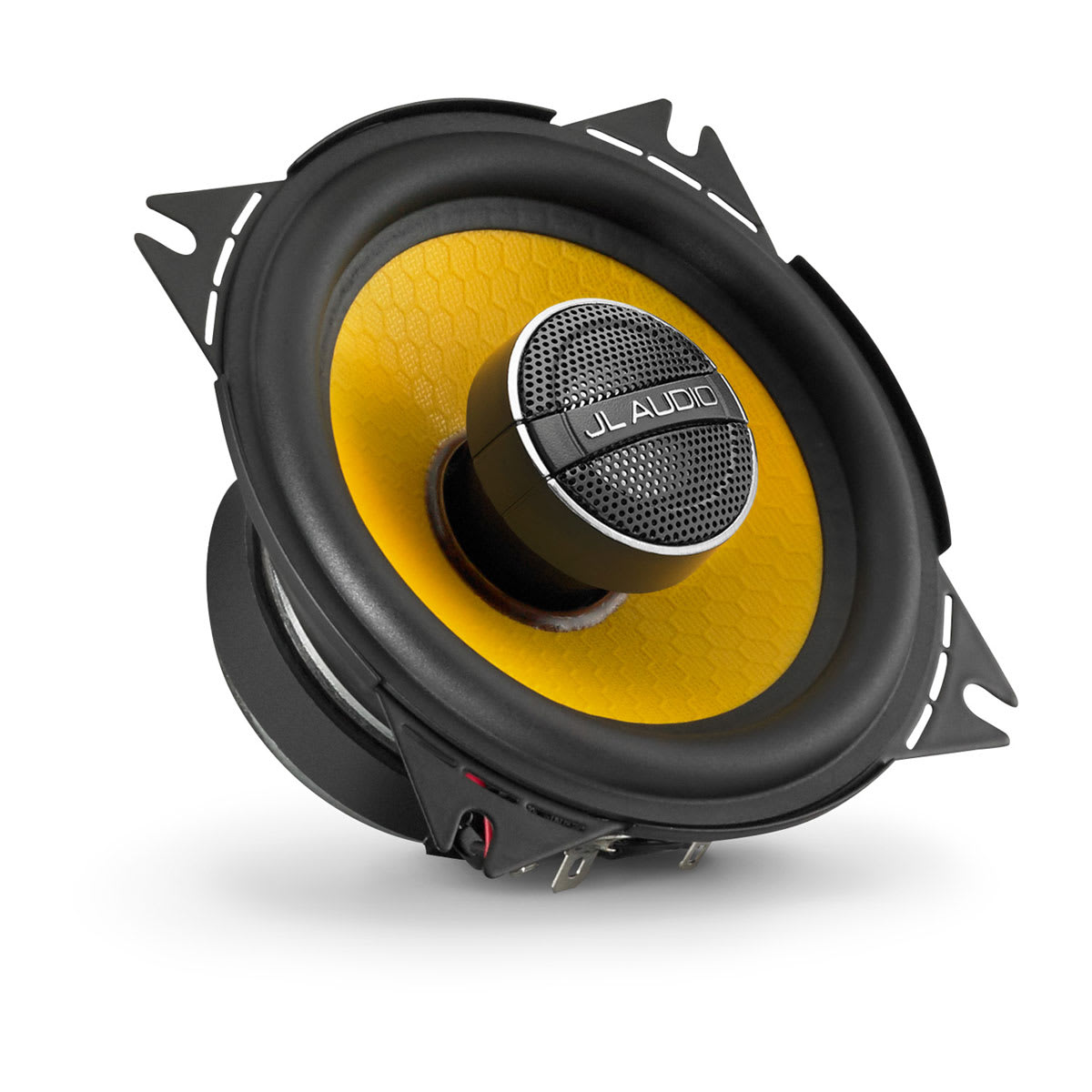

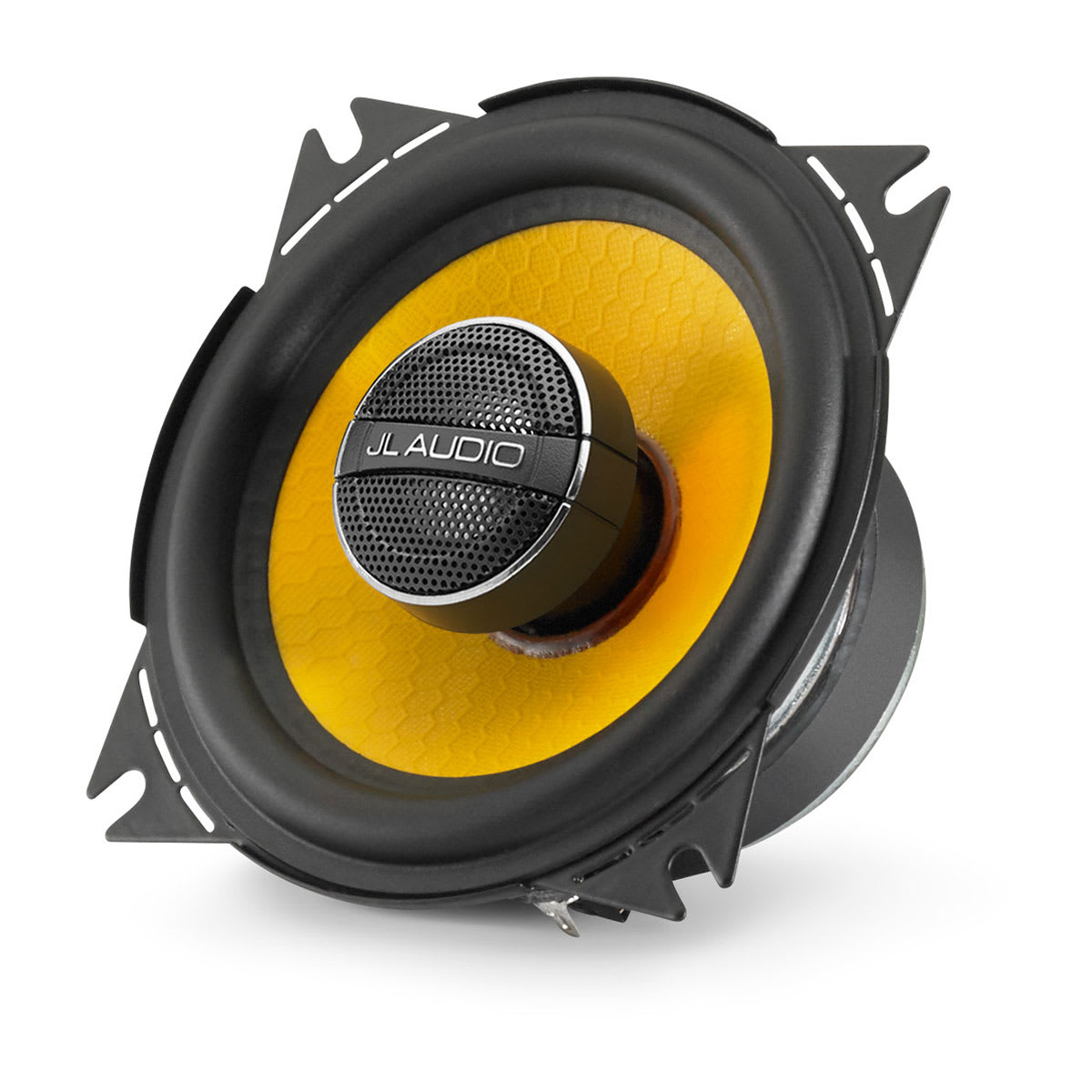

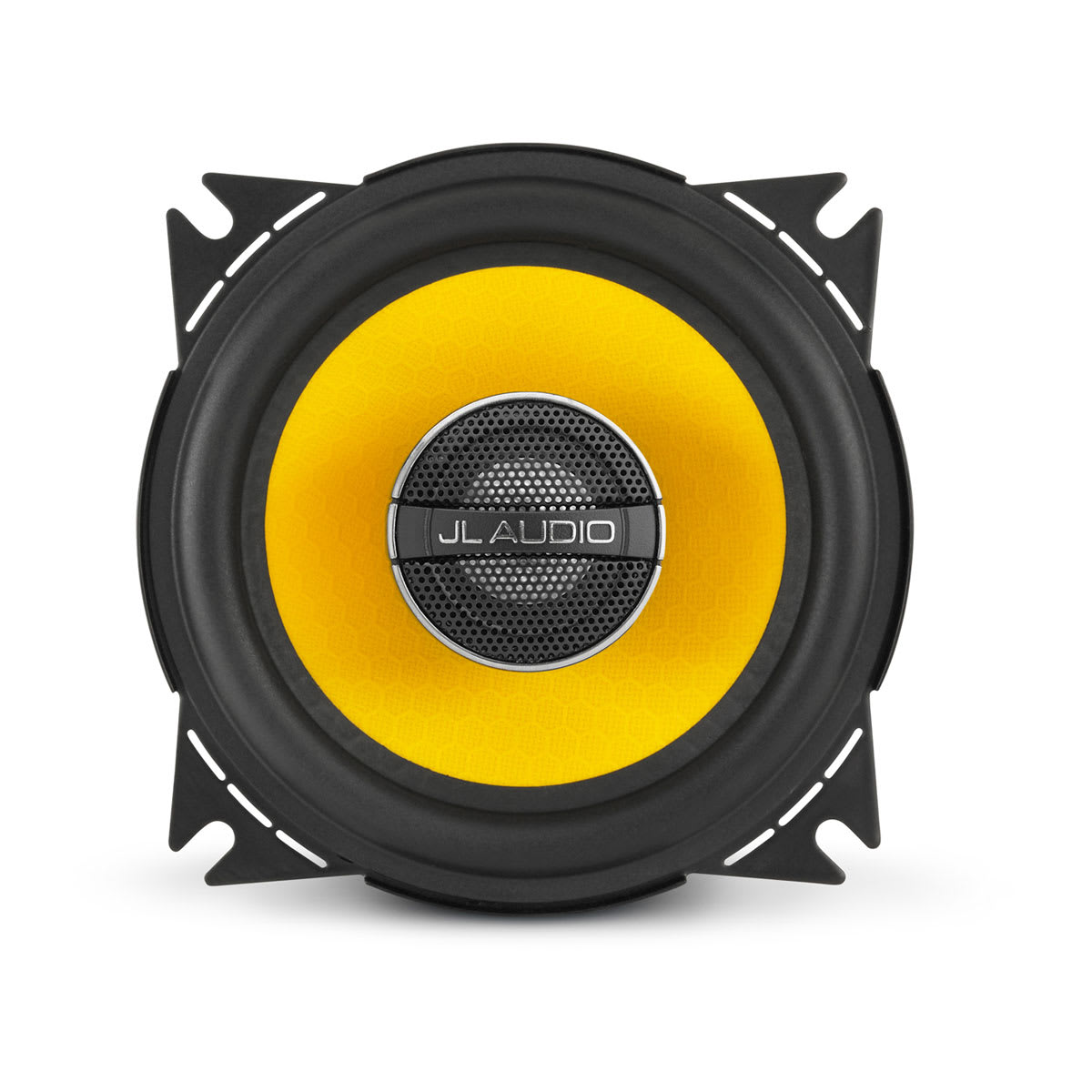

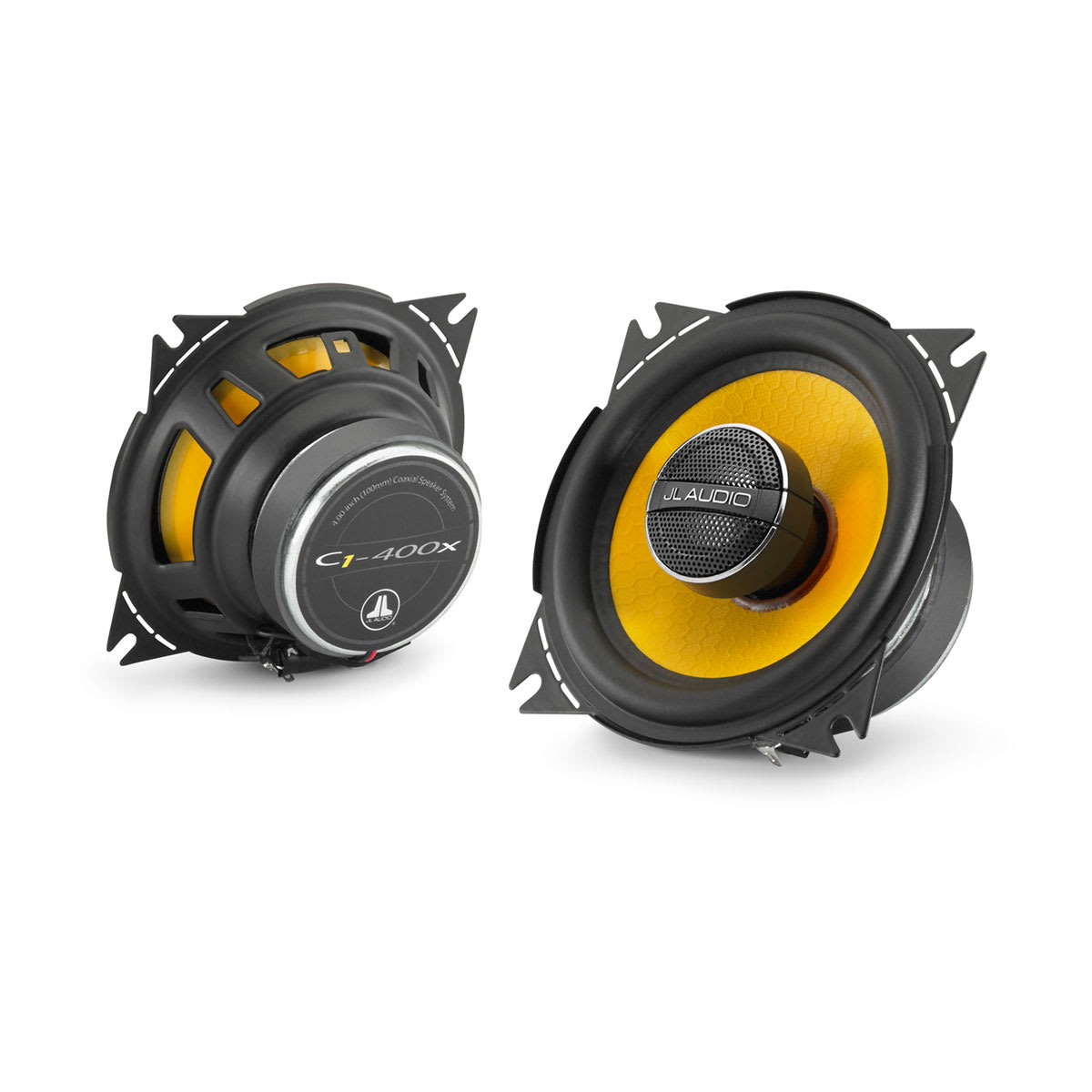

C1 coaxial speakers with DMA-optimized woofers, aluminum dome tweeters, a near-universal fit, and a 1-year warranty.
General |
| Warranty |
1 year |
| Sizes |
4"/5 x 7"/5.25"/6 x 9" |
| Continuous power handling (RMS) |
4": 35 W
5 x 7"/5.25"/6.5": 50 W
6 x 9": 60 W |
| Sensitivity (SPL @ 1 W/1 m) |
4": 84.5 dB
5 x 7": 90.5 dB
5.25": 89 dB
6 x 9" (2-way): 91.5 dB
6 x 9" (3-way)/6.5": 90.5 dB |
| Frequency response (+/- 3 dB) |
4": 64 Hz-24 KHz
5 x 7": 40 Hz-24 KHz
5.25": 54 Hz-24 KHz
6 x 9" (2-way): 39 Hz-22 KHz
6 x 9" (3-way): 36 Hz-24 KHz
6.5": 48 Hz-24 KHz |
| Nominal impedance |
4 Ω |
| Recommended amplifier power (RMS) |
4": 10-50 W/Channel
5 x 7"/5.25"/6.5": 10-75 W/Channel
6 x 9": 10-100 W/Channel |
| Voice coil diameter |
4"/5 x 7"/5.25"/6.5": 1" (25 mm)
6 x 9": 1.2" (30 mm) |
| Cone material |
Mineral-filled polypropylene |
| Tweeter type |
Aluminum Dome |
| Tweeter size |
4"/5 x 7"/5.25"/6.5": 0.75" (19 mm)
6 x 9" (2-way): 1" (25 mm)
6 x 9" (3-way): 1" (25 mm) and 0.75" (19 mm) |
Networking & Connections |
| Speaker connections |
Spade connectors |
Mounting Dimensions |
| Frame outer diameter |
4": 4.03" (102 mm)
5 x 7": 5.50 x 7.63" (140 x 194 mm)
5.25": 5.83" (132 mm)
6 x 9" 6.38 x 9.33" (162 x 237 mm)
6.5": 6.25" (159 mm) |
| Mounting depth clearance |
4": 1.81" (46 mm)
5 x 7": 2.46" (63 mm)
5.25": 2.42" (62 mm)
6 x 9" (2-way): 2.75" (70 mm)
6 x 9" (3-way): 3.09" (79 mm)
6.5": 2.07" (53 mm) |
| Mounting hole |
4": 3.70" (94 mm)
5.25": 4.70 in (119 mm)
6.5": 5.02" (128 mm) |
| Motor outer diameter |
4": 2.33" (59 mm)
5 x 7"/5.25": 2.76" (70 mm)
6 x 9" (2-way): 3.54" (90 mm)
6 x 9" (3-way): 3.94" (100 mm)
6.5": 3.15" (80 mm) |
| Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface) |
4": 0.61" (16 mm)
5 x 7": 0.46" (12 mm)
5.25": 0.54" (14 mm)
6 x 9" (2-way): 0.41" (10 mm)
6 x 9" (3-way)/6.5": 0.72" (18 mm) |
