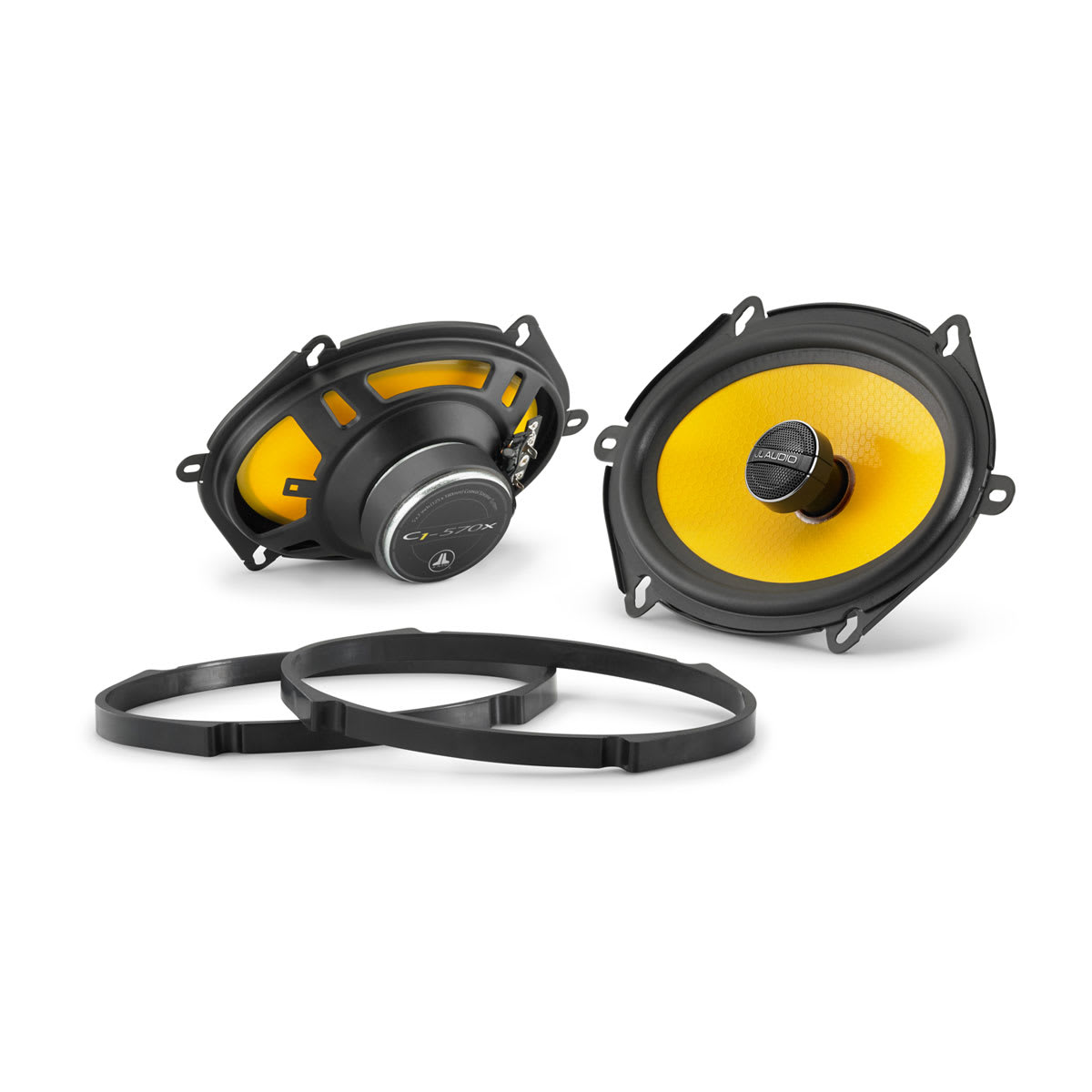

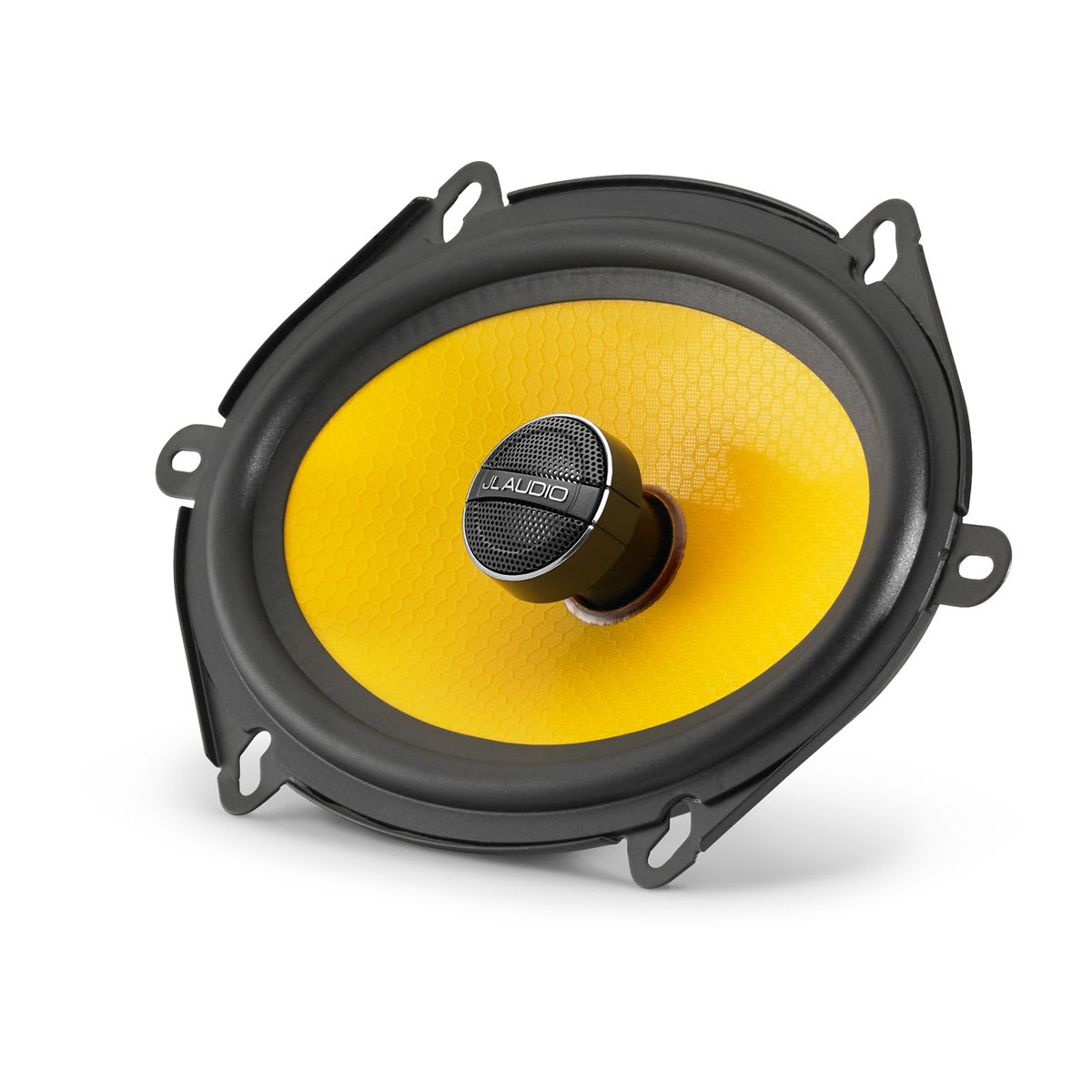

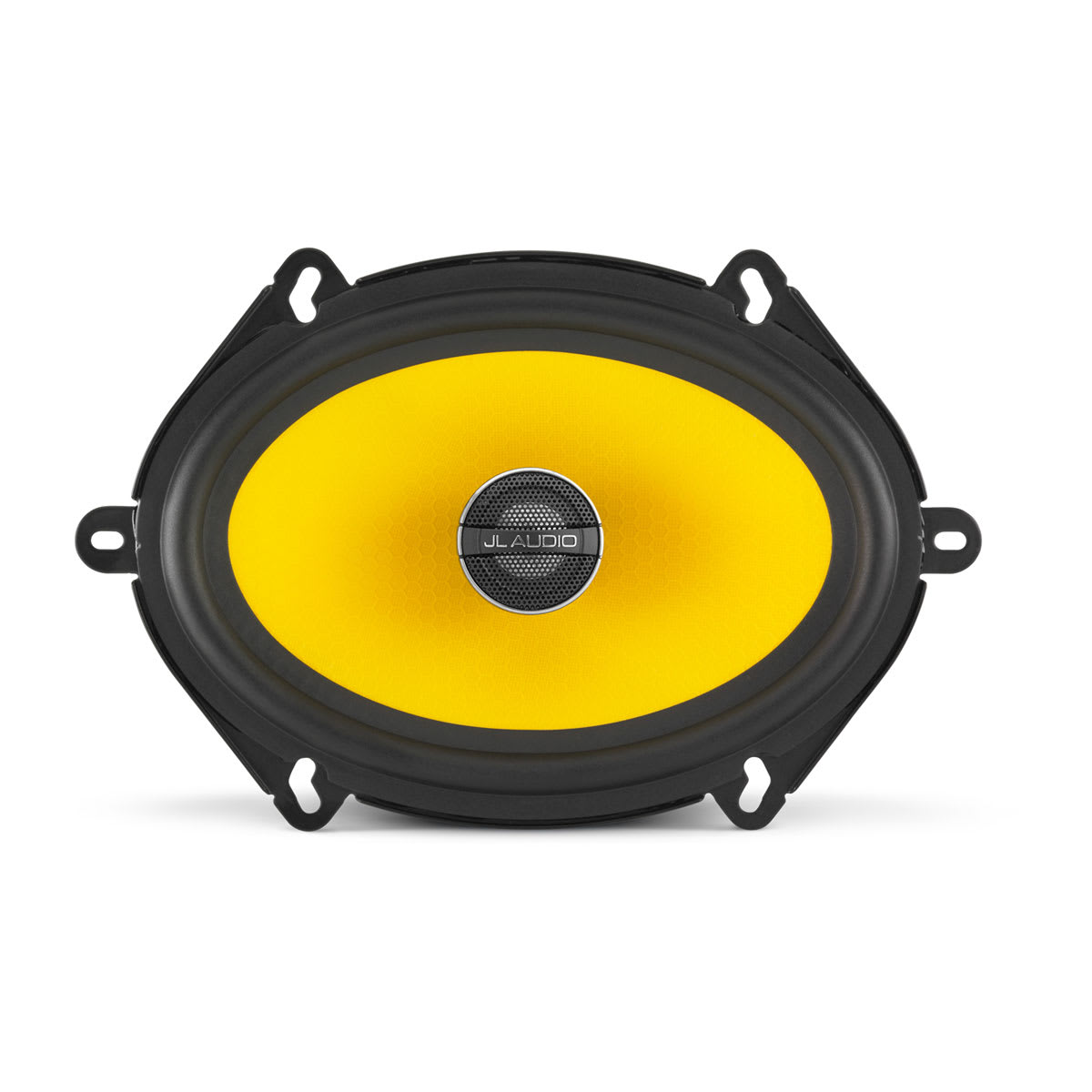

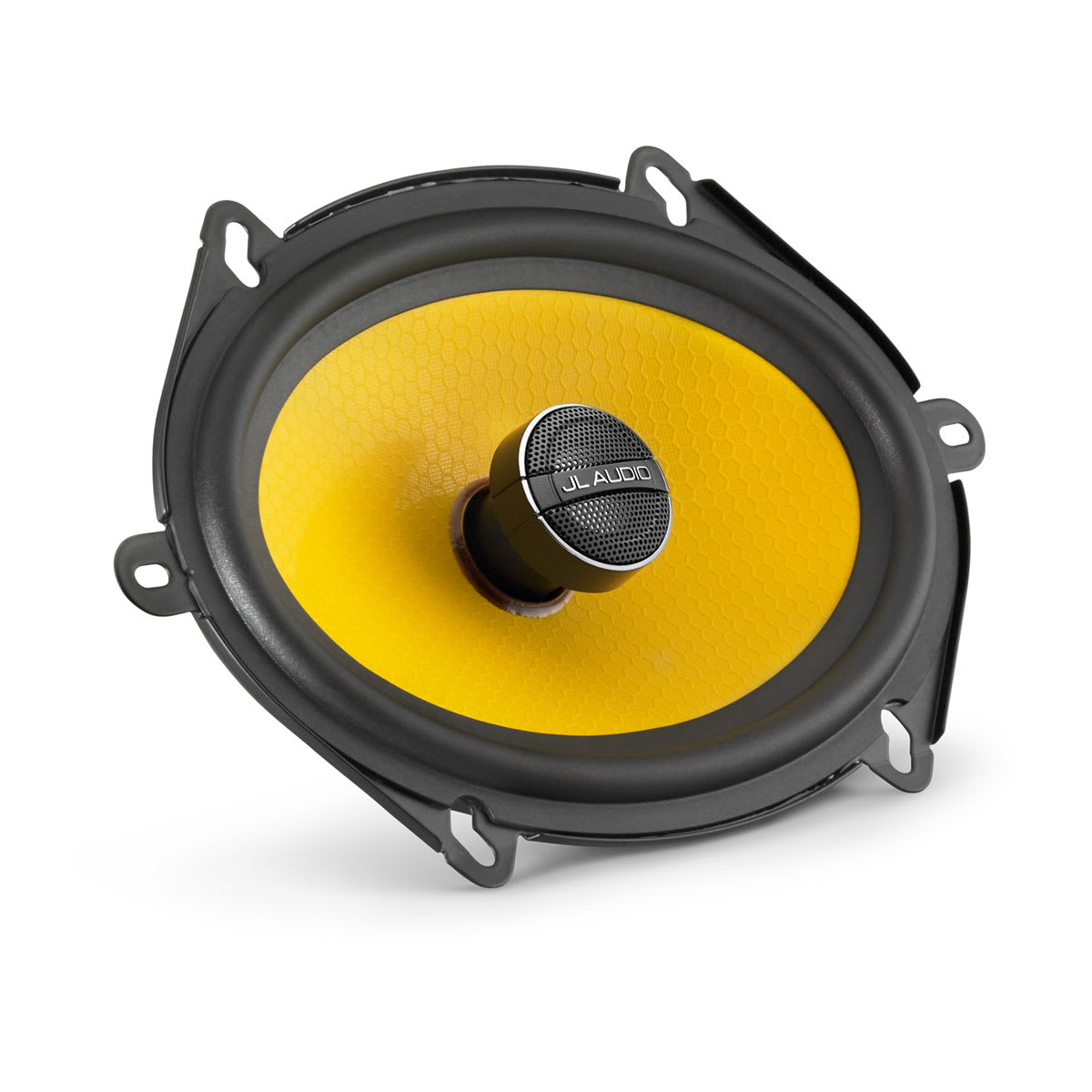

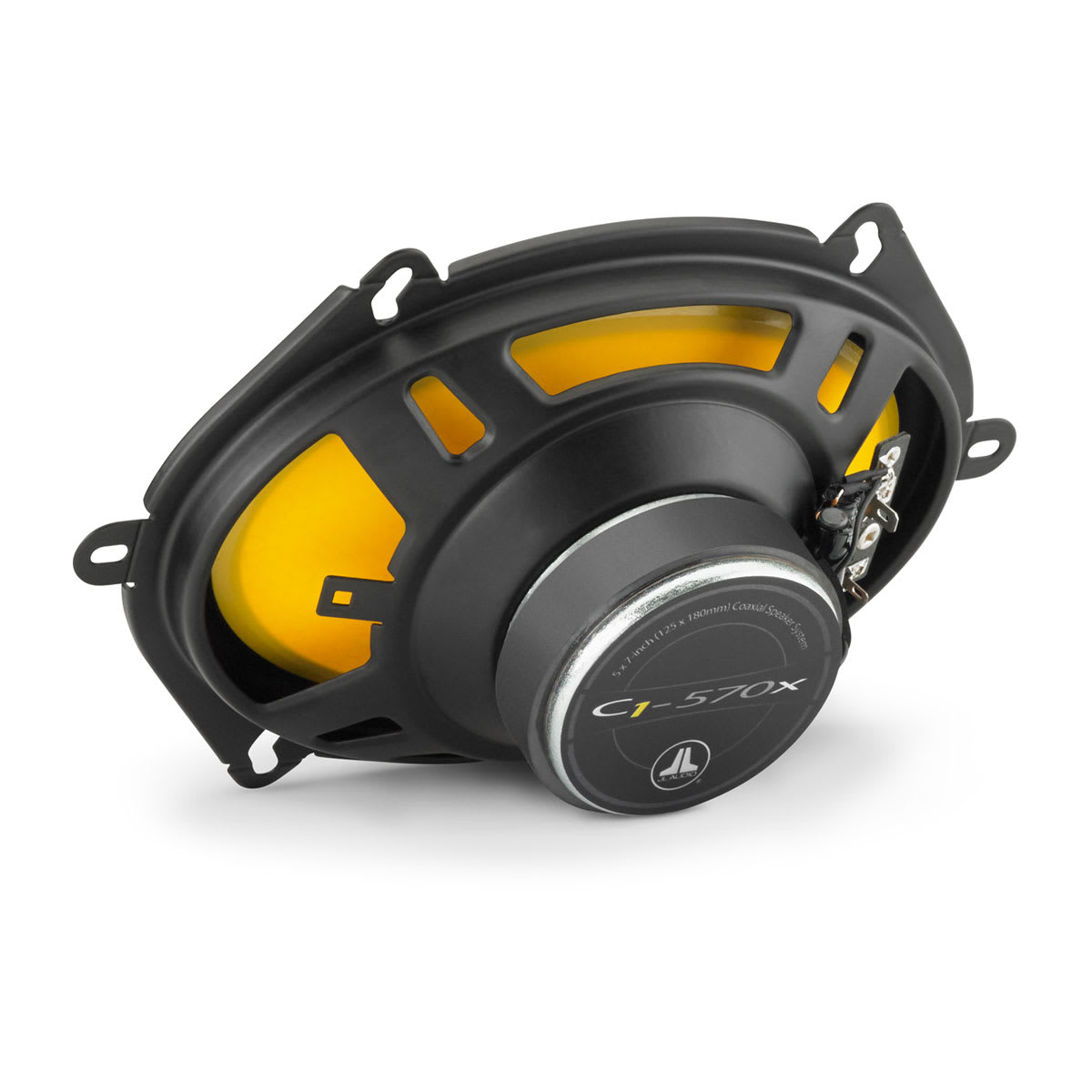

JL Audio® C1 Car Speakers 5\" x 7\"/6\" x 8\" Two-way Coaxial

JL Audio® C1 Car Speakers 5\" x 7\"/6\" x 8\" Two-way Coaxial

$38.99 USD
$129.99 USD $38.99 USD
Sale Sold out
C1 coaxial speakers with DMA-optimized woofers, aluminum dome tweeters, a near-universal fit, and a 1-year warranty.

General
Warranty 1 year
Sizes 4"/5 x 7"/5.25"/6 x 9"
Continuous power handling (RMS) 4": 35 W
5 x 7"/5.25"/6.5": 50 W
6 x 9": 60 W
Sensitivity (SPL @ 1 W/1 m) 4": 84.5 dB
5 x 7": 90.5 dB
5.25": 89 dB
6 x 9" (2-way): 91.5 dB
6 x 9" (3-way)/6.5": 90.5 dB
Frequency response (+/- 3 dB) 4": 64 Hz-24 KHz
5 x 7": 40 Hz-24 KHz
5.25": 54 Hz-24 KHz
6 x 9" (2-way): 39 Hz-22 KHz
6 x 9" (3-way): 36 Hz-24 KHz
6.5": 48 Hz-24 KHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 4": 10-50 W/Channel
5 x 7"/5.25"/6.5": 10-75 W/Channel
6 x 9": 10-100 W/Channel
Voice coil diameter 4"/5 x 7"/5.25"/6.5": 1" (25 mm)
6 x 9": 1.2" (30 mm)
Cone material Mineral-filled polypropylene
Tweeter type Aluminum Dome
Tweeter size 4"/5 x 7"/5.25"/6.5": 0.75" (19 mm)
6 x 9" (2-way): 1" (25 mm)
6 x 9" (3-way): 1" (25 mm) and 0.75" (19 mm)

Networking & Connections
Speaker connections Spade connectors

Mounting Dimensions
Frame outer diameter 4": 4.03" (102 mm)
5 x 7": 5.50 x 7.63" (140 x 194 mm)
5.25": 5.83" (132 mm)
6 x 9" 6.38 x 9.33" (162 x 237 mm)
6.5": 6.25" (159 mm)
Mounting depth clearance 4": 1.81" (46 mm)
5 x 7": 2.46" (63 mm)
5.25": 2.42" (62 mm)
6 x 9" (2-way): 2.75" (70 mm)
6 x 9" (3-way): 3.09" (79 mm)
6.5": 2.07" (53 mm)
Mounting hole 4": 3.70" (94 mm)
5.25": 4.70 in (119 mm)
6.5": 5.02" (128 mm)
Motor outer diameter 4": 2.33" (59 mm)
5 x 7"/5.25": 2.76" (70 mm)
6 x 9" (2-way): 3.54" (90 mm)
6 x 9" (3-way): 3.94" (100 mm)
6.5": 3.15" (80 mm)
Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface) 4": 0.61" (16 mm)
5 x 7": 0.46" (12 mm)
5.25": 0.54" (14 mm)
6 x 9" (2-way): 0.41" (10 mm)
6 x 9" (3-way)/6.5": 0.72" (18 mm)
