Regular price
$56.99 USD
Regular price
$189.99 USD
Sale price
$56.99 USD
Couldn't load pickup availability

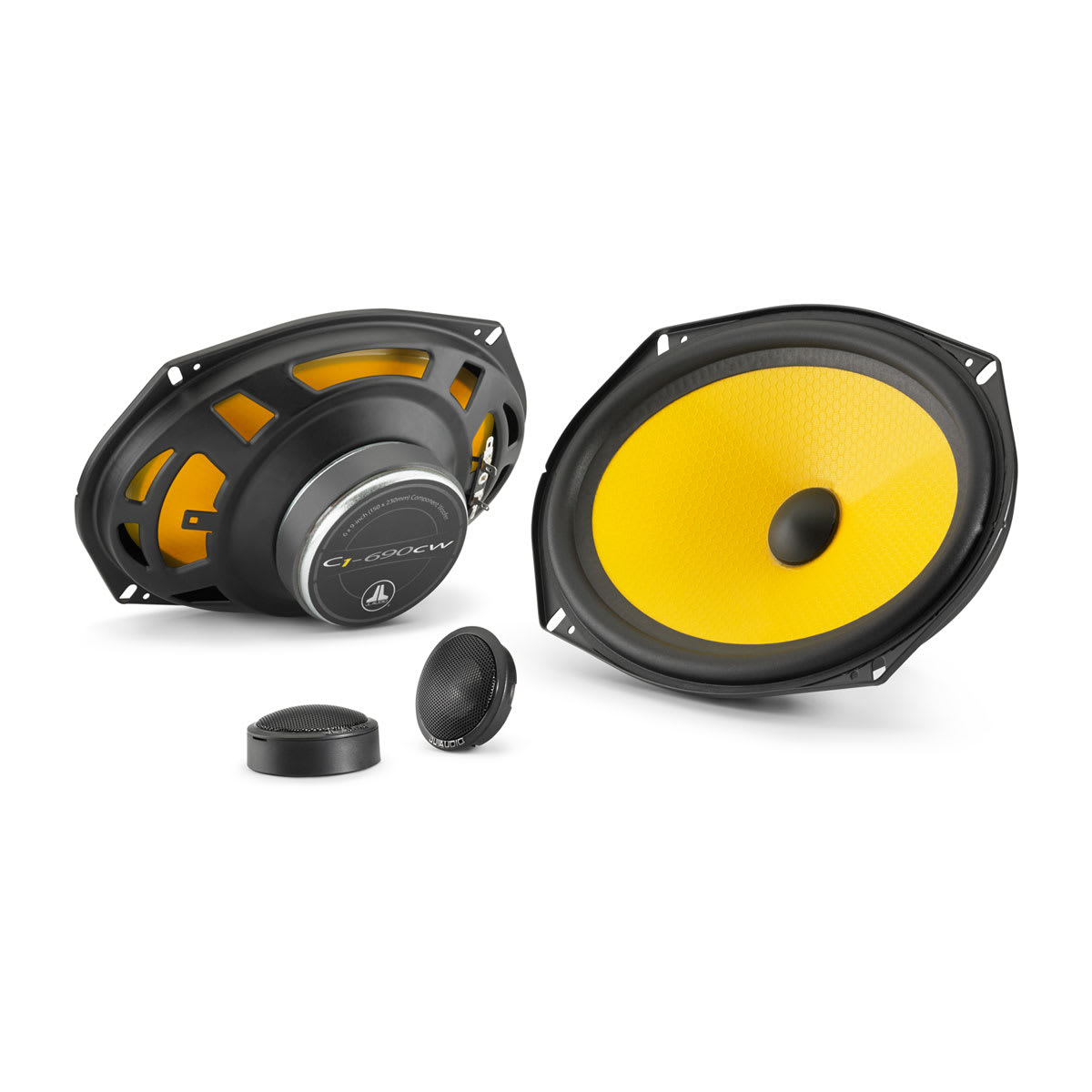

C1 two-way component car speaker system with DMA-optimized woofers, aluminum dome tweeters, a near-universal fit, and a 1-year warranty.
General |
| Warranty |
1 year |
| Sizes |
6 x 9"/6.5" |
| Continuous power handling (RMS) |
6.5": 50 W
6 x 9": 60 W |
| Sensitivity (SPL @ 1 W/1 m) |
6.5": 91 dB
6 x 9": 91.5 dB |
| Frequency response (+/- 3 dB) |
6 x 9": 39 Hz-22 KHz
6.5": 48 Hz-24 KHz
6.5" (se): 48 Hz-21 KHz |
| Nominal impedance |
4 Ω |
| Recommended amplifier power (RMS) |
6 x 9": 10-100 W/Channel
6.5": 10-75 W/Channel |
| Voice coil diameter |
6 x 9"/6.5" (se): 1.2" (30 mm)
6.5": 1" (25 mm) |
| Cone material |
Mineral-filled polypropylene |

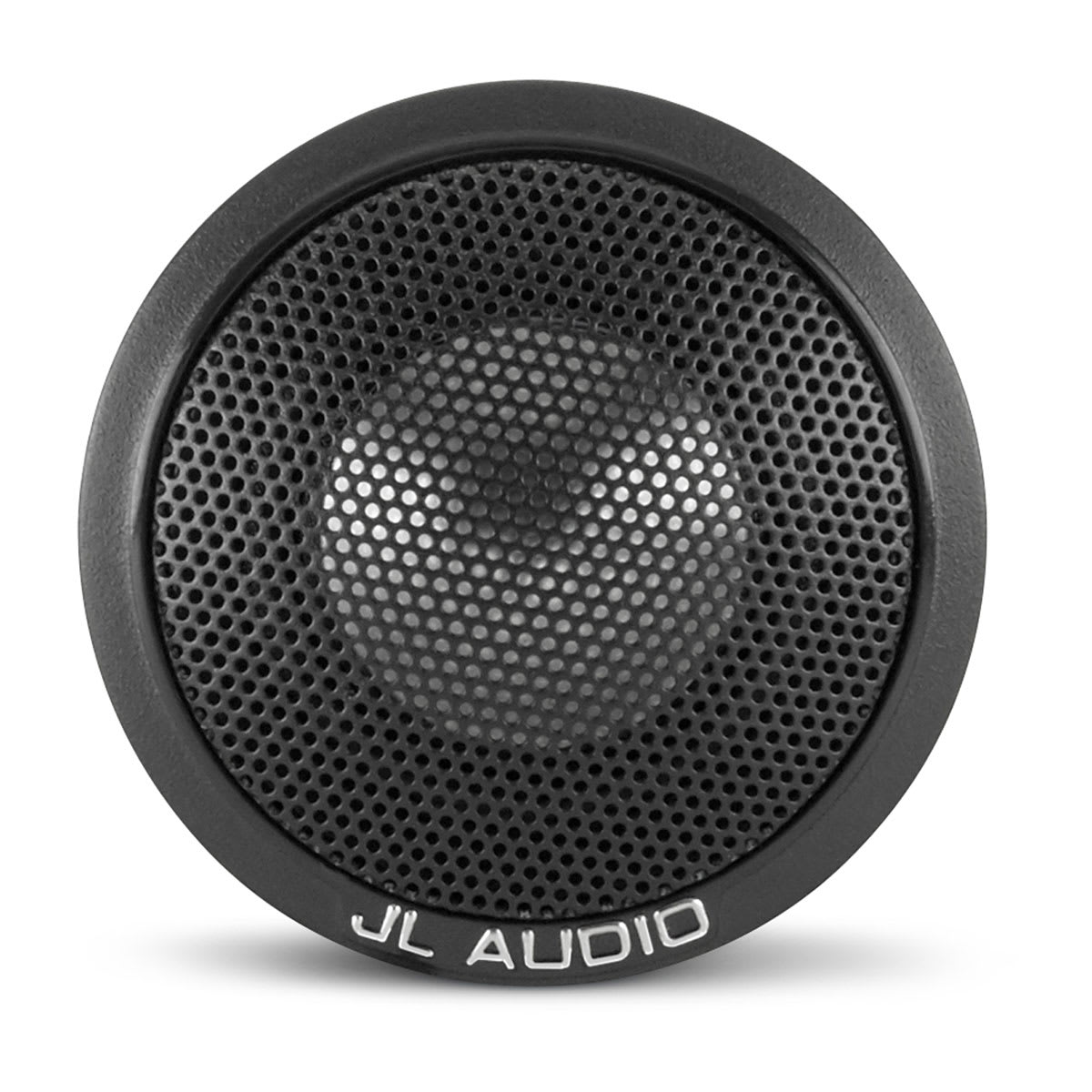

| Tweeter type |
Aluminum Dome |
| Tweeter size |
6 x 9"/6.5" (se): 1" (25 mm)
6.5": 0.75" (19 mm) |
| Grille(s) included |
Tweeters only |
Networking & Connections |
| Speaker connections |
Spade connectors |
Mounting Dimensions |
| Frame outer diameter |
6 x 9": 6.38 x 9.33" (162 x 237 mm)
6.5": 6.25" (159 mm) |
| Mounting depth clearance |
6 x 9": 2.75" (70 mm)
6.5": 2.07" (53 mm) |
| Mounting hole |
6.5": 5.02" (128 mm) |
| Motor outer diameter |
6 x 9": 3.54" (90 mm)
6.5": 3.15" (80 mm) |
Tweeter Specifications |
| Flush mount fixture diameter |
6.5": 1.67" (42 mm)
6.5" (se)/6" x 9": 1.97" (50 mm) |
| Surface mount fixture diameter |
6.5": 1.71" (43 mm)
6.5" (se)/6" x 9": 2.01" (51 mm) |
| Flush mount mounting hole diameter |
6.5": 1.46" (37 mm)
6.5" (se)/6" x 9": 1.75" (45 mm) |
| Flush mount mounting depth |
0.40" (10 mm) |
| Flush mount tweeter frontal protrusion |
6.5": 0.23" (6 mm)
6.5" (se)/6" x 9": 0.32" (8 mm) |
| Surface mount tweeter frontal protrusion |
6.5": 0.76" (19 mm)
6.5" (se)/6" x 9": 0.87" (22 mm) |
Crossover Specifications |
| Width |
1.96" (50 mm)
6.5" (se) (features both crossovers): 2.53" (64 mm |
| Height |
0.90" (23 mm)
6.5" (se) (features both crossovers): 1.93 (49 mm) |
| Depth |
1.34" (34 mm)
6.5" (se) (features both crossovers): 1.09" (28 mm) |
