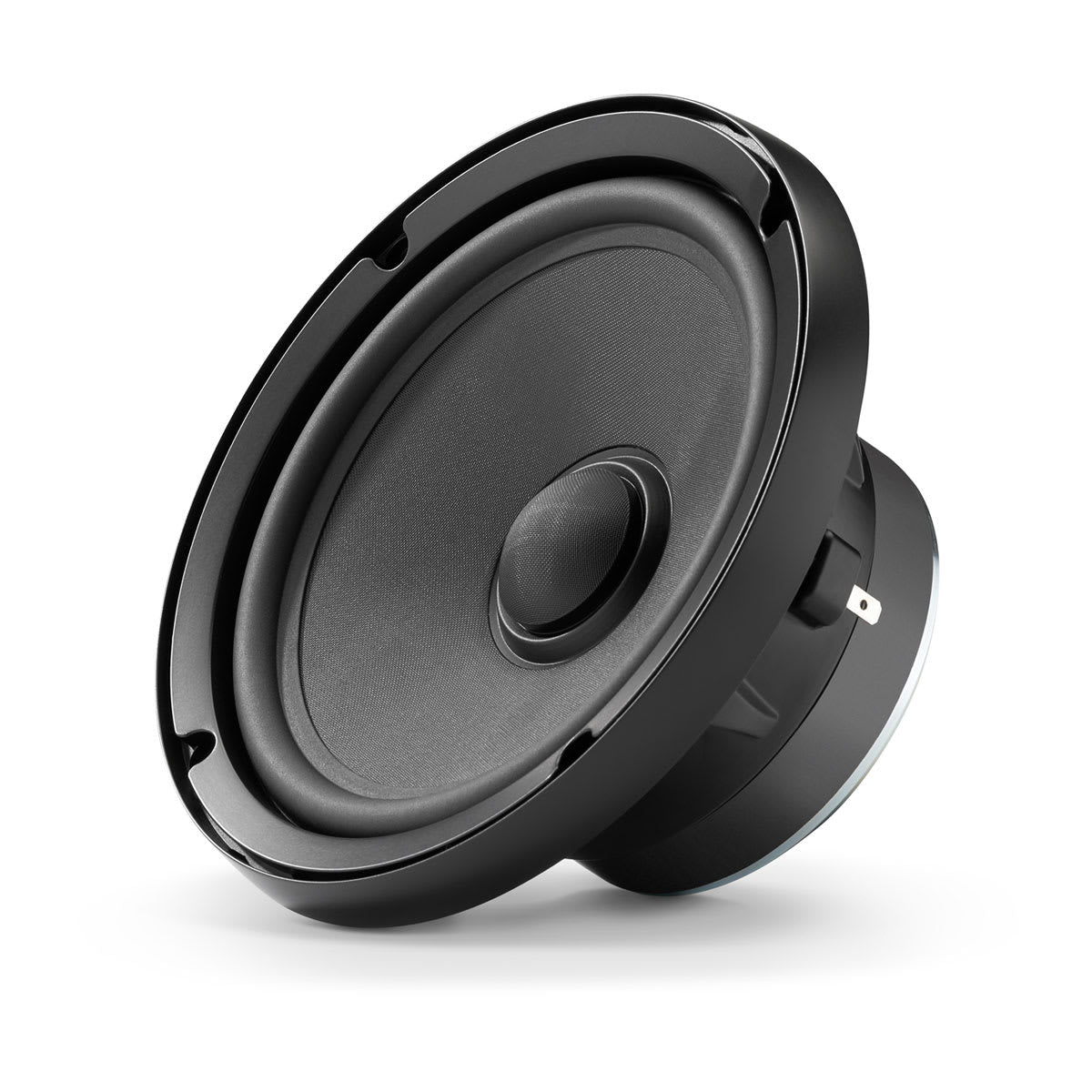

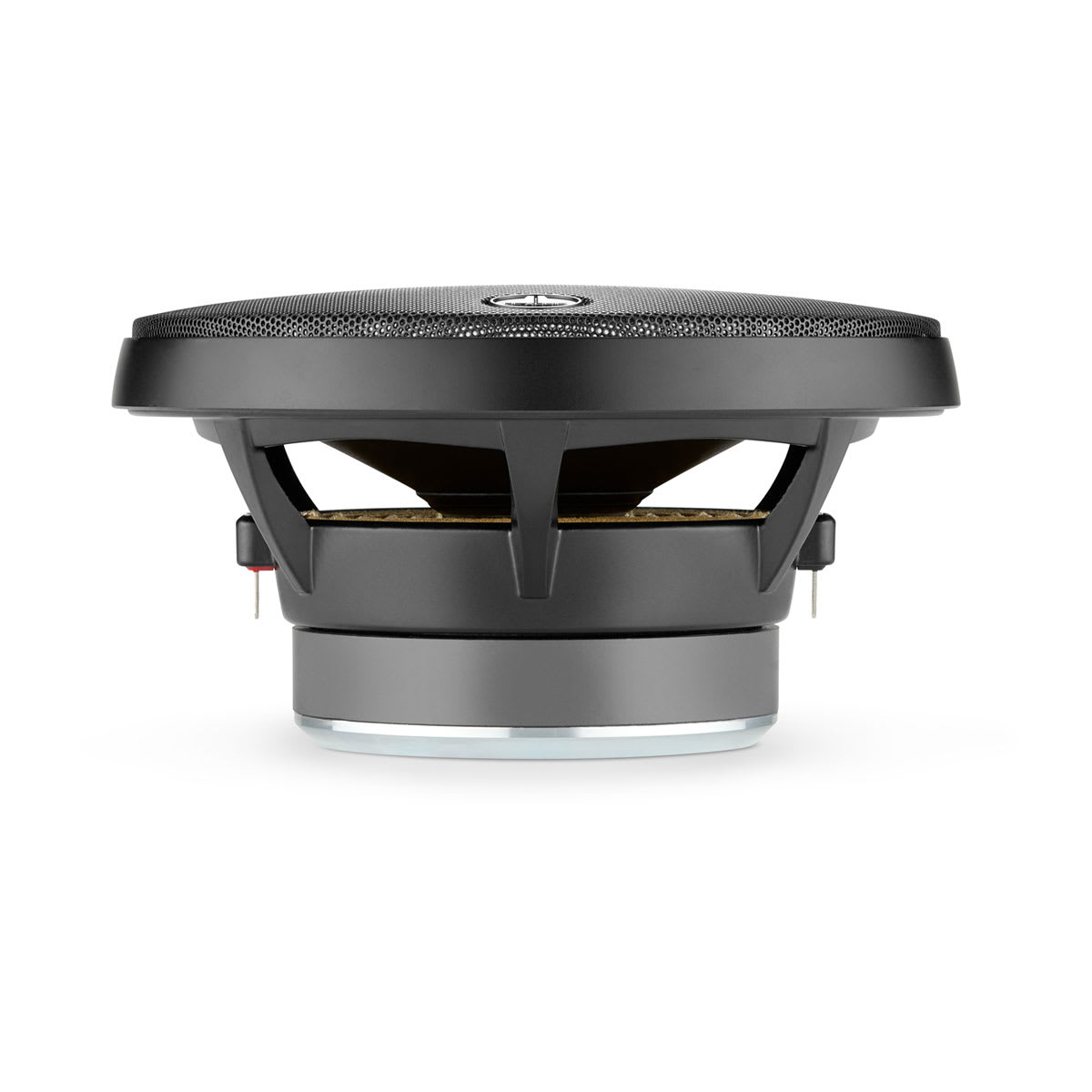

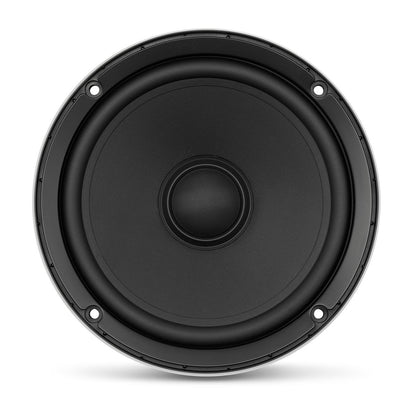

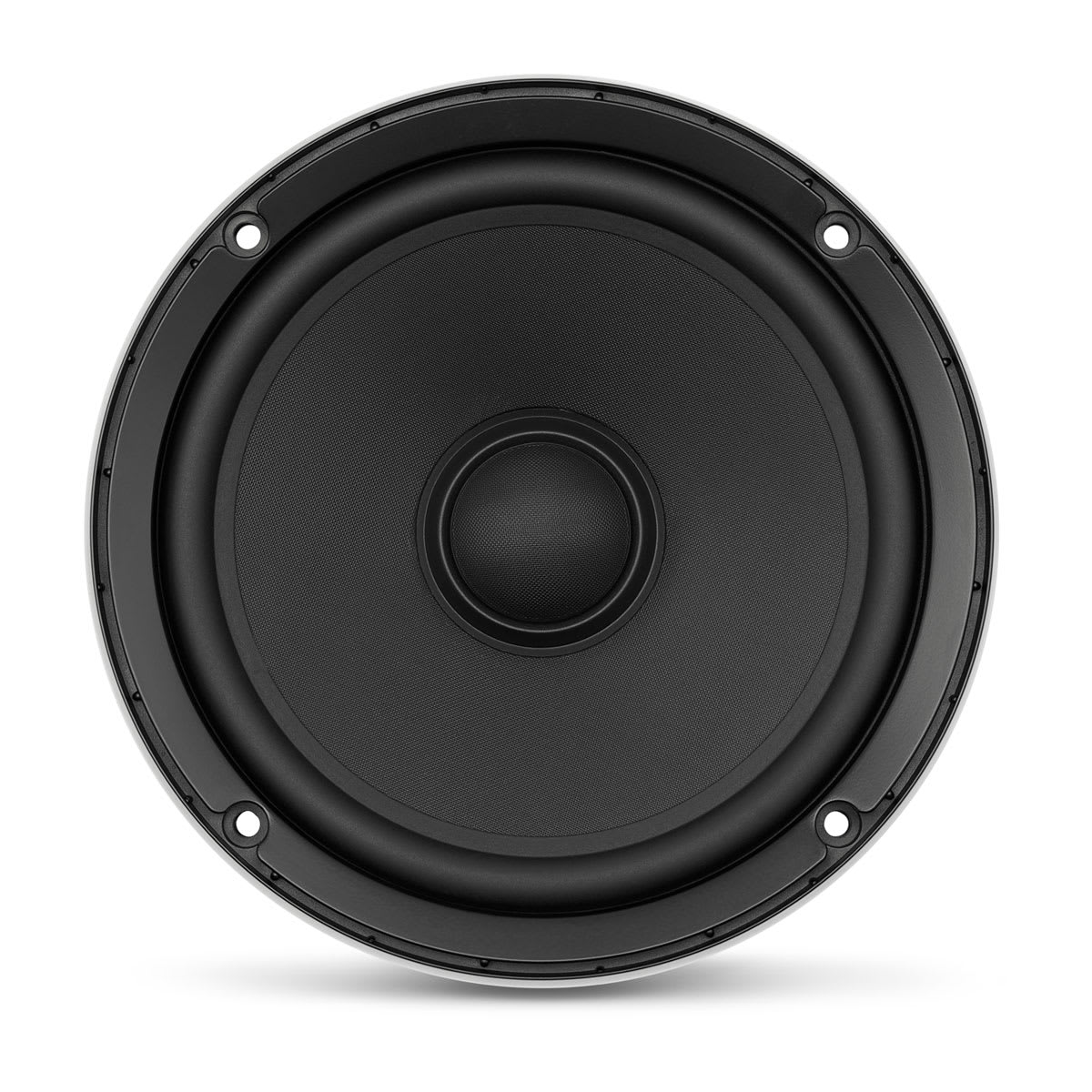

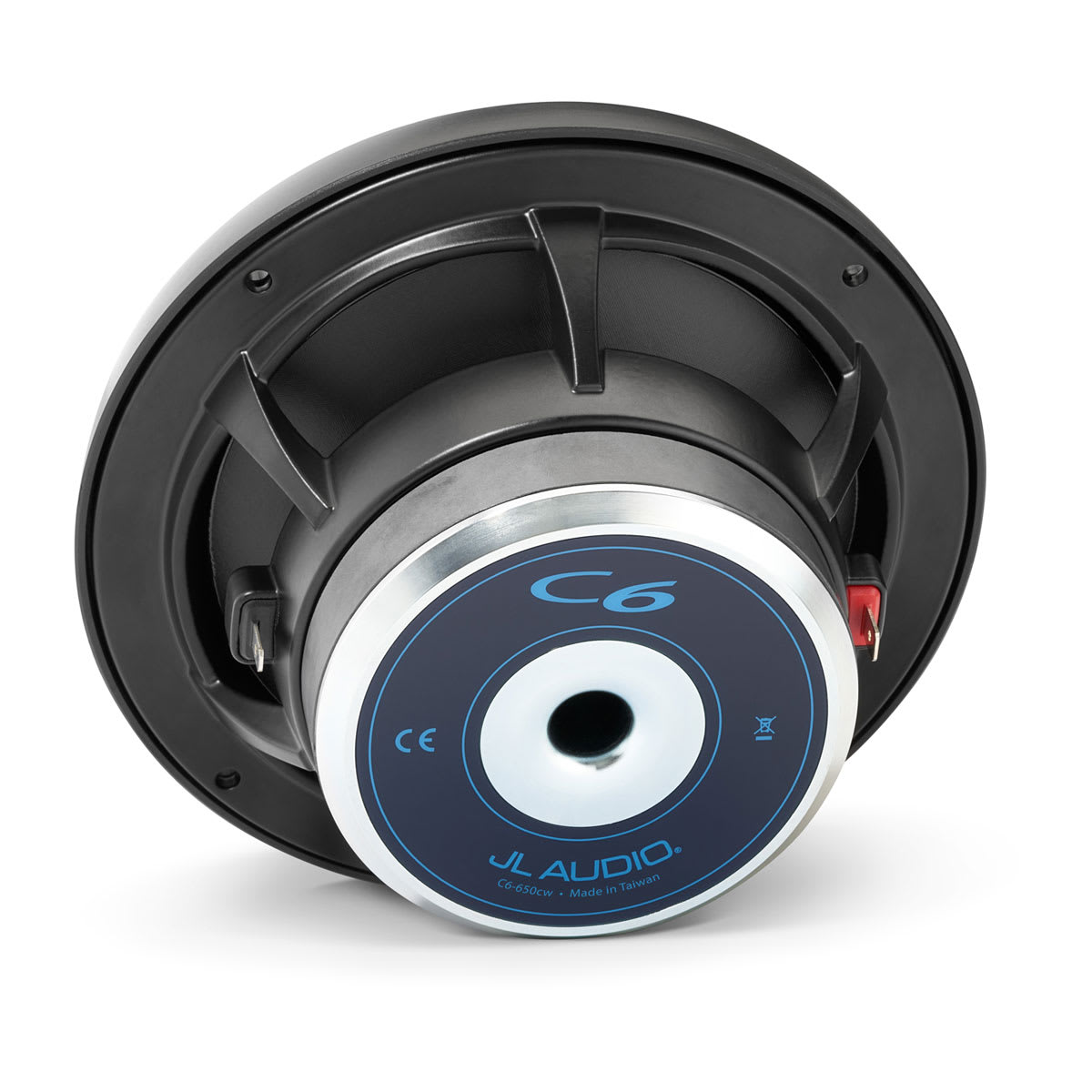

JL Audio® C6 Car Speakers 6.5\" Component Woofer (Single) (C6-650cw)

JL Audio® C6 Car Speakers 6.5\" Component Woofer (Single) (C6-650cw)

$98.99 USD
$329.99 USD $98.99 USD
Sale Sold out
C6 component speakers are premium silk dome tweeters, midrange speakers and woofers that are each sold separately for a flexible system design.

General
Warranty 1 year
Sizes 1"/2.75"/6.5"
Continuous power handling (RMS) 1": 75 W
2.75": 50 W
6.5": 100 W
Sensitivity (SPL @ 1 W/1 m) 1": 90 dB
2.75": 83.50 dB
6.5": 87.37 dB
Sensitivity (SPL @ 1 W/0.5 m) 1": 96 dB
Sensitivity (SPL @ 2.83 V/1 m) 1": 93 dB
2.75": 86.50 dB
6.5": 90.33 dB
Frequency response (+/- 3 dB) 1": 3 kHz-21 KHz
2.75": 350 Hz-4.8 KHz
6.5": 55 Hz-6 KHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 1": 25-100 W/Channel
2.75": 25-80 W/Channel
6.5": 25-150 W/Channel
Voice coil diameter 2.75": 0.8" (20.5 mm)
6.5": 1.27" (32 mm)
Cone material Vacuum-formed, mineral-filled polypropylene
Tweeter type Silk Dome
Tweeter size 1" (25 mm)

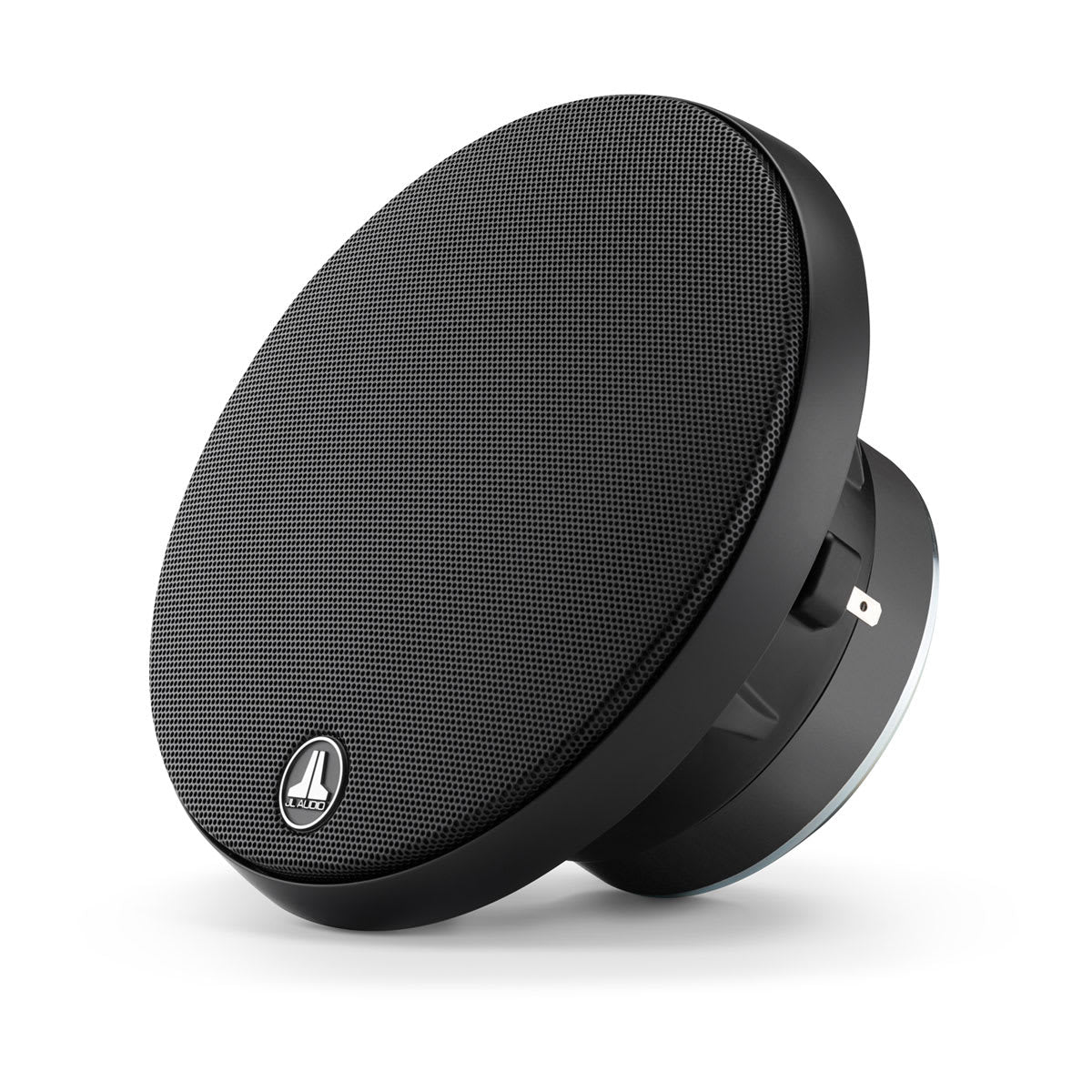

Grille(s) included

Networking & Connections
Speaker connections Spade connectors

Mounting Dimensions
Frame outer diameter 2.75": 2.52" (77 mm)
6.5": 6.5" (165 mm)
Mounting depth clearance 2.75": 1.42" (36 mm)
6.5": 2.60" (66 mm)
Frontal grille protrusion 2.75": 0.47" (12 mm)
6.5": 1" (25 mm)
Mounting hole 2.75": 2.52" (64 mm)
6.5": 5.46" (139 mm)
Grille tray outer diameter 2.75": 3.58" (91 mm)
6.5": 6.76" (172 mm)
Bolt hole circle 2.75": 3.03" (77 mm)
6.5": 6.12" (156 mm)
Motor outer diameter 2.75": 2.75" (69 mm)
6.5": 3.54" (90 mm)

Parameters
Free Air Resonance (FS) 1": 1500 Hz
2.75": 185 Hz
6.5": 52.8 Hz
Electrical “Q” (Qes) 2.75": 0.769
6.5": 0.647
Mechanical “Q” (Qms) 2.75": 7.848
6.5": 5.076
Total “Q” (Qts) 2.75": 0.700
6.5": 0.574
Equivalent Compliance (Vas) 2.75": 0.0353 cu ft (0.125 L)
6.5": 0.532 cu ft (15.069 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 2.75": 0.059" (1.50 mm)
6.5": 0.148" (3.75 mm)
Reference Efficiency (NO) 1": 0.602%
2.75": 0.1414%
6.5": 0.344%
Moving mass (Mms) 2.75": 4.65 g
6.5": 16.42 g
Mechanical compliance (Cms) 2.75": 0.00031 m/N
6.5": 0.000581 m/N
Magnetic strength (BL) 2.75": 5.03
6.5": 5.186
Effective piston area (SD) 2.75": 3.66 in² (0.00236 m²)
6.5": 21.4 in² (0.013807 m²)
DC resistance (RE) 1"/6.5": 3.20 Ω
2.75": 3.58 Ω

Tweeter Specifications
Flush mount fixture diameter 1": 2.13" (54 mm)
Surface mount fixture diameter 1": 2.11" (54 mm)
Flush mount mounting hole diameter 1": 1.85" (47 mm)
Flush mount mounting depth 1": 1.85" (47 mm)
Flush mount tweeter frontal protrusion 1": 0.30" (8 mm)
Surface mount tweeter frontal protrusion 1": 1.04" (26 mm)
