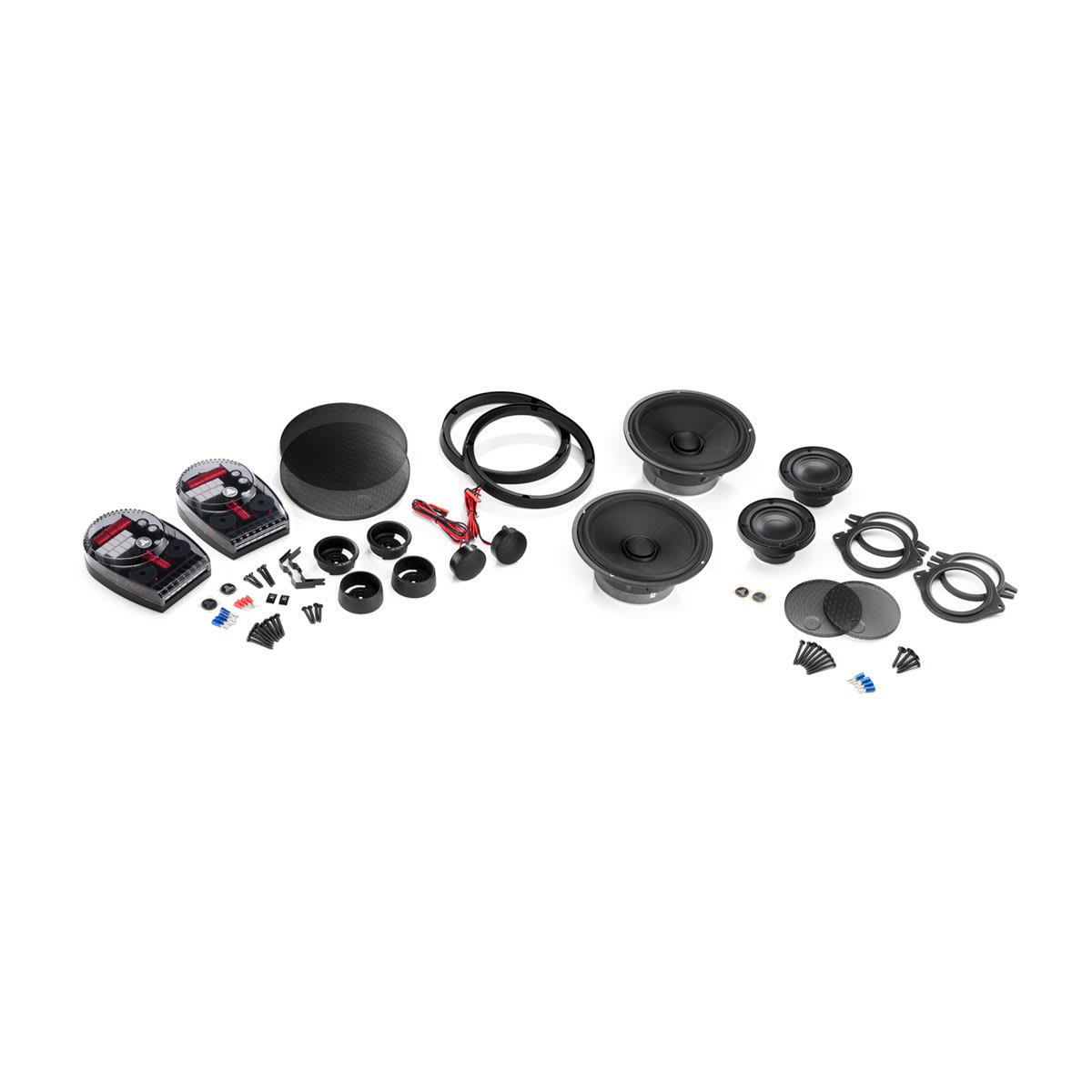

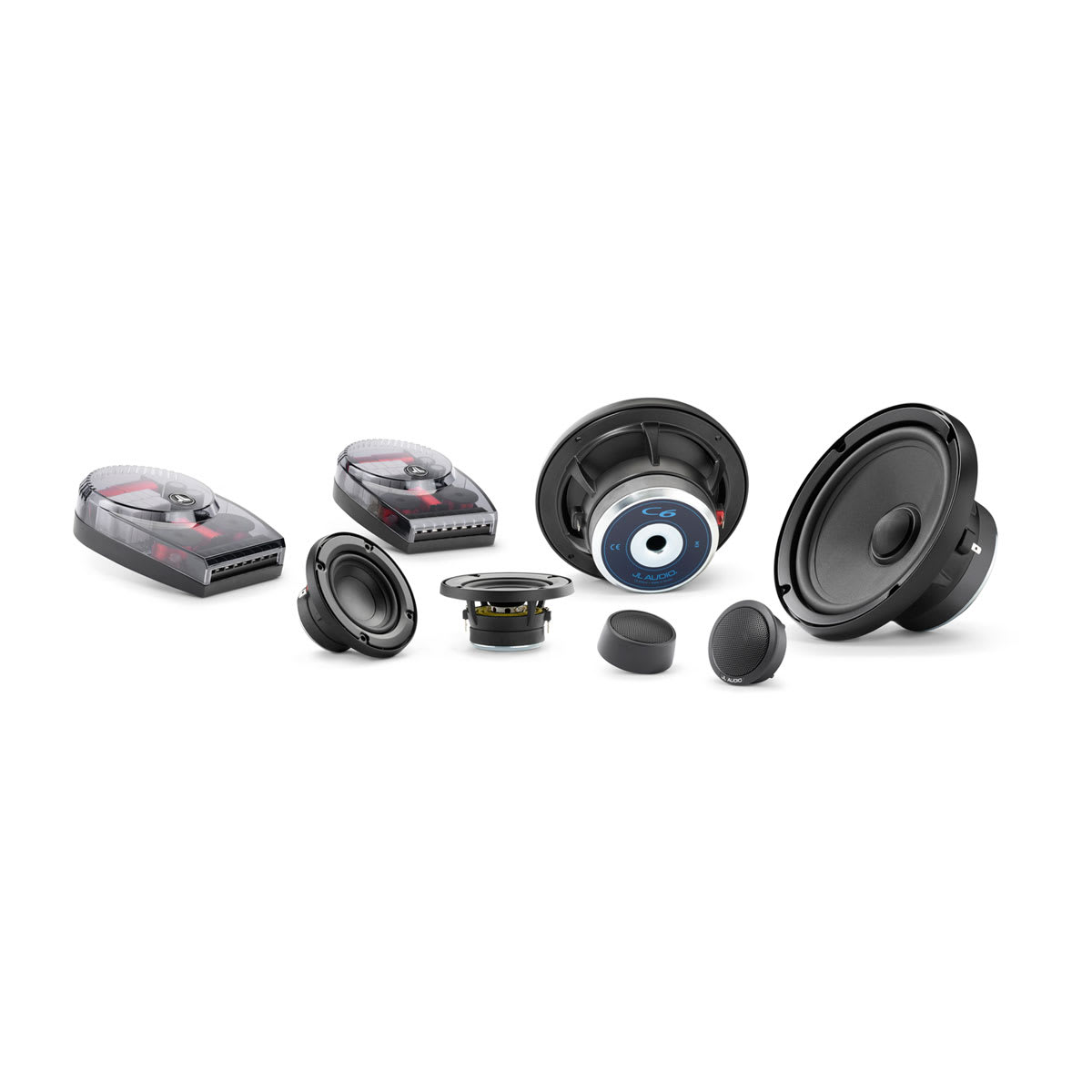

JL Audio® C6 Car System 6.5\" Three-way Component Speaker System (C6-653)

JL Audio® C6 Car System 6.5\" Three-way Component Speaker System (C6-653)

$111.99 USD
$370.00 USD $111.99 USD
Sale Sold out
C6 two-way component car speaker system with DMA-optimized woofers, silk dome tweeters, 6.5-inch woofer, flexible installations, and a 2-year warranty.

General
Warranty 1 year
Sizes 6.5"
Continuous power handling (RMS) 100 W
Sensitivity (SPL @ 1 W/1 m) 2.75": 83.50 dB
6.5": 87.37 dB
Sensitivity (SPL @ 1 W/0.5 m) 1": 96 dB
Sensitivity (SPL @ 2.83 V/1 m) 2.75": 86.50 dB
6.5": 90.33 dB
Frequency response (+/- 3 dB) 53 Hz-21 KHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 25-150 W/Channel
Voice coil diameter 2.75": 0.8" (20.5 mm)
6.5": 1.27" (32 mm)
Cone material Vacuum-formed, mineral-filled polypropylene
Tweeter type Silk Dome
Tweeter size 1" (25 mm)
Grille(s) included

Networking & Connections
Speaker connections Spade connectors

Mounting Dimensions
Frame outer diameter 2.75": 2.52" (77 mm)
6.5": 6.5" (165 mm)
Mounting depth clearance 2.75": 1.42" (36 mm)
6.5": 2.60" (66 mm)
Frontal grille protrusion 2.75": 0.47" (12 mm)
6.5": 1" (25 mm)
Mounting hole 2.75": 2.52" (64 mm)
6.5": 5.46" (139 mm)
Grille tray outer diameter 2.75": 3.58" (91 mm)
6.5": 6.76" (172 mm)
Bolt hole circle 2.75": 3.03" (77 mm)
6.5": 6.12" (156 mm)
Motor outer diameter 2.75": 2.75" (69 mm)
6.5": 3.54" (90 mm)

Parameters
Free Air Resonance (FS) 1": 1500 Hz
2.75": 185 Hz
6.5": 52.8Hz
Electrical “Q” (Qes) 2.75": 0.769
6.5": 0.647
Mechanical “Q” (Qms) 2.75": 7.848
6.5": 5.076
Total “Q” (Qts) 2.75": 0.700
6.5": 0.574
Equivalent Compliance (Vas) 2.75": 0.0353 cu ft (0.125 L)
6.5": 0.532 cu ft (15.069 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 2.75": 0.059" (1.50 mm)
6.5": 0.148" (3.75 mm)
Reference Efficiency (NO) 2.75": 0.1414%
6.5": 0.344%
Moving mass (Mms) 2.75": 4.65 g
6.5": 16.42 g
Mechanical compliance (Cms) 2.75": 0.00031 m/N
6.5": 0.000581 m/N
Magnetic strength (BL) 2.75": 5.03 N/A
6.5": 5.186 N/A
Effective piston area (SD) 2.75": 3.66 in² (0.00236 m²)
6.5": 21.4 in² (0.013807 m²)
DC resistance (RE) 1"/6.5": 3.20 Ω
2.75": 3.58 Ω

Tweeter Specifications
Flush mount fixture diameter 2.13" (54 mm)
Surface mount fixture diameter 2.11" (54 mm)
Flush mount mounting hole diameter 1.85" (47 mm)
Flush mount mounting depth 1.85" (47 mm)
Flush mount tweeter frontal protrusion 0.30" (8 mm)
Surface mount tweeter frontal protrusion 1.04" (26 mm)
