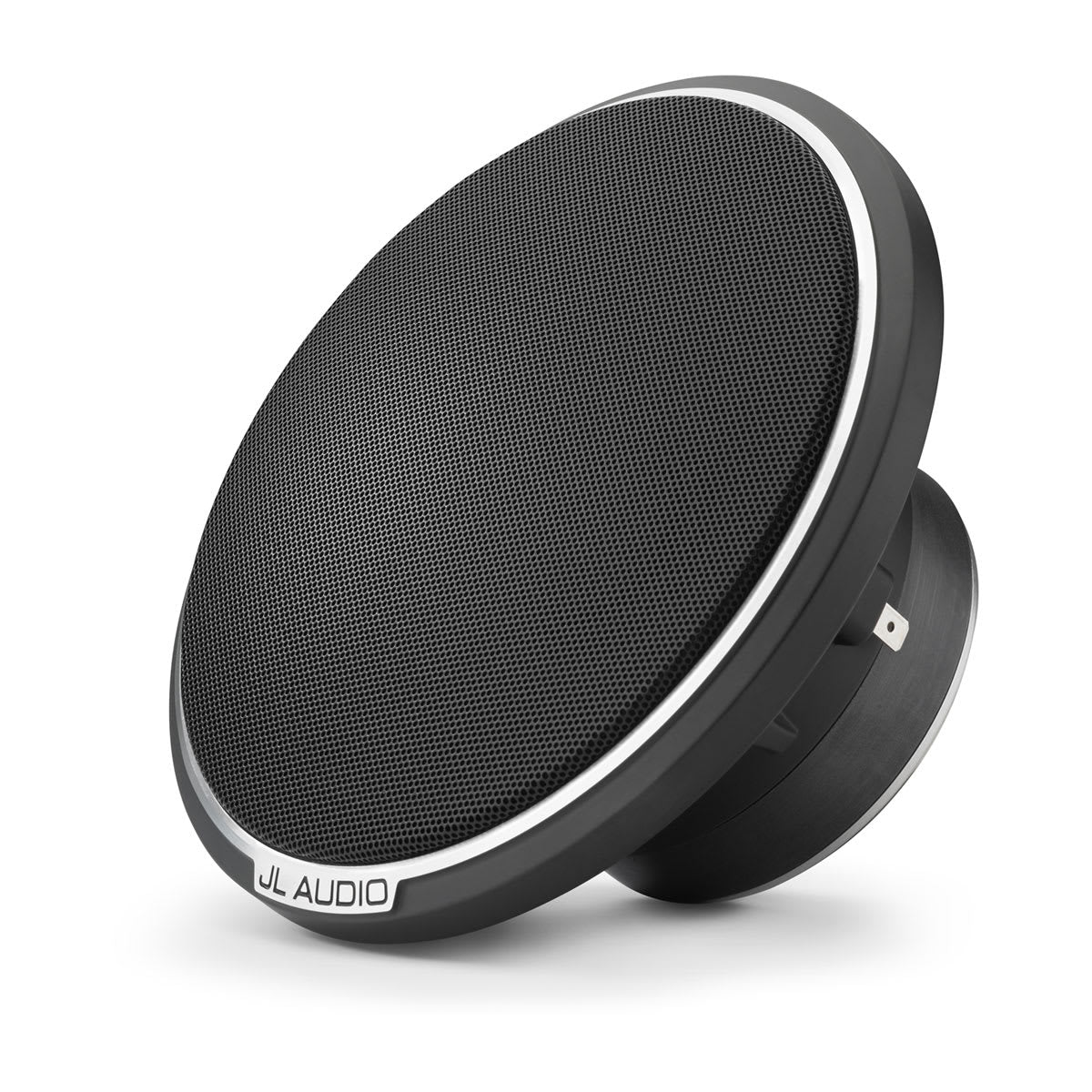

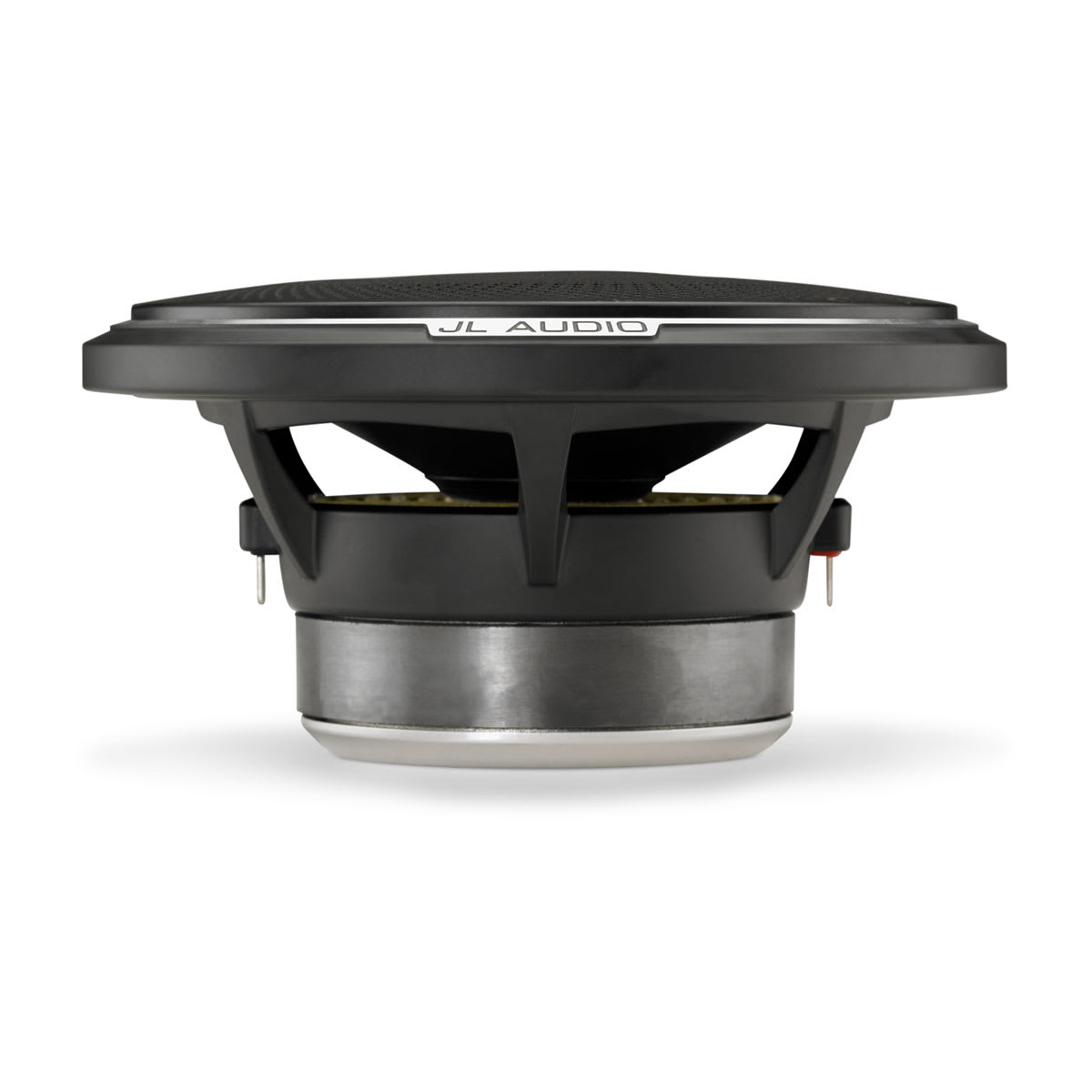

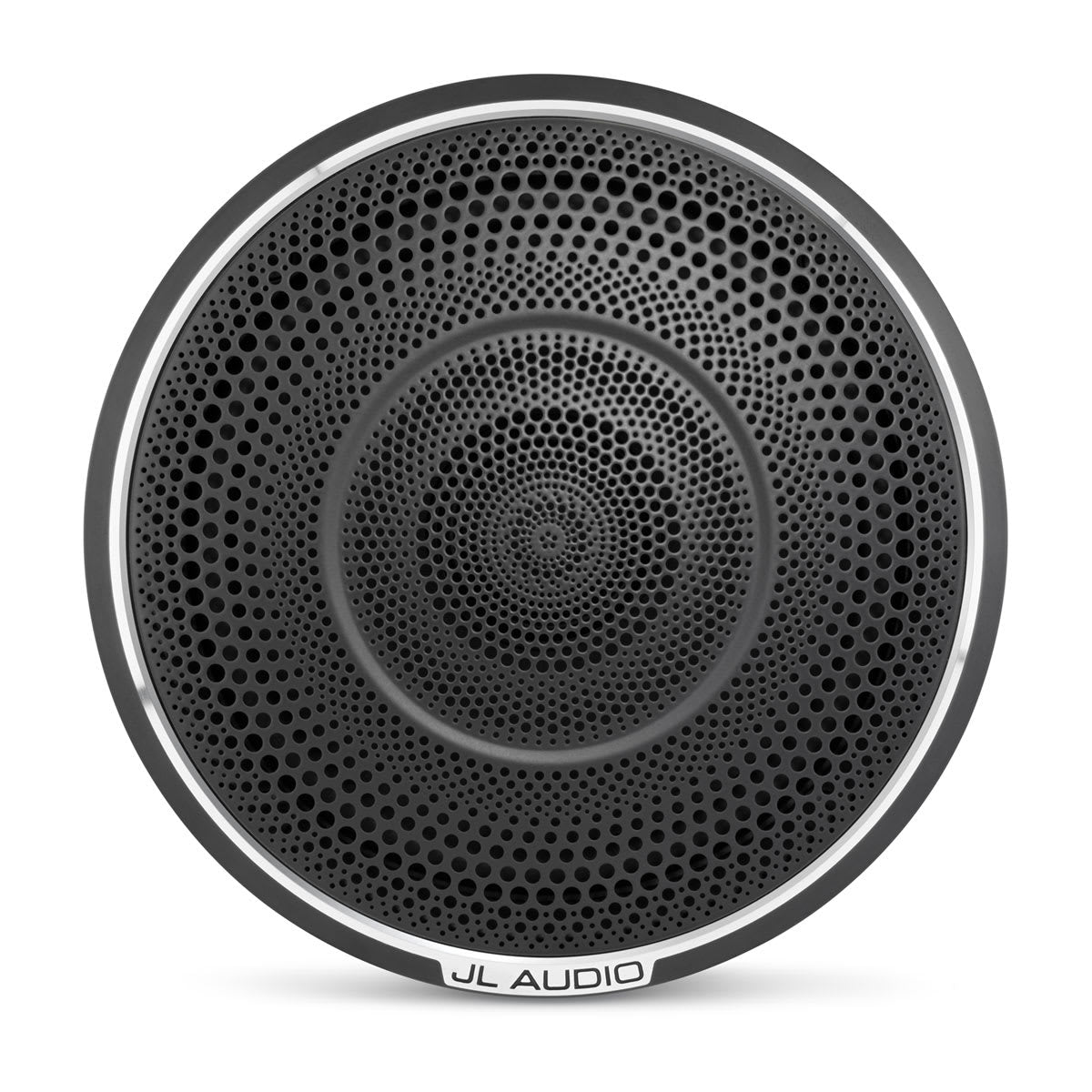

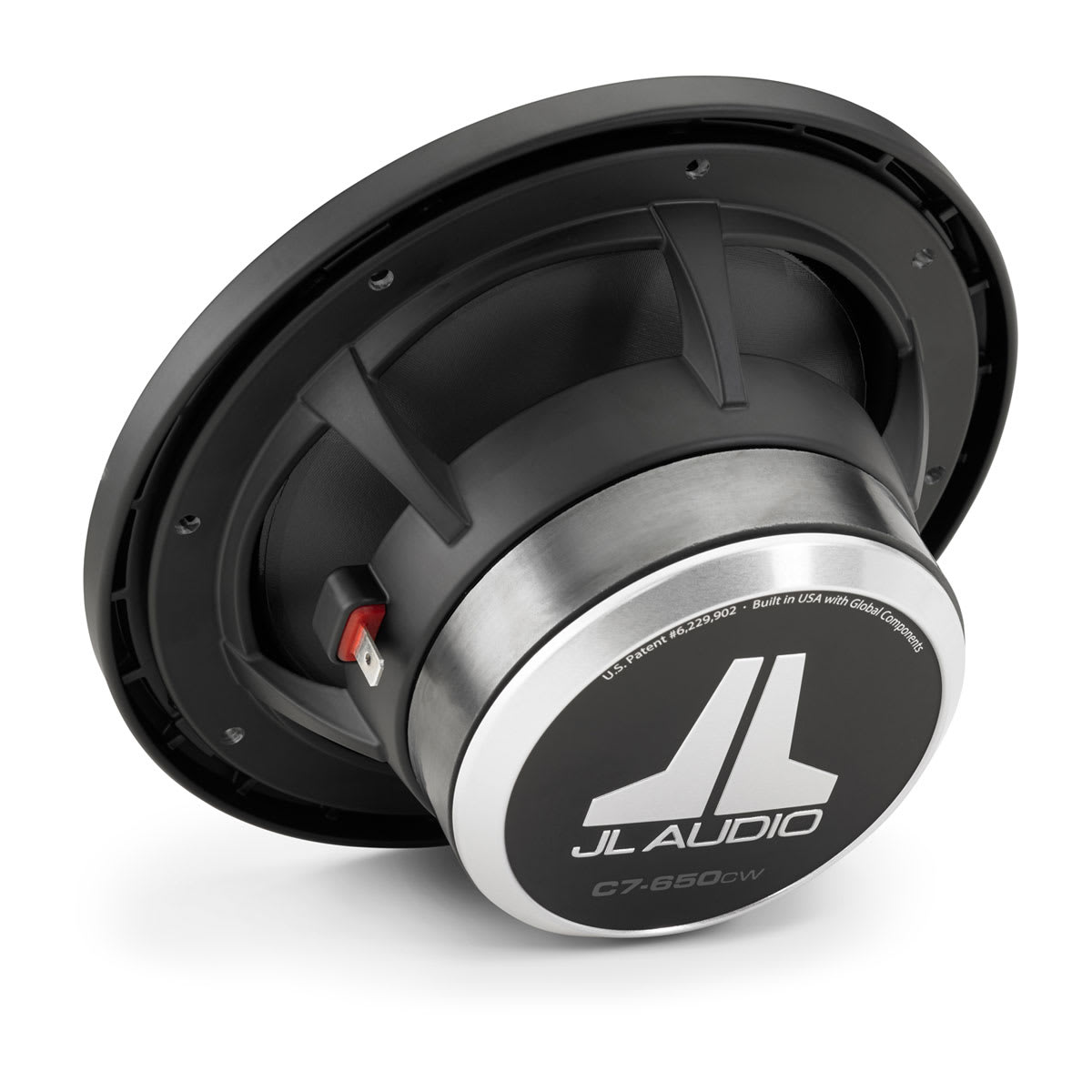

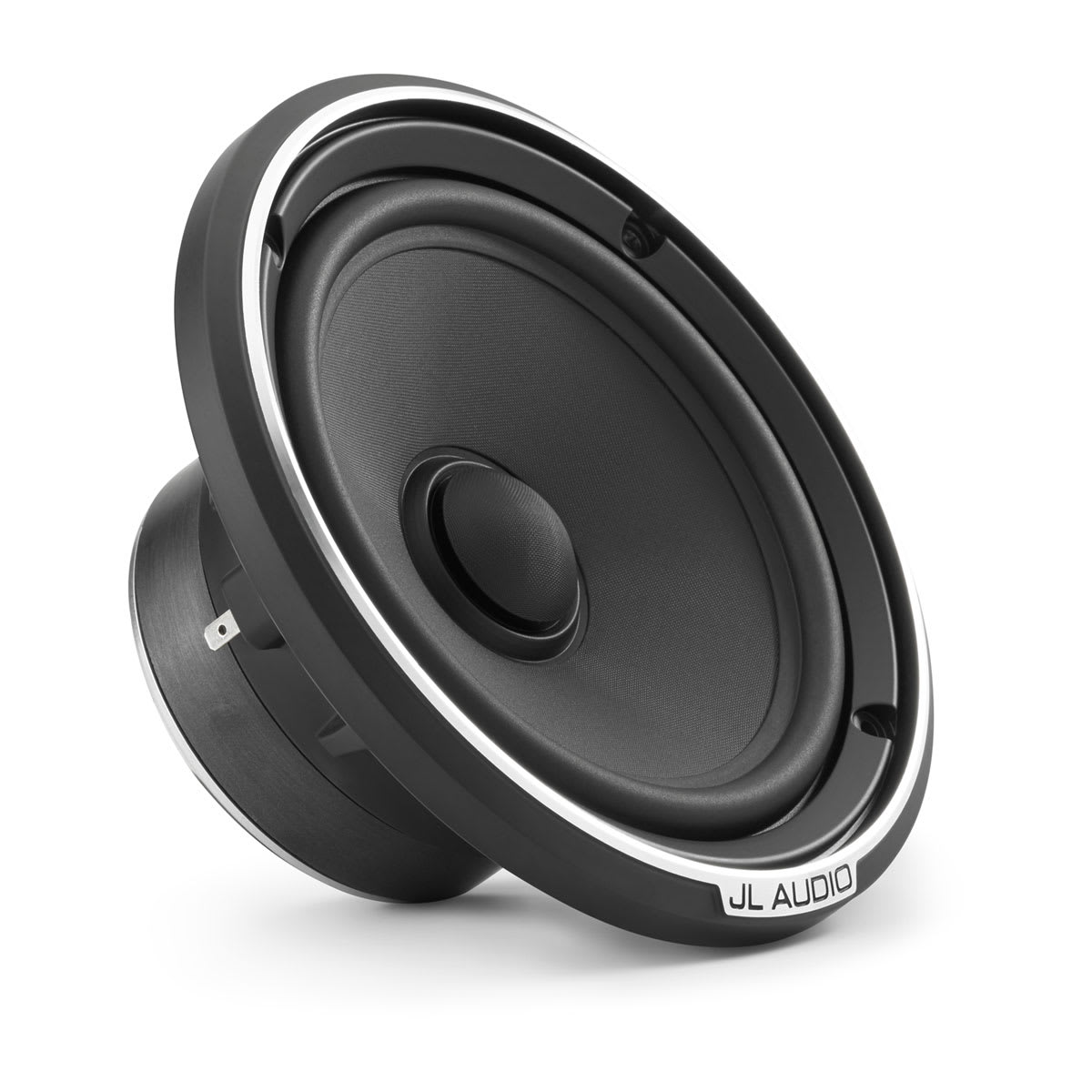

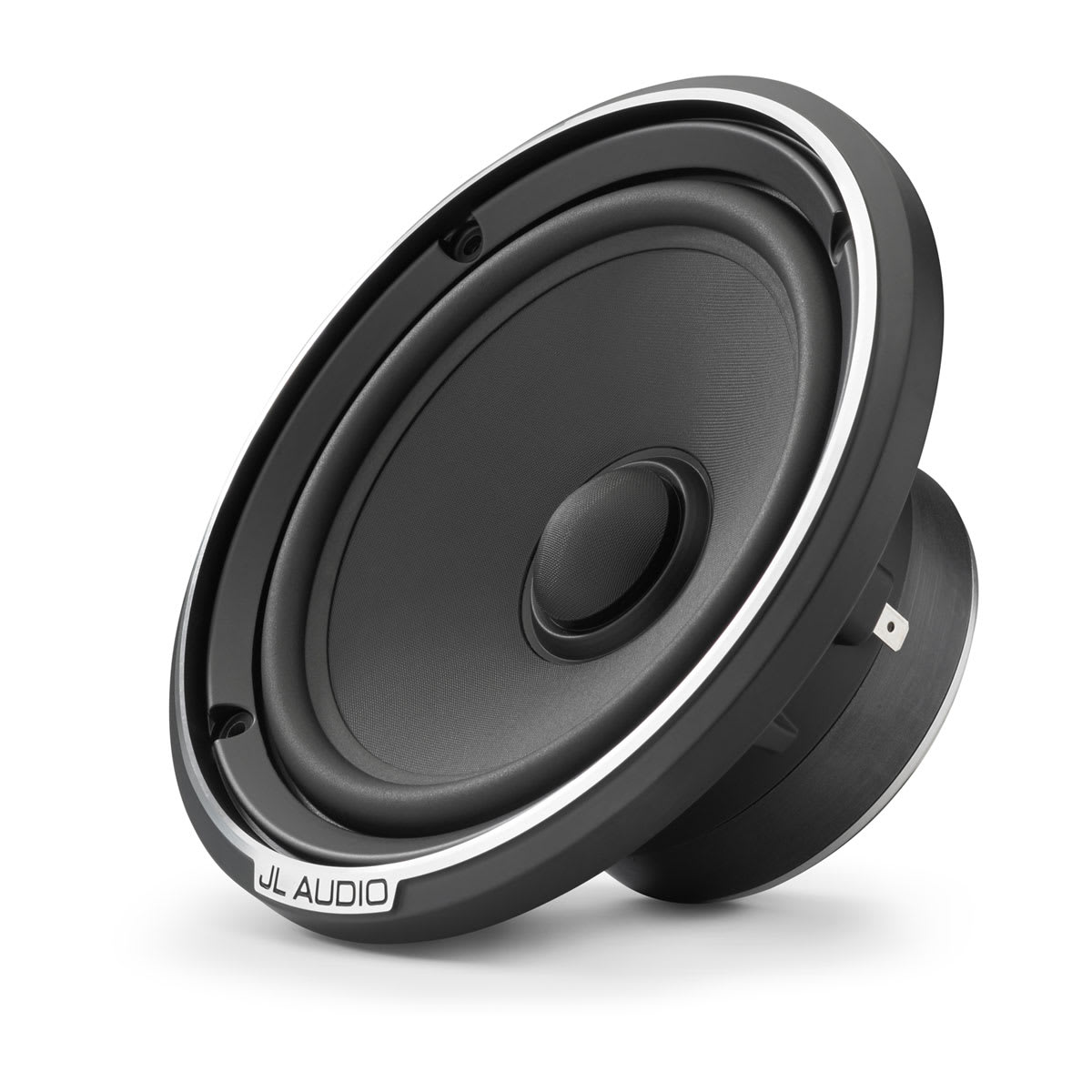

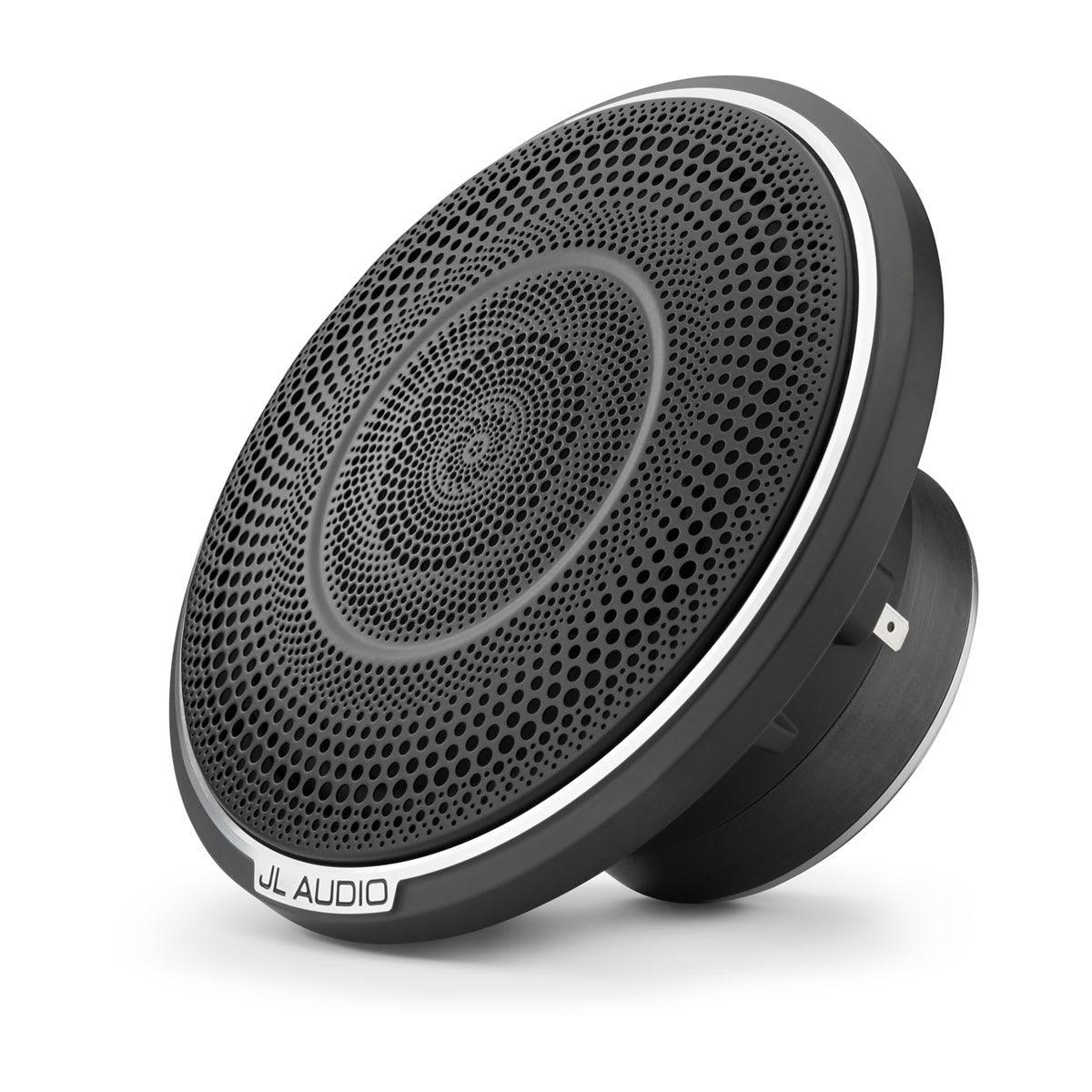

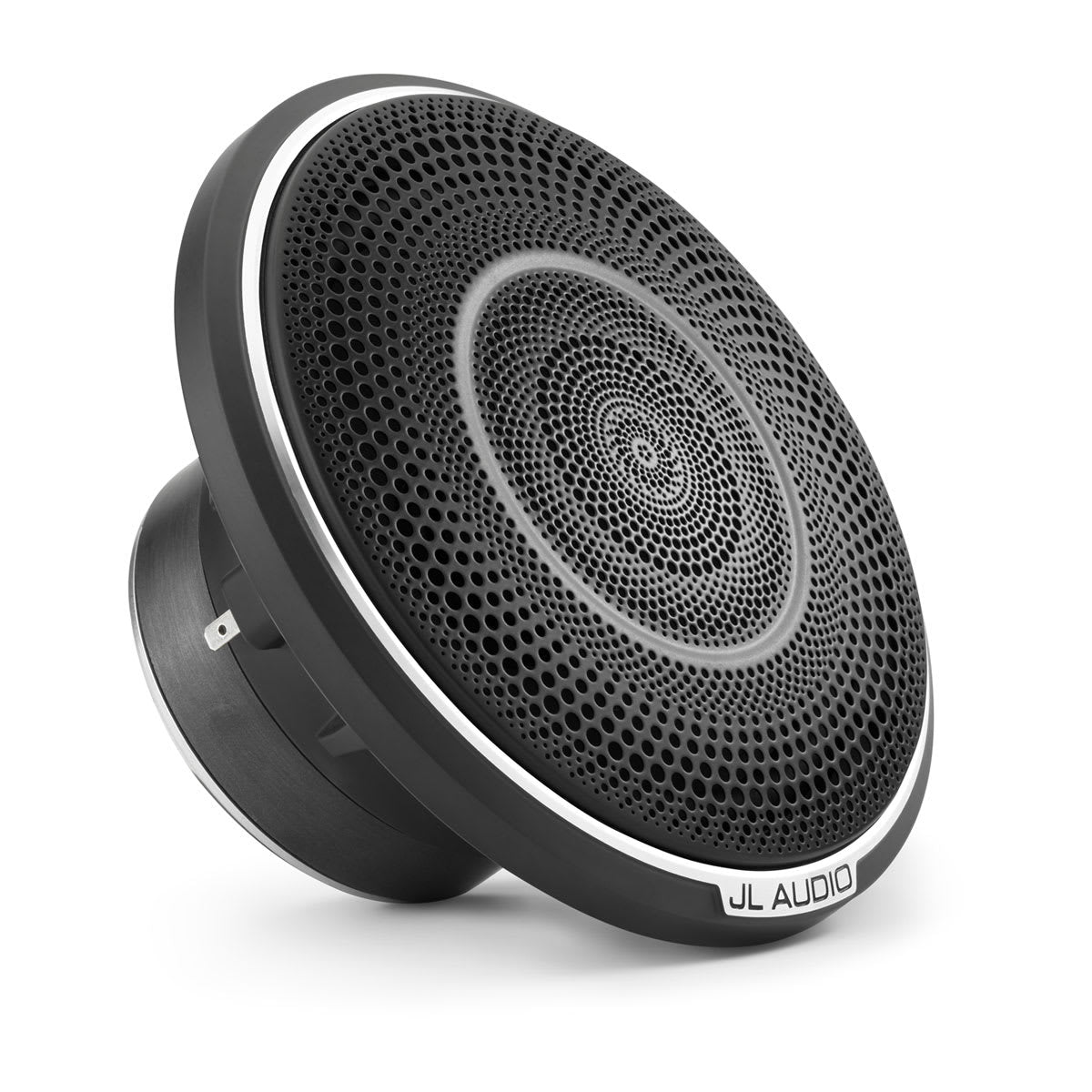

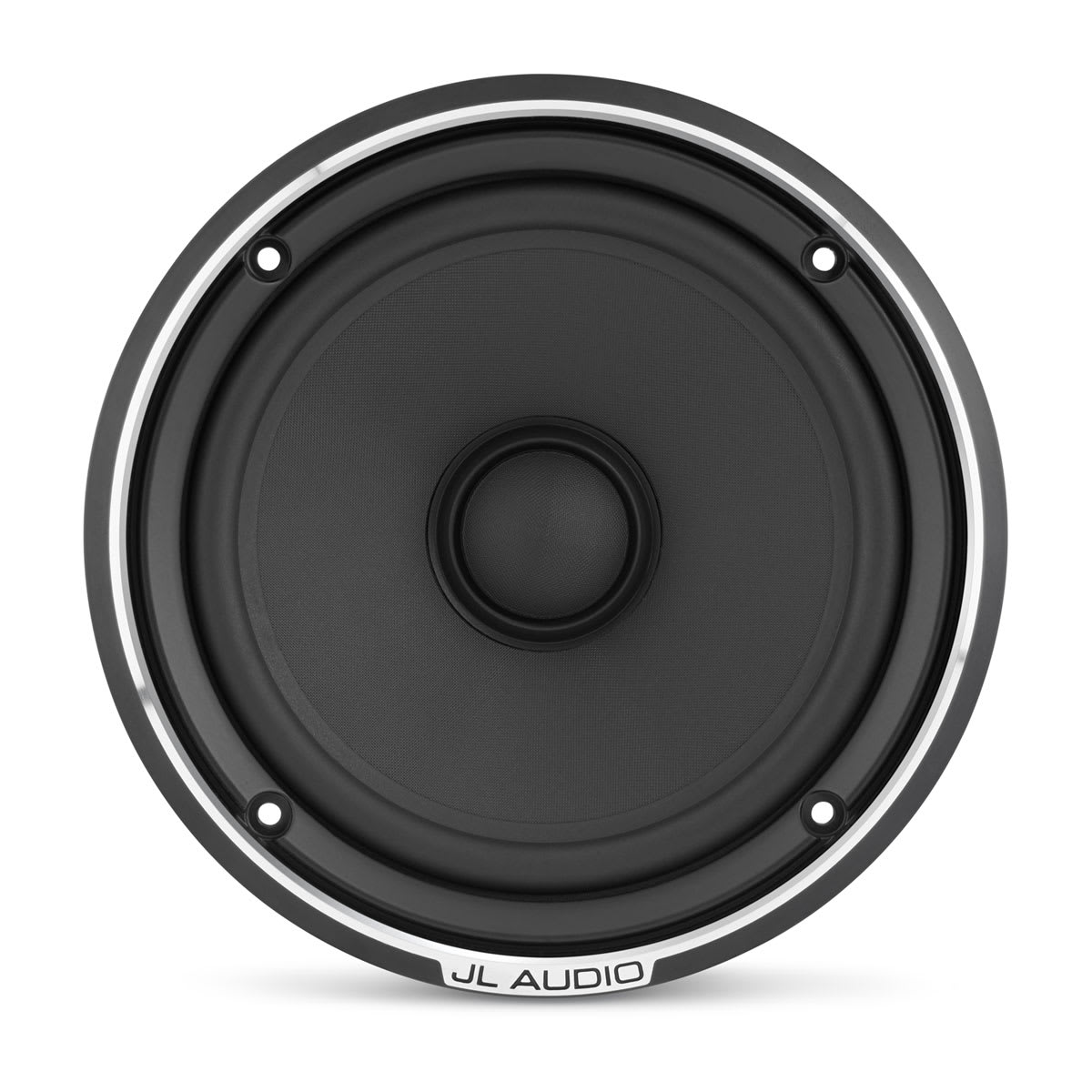

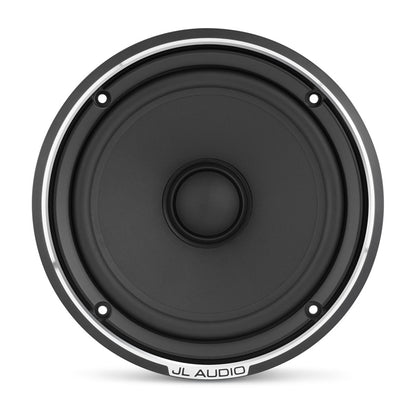

JL Audio® C7 Car Speakers 6.5\" Component Woofer (Single) (C7-650cw)

Name: JL Audio® C7 Car Speakers 6.5\" Component Woofer (Single) (C7-650cw)
Brand: My Store
SKU: 1778466646
Price: 118.99 USD
Availability: InStock

$118.99 USD

~~$394.00 USD~~ $118.99 USD

Sale Sold out

C7 component speakers are ultra-premium aluminum dome tweeters, midrange speakers and woofers that are each sold separately for a flexible system design.

General
Warranty	1 year
Sizes	1"/3.5"/6.5"
Continuous power handling (RMS)	1"/3.5": 100 W 6.5": 125 W
Sensitivity (SPL @ 1 W/1 m)	1"/3": 86.5 dB 6.5": 87 dB
Sensitivity (SPL @ 2.83 V/1 m)	1"/3": 89.5 dB @ 2.83 V/1 m 6.5": 90 dB @ 2.83 V/1 m
Frequency response (+/- 3 dB)	1": 3 kHz-30 KHz 3": 300 Hz-10 KHz 6.5": 50 Hz-5 KHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	1"/3.5": 50-150 W/Channel 6.5": 50-175 W/Channel
Voice coil diameter	3.5": 1.42" (36 mm) 6.5": 1.27" (32 mm)
Cone material	Vacuum-formed, mineral-filled polypropylene
Tweeter type	Corundum ceramic-coated, aluminum dome
Tweeter size	1" (25 mm)
Grille(s) included

Networking & Connections
Speaker connections	Spade connectors

Mounting Dimensions
Frame outer diameter	3.5": 3.45" (88 mm) 6.5": 6.5" (165 mm)
Mounting depth clearance	3.5": 1.46" (37 mm) 6.5": 2.77" (70 mm)
Frontal grille protrusion	3.5": 0.58" (15 mm) 6.5": 0.98" (25 mm)
Mounting hole	3.5": 2.87" (73 mm) 6.5": 5.56" (141 mm)
Grille tray outer diameter	3.5": 3.95" (100 mm) 6.5": 7.20" (183 mm)
Bolt hole circle	3.5": 3.15" (80 mm) 6.5": 6.12" (155 mm)
Motor outer diameter	3.5": 2.36" (60 mm) 6.5": 3.94" (100 mm)

Parameters
Free Air Resonance (FS)	1": 1450 Hz 3": 156.9 Hz 6.5": 54.5 Hz
Electrical “Q” (Qes)	3.5": 0.59 6.5": 0.669
Mechanical “Q” (Qms)	3.5": 6.454 6.5": 6.265
Total “Q” (Qts)	3.5": 0.541 6.5": 0.605
Equivalent Compliance (Vas)	3.5": 0.015 cu ft (0.430 L) 6.5": 0.461 cu ft (13.05 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied)	3.5": 1 mm 6.5": 5 mm
Reference Efficiency (NO)	1": 0.267% 3": 0.27% 6.5": 0.304%
Moving mass (Mms)	3.5": 49 g 6.5": 17.679 g
Mechanical compliance (Cms)	3.5": 0.000257 m/N 6.5": 0.000482 m/N
Magnetic strength (BL)	3.5": 4.66 6.5": 5.31
Effective piston area (SD)	3.5": 5.31 in² (0.003426 m²) 6.5": 21.4 in² (0.013807 m²)
DC resistance (RE)	1": 3.20 Ω 3": 3.245 Ω 6.5": 3.114 Ω

Tweeter Specifications
Flush mount fixture diameter	1": 2.13" (54 mm)
Surface mount fixture diameter	1": 2.16" (55 mm)
Flush mount mounting hole diameter	1": 1.88" (48 mm)
Flush mount mounting depth	1": 0.73" (19 mm)
Flush mount tweeter frontal protrusion	1": 0.33" (8 mm)
Surface mount tweeter frontal protrusion	1": 1.06" (27 mm)
