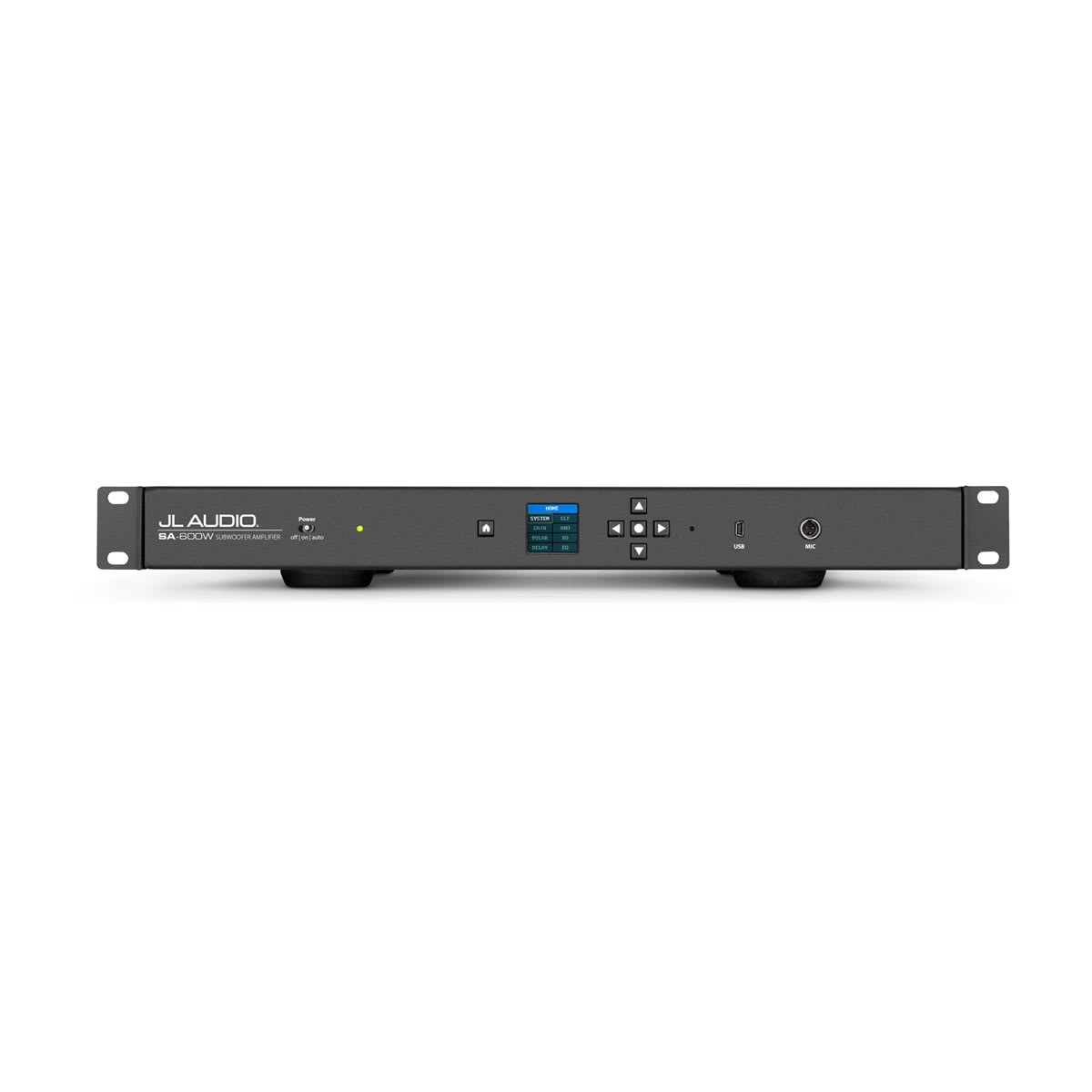

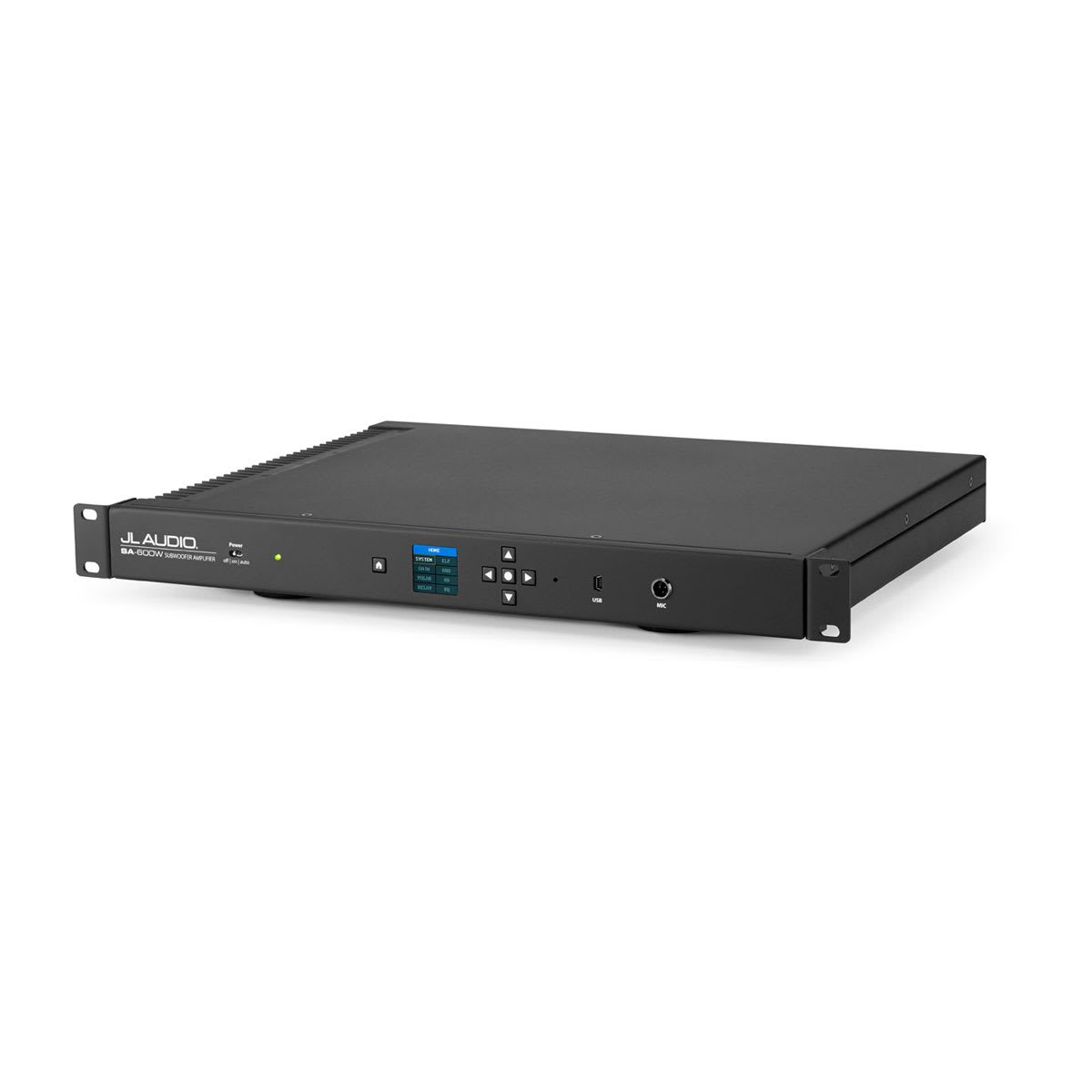

JL Audio Fathom™ Home Amplifier Subwoofer Amplifier (600W) (SA-600W)

JL Audio Fathom™ Home Amplifier Subwoofer Amplifier (600W) (SA-600W)

$105.99 USD
$350.00 USD $105.99 USD
Sale Sold out
Fathom® home subwoofer amplifier is a subwoofer amplifier with 600 watts of power, an intuitive LCD display, two-way active crossover, and built-in optimized EQ optimized for JL Audio drivers.

General
Warranty 3 years
12 V trigger output capacity 150 mA (1/8" (3.5 mm) mini jack)
Amplifier Power (RMS) 600 W x 1 at 3 Ω
450 W x 1 at 4 Ω
300 W x 1 at 6 Ω
225 W x 1 at 8 Ω
Power modes off, on or automatic (signal-sensing or 12V trigger)

Signal Processing
Unbalanced input(s) Stereo or mono (two RCA jacks - Input Impedance of 50k Ohms)
Speaker/High-level inputs Stereo or mono (removable plug - Input Impedance of 4.4k Ohms)
Input grounding Isolated or grounded
Level control Reference (fixed gain) or Variable from -50 dB to +15 dB over reference gain (0.5 dB increments)
Filter mode(s) Low-pass, with tracking High-pass Outputs
Filter slope(s) 12/24 dB/octave
Filter frequency range 30 Hz-130.1 Hz
Filter defeat function
Polarity 0 or 180º
Delay (Phase) Variable from 0-25 ms (0.1 ms increments, Sub and HP outputs)
Extreme Low Frequency (E.L.F.) trim Variable, -12 dB to +3 dB at 25 Hz (0.5 dB increments)

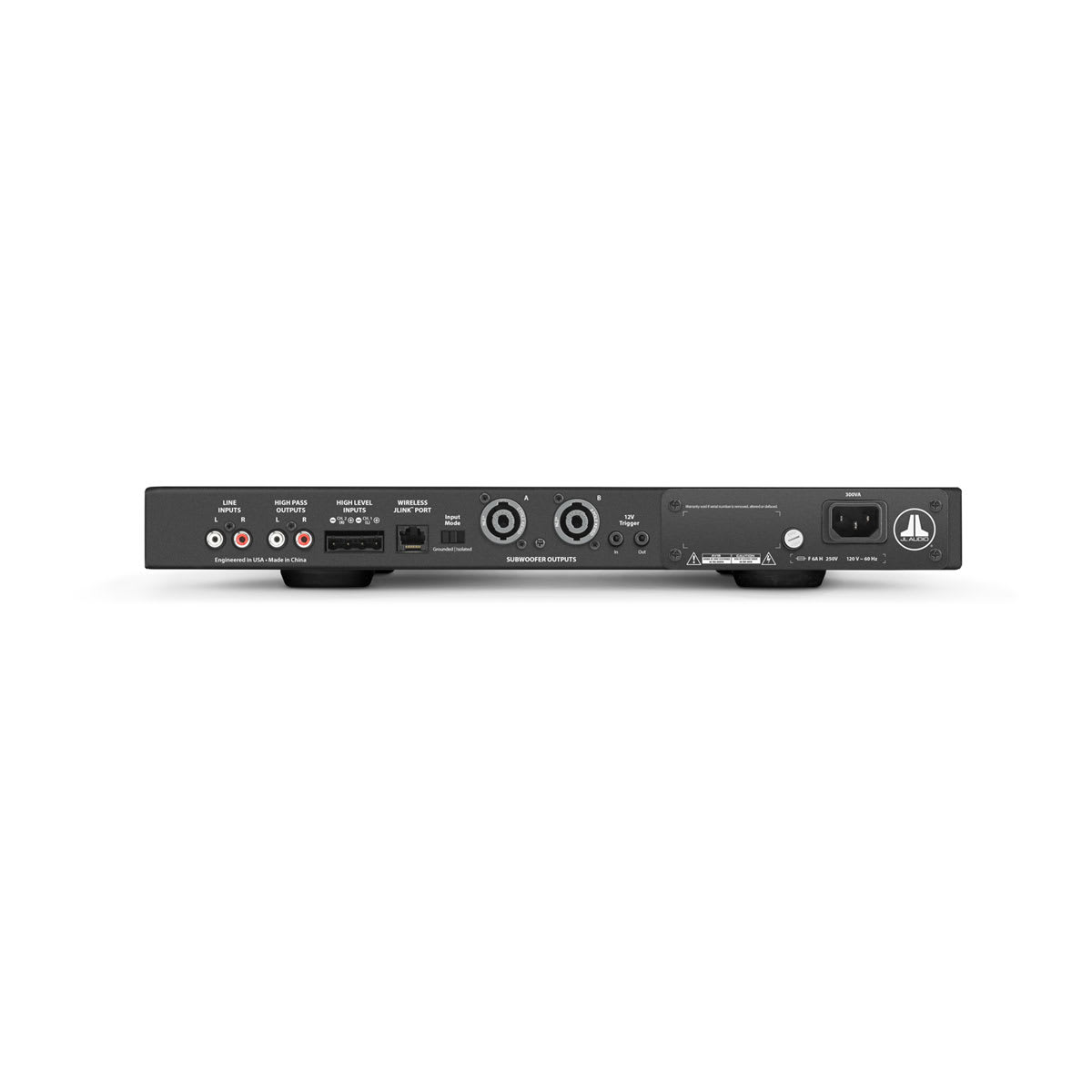

Line outputs Stereo or mono (two RCA jacks - Pass-through or High-pass)
Subwoofer outputs Neutrik speakOn® 2-Pole Connectors (uses Neutrik part: NL2FX)
Calibration mode Digital Automatic Room Optimization (D.A.R.O.), requires microphone (sold separately)
Equalizer bands 3
Equalizer frequency range 20 to 160 Hz (1 Hz increments)
Equalizer gain range -12 dB to +12 dB (0.2 dB increments)
Equalizer Q range 0.7 to 5.0 (0.1 increments)

Amplifier Specifications
Width (W) 16.84" (428 mm)
Height (H) 1.75" (44 mm)
Depth (D) 13.63" (346 mm)
Net weight (each) 13.5 lbs (6.12 kg)
