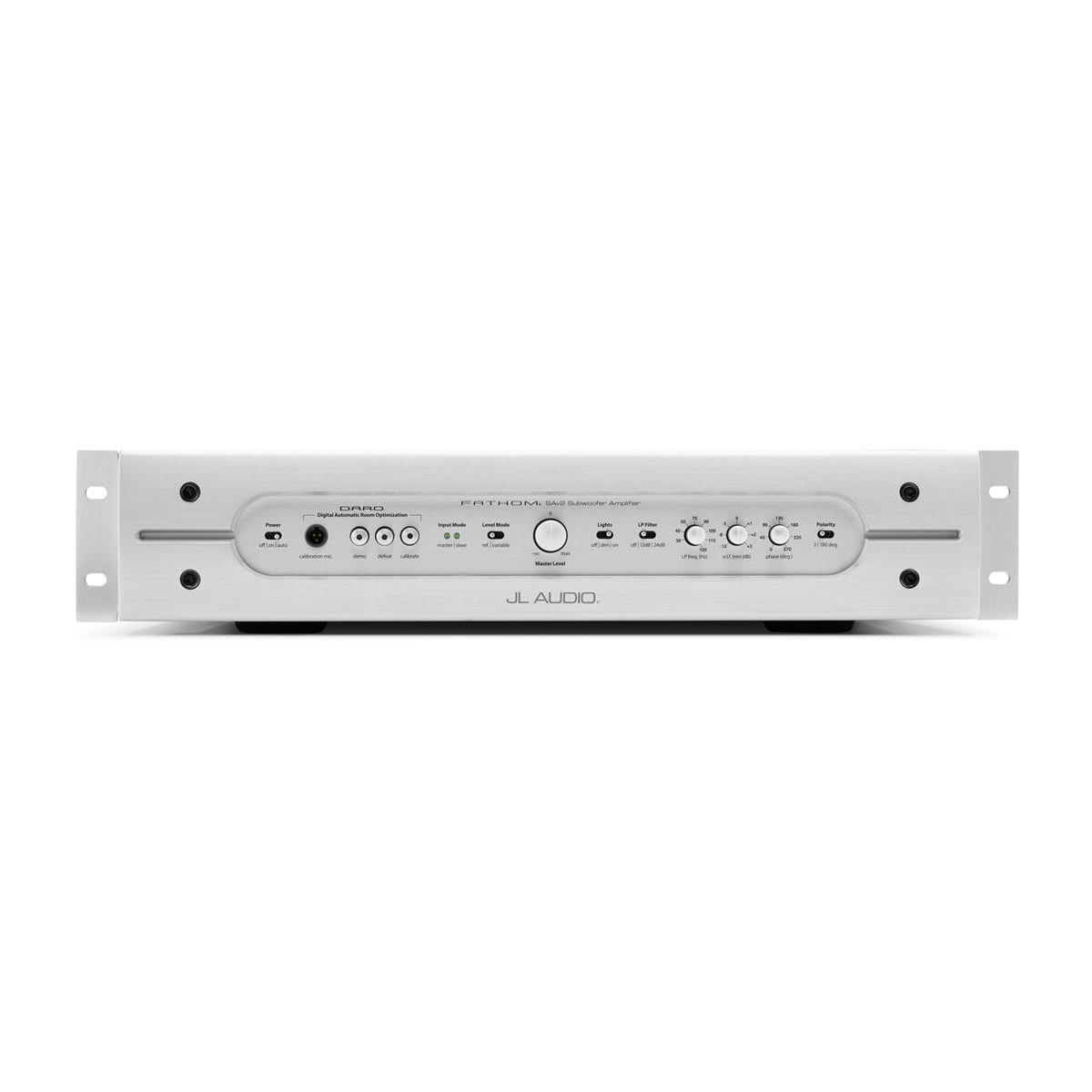

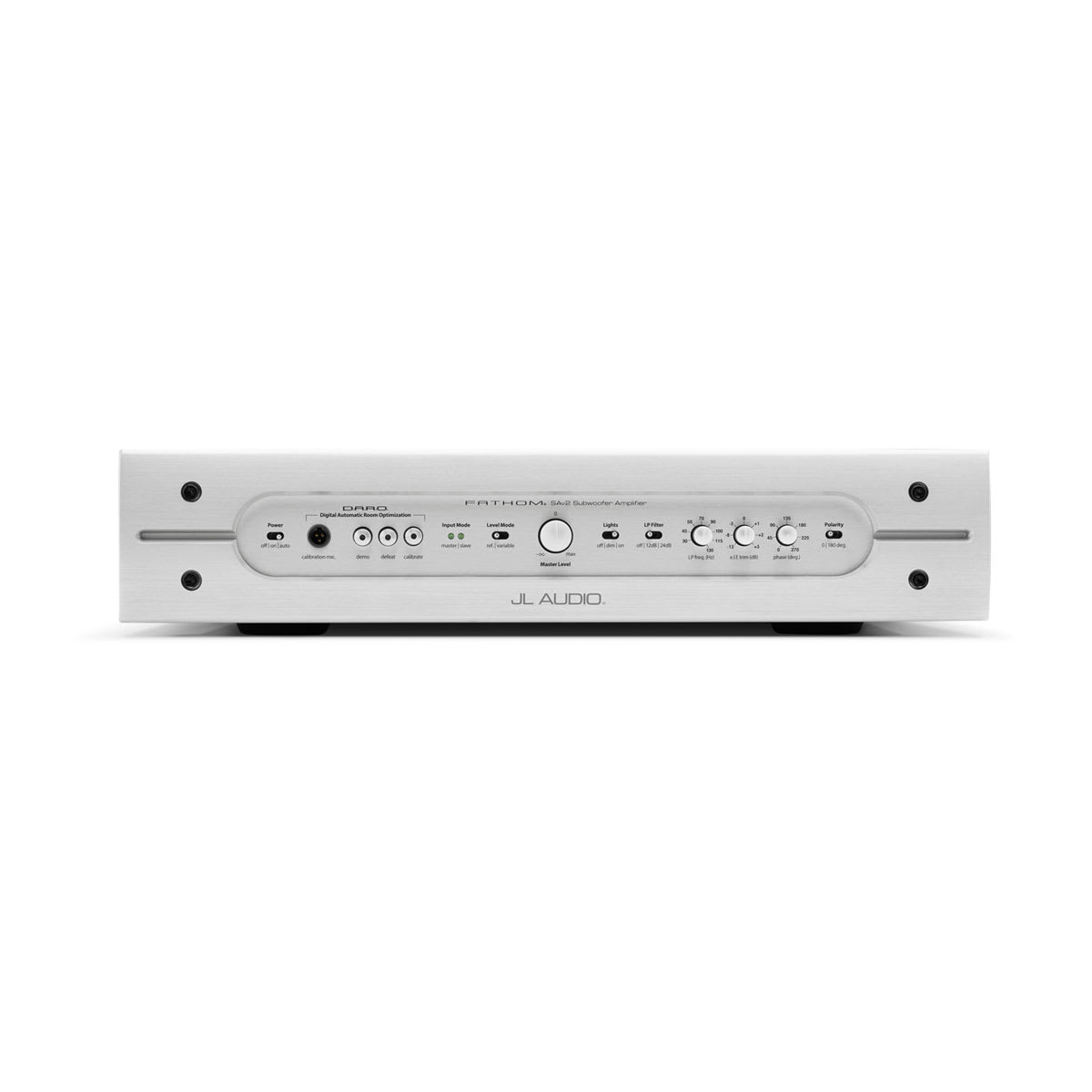

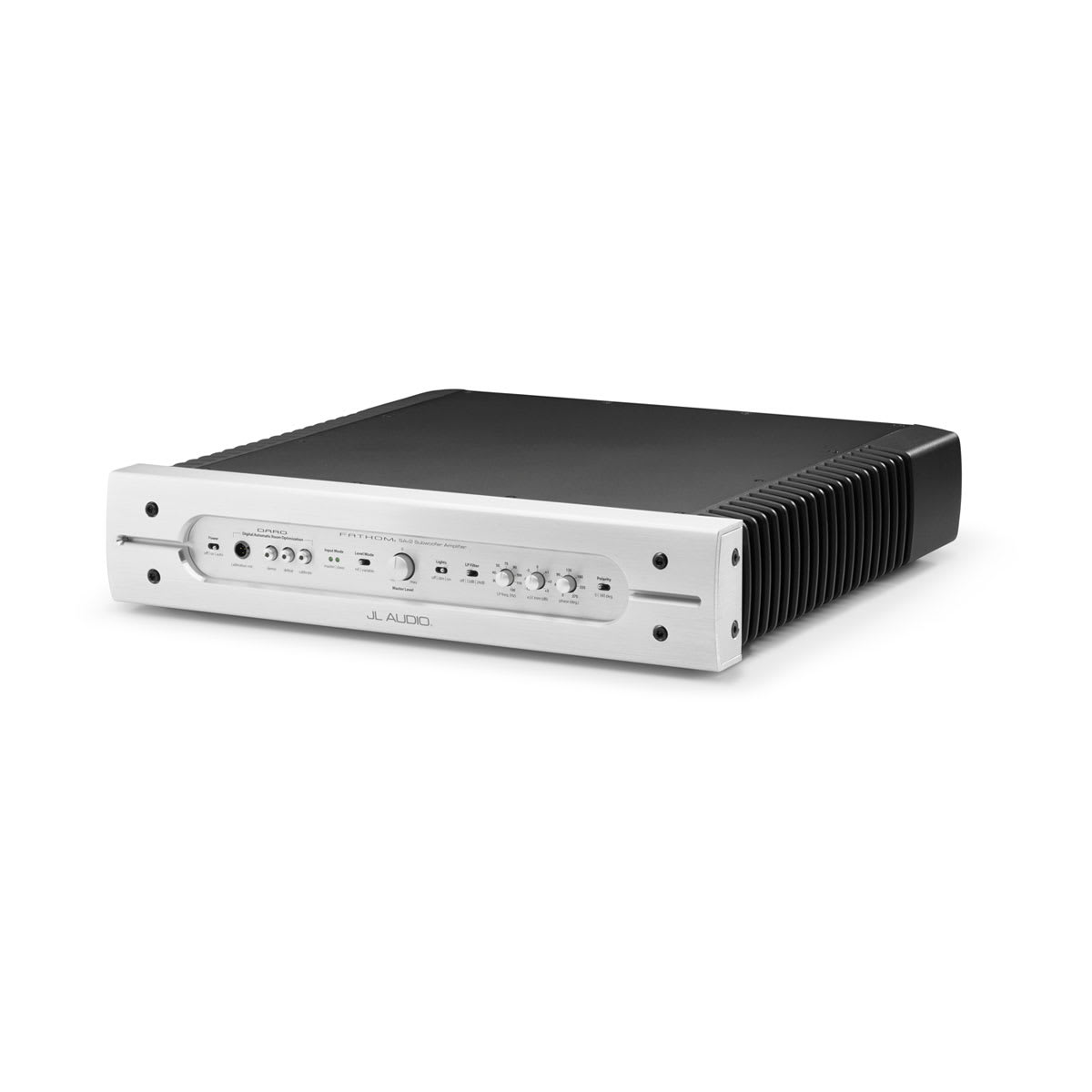

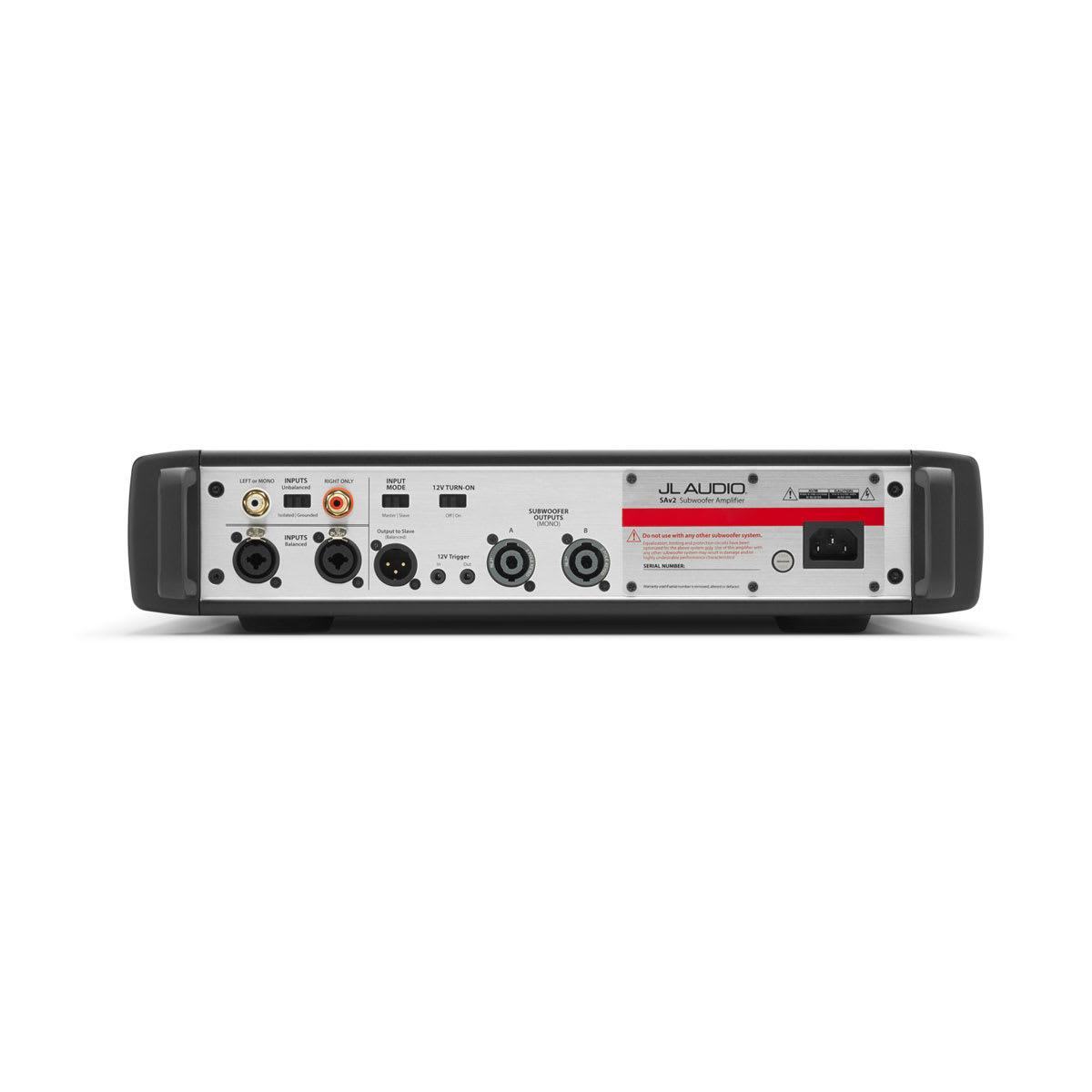

Fathom® SAv2 home subwoofer amplifier is a subwoofer amplifier for your home theater system with up to1000- and 2000-watts of power, precision tuning, and optimized EQ curves for JL Audio drivers.
General
Warranty
3 years
Light modes
off, on or dim
Amplifier Power (RMS)
1000 W or 2000 W RMS short-term (depending on model)
Power modes
off, on or automatic (signal-sensing)
Signal Processing
Unbalanced input(s)
Stereo or mono (two RCA jacks)
Balanced input(s)
Stereo or mono (two female XLR jacks)
Input grounding
Isolated or grounded
Input modes
Master or slave
Level control
Reference (fixed gain) or Variable, from full mute to +15 dB over reference gain
Filter mode(s)
Low-pass
Filter slope(s)
12/24 dB/octave
Filter frequency range
30 Hz-130.1 Hz
Filter defeat function
Polarity
0 or 180º
Phase
Variable, 0-270º, referenced to 80 Hz
Output to slave
Balanced (one male XLR jack)
Calibration mode
Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone
Amplifier Specifications
Width (W)
17.4" (442 mm)
Height (H)
3.5" (89 mm)
Depth (D)
17.9" (455 mm)
Net weight (each)
13.5": 35 lbs (15.9 kg) Dual 13.5": 43 lbs (19.5 kg)
