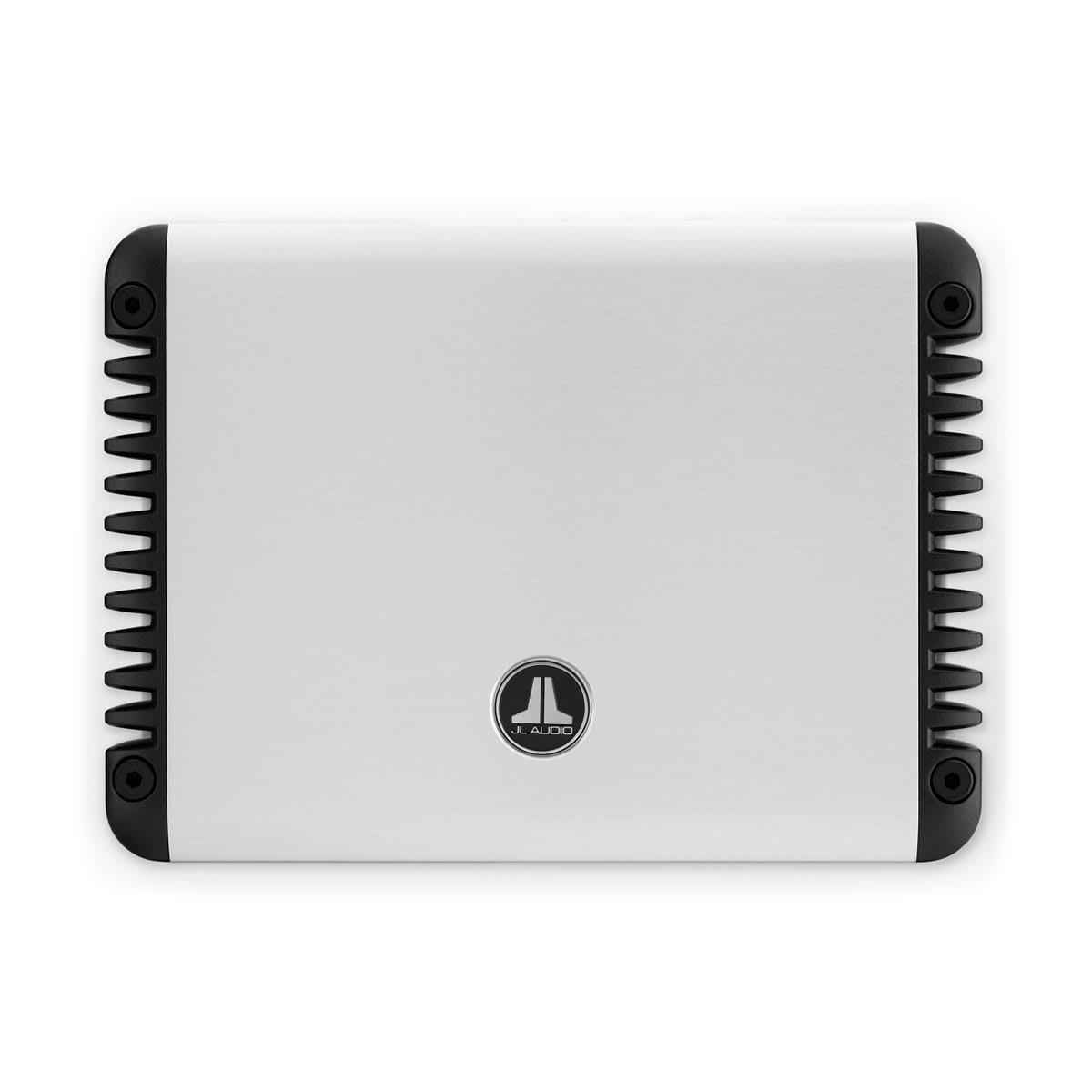

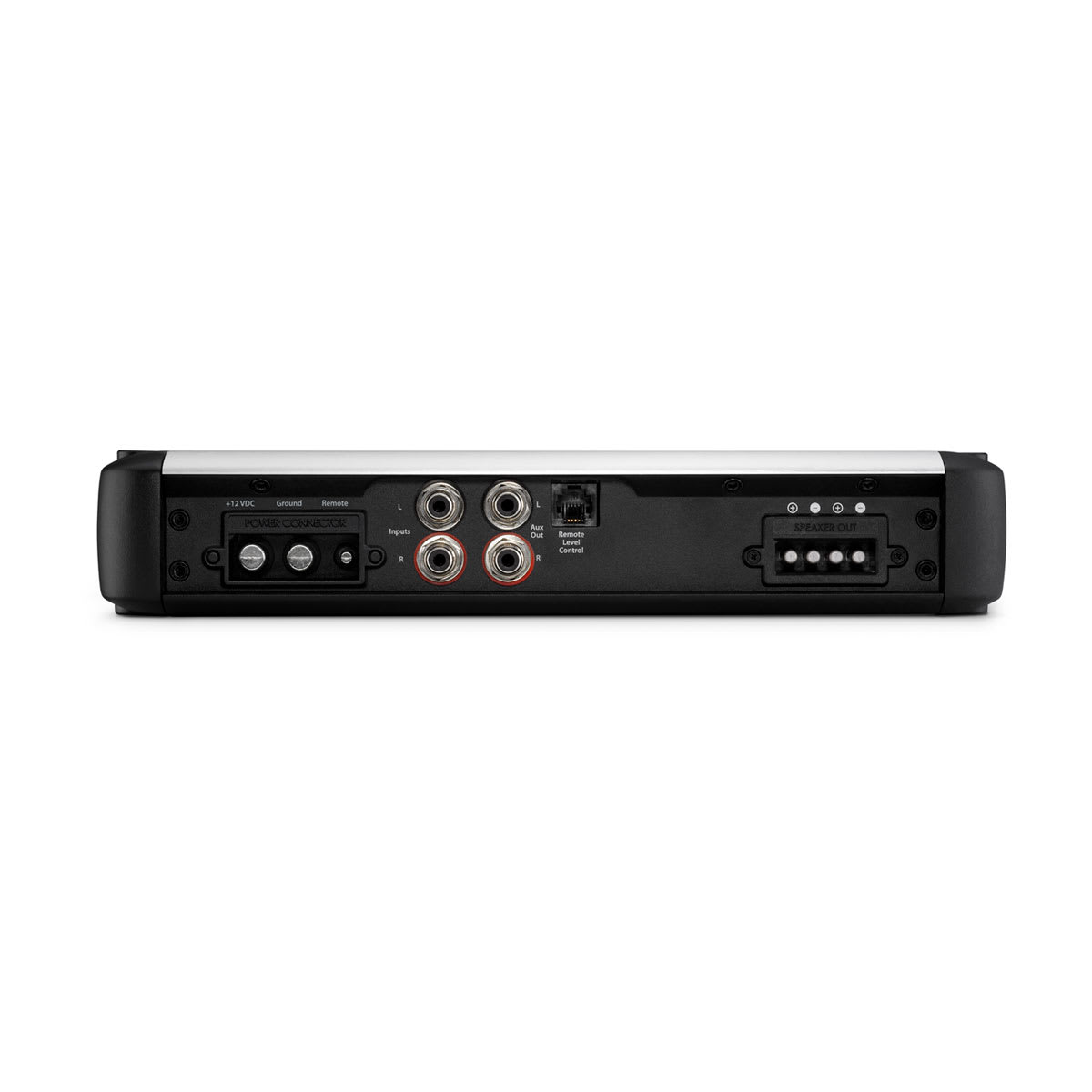

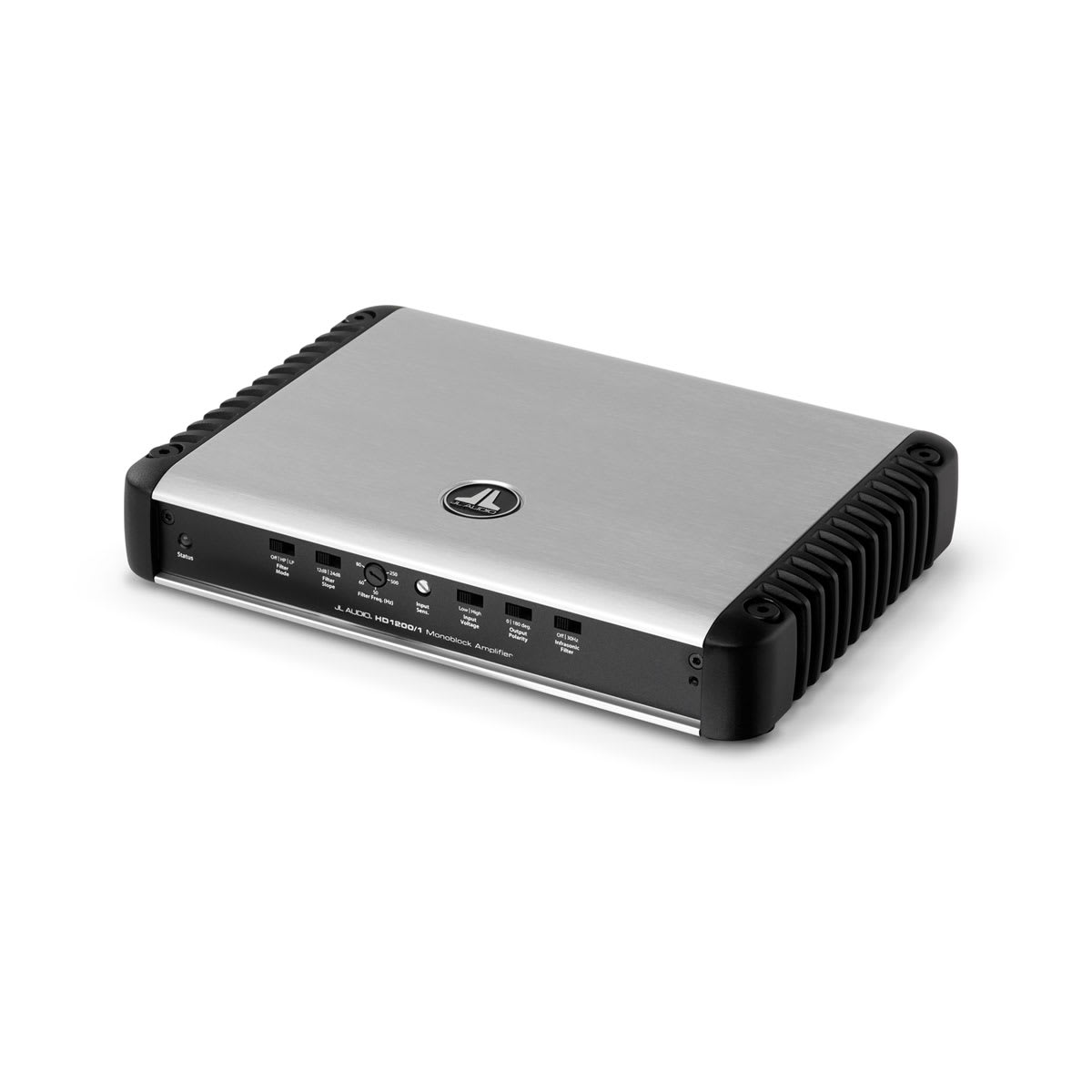

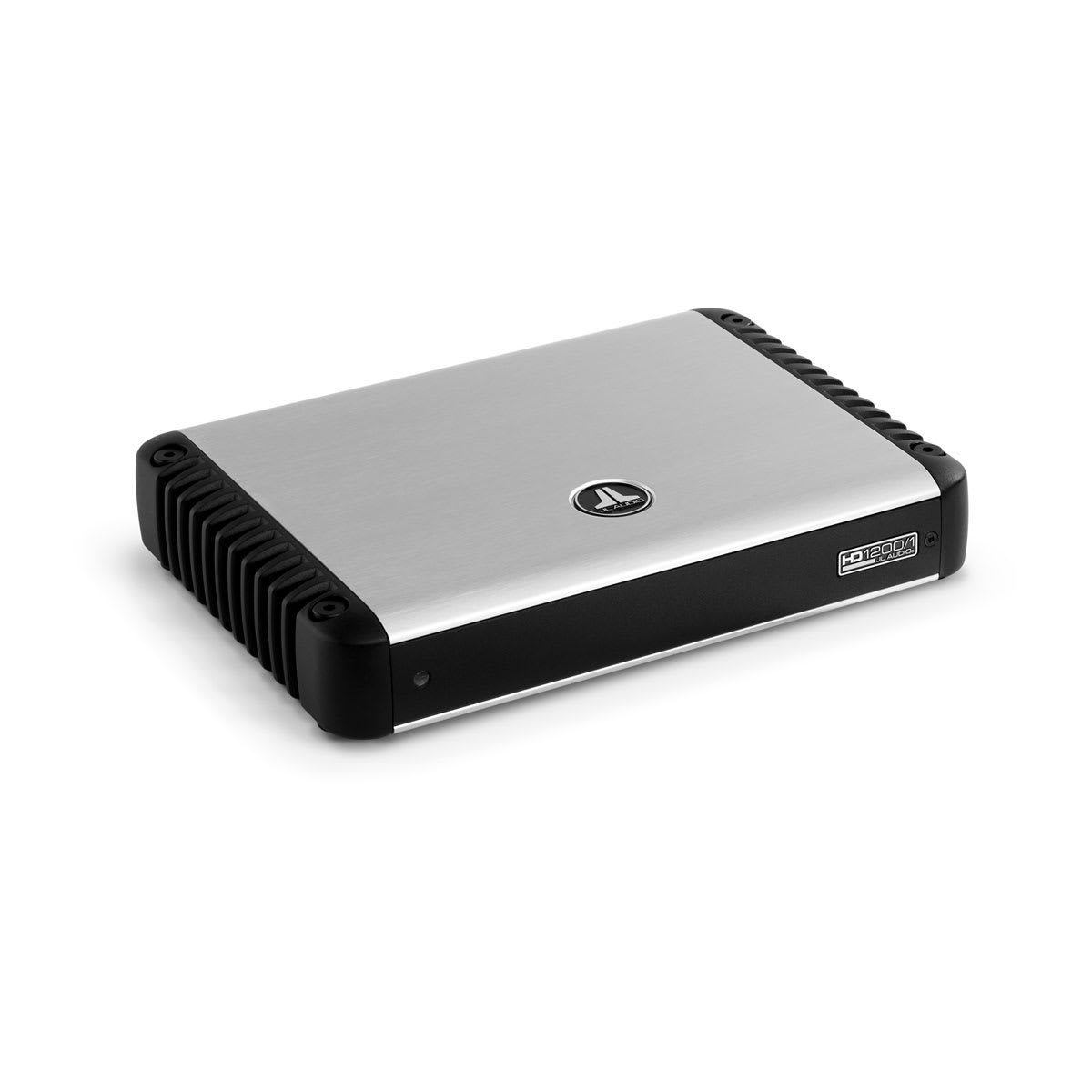

JL Audio® HD Car Monoblock Amplifier Monoblock Amplifier (1200 W) (HD1200/1)

JL Audio® HD Car Monoblock Amplifier Monoblock Amplifier (1200 W) (HD1200/1)

$106.99 USD
$356.00 USD $106.99 USD
Sale Sold out
HD car monoblock amplifier for subwoofers with single cycle control switching, a Regulated, Intelligent Power Supply (R.I.P.S.) and a 2-year warranty.

General
Warranty 2 years
Channels Monoblock
Physical dimensions (Height) 1.93" (49 mm)
Physical dimensions (Width) 10.74" (273 mm)
Physical dimensions (Depth) 7.85" (199 mm)
Weight

6.6 lbs (2.99 kg)
Operating voltage 11-14.5 VDC

Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) Monoblock (750 W): 750 W x 1
Monoblock (1200 W): 1200 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) Monoblock (750 W): 750 W x 1
Monoblock (1200 W): 1200 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) Monoblock (750 W): 750 W x 1
Monoblock (1200 W): 1200 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) Monoblock (750 W): 750 W x 1
Monoblock (1200 W): 1200 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs 111 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs 82.2 dB
Damping factor @ 4 Ω >500/50 Hz
Damping factor @ 2 Ω >250/50 Hz
THD+N @ Rated Power <0.03% @ 4 Ω
Frequency response (+0, -1dB) 6 Hz-8 kHz
Input voltage range @ RCA inputs Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Fuse rating Monoblock (750 W): 60 A
Monoblock (1200 W): 100 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge 4 AWG wire

Signal Processing
Filter mode(s): Channels 1 & 2 Off, Low-pass or High-pass
Filter Slope(s): Channels 1 & 2 12/24 dB/octave
Filter frequency range: Channels 1 & 2 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers
Infrasonic filter: Subwoofer Channel 30 Hz, Defeatable
Remote level control Optional (HD-RLC)
Output polarity switch
Pass-through preamp output Buffered
