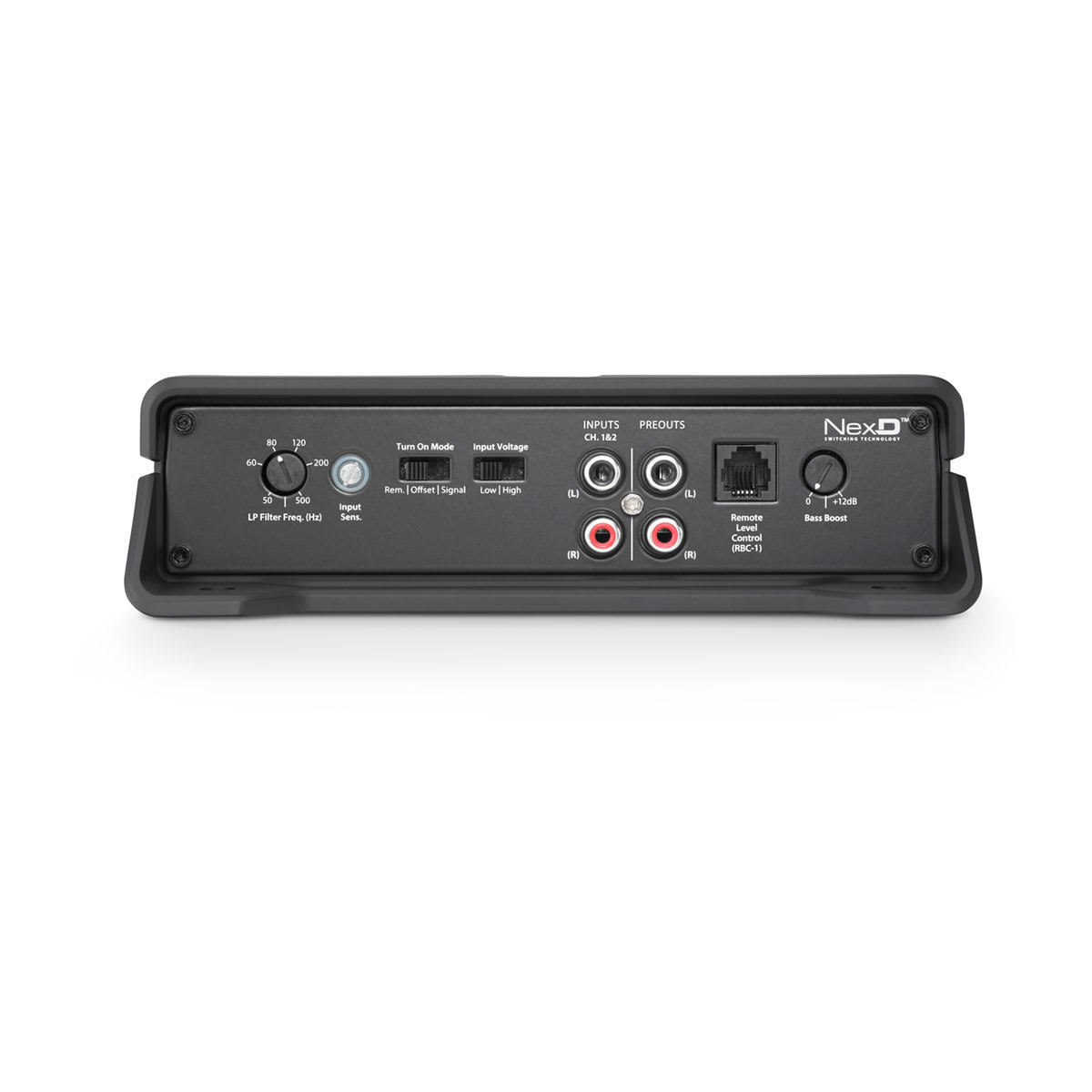

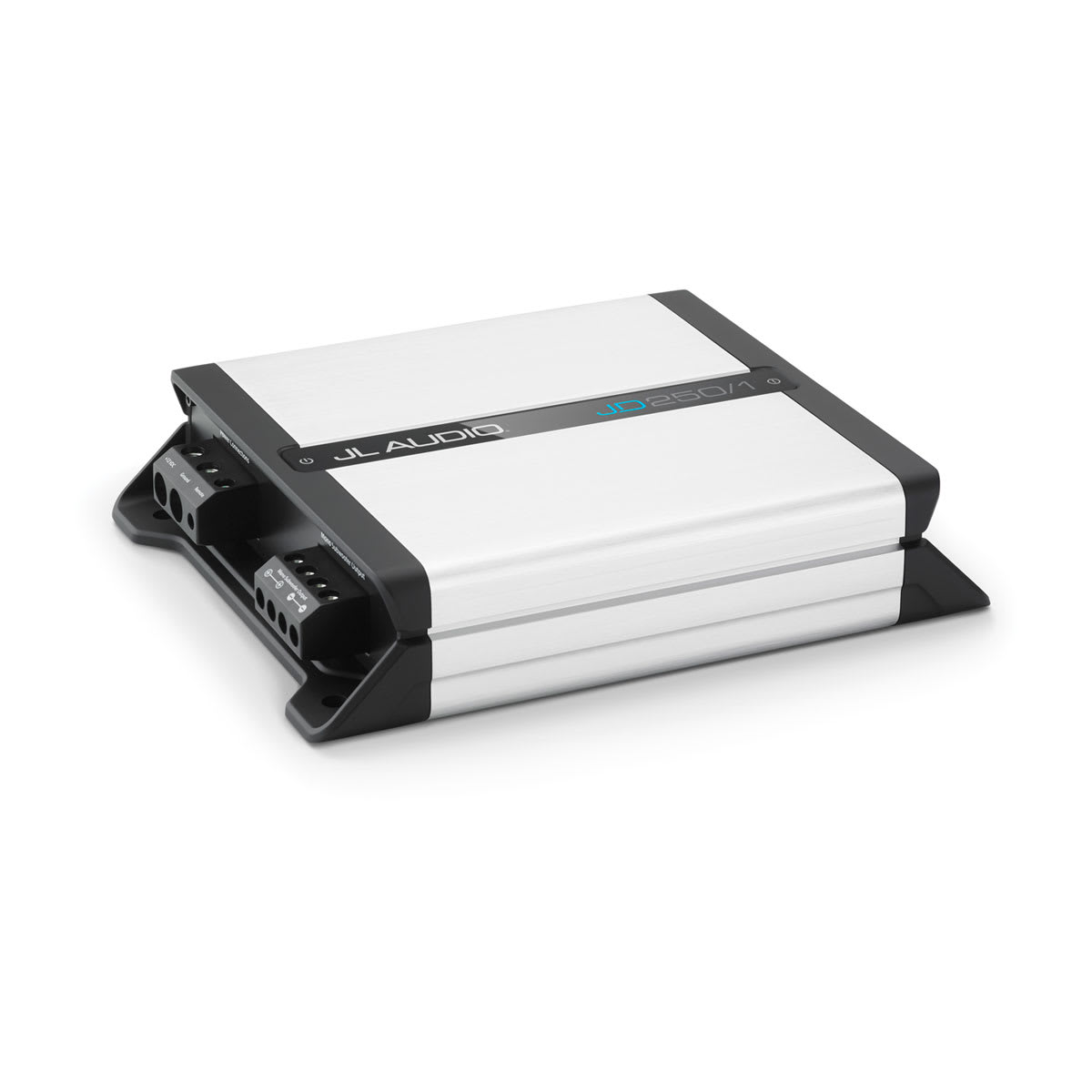

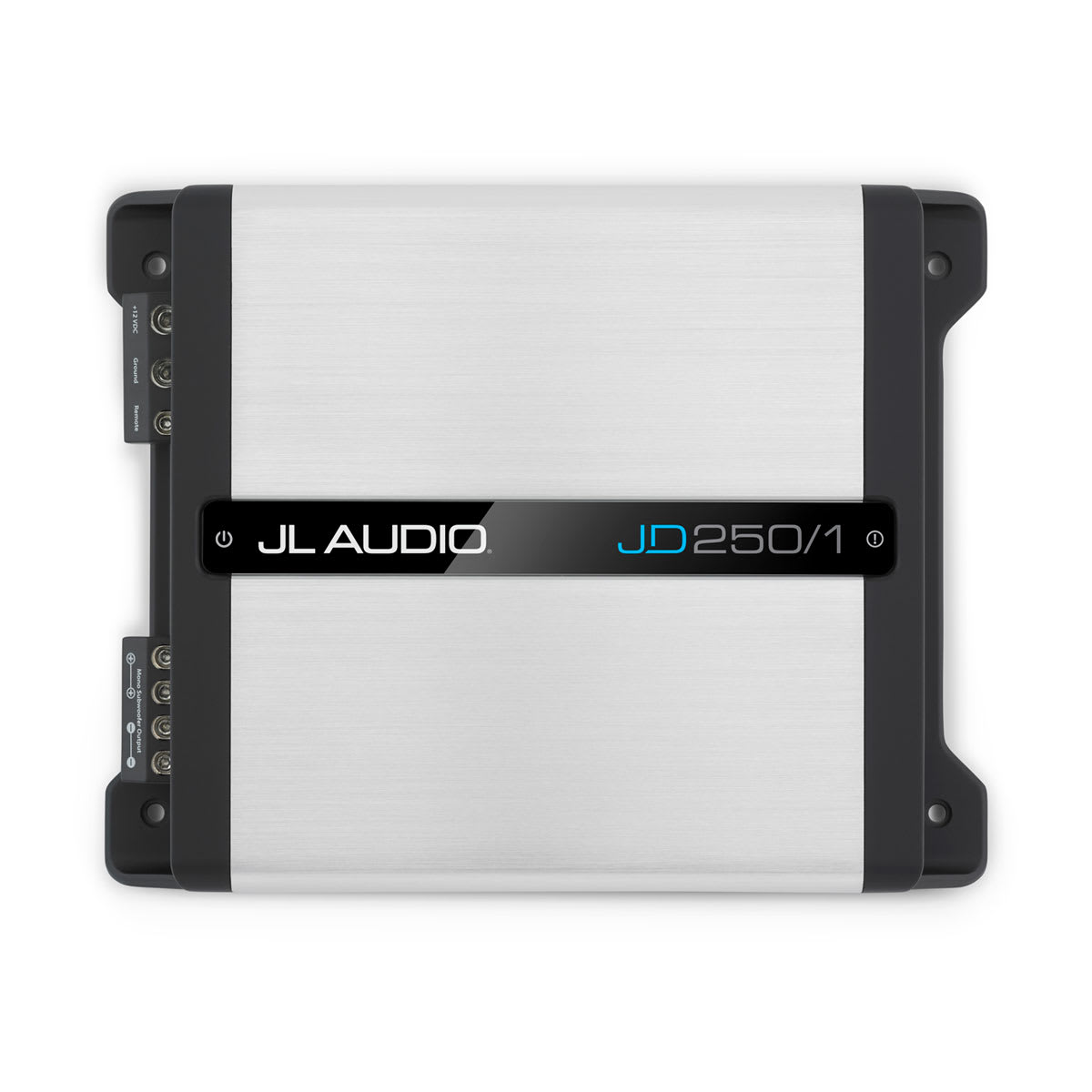

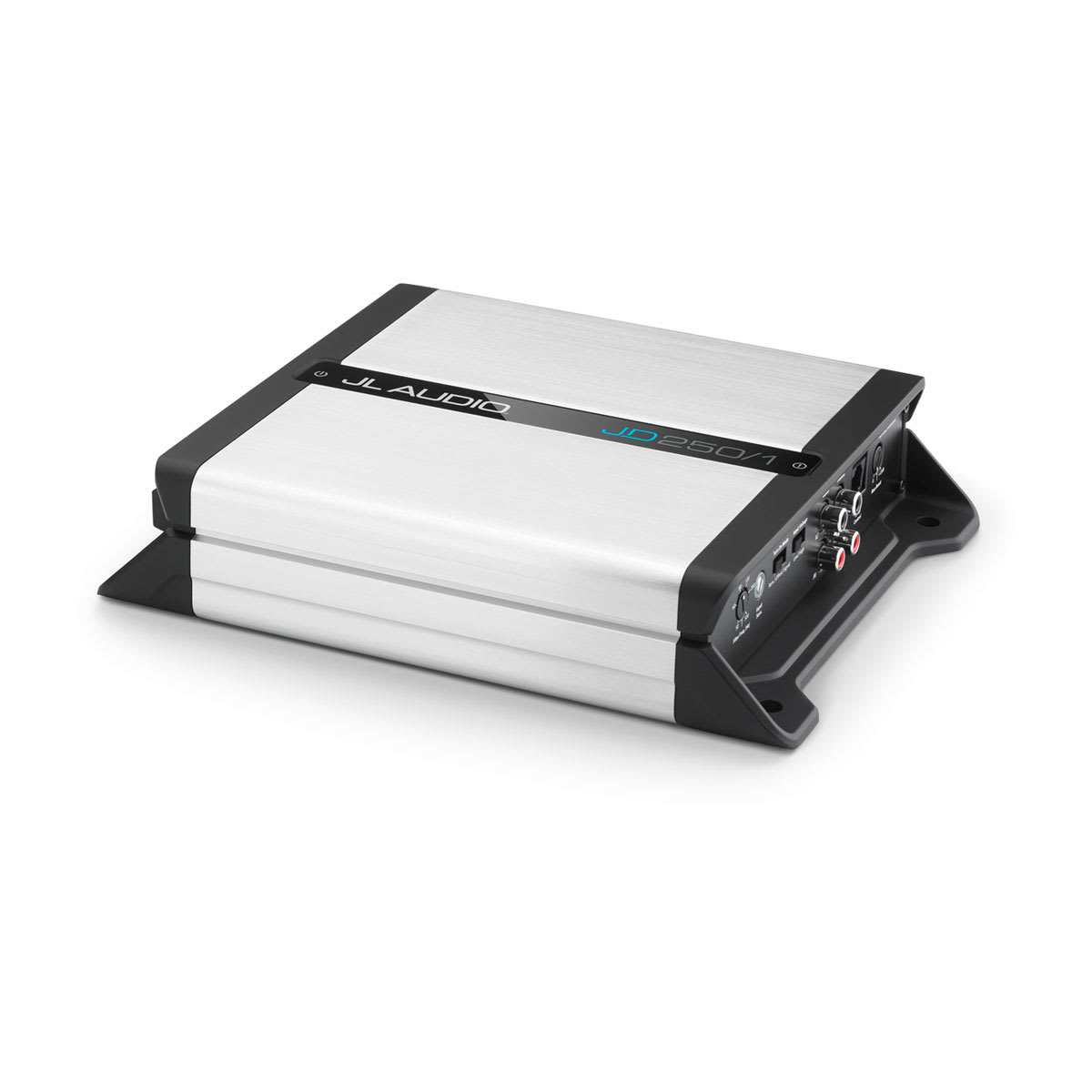

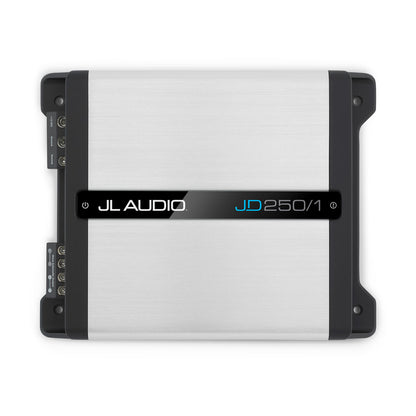

JL Audio® JD Car Monoblock Amplifier Monoblock Amplifier (250 W) (JD250/1)

JL Audio® JD Car Monoblock Amplifier Monoblock Amplifier (250 W) (JD250/1)

$71.99 USD
$239.99 USD $71.99 USD
Sale Sold out
JD car amplifier is a single channel amplifier with high-power output, 12 DB/Octave filter, variable bass boost EQ, and a 2-year warranty.

General
Warranty 2 years
Channels Monoblock
Physical dimensions (Height) 2.10" (53 mm)
Physical dimensions (Width) Monoblock (250 W/500 W): 9.50" (242 mm)
Monoblock (1000 W): 11.40" (290 mm)
Physical dimensions (Depth) 7.50" (190 mm)

Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) Monoblock (250 W): 150 W x 1
Monoblock (500 W): 250 W x 1
Monoblock (1000 W): 600 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)

Monoblock (250 W): 250 W x 1

Monoblock (500 W): 500 W x 1
Monoblock (1000 W): 1000 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)

Monoblock (250 W): 115 W x 1

Monoblock (500 W): 225W x 1
Monoblock (1000 W): 500 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) Monoblock (250 W): 200 W x 1
Monoblock (500 W): 400 W x 1
Monoblock (1000 W): 800 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs >80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (250 W/500 W): >60 dB
Monoblock (1000 W): >50 dB
Damping factor @ 4 Ω >1000/50 Hz
Damping factor @ 2 Ω >500/50 Hz
THD+N @ Rated Power <1% @ 2 Ω
Frequency response (+0, -1dB) 7 Hz-500 Hz
Input voltage range @ RCA inputs Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Fuse rating Monoblock (250 W): 30 A
Monoblock (500 W): 50 A
Monoblock (1000 W): 80 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge Monoblock (250 W): 8 AWG wire
Monoblock (500 W/1000 W):4 AWG wire

Signal Processing
Filter mode(s): Channels 1 & 2 Low-pass only
Filter Slope(s): Channels 1 & 2 12 dB/octave
Filter frequency range: Channels 1 & 2 50 Hz-500 Hz
Bass boost
Bass boost EQ (0 to +12 dB @ 45 Hz)
Remote level control Optional (RBC-1)
Pass-through preamp output Buffered
