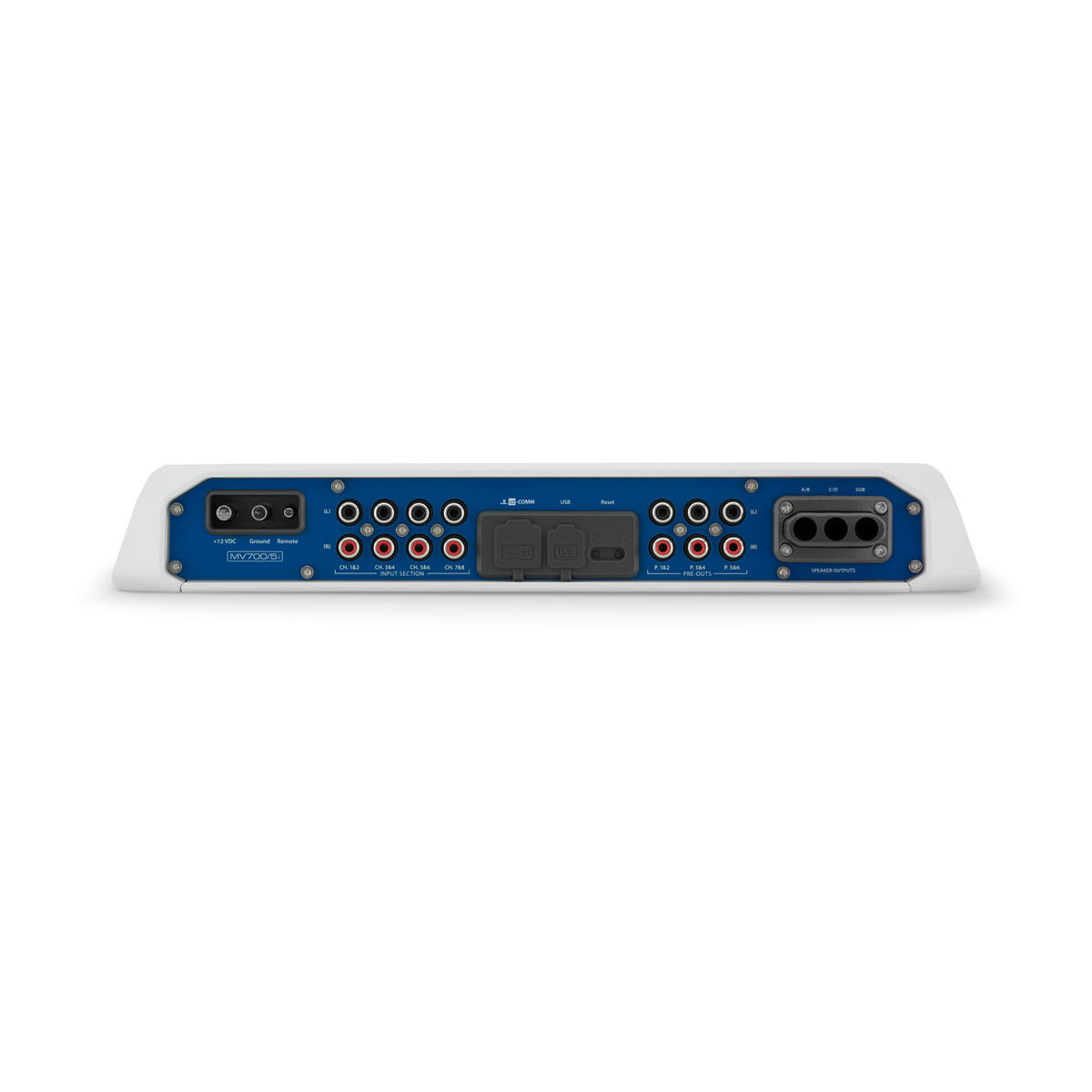

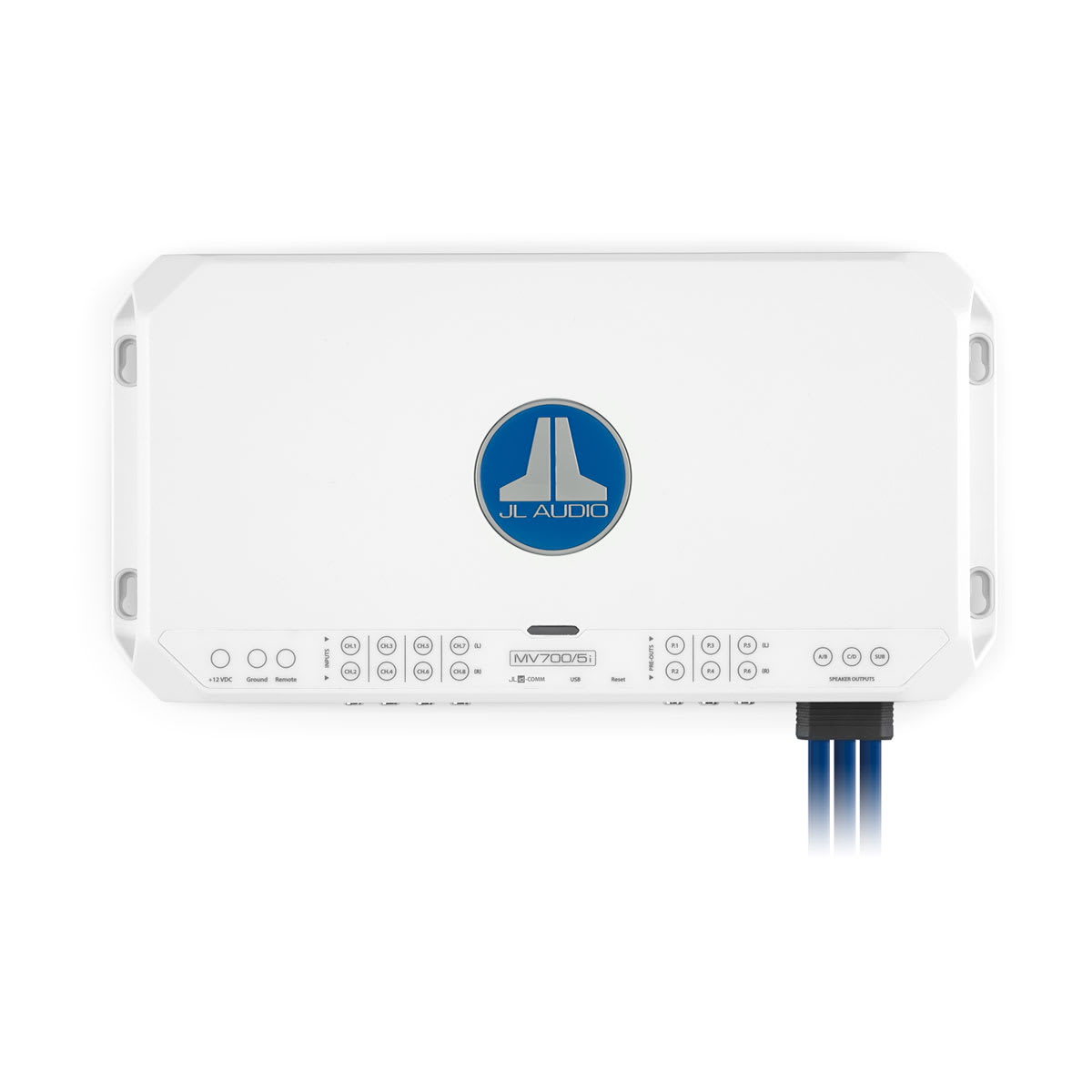

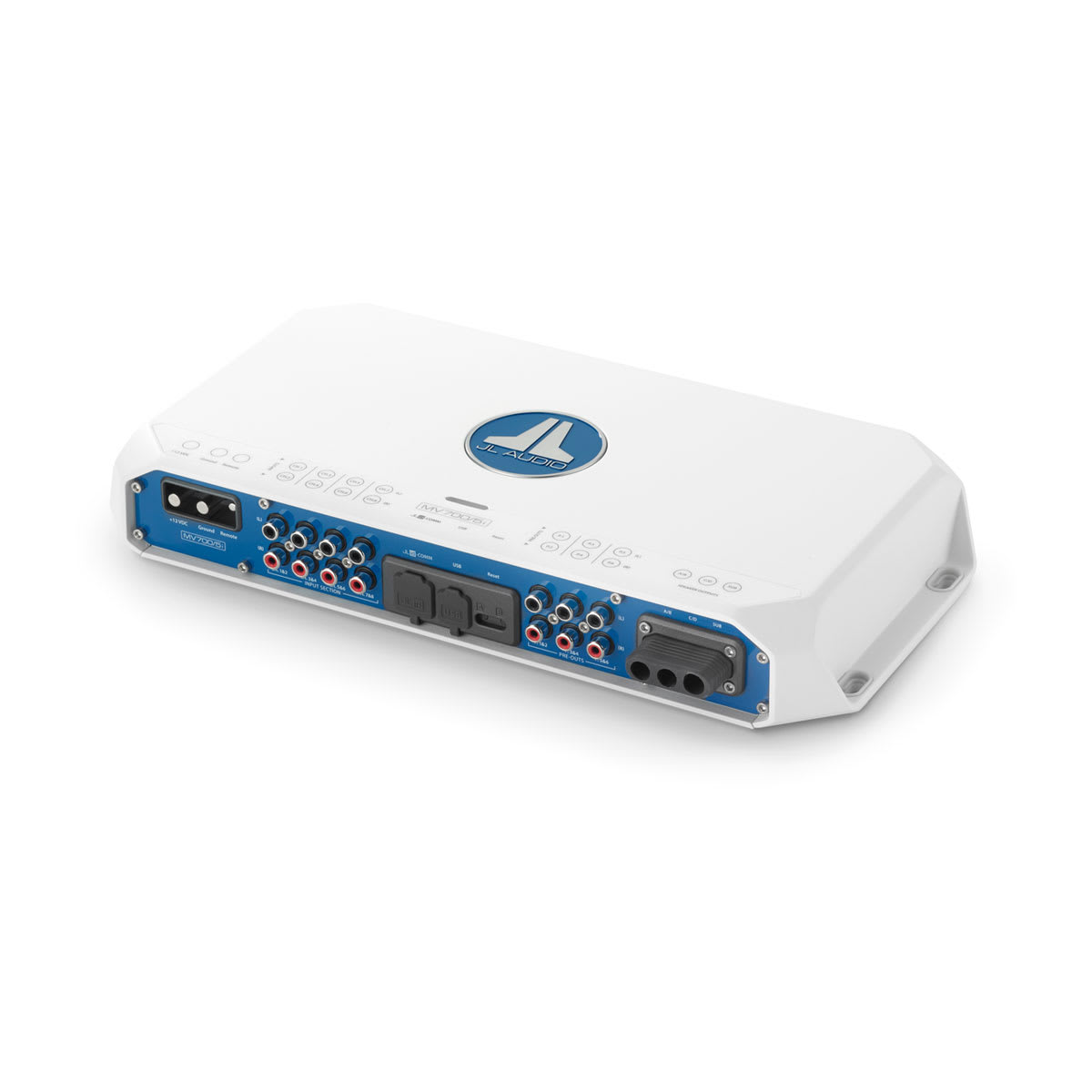

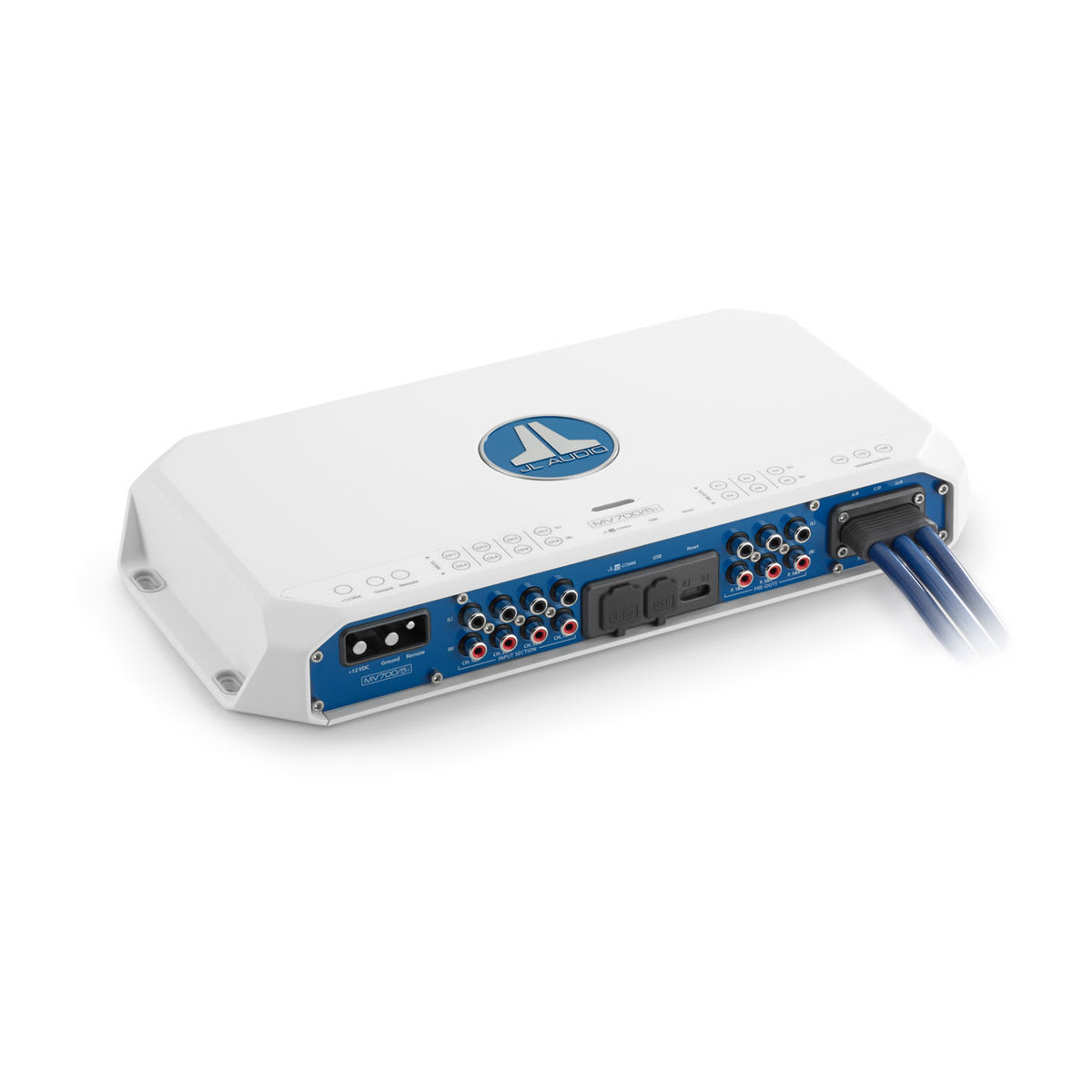

JL Audio® MVi Marine Amplifier 5 Channel Marine System Amplifier (700 watts) (MV700/5i)

JL Audio® MVi Marine Amplifier 5 Channel Marine System Amplifier (700 watts) (MV700/5i)

$112.99 USD
$375.00 USD $112.99 USD
Sale Sold out
MVi marine amplifiers deliver higher quality audio with digital signal processing (DSP) and state-of-the-art amplifier circuits.

General
Warranty 3 years
Channels Monoblock/2/4/5/6/8
Physical dimensions (Height) 2.05" (52 mm)
Physical dimensions (Width) Monoblock (600 W)/2/4-Channel: 11.20" (285 mm)
Monoblock (1000 W)/5 (700 W/1000 W)/6/8-Channel: 13.96" (355 mm)
Physical dimensions (Depth) 6.93" (176 mm)
Weight

Monoblock/2/4-Channel: 5.0 lbs (2.27 kg)
Monoblock (1000 W)/5 (700 W/1000 W)/6/8-Channel: 5.6 lbs (2.54 kg)
Operating voltage 10-15 VDC
Water and dust rating IPX2 (when mounted vertically with connections pointed downward)

Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)

Monoblock (600 W): 400 W x 1
Monoblock (1000 W): 600 W x 1
2-Channel: 180 W RMS x 2/600 W x 1 (Bridged)
4-Channel: 75 W RMS x 4/200 W x 2 (Bridged)
5-Channel (700 W): Main: 75 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1
6-Channel: 75 W x 6/200 W x 3 (Bridged)
8-Channel: 75 W x 8/200 W x 4 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)

Monoblock (600 W): 600 W x 1
Monoblock (1000 W): 1000 W x 1
2-Channel: 300 W x 2
4-Channel: 100 W x 4
5-Channel (700 W): Main: 100 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1
6-Channel: 100 W x 6
8-Channel: 100 W x 8
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)

Monoblock (600 W): 300 W x 1
Monoblock (1000 W): 500 W x 1
2-Channel: 140 W x 2/450 W x 1 (Bridged)
4-Channel: 75 W x 4/200 W x 2 (Bridged)
5-Channel (700 W): Main: 60 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1
6-Channel: 60 W x 6/180 W x 3 (Bridged)
8-Channel: 60 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)

Monoblock (600 W): 500 W x 1
Monoblock (1000 W): 800 W x 1
2-Channel: 225 W x 2
4-Channel: 60 W x 4
5-Channel (700 W): Main: 90 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1
6-Channel: 90 W x 6
8-Channel: 90 W x 8
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (600 W): 90 dB
Monoblock (1000 W): 87 dB
2/4/6/8-Channel: 99 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 5-Channel (700 W / 1000 W): 99 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 5-Channel (700 W / 1000 W): 99 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (600 W): 64 dB
Monoblock (1000 W): 60 dB
2-Channel: 76 dB
6-Channel: 80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 5-Channel (700 W/1000 W) 80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 5-Channel (700 W/1000 W): 72 dB
Damping factor @ 4 Ω Monoblock (600 W): > 125/50 Hz
Monoblock (1000 W): > 400/50 Hz
2/4/6/8-Channel: > 100/50 Hz
5-Channel (700 W/1000 W): > 150/50 Hz
Damping factor @ 2 Ω Monoblock (600 W): > 125/50 Hz
Monoblock (1000 W): > 300/50 Hz
2/4/ 5 (700 W/1000W)/6/8-Channel: > 50/50 Hz
THD+N @ Rated Power Monoblock (600 W/1000 W)/2/4/6/8-Channel: <1% @ 2 Ω per Channel
THD+N @ Rated Power: Main Channels 5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
THD+N @ Rated Power: Subwoofer Channel 5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
Frequency response (+0, -1dB) Monoblock (600 W/1000 W): 12 Hz-500 Hz
2/4/6-Channel: 12 Hz-24 kHz
8-Channel: 12 Hz-21 kHz
Frequency response (+0, -1dB): Main Channels 5-Channel (700 W/1000 W): 12 Hz-24 kHz
Frequency response (+0, -1dB): Subwoofer Channel 5-Channel (700 W/1000 W): 12 Hz-1 kHz
Input voltage range @ RCA inputs Monoblock (600 W/1000 W): 250 mV-8 V RMS
2/4/6/8-Channel: 250 mV-16 V RMS
Fuse rating Monoblock (600 W): 50 A
Monoblock (1000 W): 80 A
2-Channel: 50 A
4-Channel: 40 A
5-Channel (700 W): 60 A
5-Channel (1000 W): 80 A
6-Channel: 50 A
8-Channel: 80 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge 4 AWG wire
