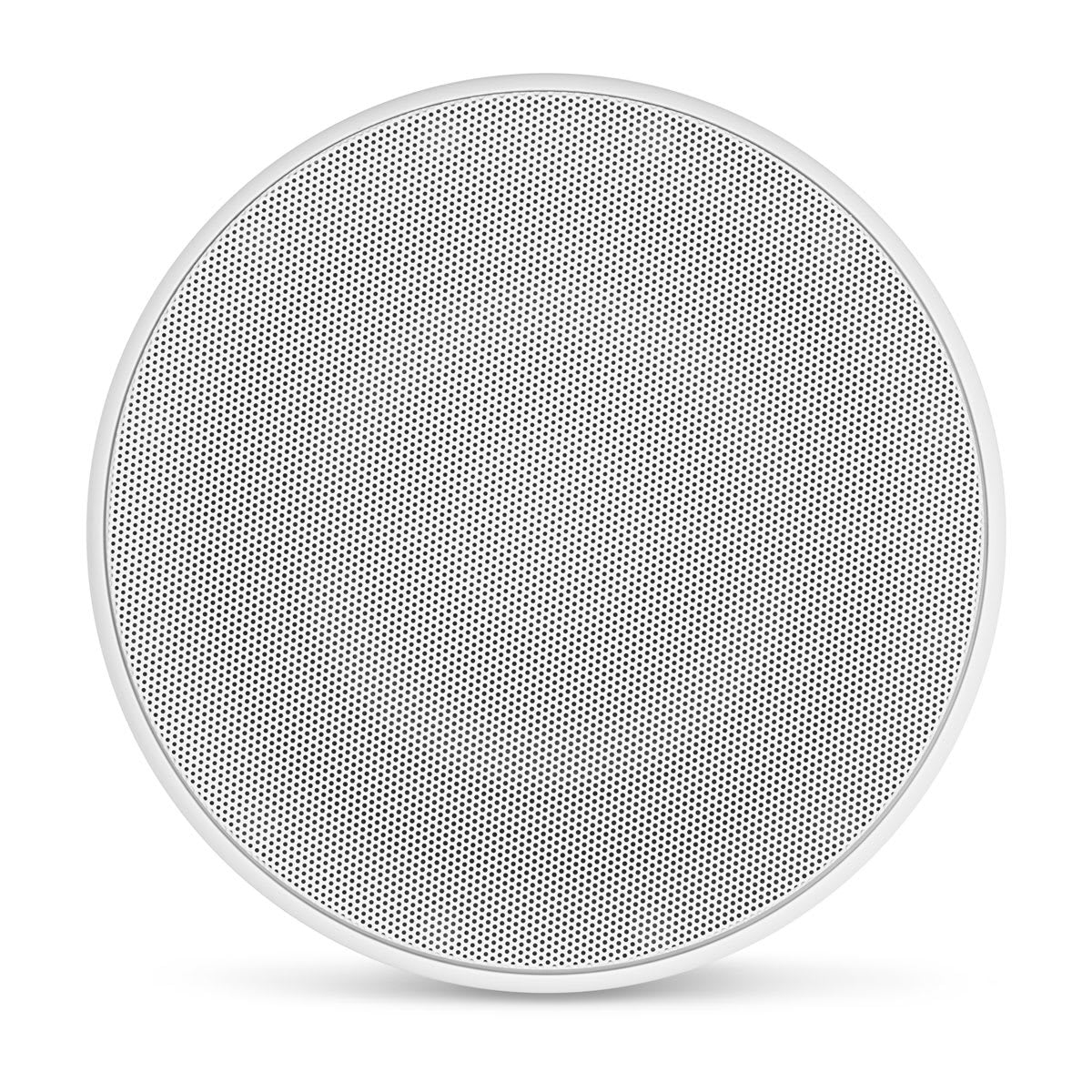

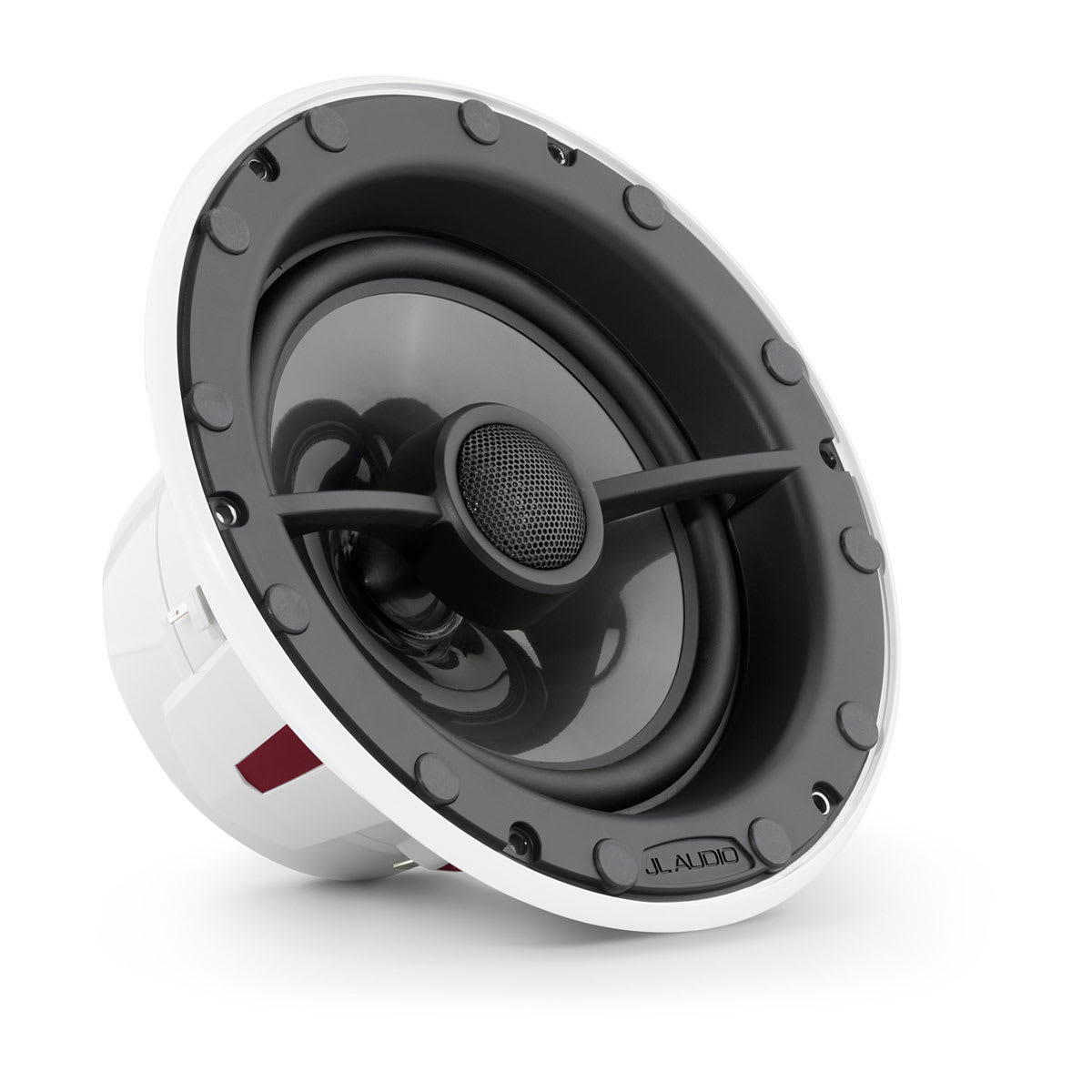

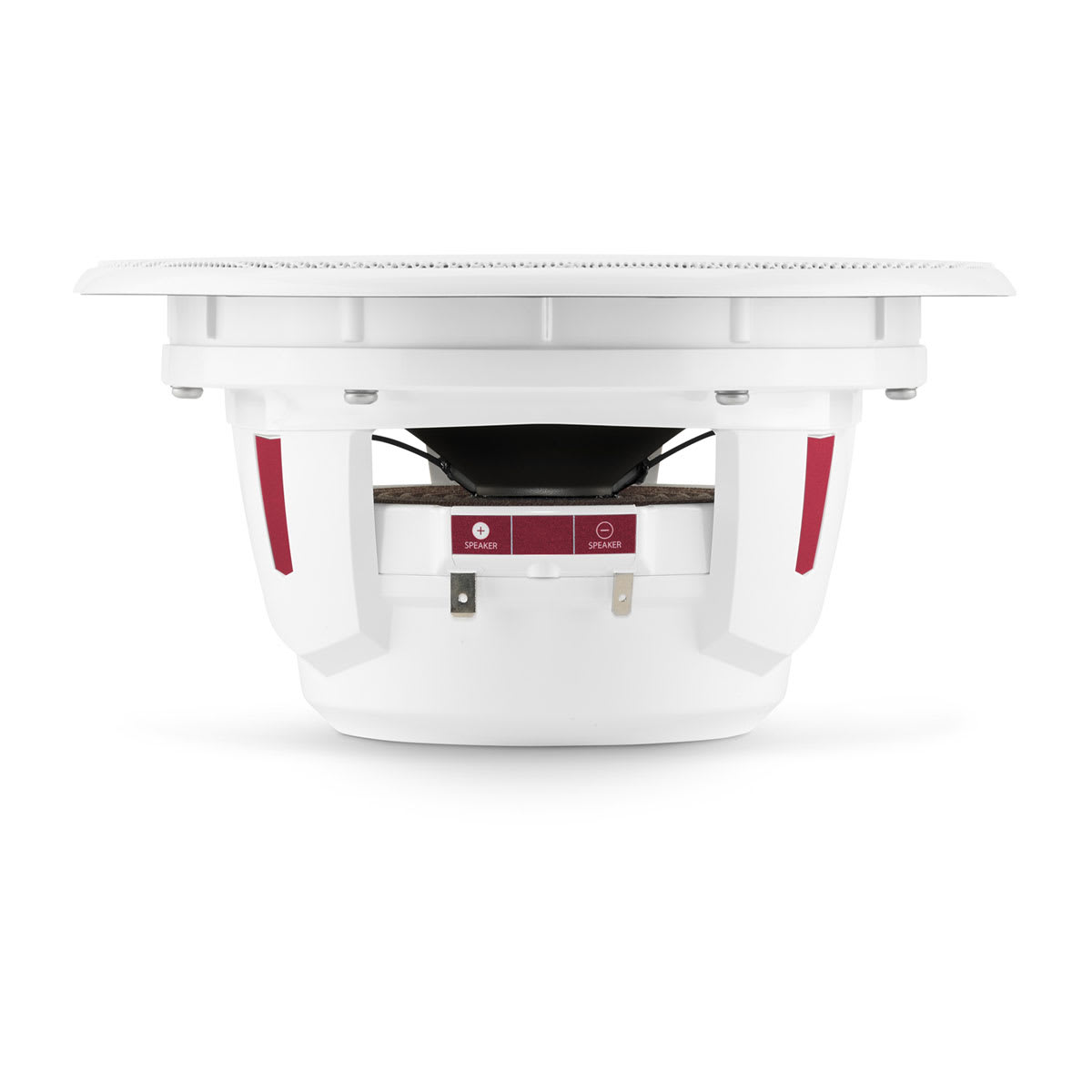

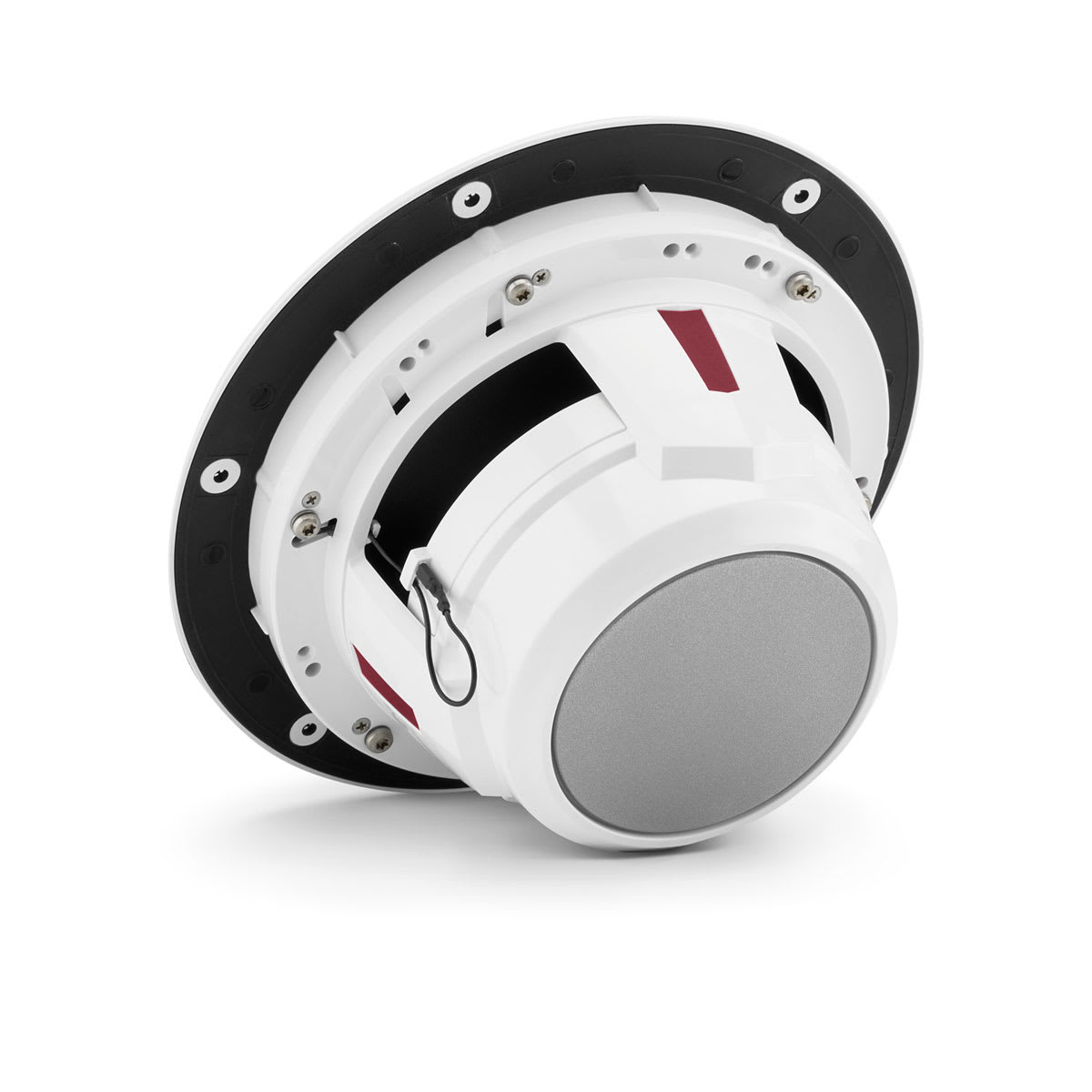

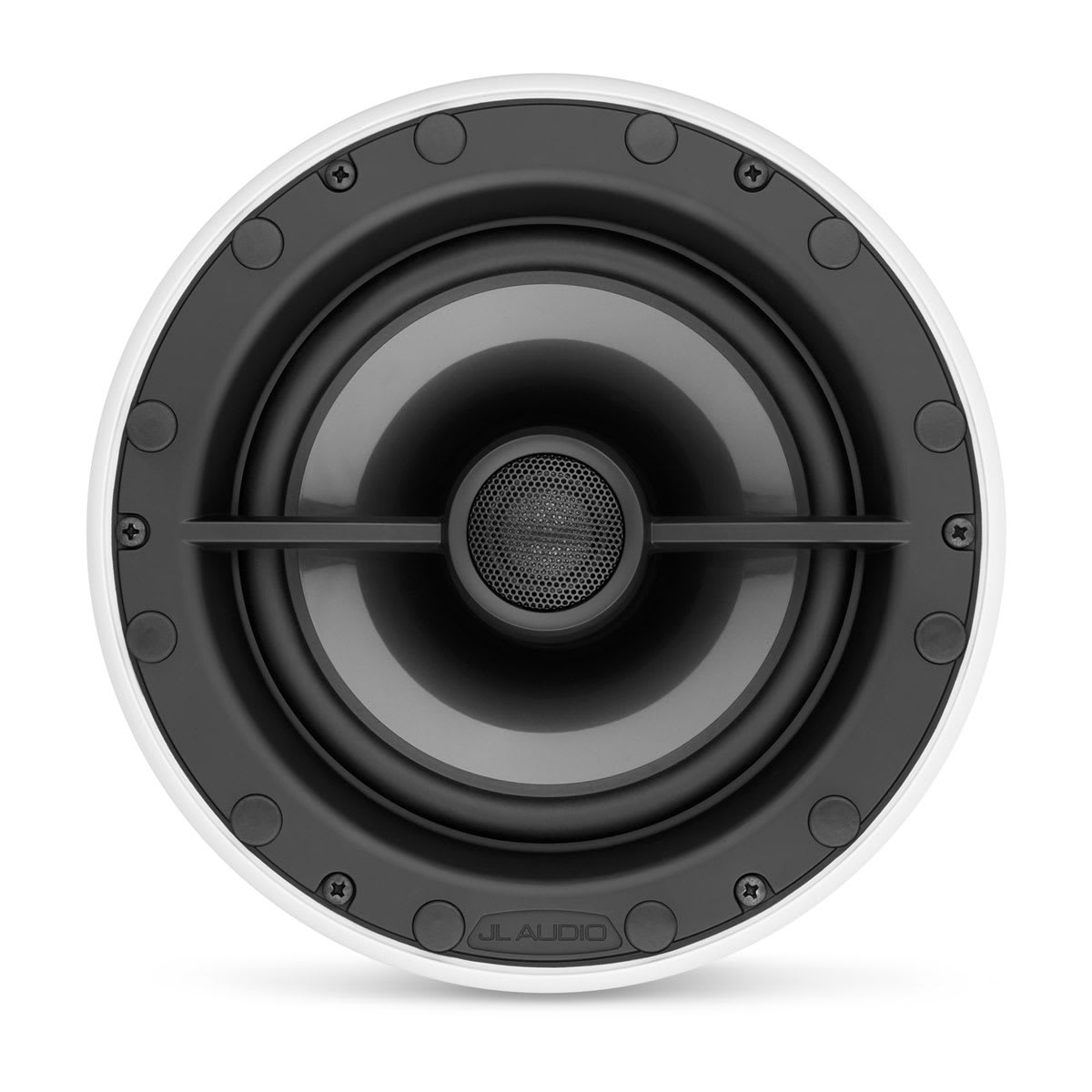

JL Audio Pavilion™ Outdoor In-Ceiling Speaker 7.7\" with White Luxe Grille (Single) (PV-FX7-GwSw-Single)

JL Audio Pavilion™ Outdoor In-Ceiling Speaker 7.7\" with White Luxe Grille (Single) (PV-FX7-GwSw-Single)

$110.99 USD
$369.00 USD $110.99 USD
Sale Sold out

General
Warranty 5 years
Sizes 6.5"/7.7"/8.8"
Color Satin black or Satin white
Physical dimensions (Diameter) 6.5": 8.34" (212 mm)
7.7": 9.13" (232 mm)
8.8": 10.25" (260 mm)
Physical dimensions (Depth) 6.5": 4.24" (108 mm)
7.7" 4.64" (118 mm)
8.8": 6.78" (172 mm)
Weight

6.5": 3.21 lbs (1.45 kg)

7.7": 5.35 lbs (2.43 kg)
8.8": 9.25 lbs (4.19 kg)
Speaker type Coaxial
Continuous power handling (RMS) 6.5": 60 W
7.7": 80 W
8.8": 100 W
Sensitivity (SPL @ 1 W/1 m) 6.5": 89.5 dB
7.7": 91.0 dB
8.8": 90.5 dB
Frequency response (+/- 3 dB) 6.5": 55 Hz-25 kHz
7.7": 45 Hz-25 kHz
8.8": 38 Hz-20 kHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 6.5": 30-120 W/Channel
7.7": 40-160 W/Channel
8.8": 50-200 W/Channel
Cone material Injection-molded, mica-filled polypropylene
Tweeter type Silk Dome
Tweeter size 6.5": 0.8" (20 mm)
7.7": 1" (25 mm)
8.8": 1.25" (32 mm)

Networking & Connections
Speaker connections Spade Connectors
LED connection Flying Lead with 4-conductor 20 AWG wire (selected Sport models only)

Mounting Dimensions
Mounting depth clearance 6.5": 3.87" (98 mm)
7.7": 4.26" (108 mm)
8.8": 6.30" (160 mm)
Frontal grille protrusion 6.5": 0.37" (9 mm)
7.7": 0.38" (10 mm)
8.8": 0.48" (12 mm)
Mounting hole 6.5": 6.875" (175 mm)
7.7": 7.625" (194 mm)
8.8": 8.75" (222 mm)
Bolt hole circle 6.5": 7.39" (188 mm)
7.7": 8.18" (208 mm)
8.8": 9.27" (235 mm)
View full details
