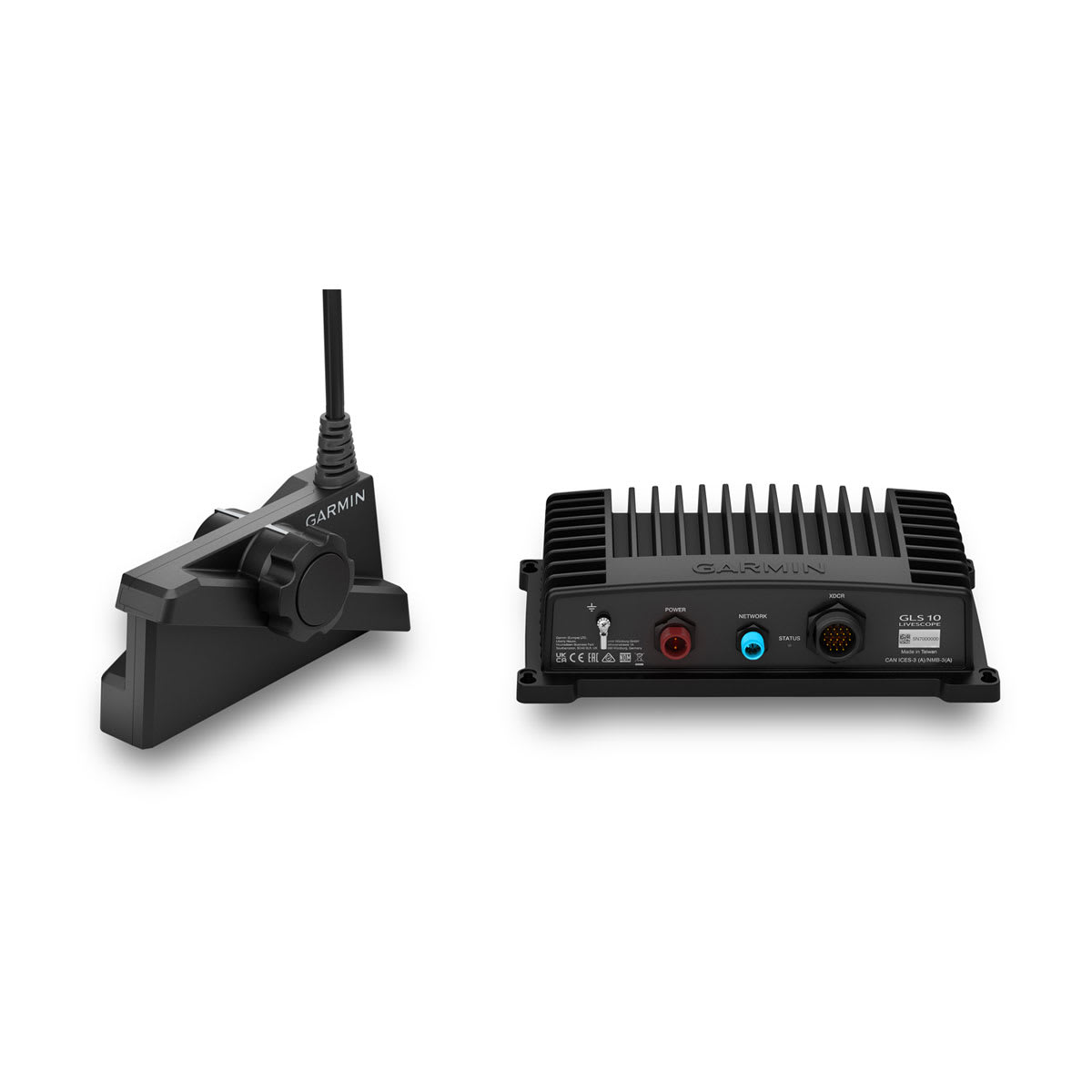

This versatile LiveScope Plus package — with LVS34-IF ice fishing transducer provides the essentials to help you find the best spots to drill and fish.

General
Transducer beamwidth 20° x 135°
Transducer cable length 20 ft
Transducer number of pins 21
Dimension

GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);

LiveScope Plus LVS34-IF transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm)
Weight

GLS 10 sonar black box: 4.3 lbs (2.0 kg)
LiveScope Plus LVS34-IF transducer: 2.25 lbs (1.02 kg)
Water rating IPX7
Temperature range

GLS 10 black box: Operating: -15° C to 70° C

LiveScope Plus LVS34-IF transducer: Operating: 0° C to 40° C

Electrical Features
Power input 10-32 V
Power usage 21 W typical, 58 W max
Fuse 10 A
Compass-safe distance 4" (0.1 m)

Sonar Features
Frequency 530 - 1,100 kHz
Transmit power 500 W
Maximum depth Down and Forward: 200’ (61.0 m)
Sonar Type Live
Target Separation @ 100' 14"

Networking & Connections
Garmin Marine Network Ports

1 (small connector)
