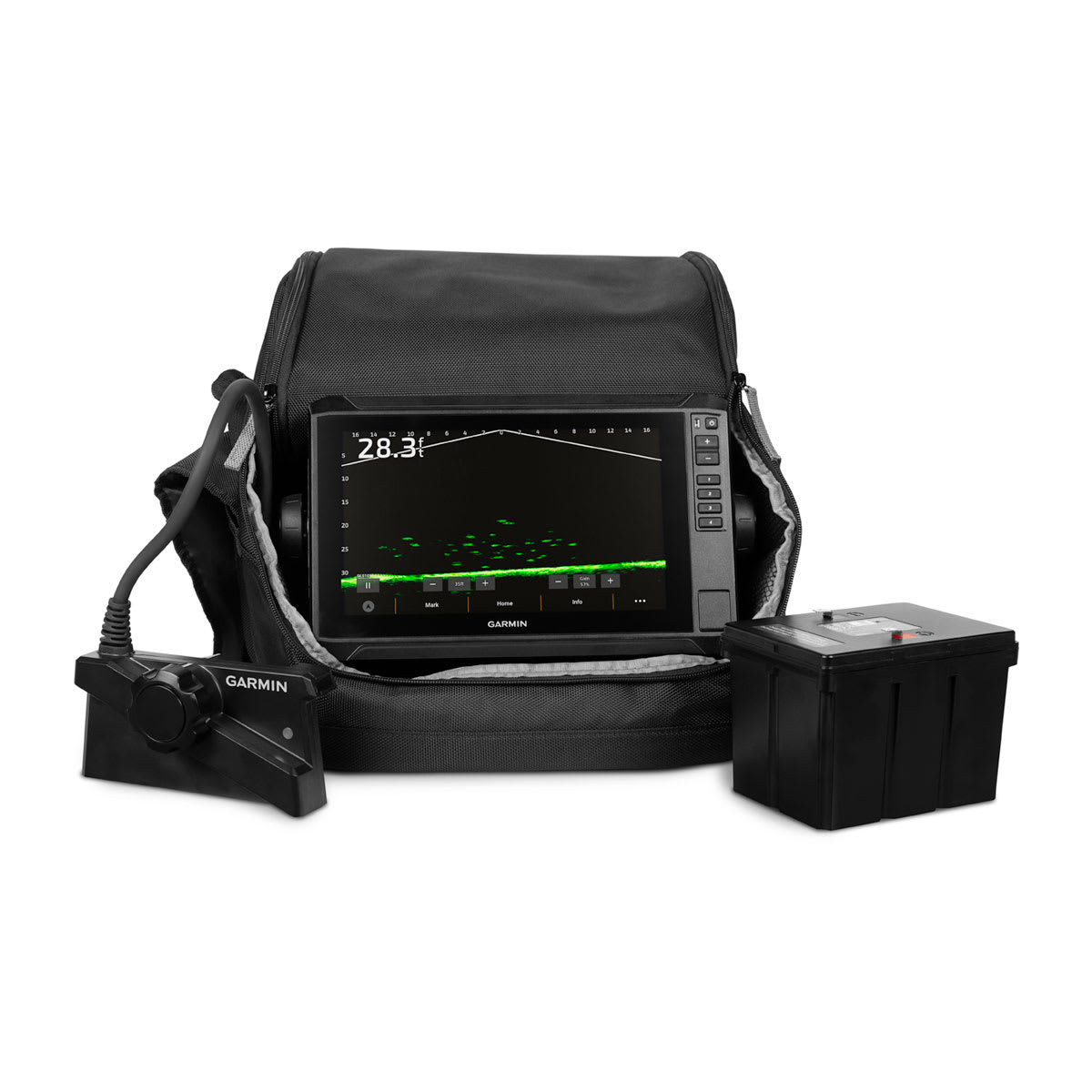

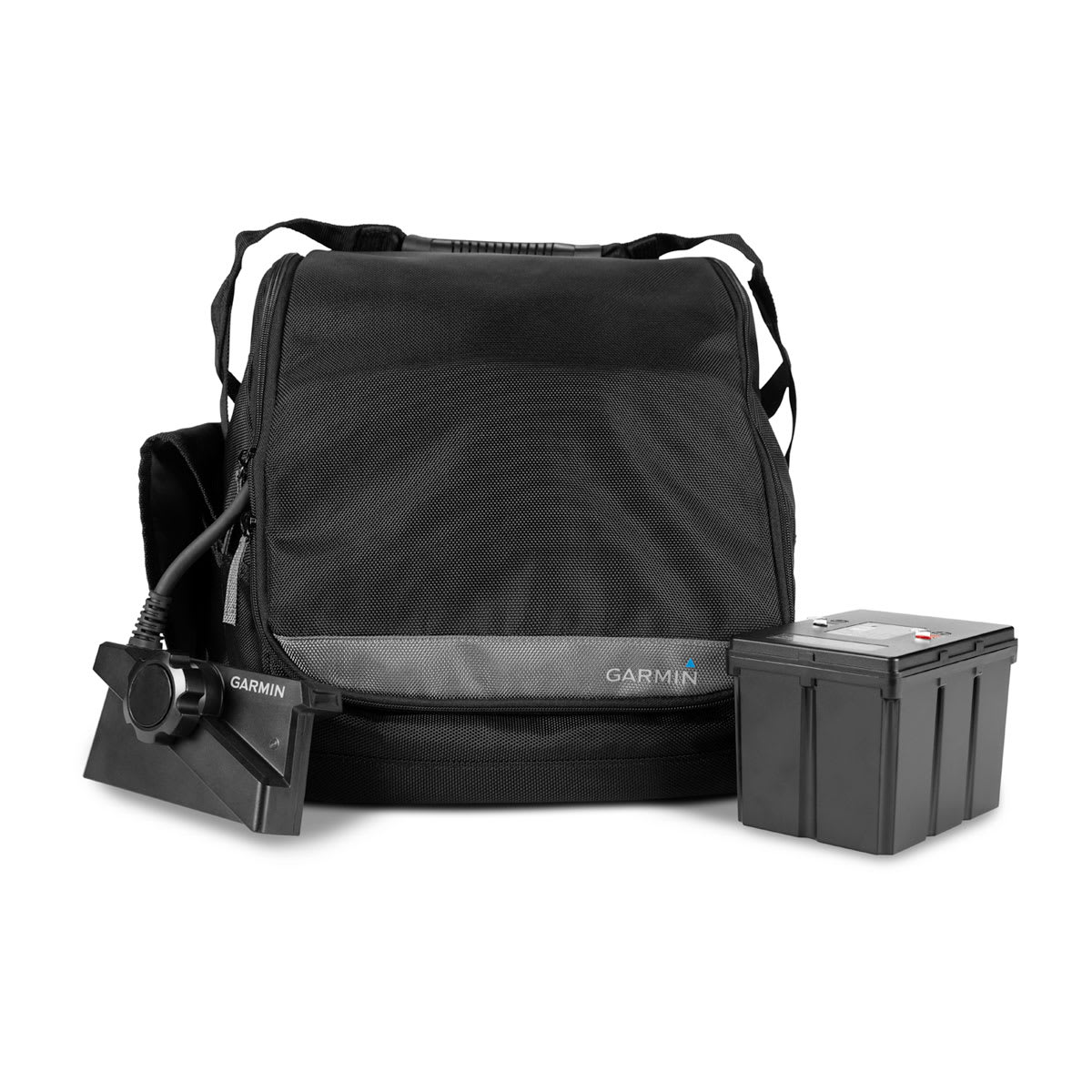

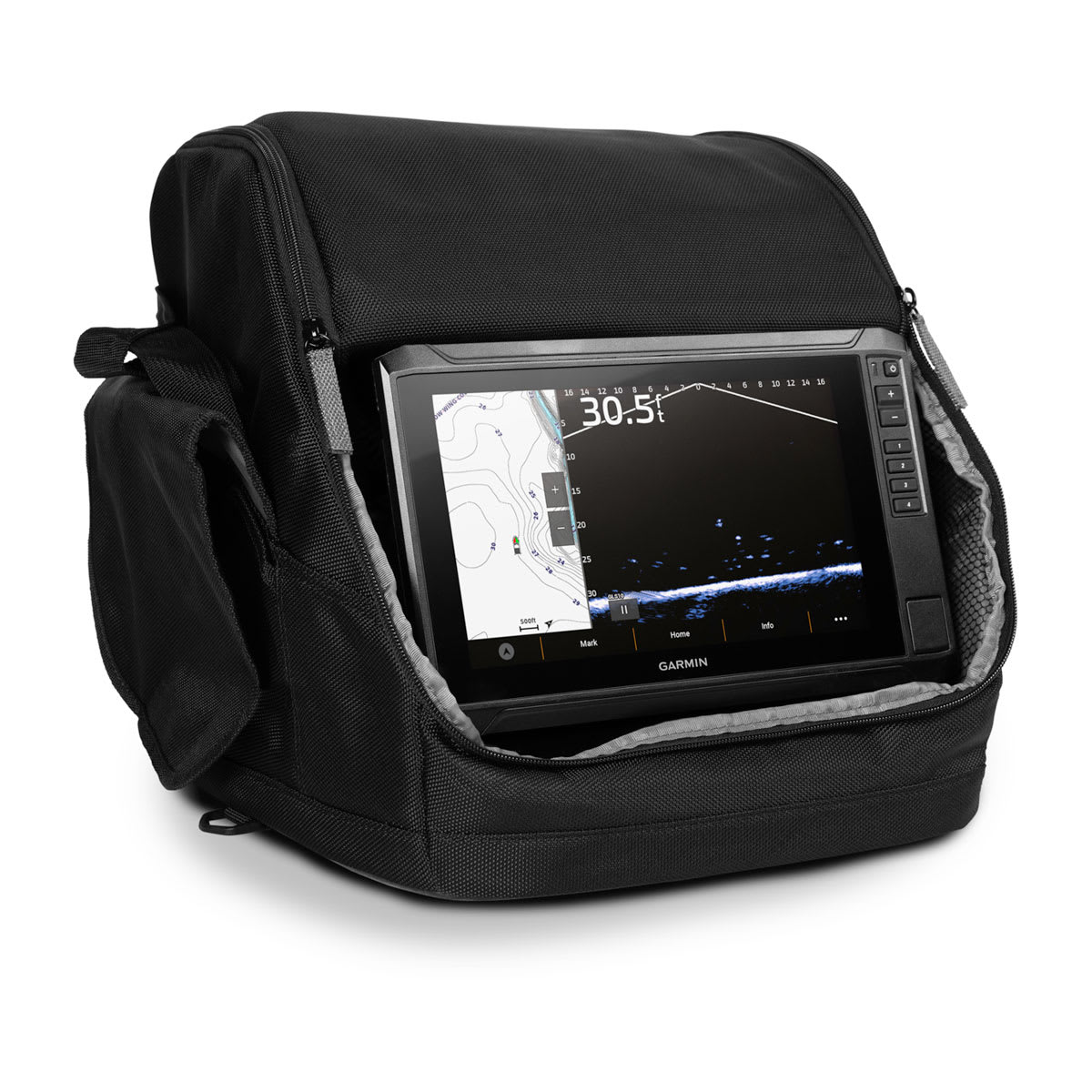

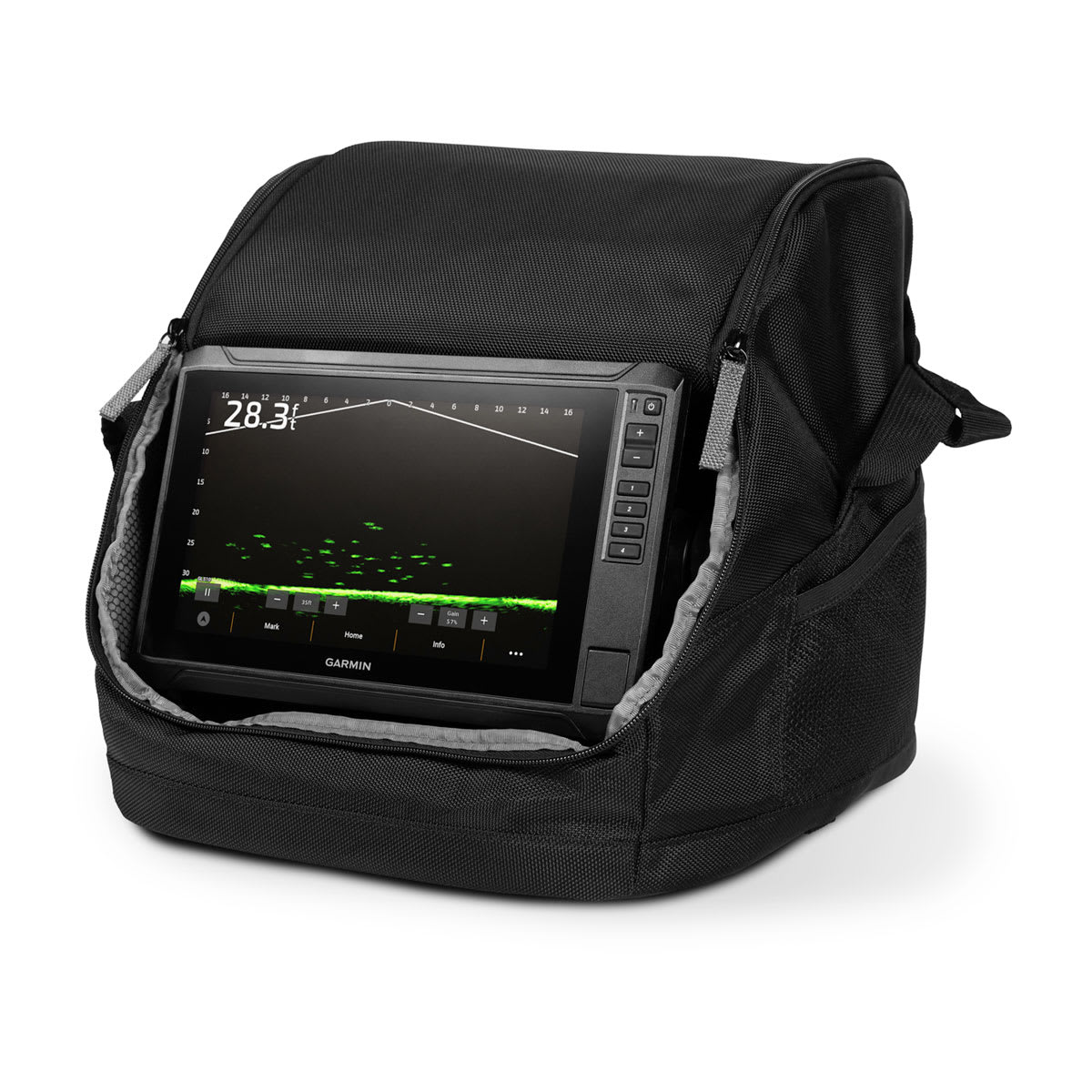

LiveScope™ Plus Lithium-ion Ice Fishing Bundle Includes ECHOMAP™ UHD2 93sv, LiveScope Plus System & Lithium-ion Battery

Name: LiveScope™ Plus Lithium-ion Ice Fishing Bundle Includes ECHOMAP™ UHD2 93sv, LiveScope Plus System & Lithium-ion Battery
Brand: My Store
SKU: 1778475913
Price: 112.99 USD
Availability: InStock

$112.99 USD

~~$374.00 USD~~ $112.99 USD

Sale Sold out

LiveScope Plus Ice Fishing Bundle Li includes an ECHOMAP UHD2 93sv chartplotter, LiveScope Plus System, and Lithium-ion battery. Get clear images with less noise.

General
Dimension	13.8" × 12.2" × 13.0" (35 × 31 × 33 cm)
Weight	22.5 lbs (10.2 kg)
Water rating	IPX7
Touchscreen
Display Type	WSVGA, TN
Display Size	7.8" x 4.5", 9.0" (19.8 x 11.5, 22.9 cm)
Display resolution	1024 x 600 pixels
Input	Touchscreen with keyed assist

Maps & Memory
Accepts Data Cards	1 microSD^™ card; 32 GB maximum size
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100

Ice Fishing Details
Battery type, size	Lithium-ion, 16.5Ah

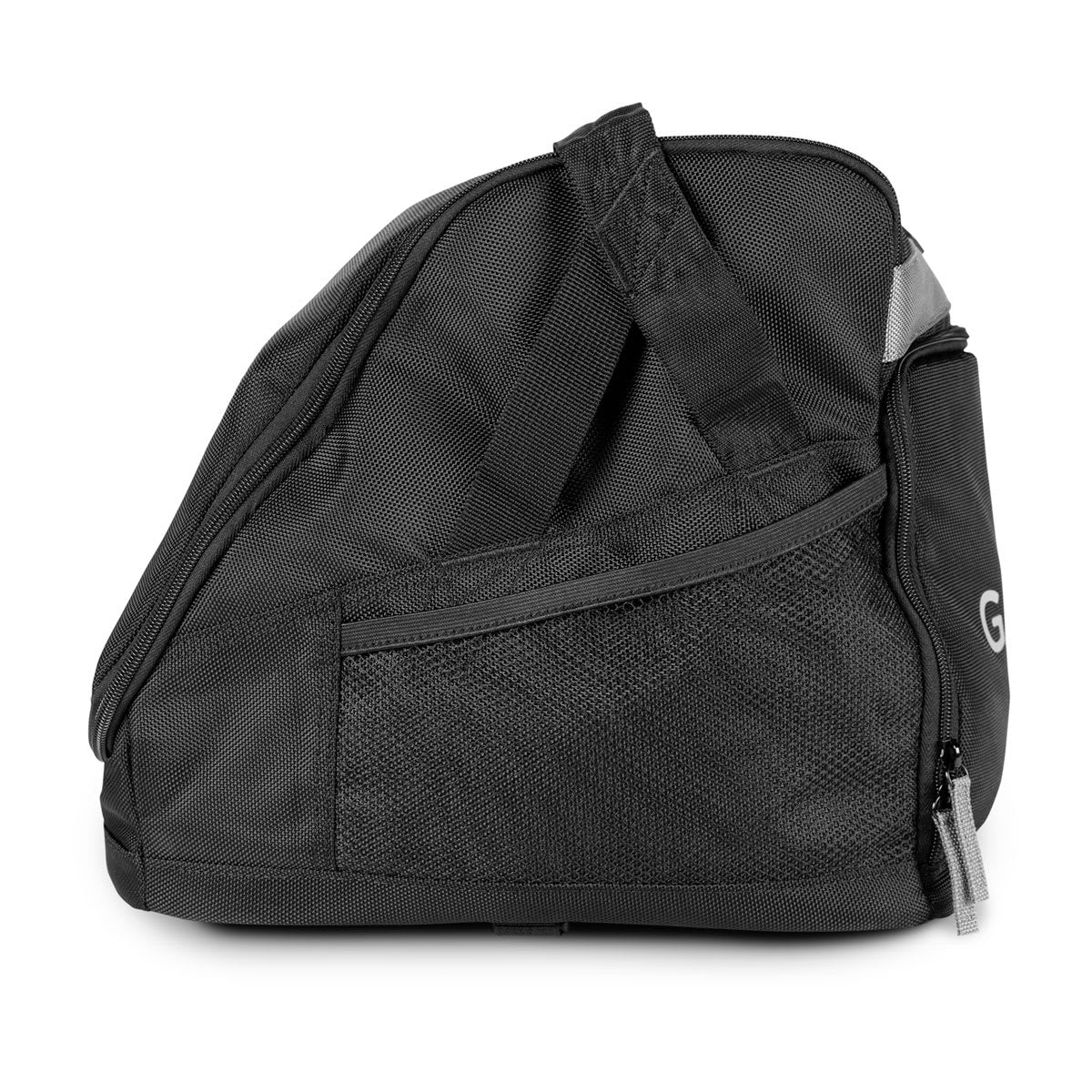

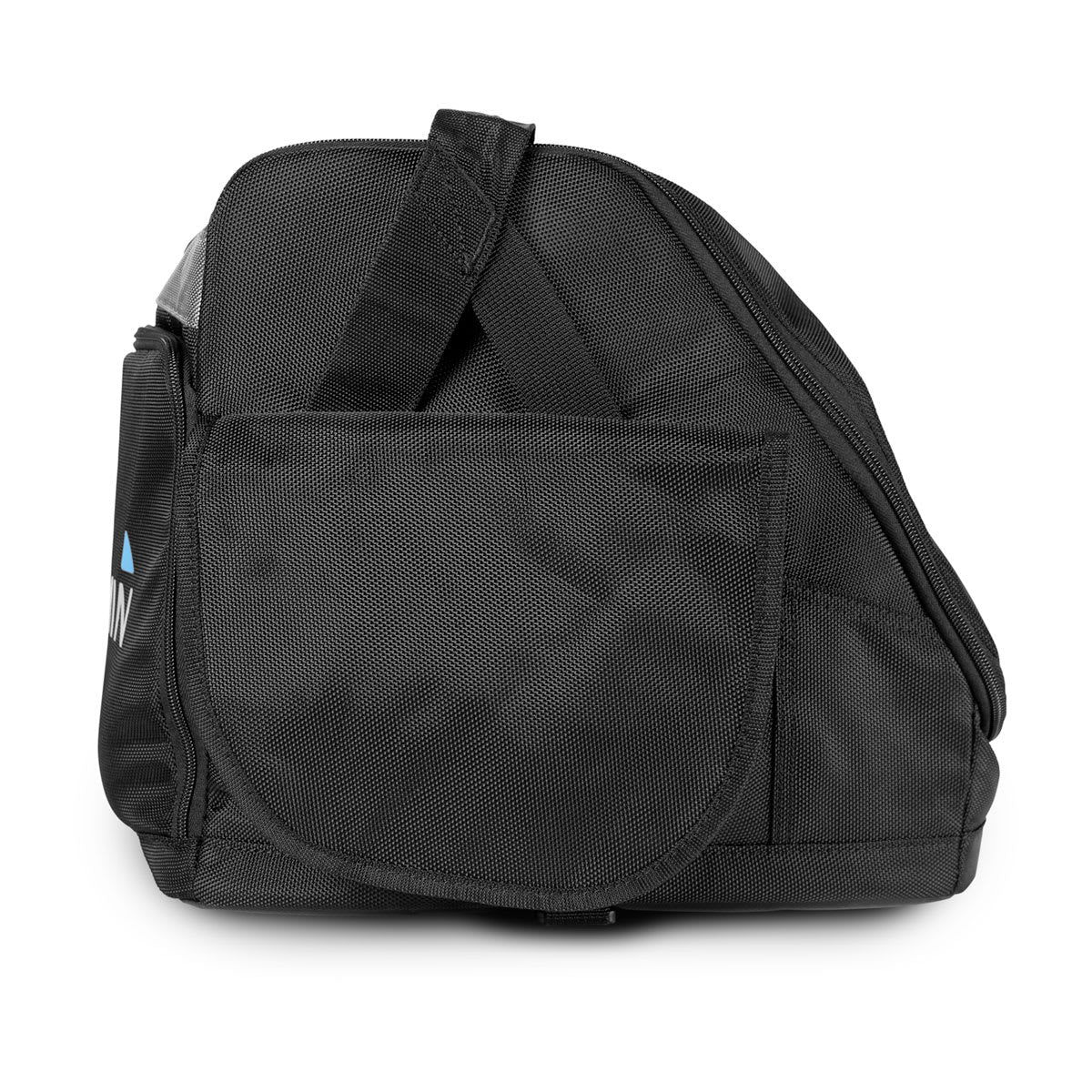

Bag size	XL
Included transducer	LiveScope™ Plus System with LVS34-IF
Transducer holding feature	Pole mount

Sensors
GPS
GLONASS
Galileo
BeiDou
Has built-in receiver
Receiver	10 Hz
NMEA 2000 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS

Built-in Maps
Built-in Auto Guidance+	yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal	yes (see Additional)
Garmin Navionics+ (Inland)	yes (see Additional)

Optional Map Support
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours

Chartplotter Features
ActiveCaptain® compatible	yes

Electrical Features
Power Input	9 to 18 Vdc

Sonar Features
Displays sonar
Power output	500 W
Traditional sonar (dual frequency/beam)	Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope

Networking & Connections
NMEA 2000® ports
Garmin Marine Network Ports	1
12-pin transducer ports	1
Bluetooth® pairing
ANT® (Connectivity)
Garmin Wi-Fi network (local connection)
