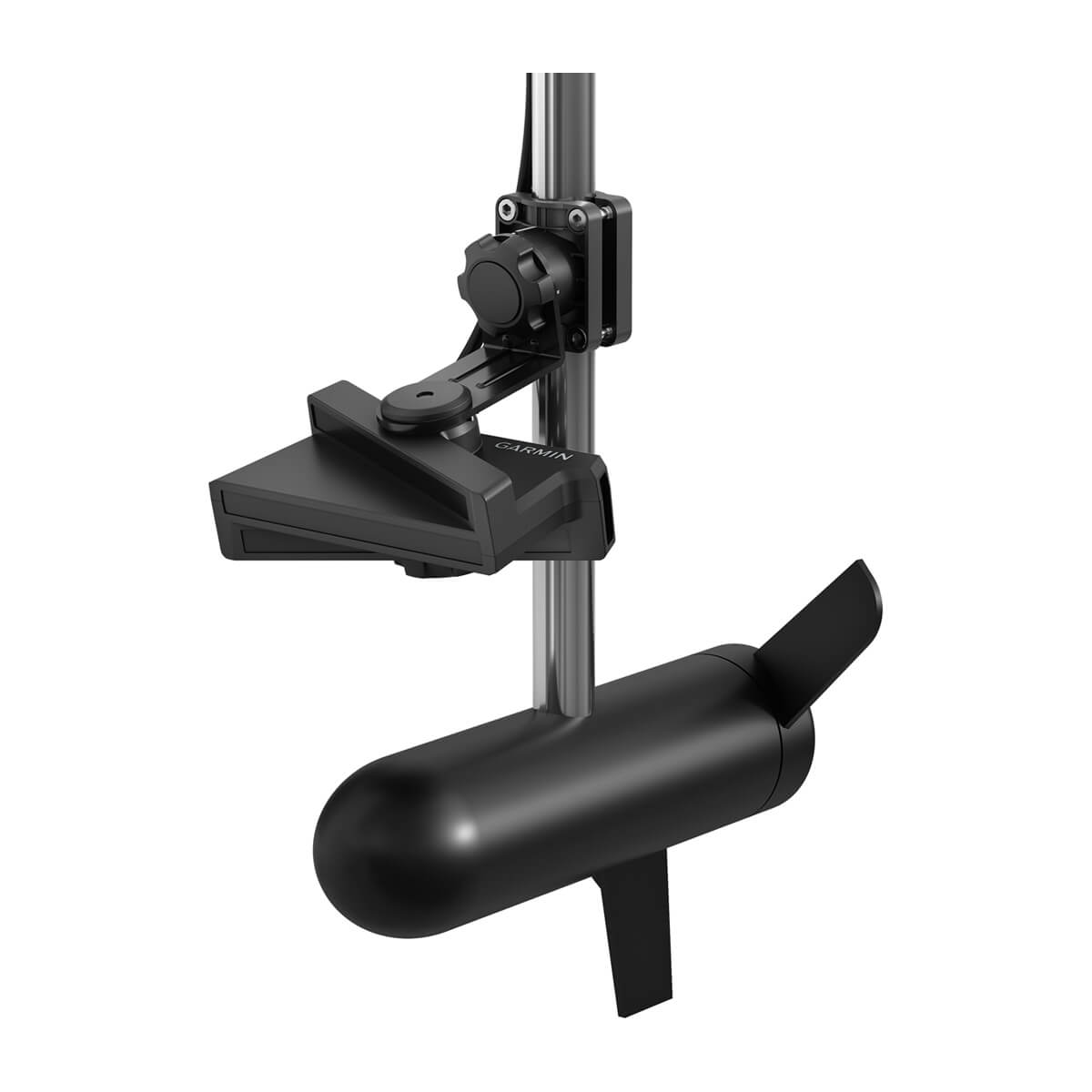

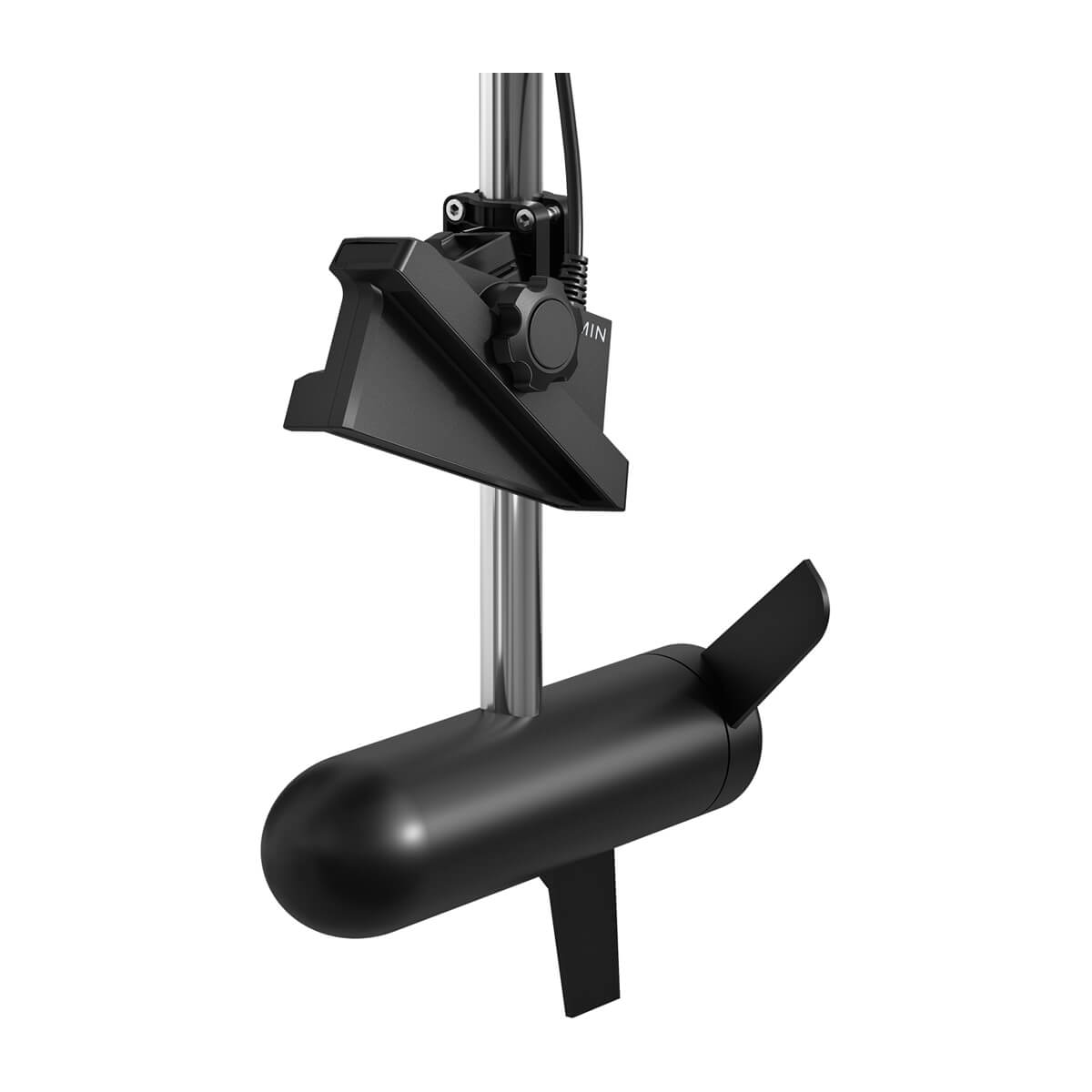

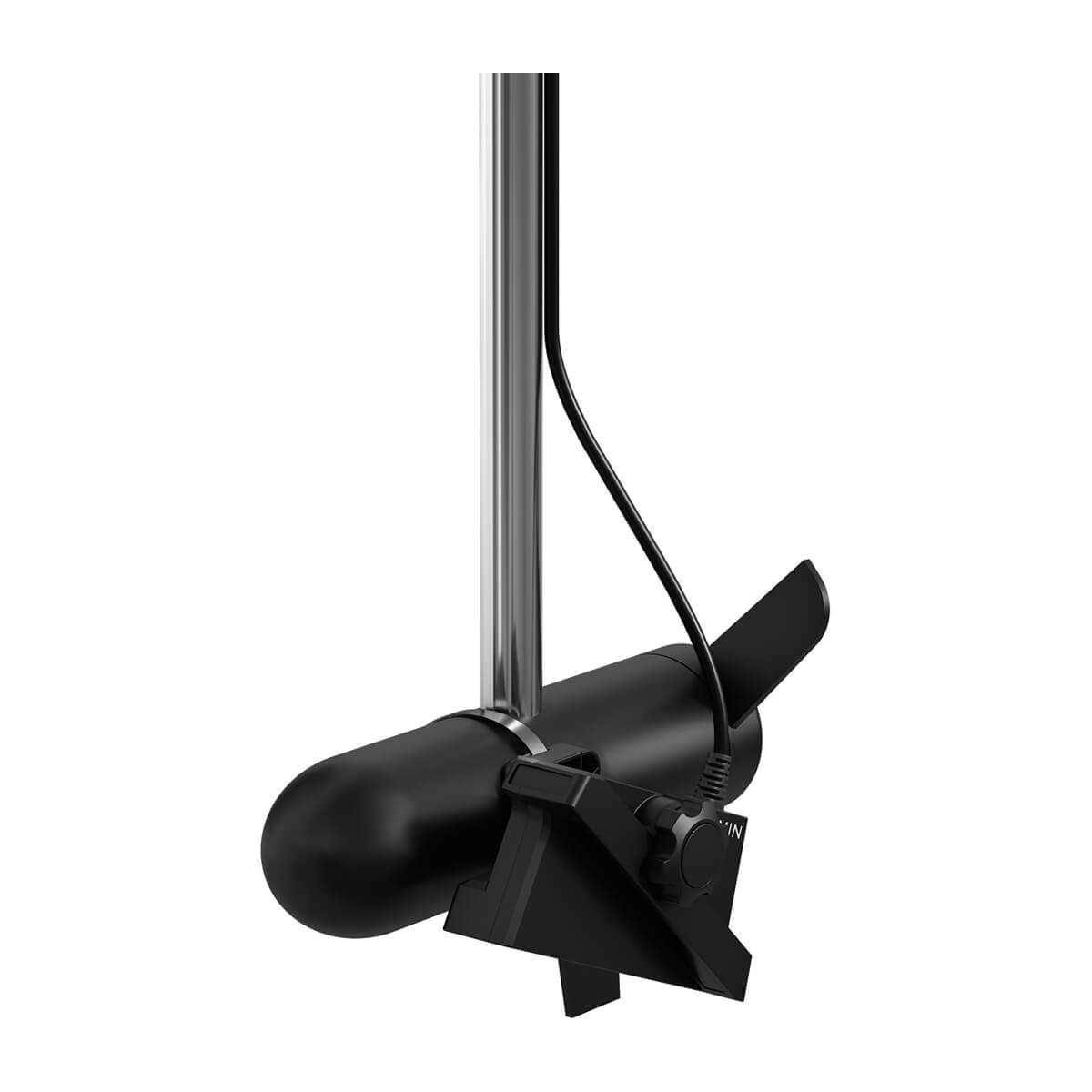

Livescope XR System is a live scanning sonar for coastal & open-water fishing with an extended range up to 500’ in freshwater & 350’ range in saltwater
General
Transducer beamwidth
20° x 135°
Transducer cable length
20 ft
Transducer number of pins
21
Dimension

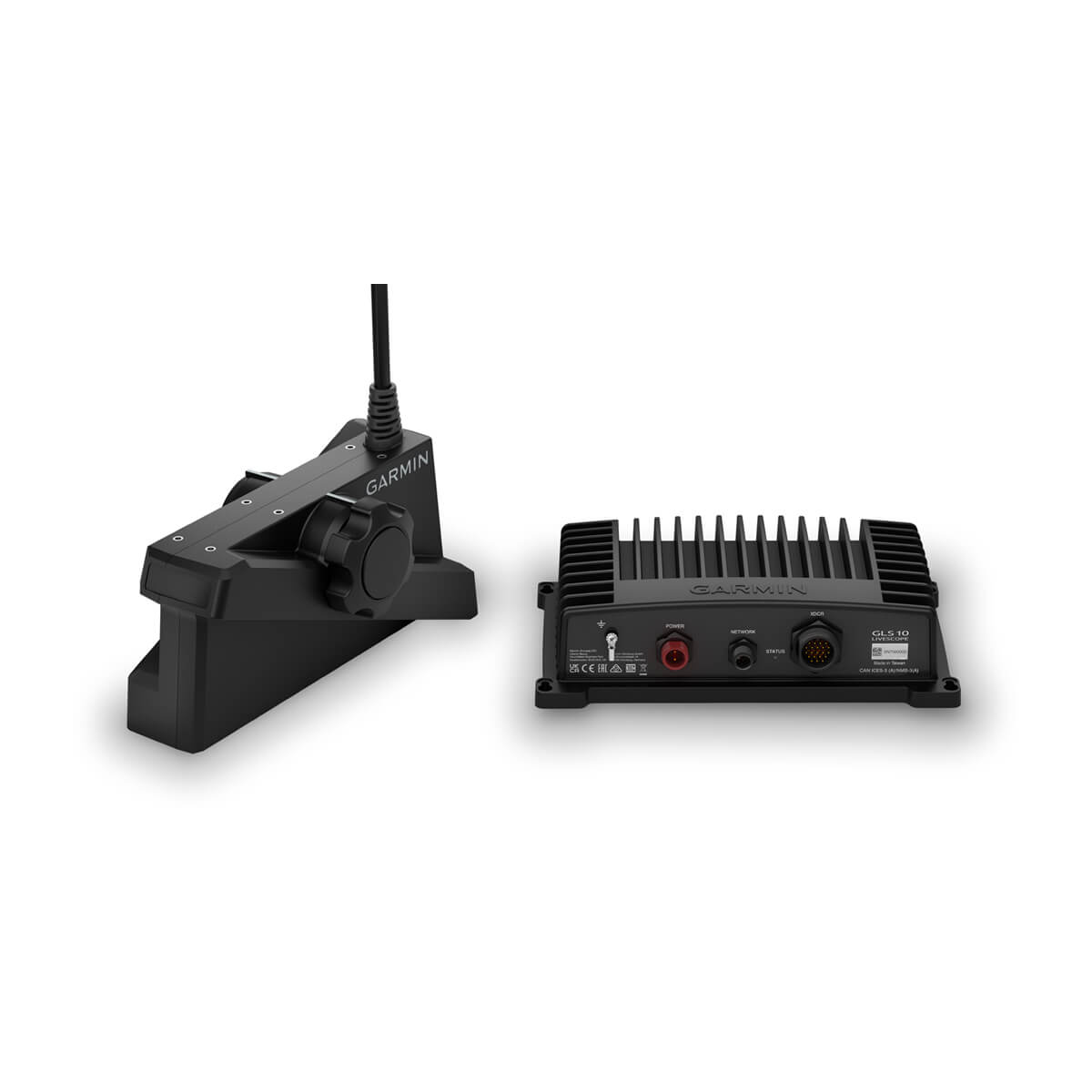

GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);
LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)
Weight
GLS 10 sonar black box: 4.3 lbs (2.0 kg) LVS62 transducer with cable: 3.92 lbs (1.78 kg) LVS62 transducer without cable: 2.66 lbs (1.21 kg)
Water rating
IPX7
Temperature range
GLS 10 Black Box: Operating: -15 C to 70 C
LVS62 Transducer: Operating: 0 C to 40 C
Electrical Features
Power input
10-32 V
Power usage
21 W typical, 58 W max
Fuse
7.5 A
Compass-safe distance
7" (0.18 m)
Sonar Features
Frequency
265 - 550 kHz
Transmit power
500 W
Maximum depth
Freshwater: Down and Forward: 500’ (152.0 m)Saltwater: Down and Forward: 350’ (106.0 m)
