• Lumishore® ECLIPSE CL30 RGB Courtesy Light with Chrome Bezel
1 1

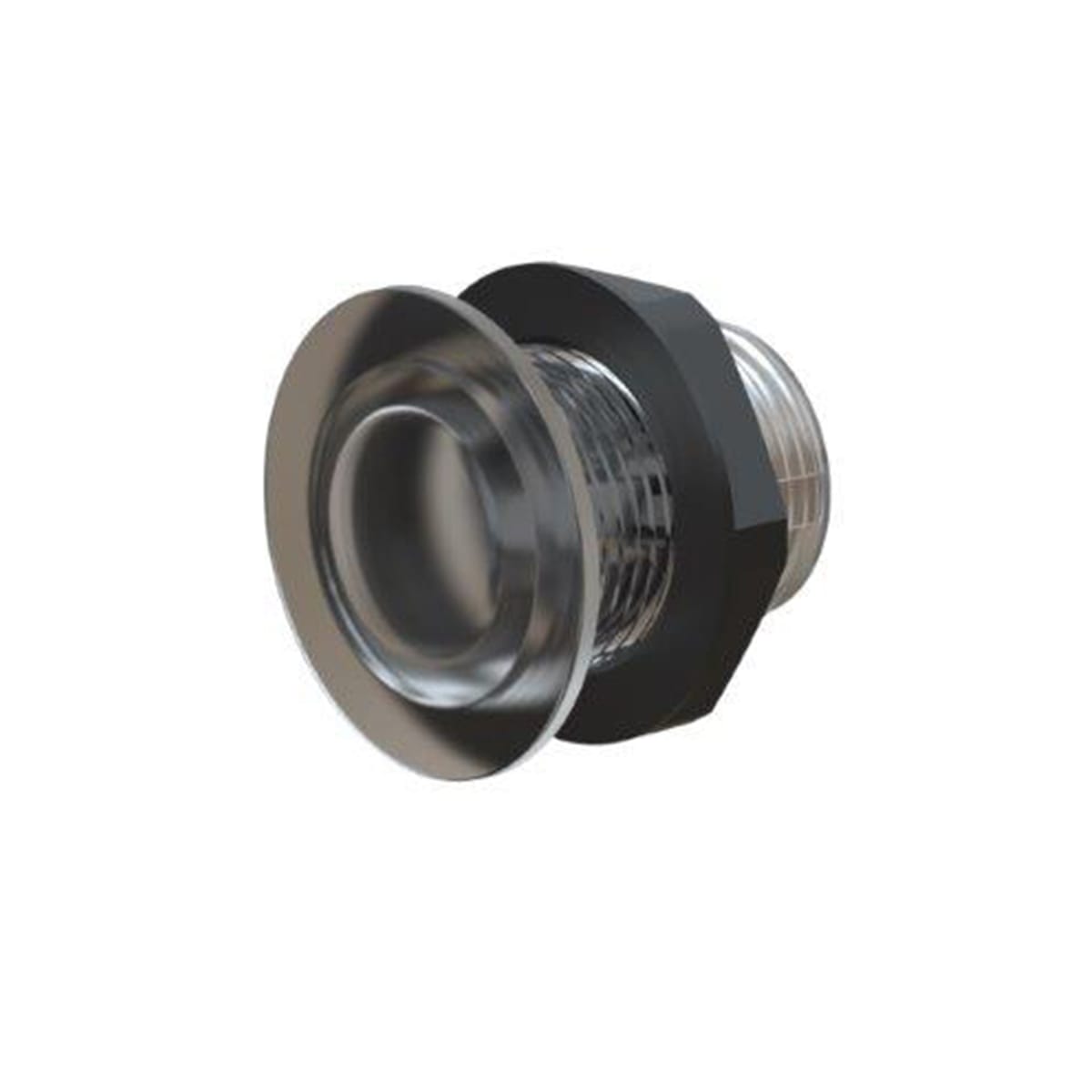

Lumishore® ECLIPSE CL30 RGB Courtesy Light with Chrome Bezel

Lumishore® ECLIPSE CL30 RGB Courtesy Light with Chrome Bezel

$17.99 USD
$59.99 USD $17.99 USD
Sale Sold out
ECLIPSE CL30 is an LED courtesy boat light ideal for walkways, stairs, and architectural details on your boat.

General
Warranty 3 years
LED colors Full spectrum RGB, Blue, Blue and White (5000 K), White (5000 K)
LED type RGB: 2 x 0.5 W Red/2 x 0.5 W Blue/2 x 0.5 W Green
Blue: 3 x 0.5 W Blue
Blue and White: 3 x 0.5 W Blue/3 x 0.5 W White
White: 3 x 0.5 W White
Beam angle ultra wide
Number of lights via direct power Not limited
Number of lights per Eclipse Comand Center/Expansion module zone 32
Electrical installation 2 wire
Operating voltage 10-15 VDC
Current consumption 12 V (max) 0.1 A
Average power draw 1.2 W
Construction Clear acrylic body, chrome fInish, stainless steel bezel (fitting bezel is optional)
Water and dust rating IP68

Control Options
Direct power via on/off switch Blue/Blue and White/White: yes
Momentary switch yes (via ECLIPSE Command Center)
Eclipse Command Center
Compatible MFD yes (via ECLIPSE Command Center)
Smart device yes (via ECLIPSE Command Center)

Mounting Dimensions
Mounting diameter clearance (with bezel) 1.77" (45 mm)
Mounting diameter clearance (without bezel) 1.3" (33 mm)
Mounting depth clearance 1.04" (26.5 mm)
Frontal protrusion (profile) 0.15" (3.8 mm)
Frontal protrusion (without bezel) 0.144" (3.66 mm)
Mounting hole 0.9" (23 mm)
Mechanical installation

Marine adhesive (not supplied)
View full details
