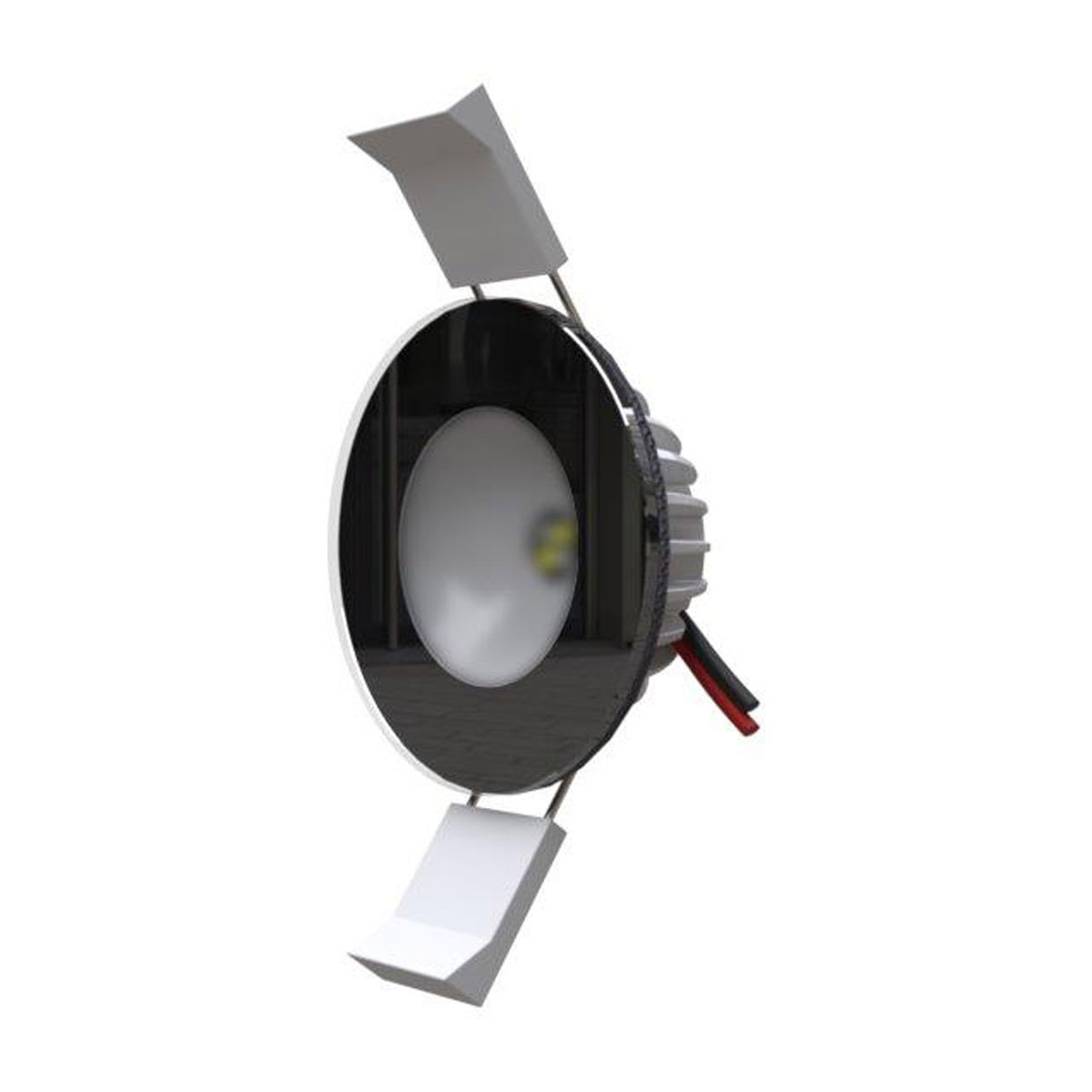

Lumishore® ECLIPSE DL55 White/RGB Downlight with Black Finish

Lumishore® ECLIPSE DL55 White/RGB Downlight with Black Finish

$44.99 USD
$149.99 USD $44.99 USD
Sale Sold out
Lumishore ECLIPSE DL55 are boat downlights available in multiple colours, and can be installed anywhere you need overhead lighting indoors or outdoors.

General
Warranty 3 years
LED colors White (5000 K) + Full spectrum RGB, Blue, Blue and White (5000 K), White (5000 K)
LED type RGB: 1 x 3 W Red, 1 x 3 W Green, 1 x 3 W Blue, 1 x 3 W White
Blue: 2 x 3 W Blue
Blue and White: 2 x 3 W Blue, 2 x 3 W White
White: 2 x 3 W White
Beam angle ultra wide
Number of lights via direct power Not limited
Number of lights per Eclipse Comand Center/Expansion module zone 16
Electrical installation 2 wire
Operating voltage 10-15 VDC
Current consumption 12 V (max) 0.4 A
Average power draw 4.8 W
Construction E-coating and powder coating
Water and dust rating IP68

Control Options
Direct power via on/off switch
Momentary switch yes (via ECLIPSE Command Center)
Eclipse Command Center
Compatible MFD yes (via ECLIPSE Command Center)
Smart device yes (via ECLIPSE Command Center)

Mounting Dimensions
Mounting diameter clearance (with bezel) 2.52" (64 mm)
Mounting depth clearance 0.83" (21.2 mm)
Frontal protrusion (profile) 0.137" (3.5 mm)
Mounting hole 2" (50.8 mm)
Mechanical installation

Internal location: Stainless steel spring clips

External location: Marine adhesive (not supplied)
