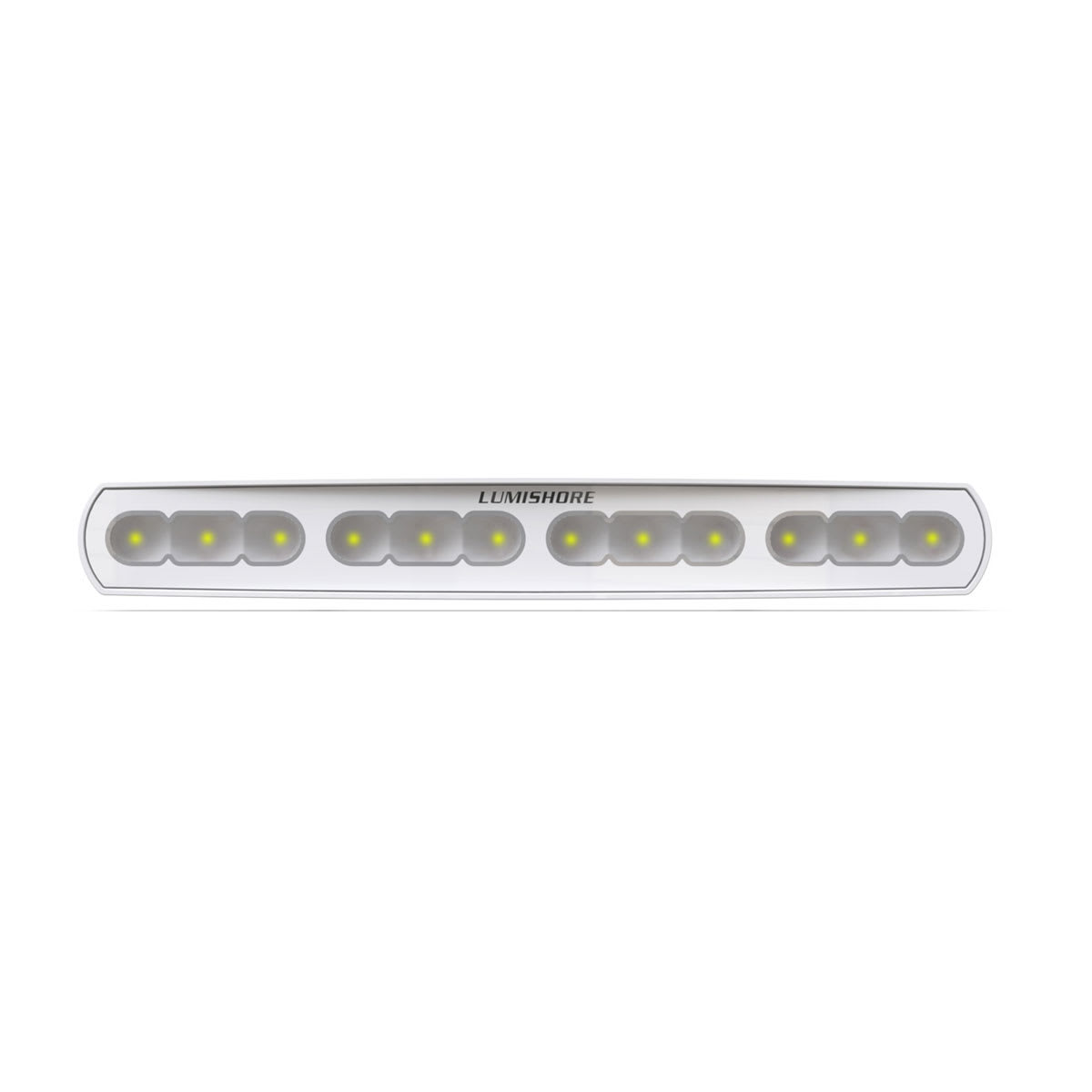

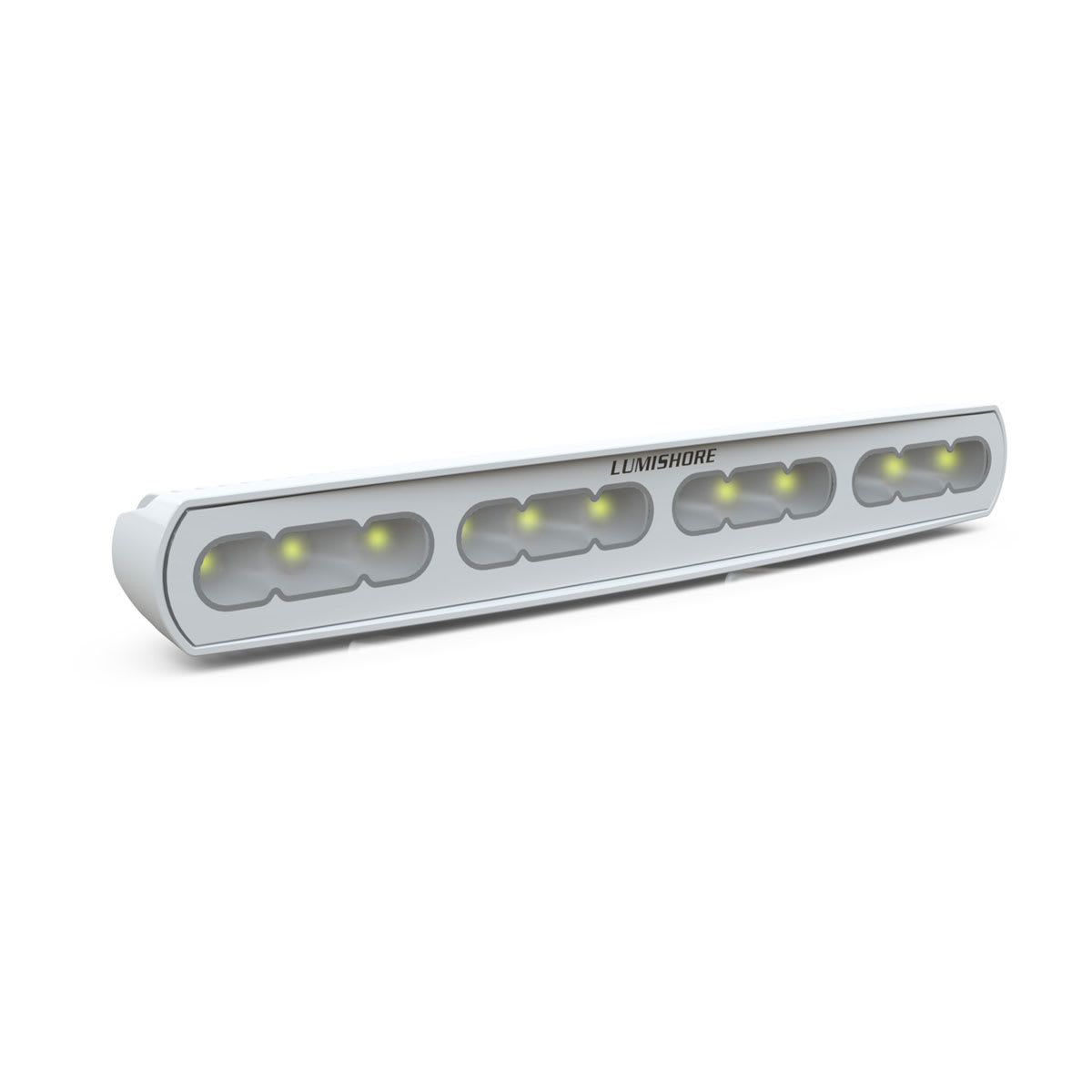

Lumishore® ECLIPSE Flood Light White 18\"

Lumishore® ECLIPSE Flood Light White 18\"

$117.99 USD
$391.00 USD $117.99 USD
Sale Sold out
ECLIPSE Flood Light is a powerful boat floodlight that is ideal for deck, cockpit, or general security lighting.

General
Warranty 3 years
LED colors White (5000 K)
LED type 4": 3 x 10 W White
18": 12 x 10 W White
Fixture lumens 4": 1,500
18": 10,000
Beam angle 70°-90° oval beam
Number of lights via direct power Not limited
Number of lights per Eclipse Comand Center/Expansion module zone 16 max. More than one light-Vin and Gnd are supplied separately to Command Center/Expansion Module
Number of lights per LUX light control module 16 maximum
Electrical installation 2 wire connection (3 wires when used with ECLIPSE Command Center or LUX Control Module)
Operating voltage 10.5-31 VDC
Current consumption 12 V (max) 4": 1.7 A
18": 9.2 A
Current consumption 24 V (max) 4": 0.9 A
18": 4.6 A
Average power draw 4": 22 W
18": 110 W
Construction Powder coated aluminum body with forsted lens
Water and dust rating IP68

Control Options
Direct power via on/off switch
Momentary switch yes (via ECLIPSE Command Center OR LUX Control Module)
Eclipse Command Center
EOS-LUX Command Center
Compatible MFD yes (via ECLIPSE Command Center or EOS-LUX Command Center)
Smart device yes (via ECLIPSE Command Center or EOS-LUX Command Center)
EOS-LUX-SUPRA Display yes (via EOS-LUX Command Center)

Mounting Dimensions
Mounting diameter clearance (with bezel) 4" (flush fit): 1.89" x 4.89" (48 mm x 124 mm)
Mounting depth clearance 4" (flush fit): 1.42" (36 mm)
Frontal protrusion (profile) 4" (flush fit): 0.34" (9 mm)
Mounting hole 4" (flush fit): 1.52" x 4.1" (38.6 mm x 104 mm)
Dimensions (width) 4" (flush fit): 4.89" (124 mm)
4": 4.21" (107 mm)
18": 15.5" (394 mm)
Dimensions (depth) 4" (flush fit): 1.76" (45 mm)
4": 2.2" (55.8 mm)
18": 2.68" (68 mm)
Dimensions (height) 4" (flush fit): 1.89" (48 mm)
4": 1.77" (45 mm)
18": 2.08" (53 mm)
Mechanical installation 4" (flush fit): Marine sealant and screws (not supplied)
4"/18": Stainless steel fixing brackets (supplied)
