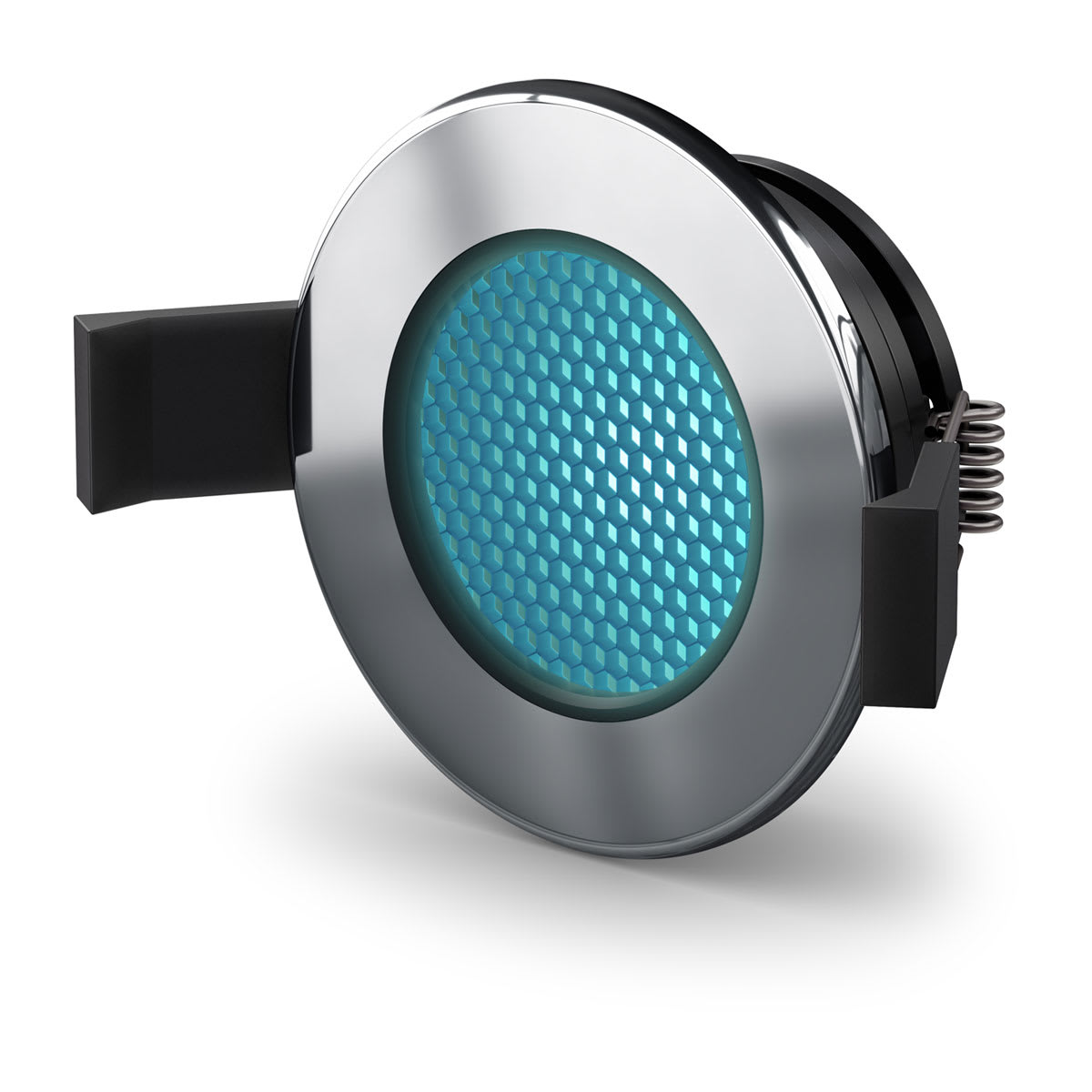

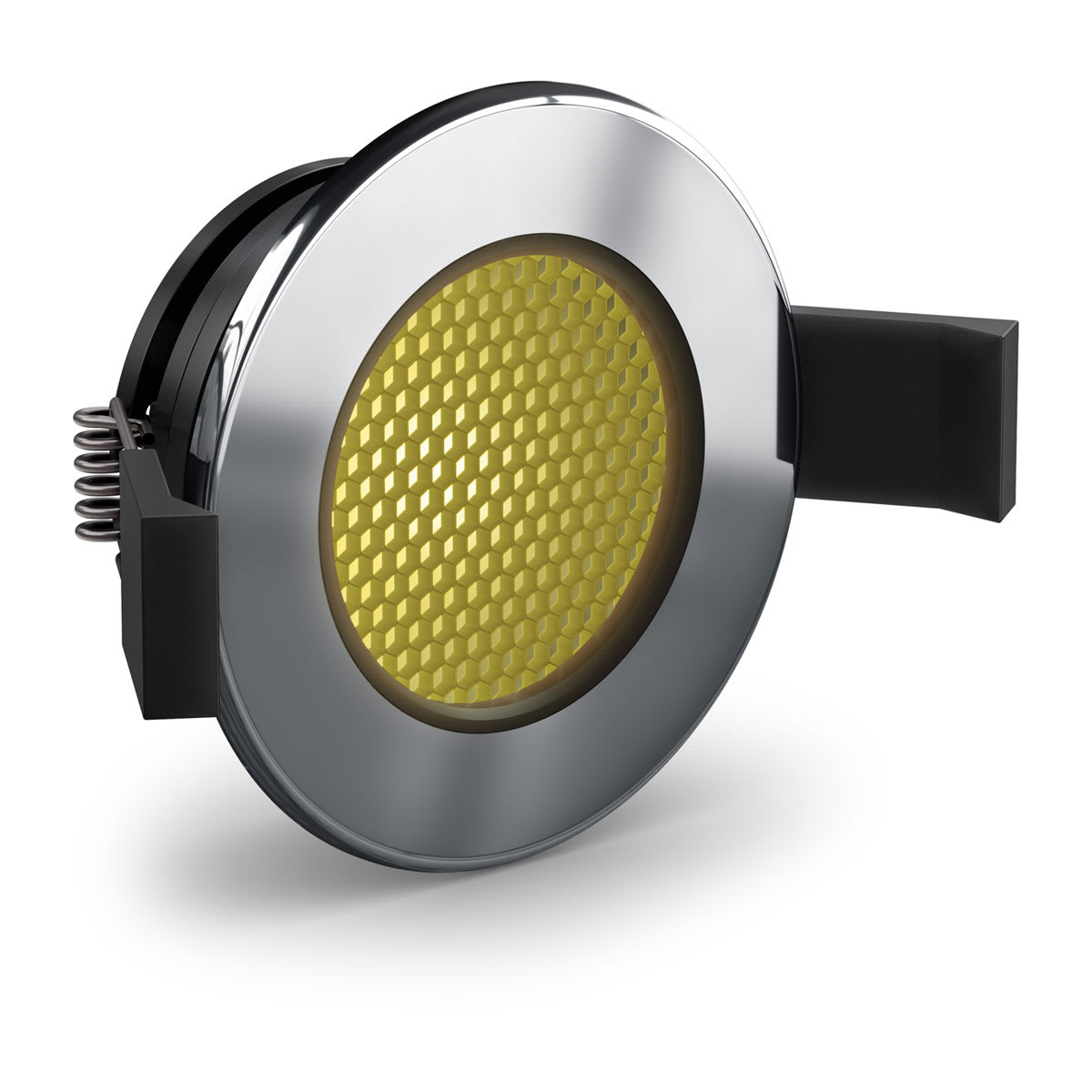

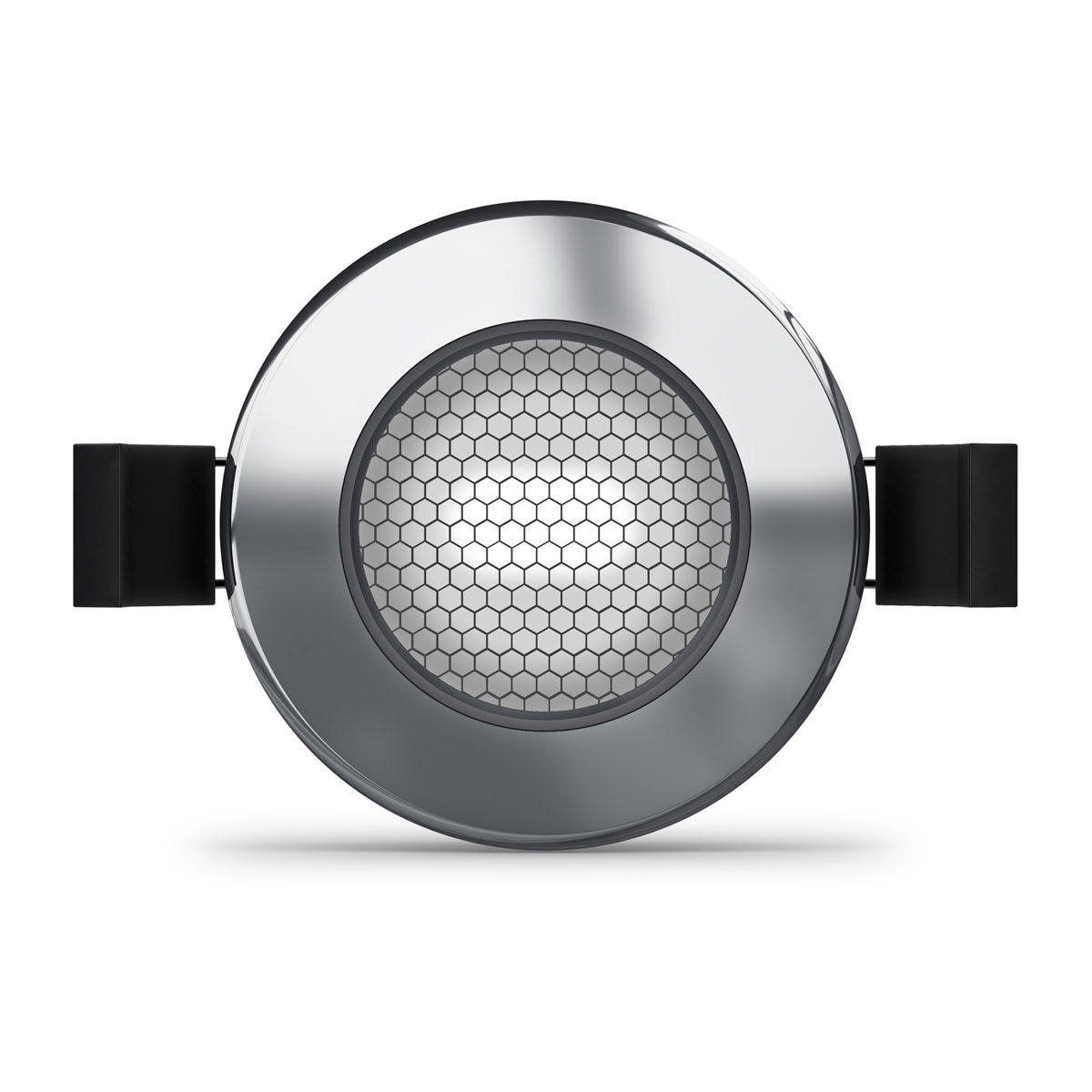

Lumishore® LUX DL65 CRGBW Anti-glare Downlight, Chrome Bezel

Lumishore® LUX DL65 CRGBW Anti-glare Downlight, Chrome Bezel

$74.99 USD
$249.99 USD $74.99 USD
Sale Sold out
LUX DL65 are full-color boat downlights that deliver powerful, dimmable CRGBW illumination for any onboard space, indoors or outdoors.

General
Warranty 3 years
LED colors CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture
LED type 2 x 3 W Red
2 x 3 W Green
2 x 3 W Blue
2 x 3 W Cold White
2 x 3 W Warm White
Beam angle ultra wide (standard), anti-glare (wide)
Number of lights per LUX light control module 16 maximum
Electrical installation 3 wire
Operating voltage 10.5-31 VDC (via LUX Control Module)
Current consumption 12 V (max) 0.6 A
Current consumption 24 V (max) 0.3 A
Average power draw 7.2 W
Construction Stainless steel bezel with hard anodized aluminum body
Water and dust rating IP68 (standard), IP65 (anti-glare)

Control Options
Momentary switch yes (via LUX Control Module)
EOS-LUX Command Center
Compatible MFD yes (via EOS-LUX Command Center)
Smart device yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA Display yes (via EOS-LUX Command Center)

Mounting Dimensions
Mounting diameter clearance (with bezel) 3.23" (82 mm)
Mounting depth clearance 1.19" (30 mm)
Frontal protrusion (profile) 0.13" (3 mm)
Mounting hole 2.56" (65 mm)
Mechanical installation

Internal location: Stainless steel spring clips

External location (not applicable to anti-glare): Marine adhesive (not supplied)
