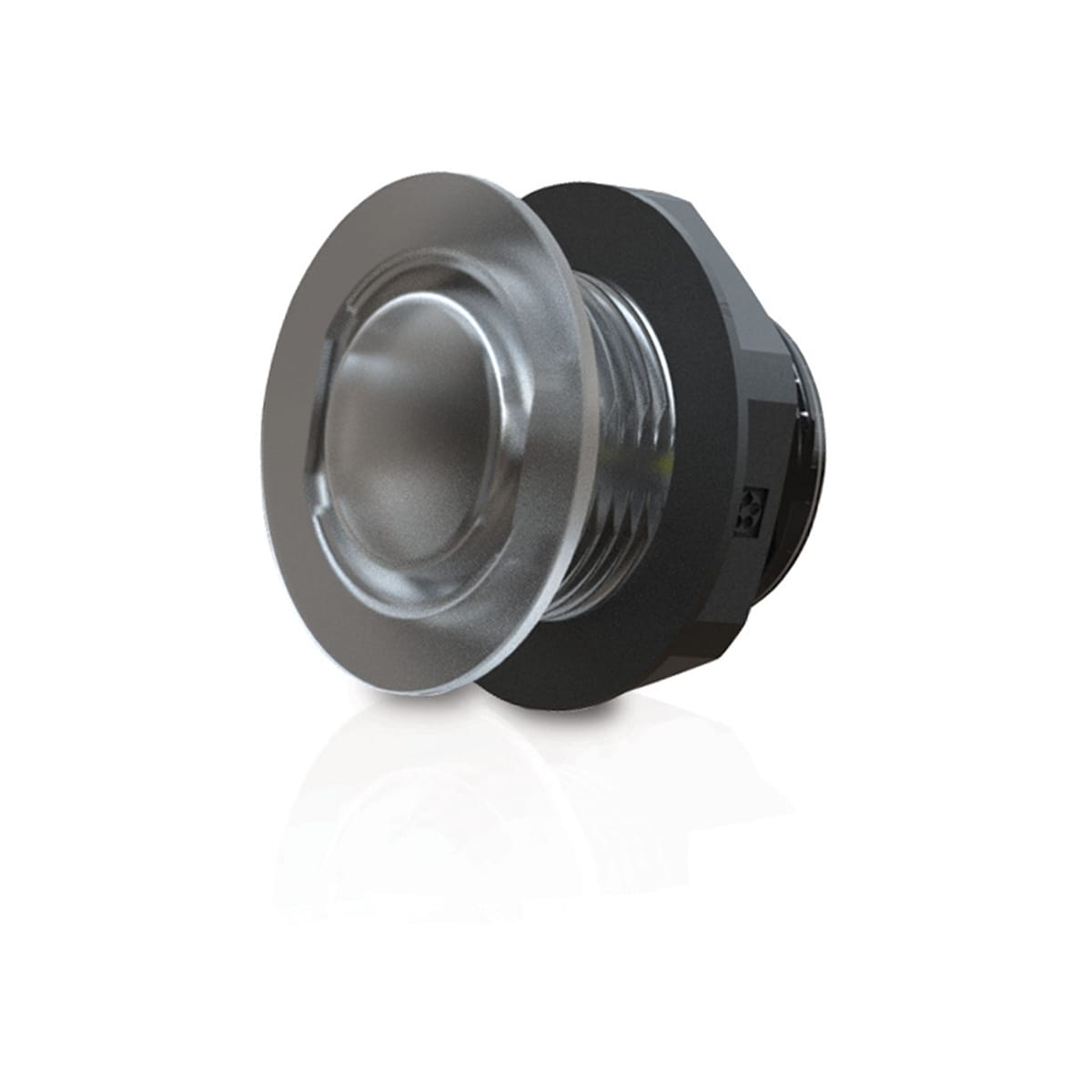

• Lumishore® LUX LW25 Lumishore® LUX LW25
1 1

Lumishore® LUX LW25 Lumishore® LUX LW25

Lumishore® LUX LW25 Lumishore® LUX LW25

$35.99 USD
$119.99 USD $35.99 USD
Sale Sold out
Built for challenging marine environments — such as livewells, fish boxes and splash wells — LW25 can provide light on board or underwater where an internal screw thread or locking nut is available.

General
Warranty 3 years
LED colors CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture
LED type 3 x 0.5 W Red
3 x 0.5 W Green
3 x 0.5 W Blue
3 x 0.5 W Cold White
3 x 0.5 W Warm White
Beam angle ultra wide
Number of lights per LUX light control module 16 maximum
Electrical installation 3 wire
Operating voltage 10.5-31 VDC (via LUX Control Module)
Current consumption 12 V (max) 0.1 A
Current consumption 24 V (max) 0.05 A
Average power draw 1.2 W
Construction Clear acrylic body, chrome fInish, stainless steel bezel (fitting bezel is optional)
Water and dust rating IP68

Control Options
Momentary switch yes (via LUX Control Module)
EOS-LUX Command Center
Compatible MFD yes (via EOS-LUX Command Center)
Smart device yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA Display yes (via EOS-LUX Command Center)

Mounting Dimensions
Mounting diameter clearance (with bezel) 1.97" (50 mm)
Mounting diameter clearance (without bezel) 1.42" (36 mm)
Mounting depth clearance 1.18" (30 mm)
Frontal protrusion (profile) 0.21" (5.4 mm)
Frontal protrusion (without bezel) 0.14" (3.5 mm)
Mounting hole 1" (25 mm)
Mechanical installation

Marine adhesive (not supplied)
