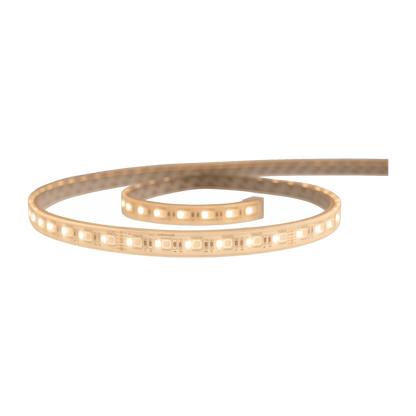

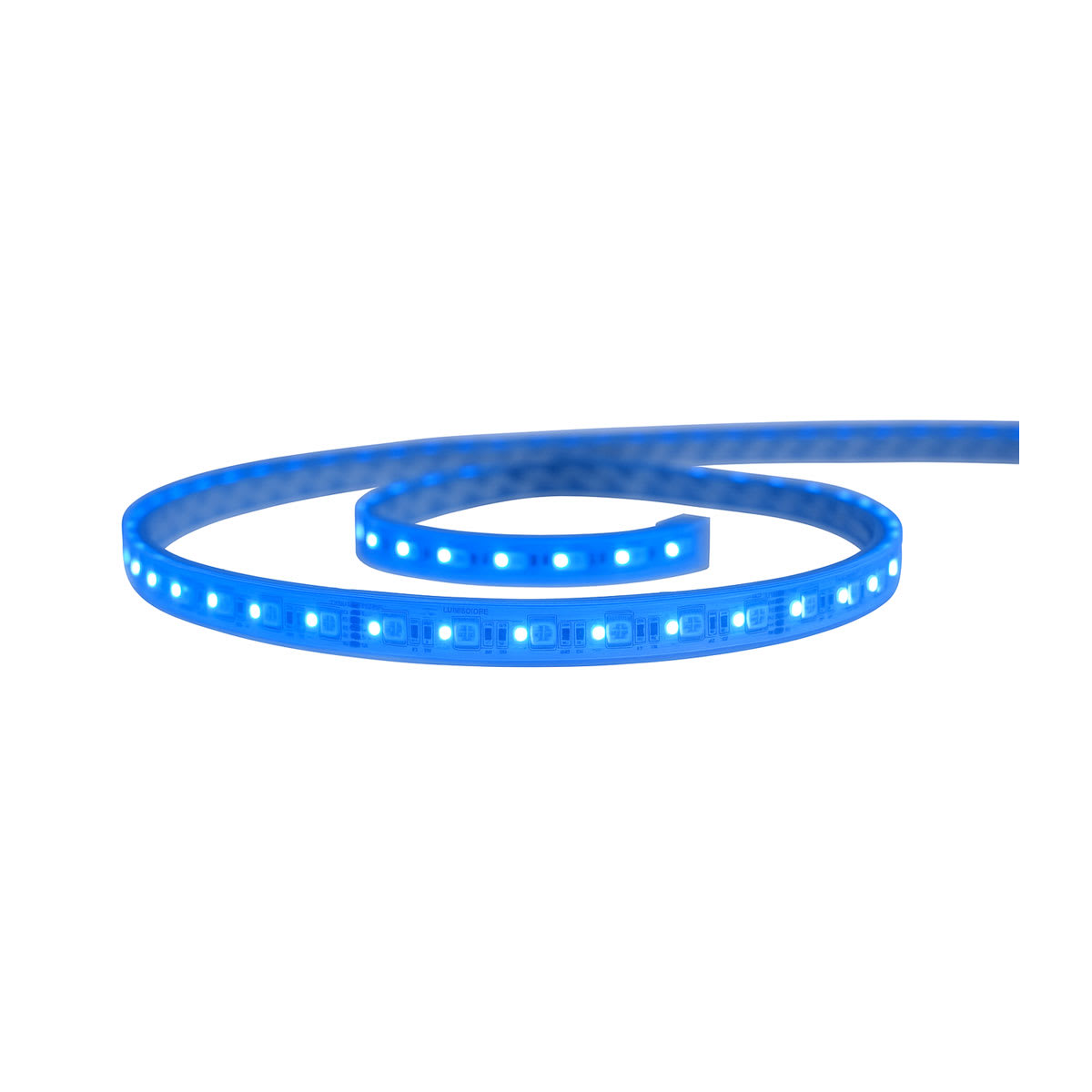

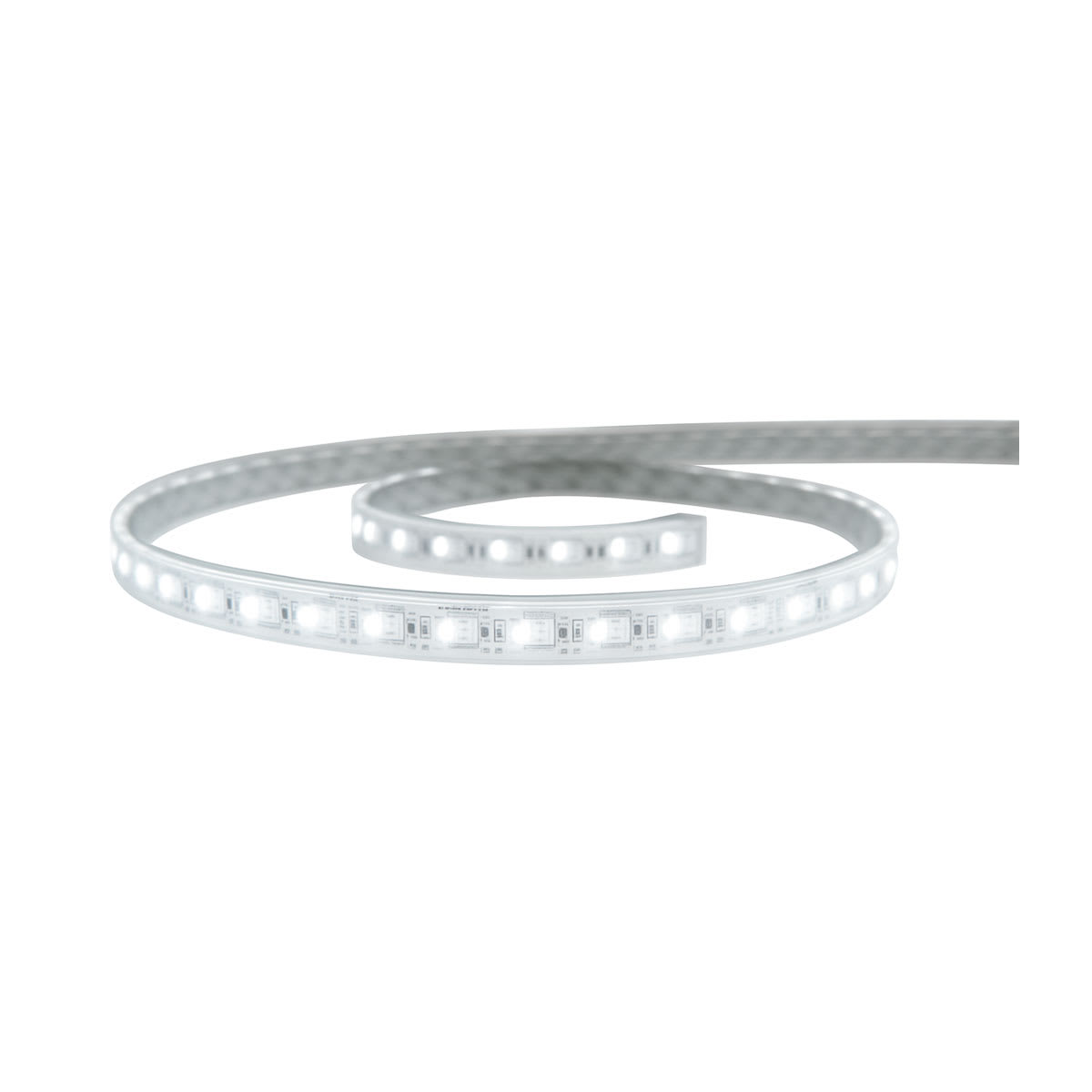

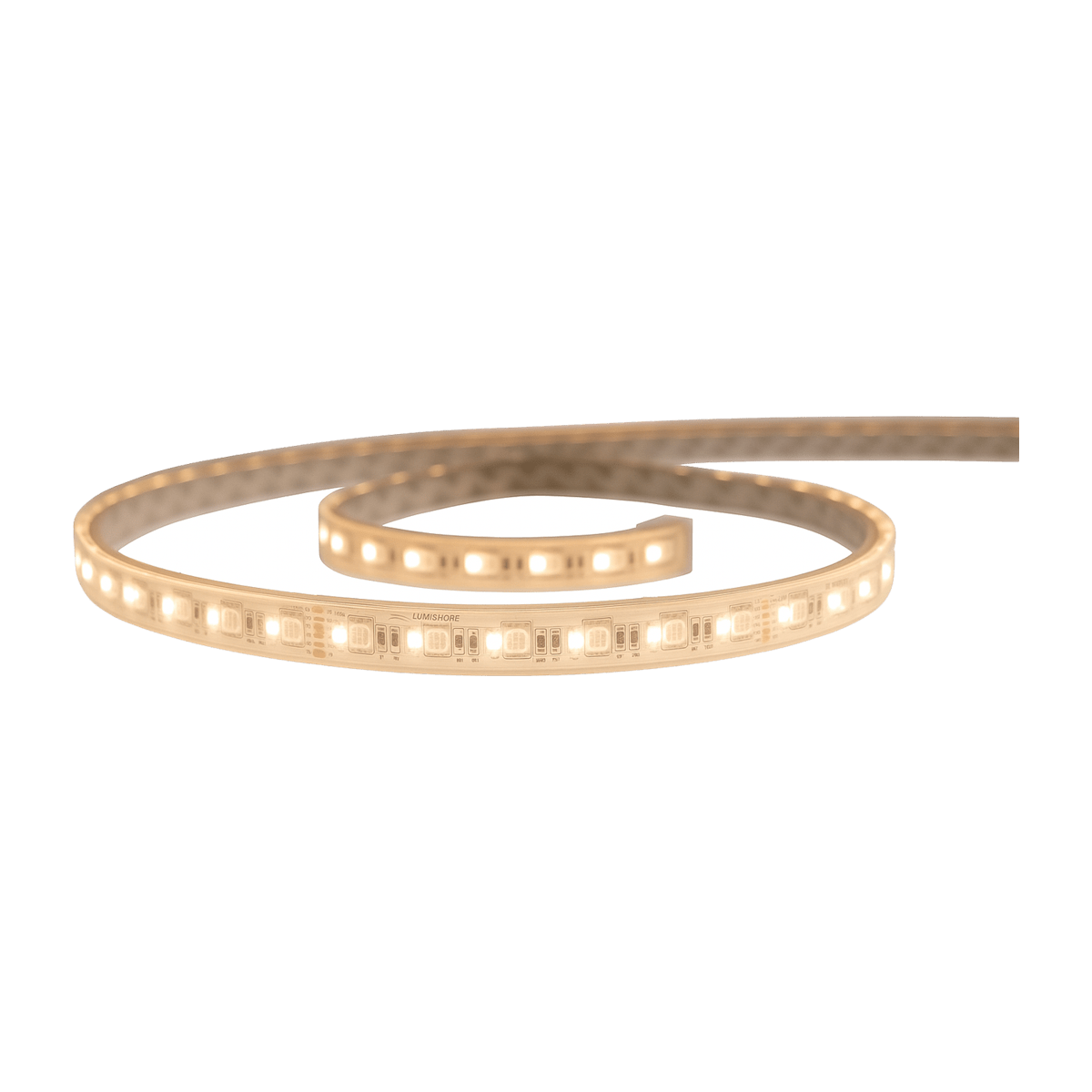

These strip lights deliver vivid, tunable CRGBW illumination and can be seamlessly integrated into gunwales, under furniture and behind ceiling panels for extra mood lighting while remaining mostly hidden.
General
Warranty
3 years
LED colors
CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture
LED type
60 CRGBW/m
Length of strip per strip driver
up to 10 m total
Electrical installation
Plug and play
Operating voltage
10.5-31 VDC (via LUX Control Module)
Current consumption 12 V (max)
0.6 A/m (via Strip Driver)
Current consumption 24 V (max)
0.36 A/m (via Strip Driver)
Average power draw
8.7 W/m
Construction
Fully encapsulated and potted
Water and dust rating
IP68
Control Options
Momentary switch
yes (via Strip Driver)
EOS-LUX Command Center
Compatible MFD
yes (via EOS-LUX Command Center)
Smart device
yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA Display
yes (via EOS-LUX Command Center)
Mounting Dimensions
Dimensions (depth)
0.197" (5 mm)
Dimensions (height)
0.571" (14.5 mm)
Mechanical installation
Mount with adhesive strips, screw clips (supplied) or stainless steel clips (optional)
