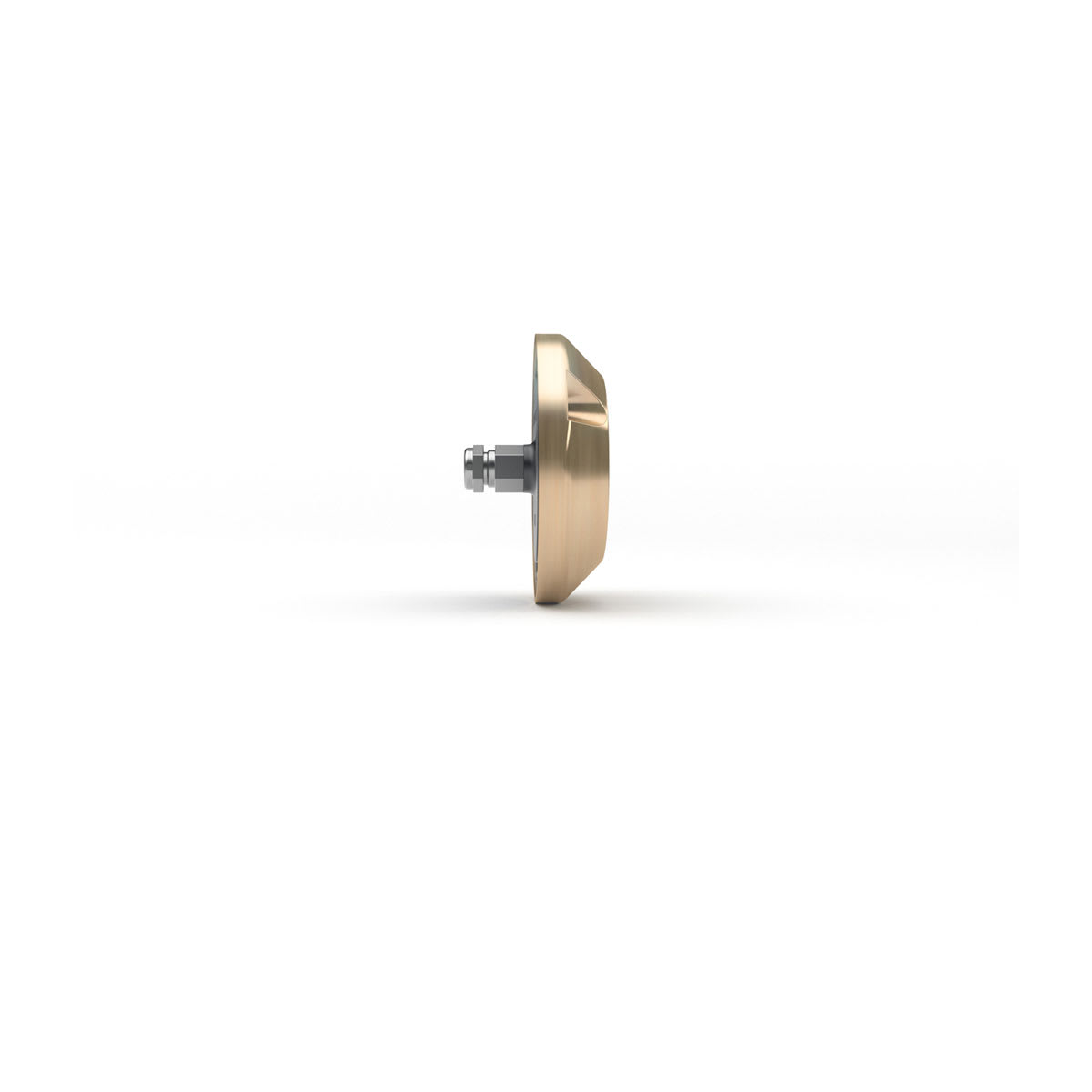

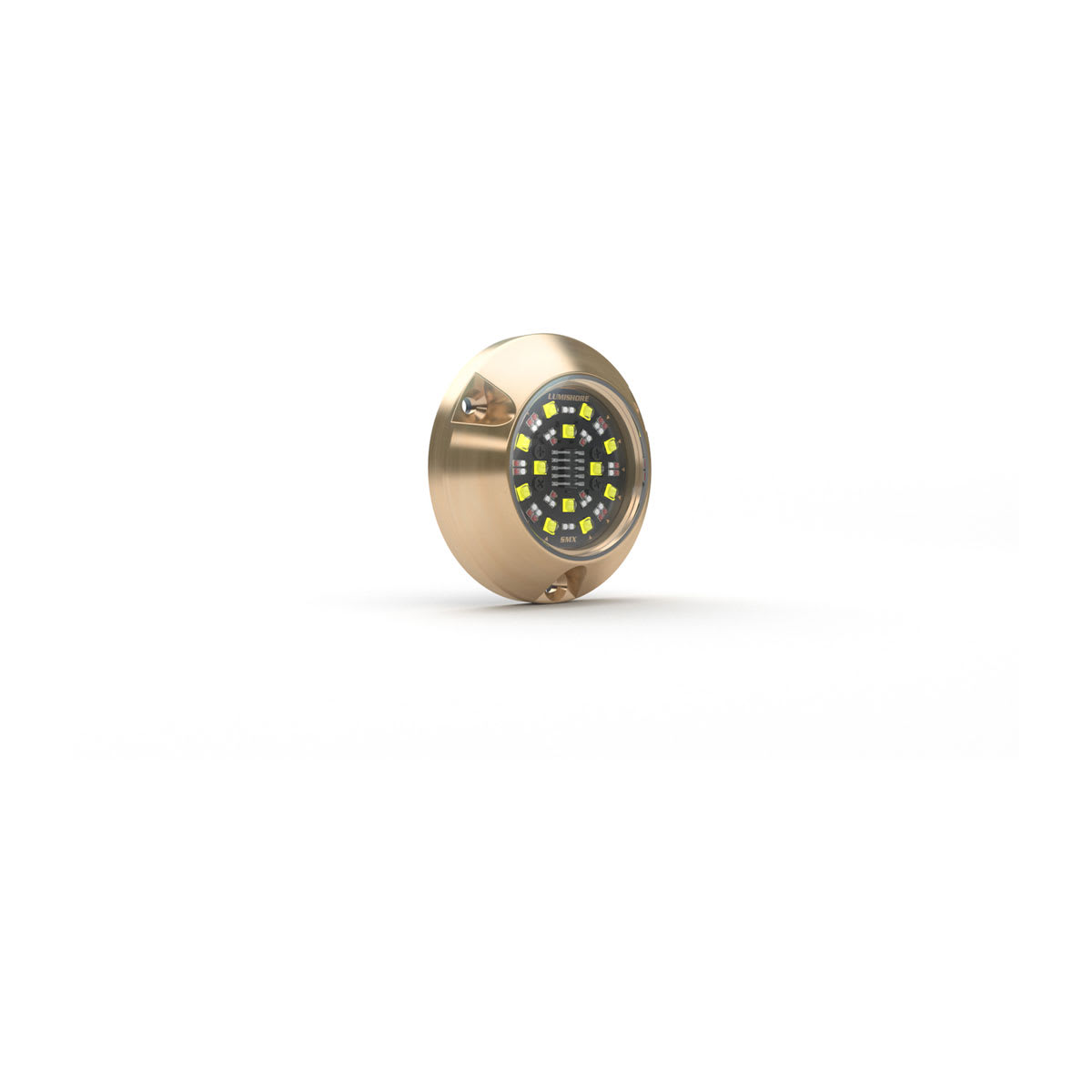

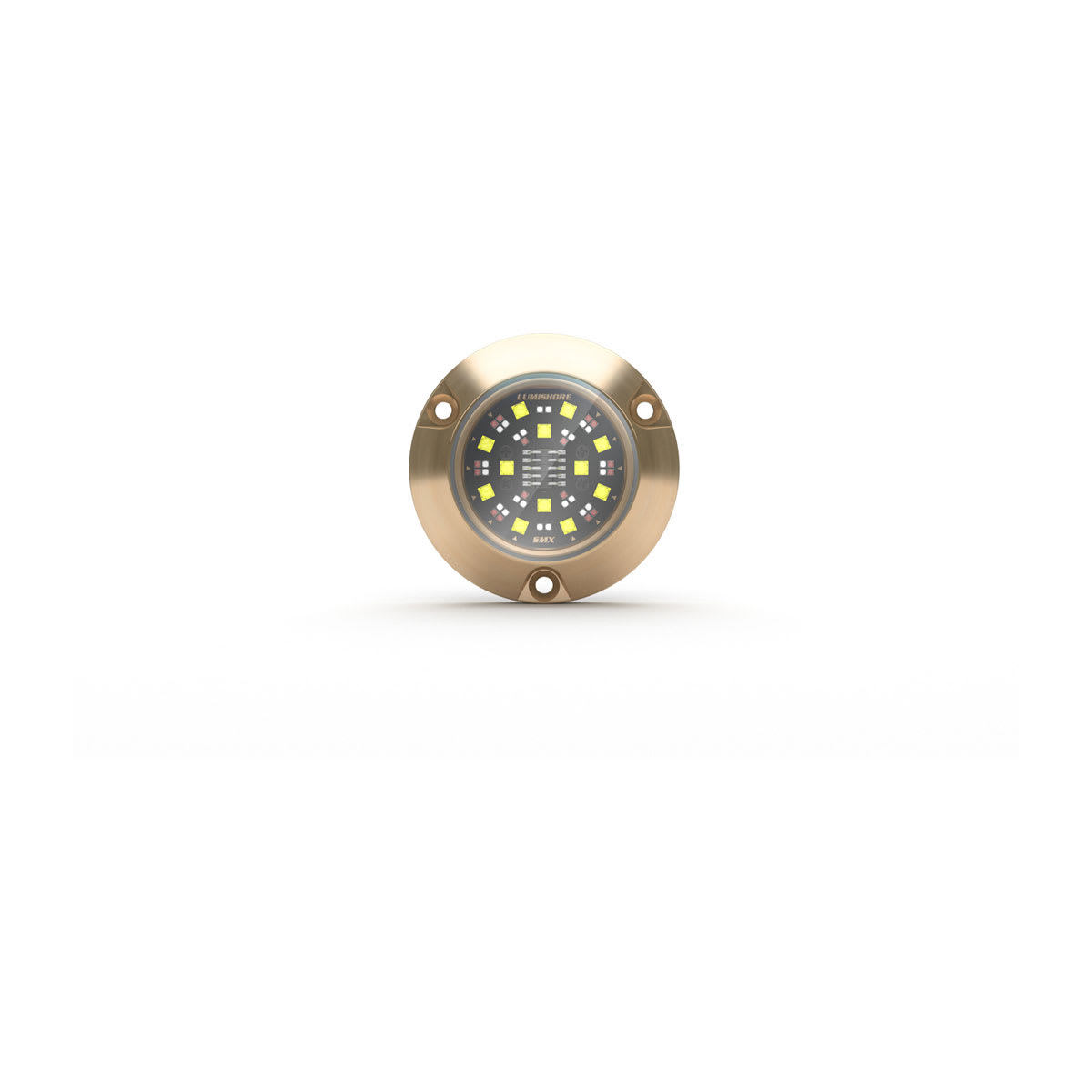

Lumishore® SMX154 Underwater Surface Mount RGBW Full Color Light

Lumishore® SMX154 Underwater Surface Mount RGBW Full Color Light

$110.99 USD
$367.00 USD $110.99 USD
Sale Sold out
SMX154 Underwater Surface Mount are coloured boat lights, with 7000 fixture lumens, simple installation, and marine-grade construction.

General
Warranty 3 years
LED colors White (6500K) + Full spectrum RGB
LED type 16 x 3 W Red/12 x 3 W Green/12 x 3 W Blue/12 x 10 W White
Fixture lumens 7,000
Beam angle 90°
Electrical installation Plug and play
Operating voltage 12 V/24 V
Operating voltage range 10.5-31 VDC
Current consumption 12 V (max) 4 A
Current consumption 24 V (max) 2 A
Average power draw 48 W
Construction Marine bronze body with Borosilicate glass lens
Water and dust rating IP68

Control Options
Momentary switch yes (via EOS-LUX Command Center)
EOS-LUX Command Center
Hub required yes (EOS i-Connect Hub)
Compatible MFD yes (via EOS-LUX Command Center)
Smart device yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA Display yes (via EOS-LUX Command Center)

Lighting Functionality
Applicable Controllers/Hubs

EOS-LUX Command Center/EOS i-Connect Hub
External DMX/RDM yes (EOS i-Connect Hub)

Mounting Dimensions
Mounting diameter clearance (with bezel) 3.7" (94 mm)
Frontal protrusion (profile) 0.7" (18 mm)
Mounting hole 0.53" (13.5 mm)
Dimensions (width) 3.7" (94 mm)
Dimensions (depth) 0.7" (18 mm)
Dimensions (height) 3.7" (94 mm)
Mechanical installation

Three marine bronze screws (included). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately).
