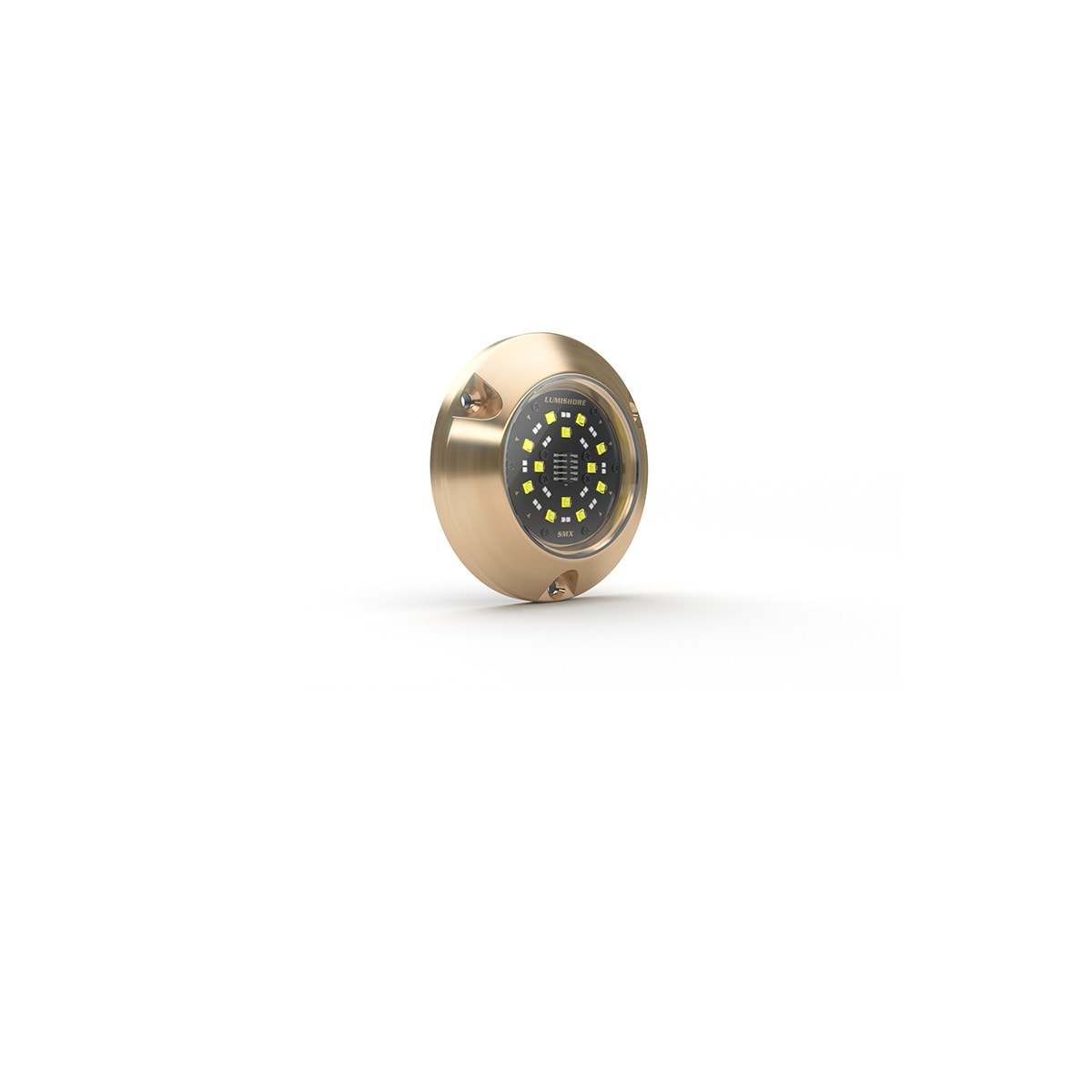

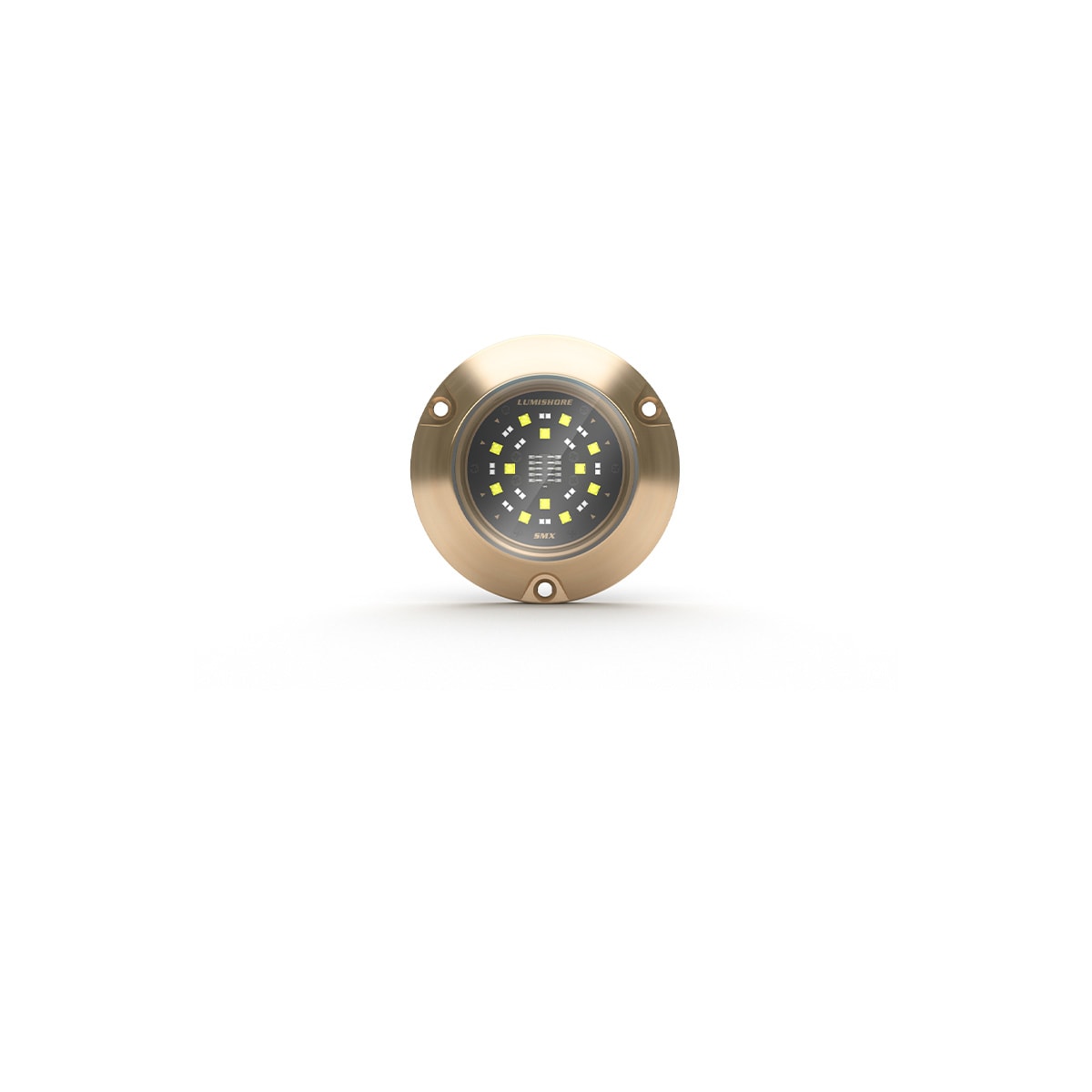

Lumishore® SMX54 Underwater Surface Mount Blue/White Dual Light

Lumishore® SMX54 Underwater Surface Mount Blue/White Dual Light

$119.99 USD
$397.00 USD $119.99 USD
Sale Sold out
Bring your boat to life after dark with these underwater surface-mount lights.

General
Warranty 3 years
LED colors Dual Color: Blue and White (6500K)
LED type 24 x 3 W Blue/12 x 5 W White
Fixture lumens 7,500
Beam angle 90°
Number of lights per Eclipse Comand Center/Expansion module zone Up to two powered through ECLIPSE Command Center; up to 16 powered directly from vessel
Electrical installation Simple 2 wire connection or SUPRA i-Connect Hub with Switch or ECLIPSE Command Center
Operating voltage 12 V/24 V
Operating voltage range 10.5-31 VDC
Current consumption 12 V (max) 5.9 A
Current consumption 24 V (max) 2.8 A
Average power draw 71 W
Construction Marine bronze body with Borosilicate glass lens
Water and dust rating IP68

Control Options
Direct power via on/off switch
Momentary switch yes (via ECLIPSE Command Center or SUPRA Hub or via SUPRA Bridge with SUPRA Hub)
Eclipse Command Center
SUPRA Bridge
SUPRA i-Connect Hub
Hub required optional (SUPRA i-Connect Hub)
Compatible MFD yes (via ECLIPSE Command Center or via SUPRA Bridge with SUPRA Hub)
Smart device yes (via ECLIPSE Command Center)
EOS-LUX-SUPRA Display yes (via Supra Bridge with SUPRA Hub)

Lighting Functionality
Functionality with direct power Startup in white; power cycle to change to blue, strobe modes, fade modes
Applicable Controllers/Hubs

Direct Power/SUPRA i-Connect Hub/SUPRA Bridge

Mounting Dimensions
Mounting diameter clearance (with bezel) 3.7" (94 mm)
Frontal protrusion (profile) 0.7" (18 mm)
Mounting hole 0.53" (13.5 mm)
Dimensions (width) 3.7" (94 mm)
Dimensions (depth) 0.7" (18 mm)
Dimensions (height) 3.7" (94 mm)
Mechanical installation

Three marine bronze screws (included). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately).
