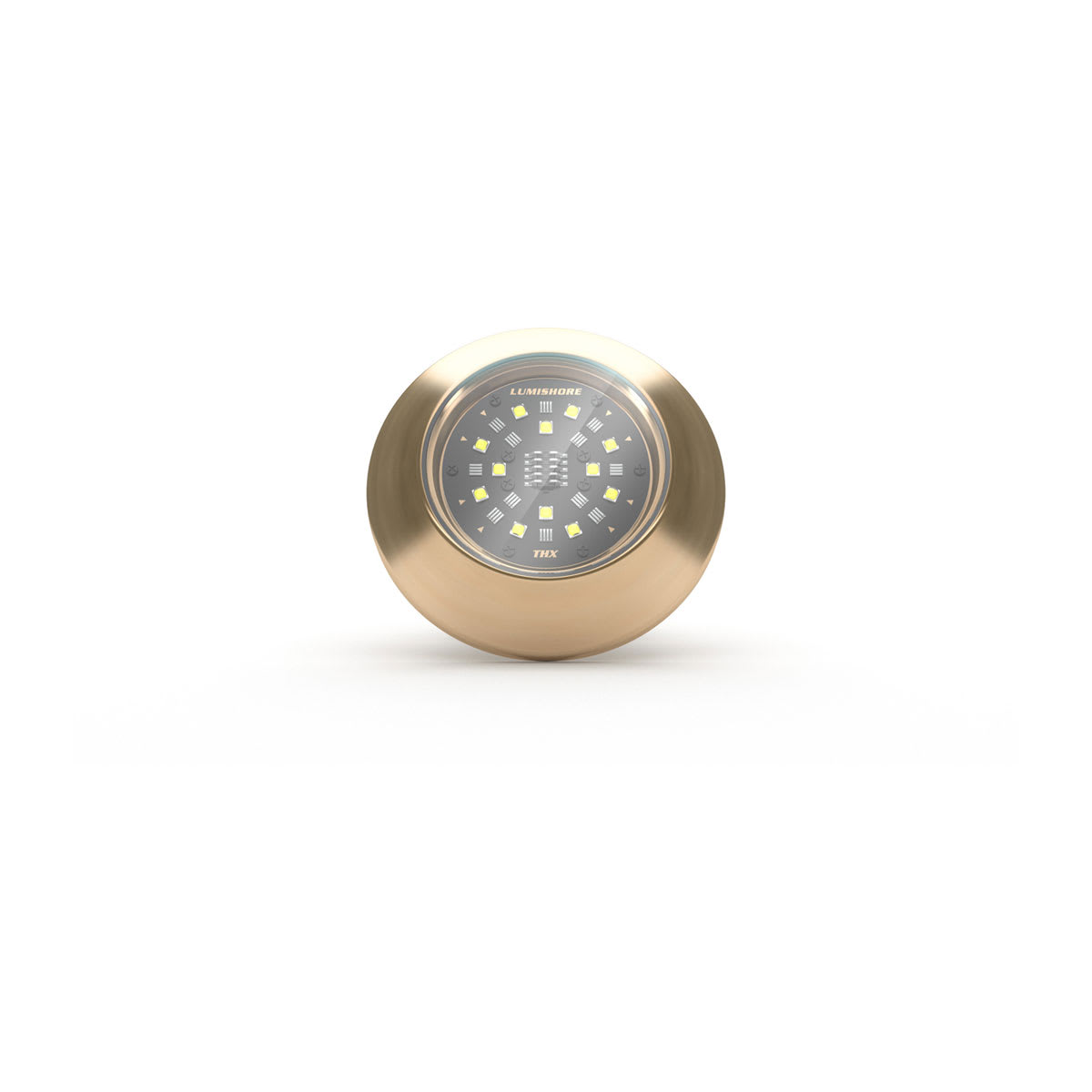

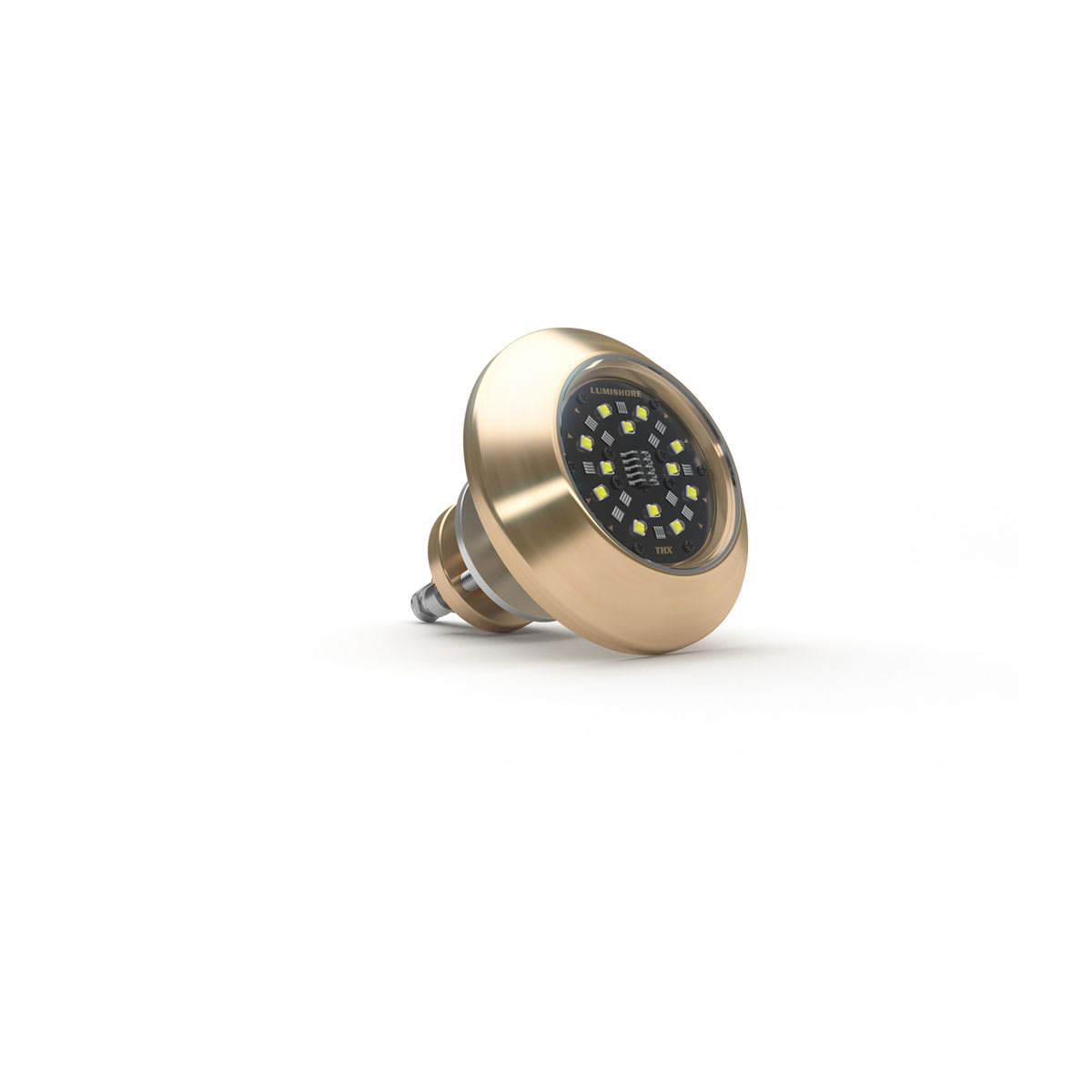

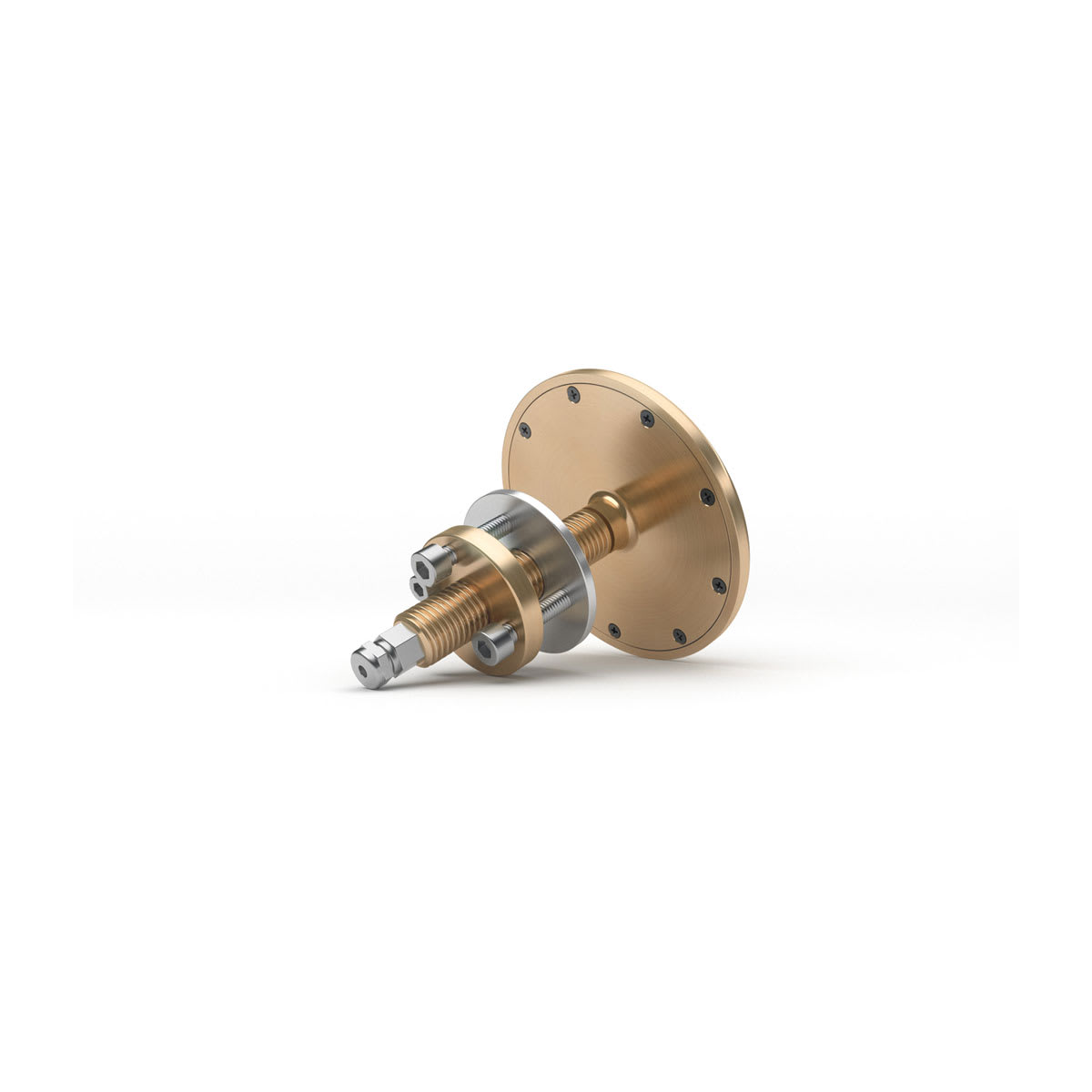

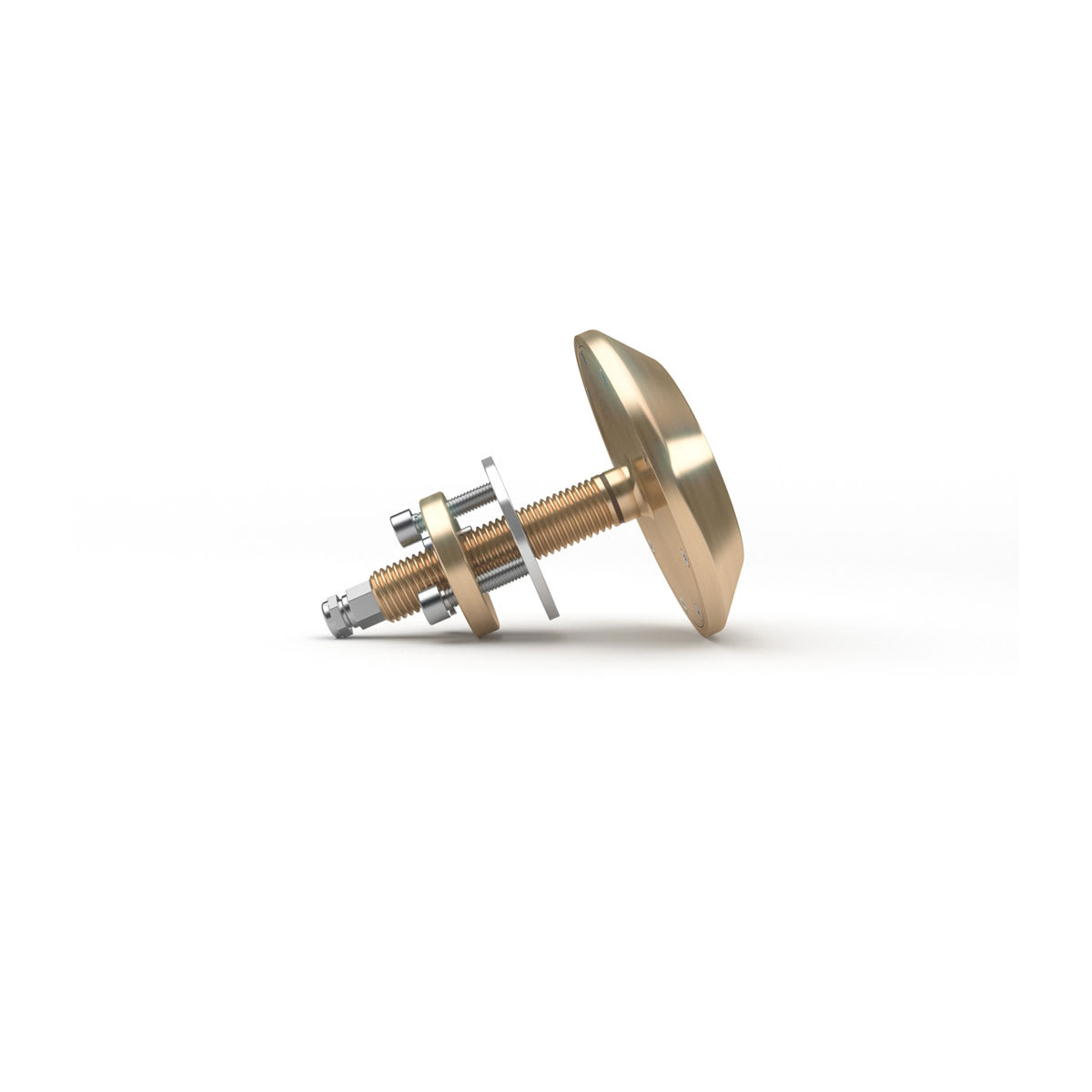

THX204 Underwater Thru-hull are blue LED boat lights with 6,100 fixture lumens, simple installation, exceptional brightness, and marine-grade construction.
General
Warranty
3 years
LED colors
Single Color, White (6500K), Blue
LED type
12 x 10 W White/24 x 3 W Blue
Fixture lumens
6,100
Beam angle
110°
Electrical installation
Simple 2 wire connection
Operating voltage
12 V/24 V
Operating voltage range
10.5-31 VDC
Current consumption 12 V (max)
4.9 A
Current consumption 24 V (max)
2.4 A
Average power draw
59 W
Construction
Marine bronze body with Borosilicate glass lens
Water and dust rating
IP68
Control Options
Direct power via on/off switch
Lighting Functionality
Functionality with direct power
Startup in model color
Applicable Controllers/Hubs
Direct power
Mounting Dimensions
Mounting diameter clearance (with bezel)
3.75" (95 mm)
Mounting depth clearance
3.78" (96 mm)
Frontal protrusion (profile)
0.7" (18 mm)
Mounting hole
0.65" (16.5 mm)
Dimensions (width)
3.75" (95 mm)
Dimensions (depth)
4.48" (114 mm)
Dimensions (height)
3.75" (95 mm)
Mechanical installation
Bonding required on non-conductive hulls (via connection on housing). Not suitable for conductive hulls, including wood and carbon fiber.
