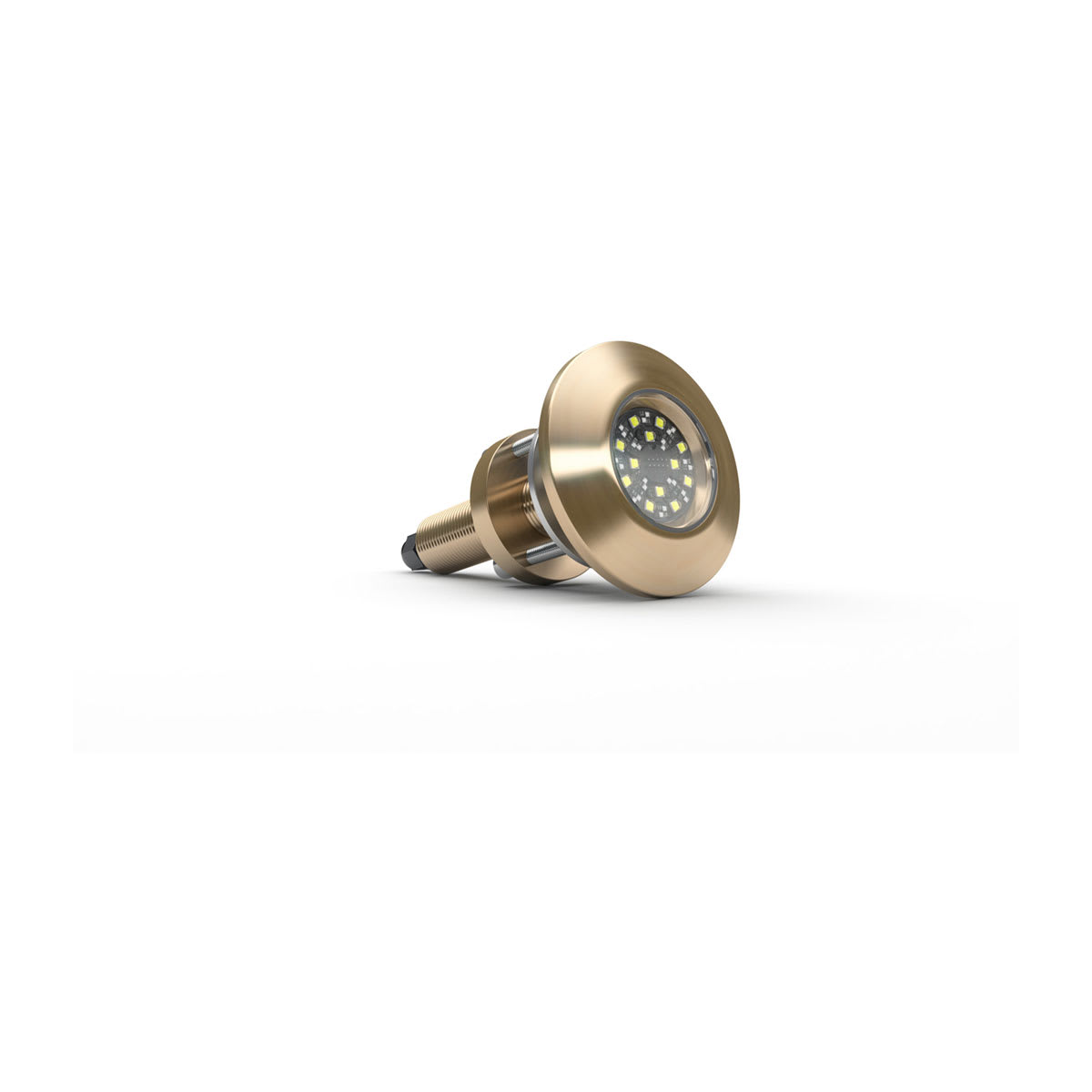

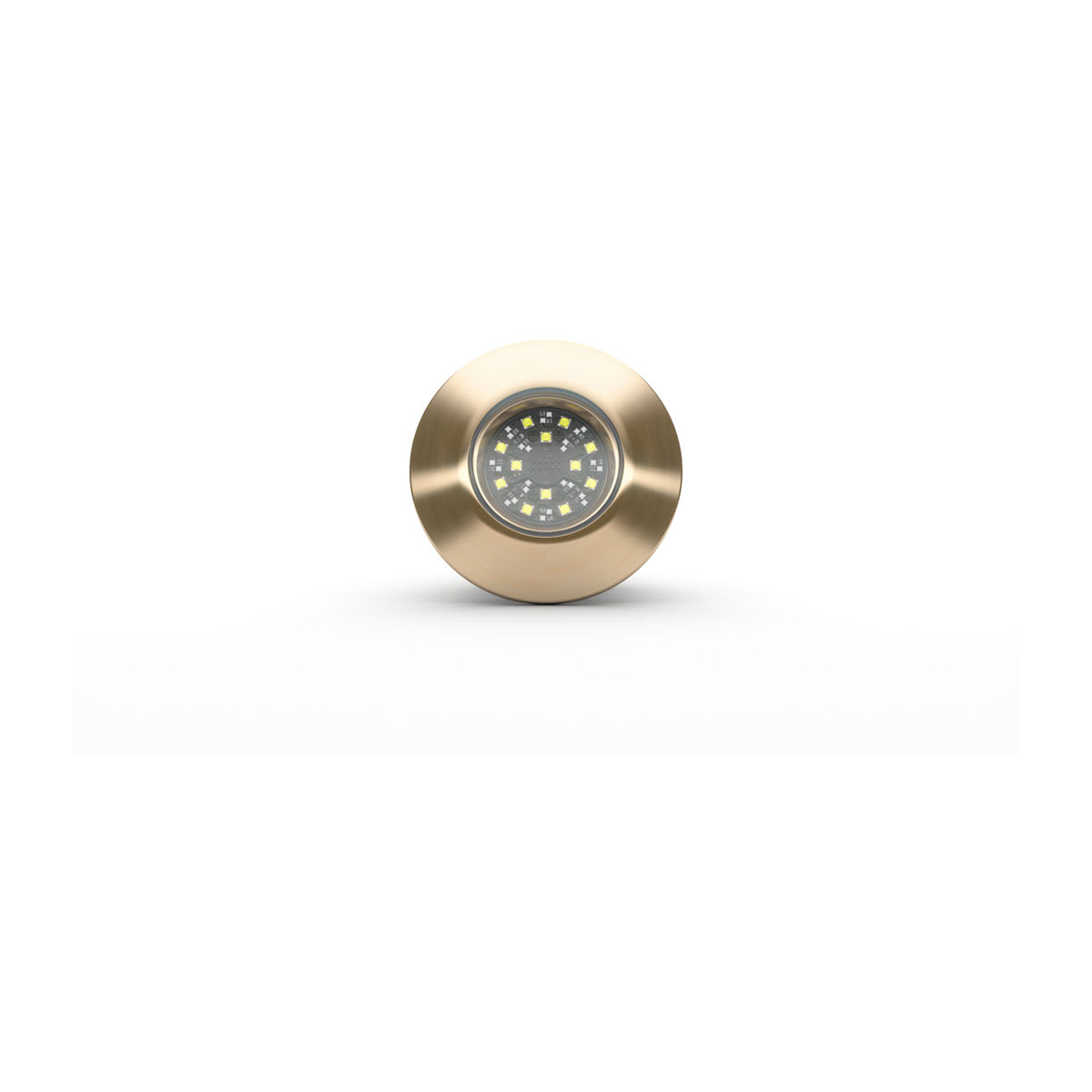

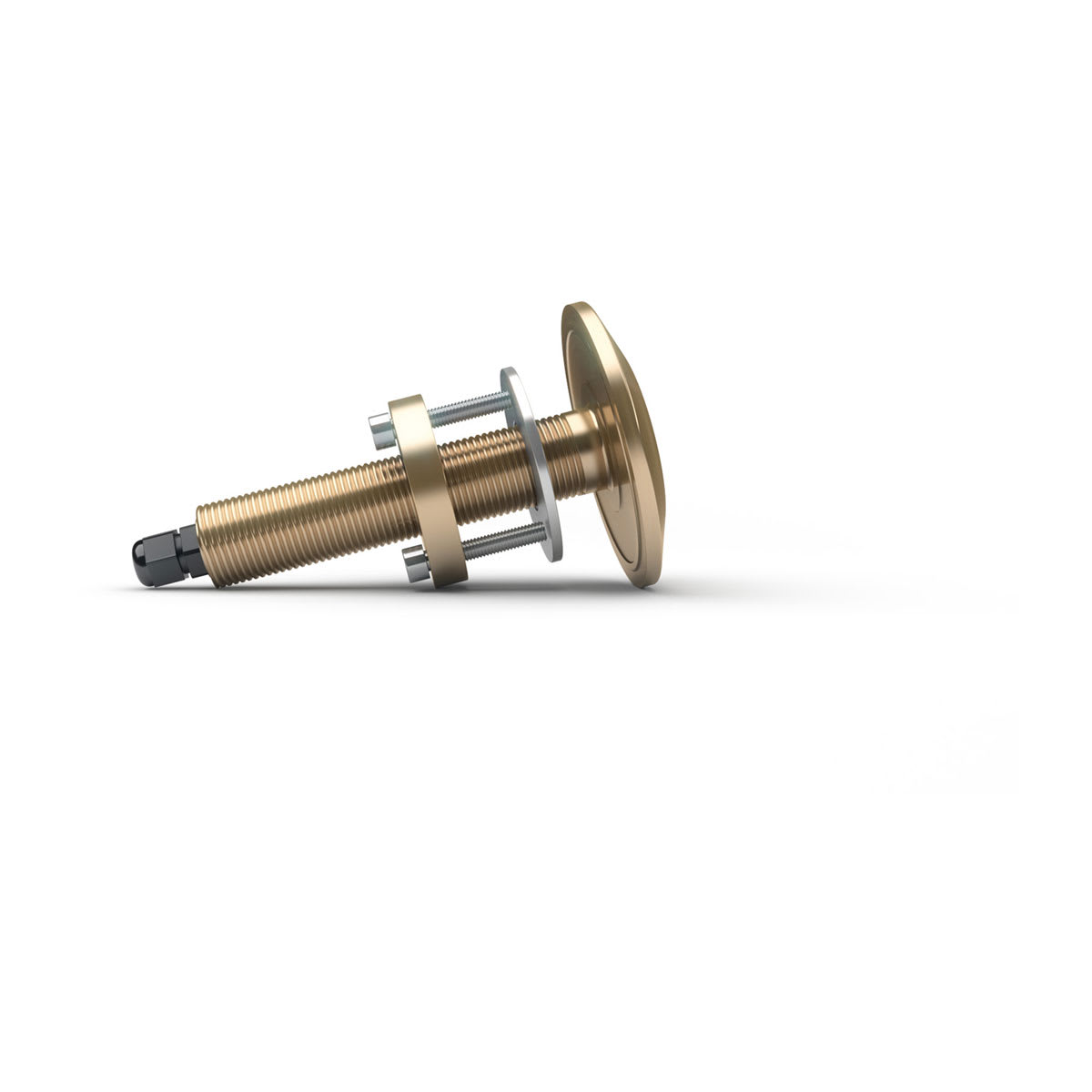

Lumishore® THX404 Underwater Thru-hull Blue/White Dual Color Light & External Driver

Lumishore® THX404 Underwater Thru-hull Blue/White Dual Color Light & External Driver

$108.99 USD
$363.00 USD $108.99 USD
Sale Sold out
THX404 Underwater Thru-hull are blue/white LED boat lights, with 8,150 fixture lumens, simple installation, and marine-grade construction.

General
Warranty 3 years
LED colors Dual Color: Blue and White (6500K)
LED type 24 x 3 W Blue/12 x 10 W White
Fixture lumens 8,150
Beam angle 110°
Electrical installation Plug and Play
Operating voltage 12 V/24 V
Operating voltage range 10.5-31 VDC
Current consumption 12 V (max) 6.4 A
Current consumption 24 V (max) 3.2 A
Average power draw 77 W
Construction Marine bronze body with Borosilicate glass lens
Water and dust rating IP68

Control Options
Momentary switch yes (via Supra Hub or via SUPRA Bridge with SUPRA Hub)
SUPRA Bridge
SUPRA i-Connect Hub
Hub required yes (SUPRA i-Connect Hub)
Compatible MFD yes (via SUPRA Bridge with SUPRA Hub)
EOS-LUX-SUPRA Display yes (via SUPRA Bridge with SUPRA Hub)

Lighting Functionality
Applicable Controllers/Hubs

SUPRA i-Connect Hub/SUPRA Bridge

Mounting Dimensions
Mounting diameter clearance (with bezel) 3.39" (86 mm)
Mounting depth clearance 5.51" (140 mm)
Frontal protrusion (profile) 0.43" (11 mm)
Mounting hole 1.06" (27 mm)
Dimensions (width) 3.39" (86 mm)
Dimensions (depth) 5.93" (151 mm)
Dimensions (height) 3.39" (86 mm)
Mechanical installation

Bonding required on non-conductive hulls (via connection on housing). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately).
